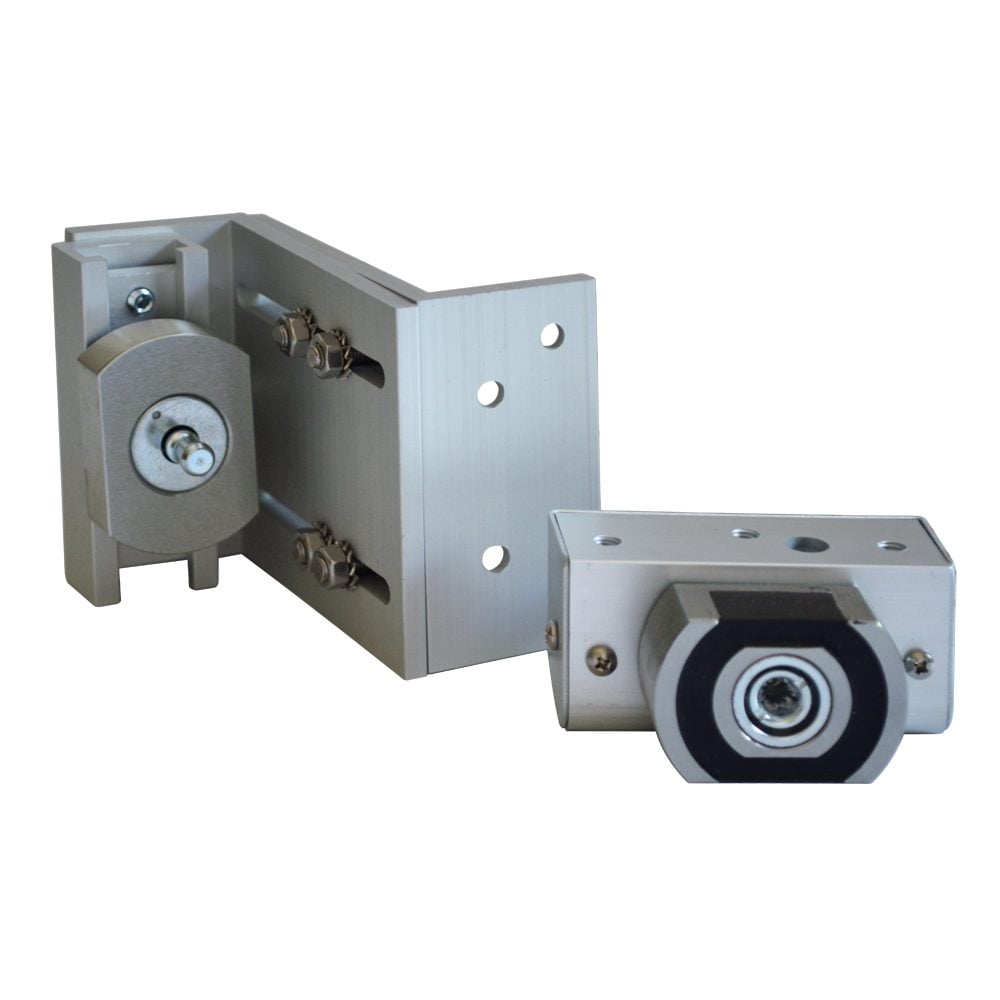

ASEC Micro Power Lock With Z&L Bracket - Open In

The Asec Micro Power Lock is a high-quality, compact electronic maglock designed specifically for inward-opening doors. Despite its modest, space-saving dimensions, this surface-mounted unit delivers an impressive holding force of 680kg (1500lbs) per lock, combining both magnetic and mechanical holding power.

Unlike traditional square-face magnets, this innovative lock features patented technology utilizing a conical aperture that receives a strong alloy pin instead of a large armature plate. This design ensures superior performance and reliability. The armature with the locating pin is fully adjustable, allowing for a hassle-free, perfect alignment even after installation.

Supplied fully assembled with a Z&L bracket, it offers quick and straightforward installation. It operates on a dual-voltage system (12V to 24V DC) and features a fail-unlocked (fail-safe) operation, ensuring safety in the event of a power loss. This monitored lock is finished in satin anodised aluminium and is suitable for single doors (please purchase two units for double doors).

Technical Specifications

• Manufacturer Reference: AS10866
• Holding Force: 680kg (1500lbs)
• Input Voltage: 12V / 24V DC
• Current Consumption: 0.28A @ 12V / 0.14A @ 24V
• Operation: Fail Unlocked (Fail Safe)
• Monitoring: Monitored
• Finish: Satin Anodised Aluminium
• Fitting: Surface mounted

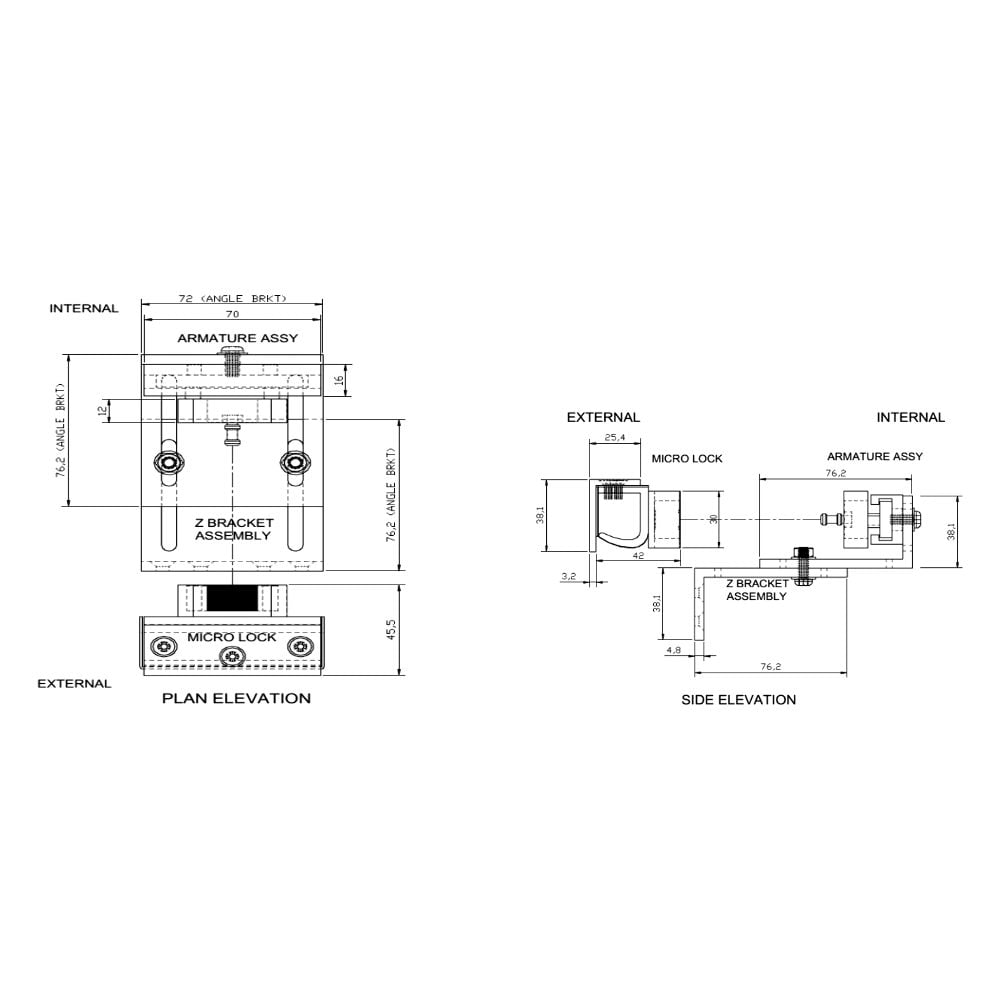

• Magnet Dimensions: 70mm (L) x 40mm (H) x 26mm (D)
• Armature Plate Dimensions: 70mm (W) x 26mm (H) x 12mm (D)
• Handing: Inward opening (Open In)
• Suits: Single doors (two units required for double doors)
• Weather Resistant: No
• Guarantee: 1 Year

Key Features

• High Holding Force: Delivers an impressive 680kg of holding force from a highly compact unit.
• Patented Technology: Uses a conical aperture and strong alloy pin instead of a large armature plate, combining magnetic and mechanical force.
• Easy Alignment: The adjustable armature with locating pin ensures a perfect, no-fuss alignment even after installation.

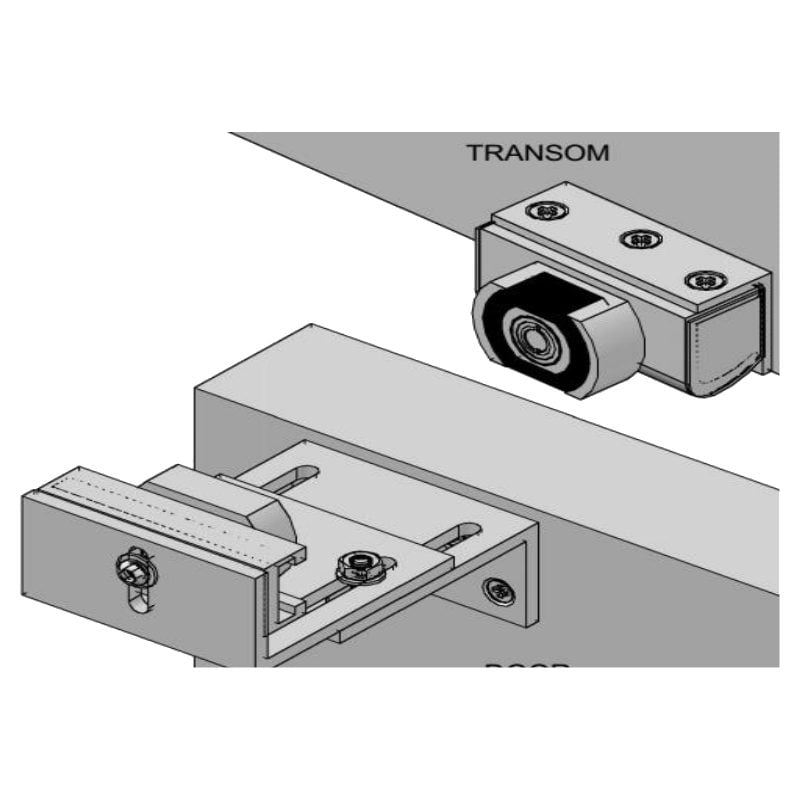

• Supplied Fully Assembled: Comes complete with a Z&L bracket for immediate, straightforward installation on inward-opening doors.
• Fail-Safe Operation: Fail-unlocked configuration ensures the door unlocks automatically during a power cut for safety.
• Dual Voltage: Compatible with both 12V DC and 24V DC systems.
