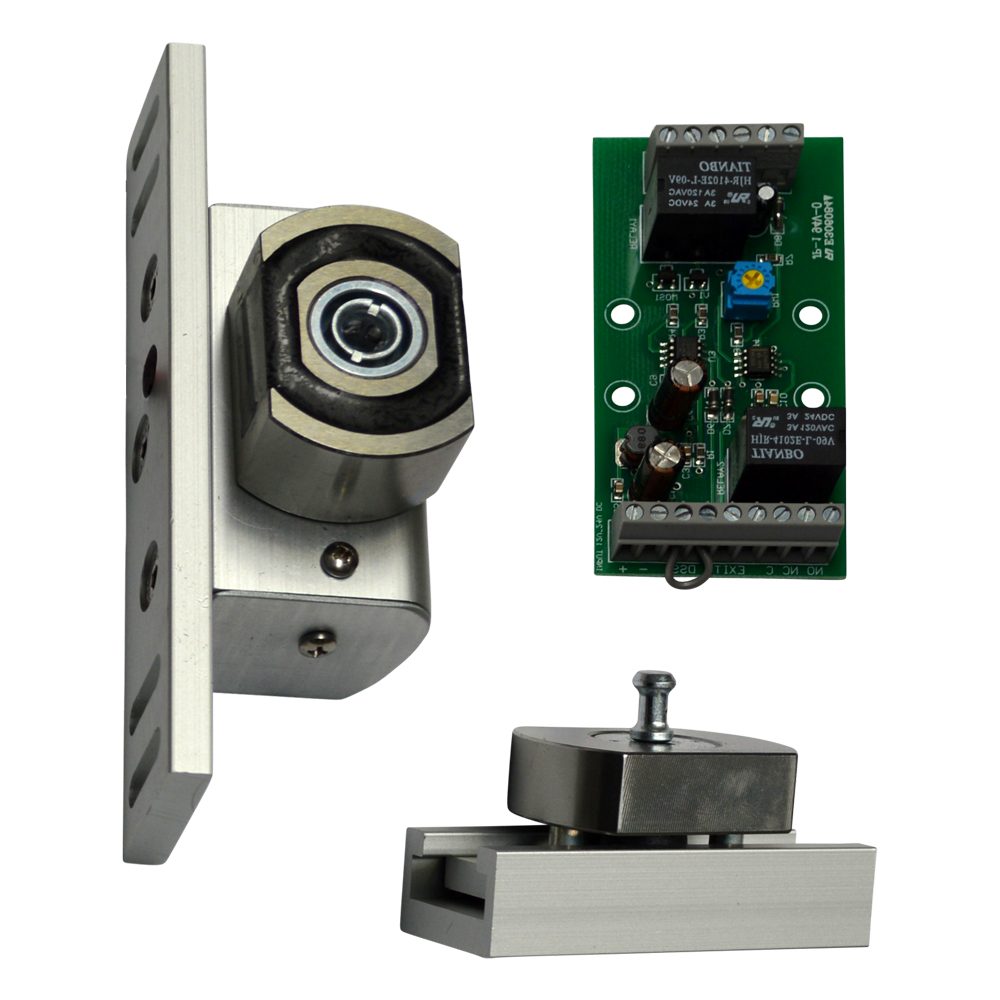

ASEC Micro Power Lock With Standard Bracket - Open Out

The Asec Micro Power Lock is a high-quality, compact electronic magnetic lock designed for applications where a small, unobtrusive security solution is required. Despite its modest size, this surface-mounted maglock boasts an impressive holding force of 680kg (1500lbs), providing robust security without dominating the door frame.

Supplied fully assembled with a standard fixing bracket, this unit is specifically designed to suit outward-opening doors. It operates on a dual-voltage system (12V DC or 24V DC) and features a fail-unlocked (fail-safe) operation, ensuring safe egress in the event of a power failure. Additionally, the lock is fully monitored, allowing for seamless integration with access control systems to track the door's status. It is finished in a sleek satin anodised aluminium and is suitable for single doors (please purchase two units if installing on double doors).

Technical Specifications

• Holding Force: 680kg (1500lbs)
• Input Voltage: 12V / 24V DC (Selectable)
• Current Consumption: 0.28A @ 12V / 0.14A @ 24V
• Operation: Fail Unlocked (Fail Safe)
• Monitored: Yes
• Fitting: Surface mounted
• Fixing: Standard bracket
• Handing: Outward opening
• Finish: Satin Anodised Aluminium
• Magnet Dimensions: 128mm (L) x 40mm (H) x 26mm (D)
• Armature Plate Dimensions: 70mm (W) x 26mm (H) x 12mm (D)
• Weight: 680g
• Guarantee: 1 Year

Key Features

• Compact Design: Ideal for doors requiring a small, unobtrusive, and high-quality lock.
• High Holding Force: Delivers a powerful 680kg of resistance despite its modest footprint.
• Fully Monitored: Built-in monitoring allows for easy integration with access control and alarm systems.
• Dual Voltage: Supports multiple voltages from 12V DC to 24V DC for installation flexibility.
• Outward Opening: Specifically designed to suit outward-opening door configurations.
• Supplied Fully Assembled: Ready for installation straight out of the box with the included standard bracket.
