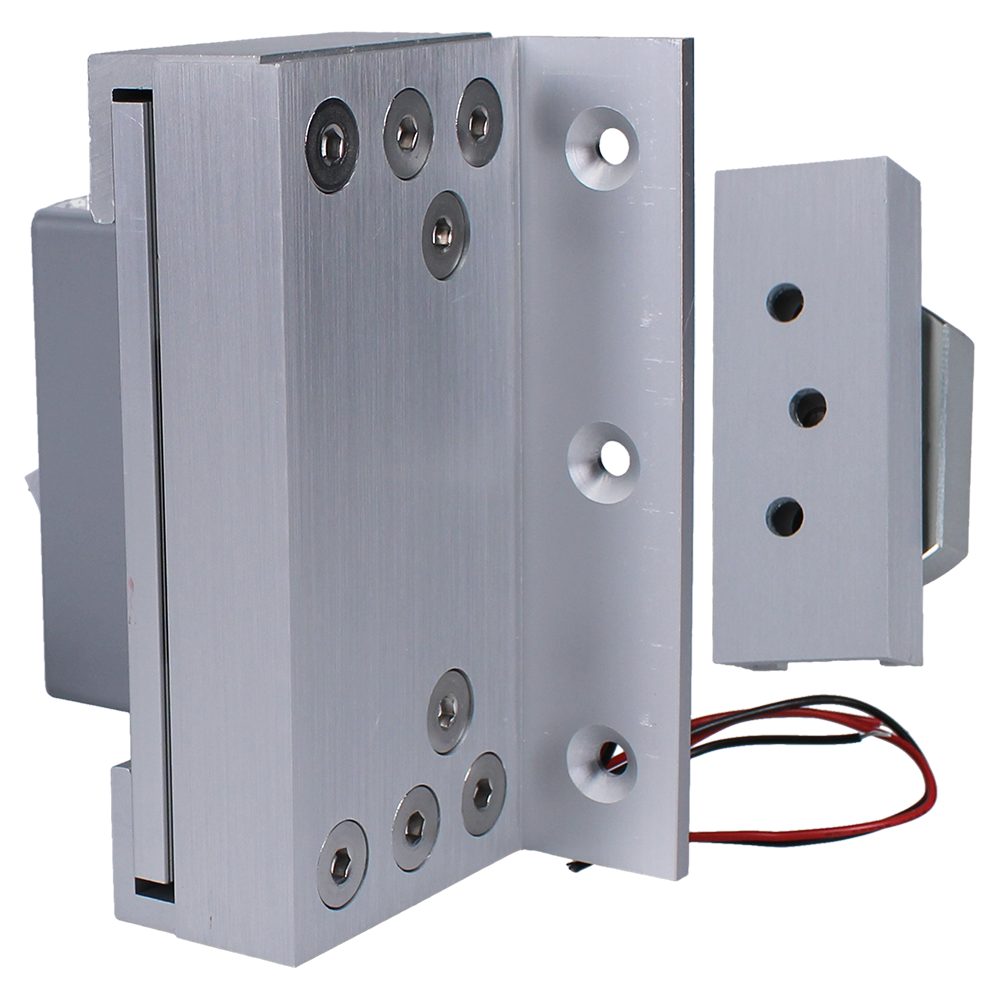

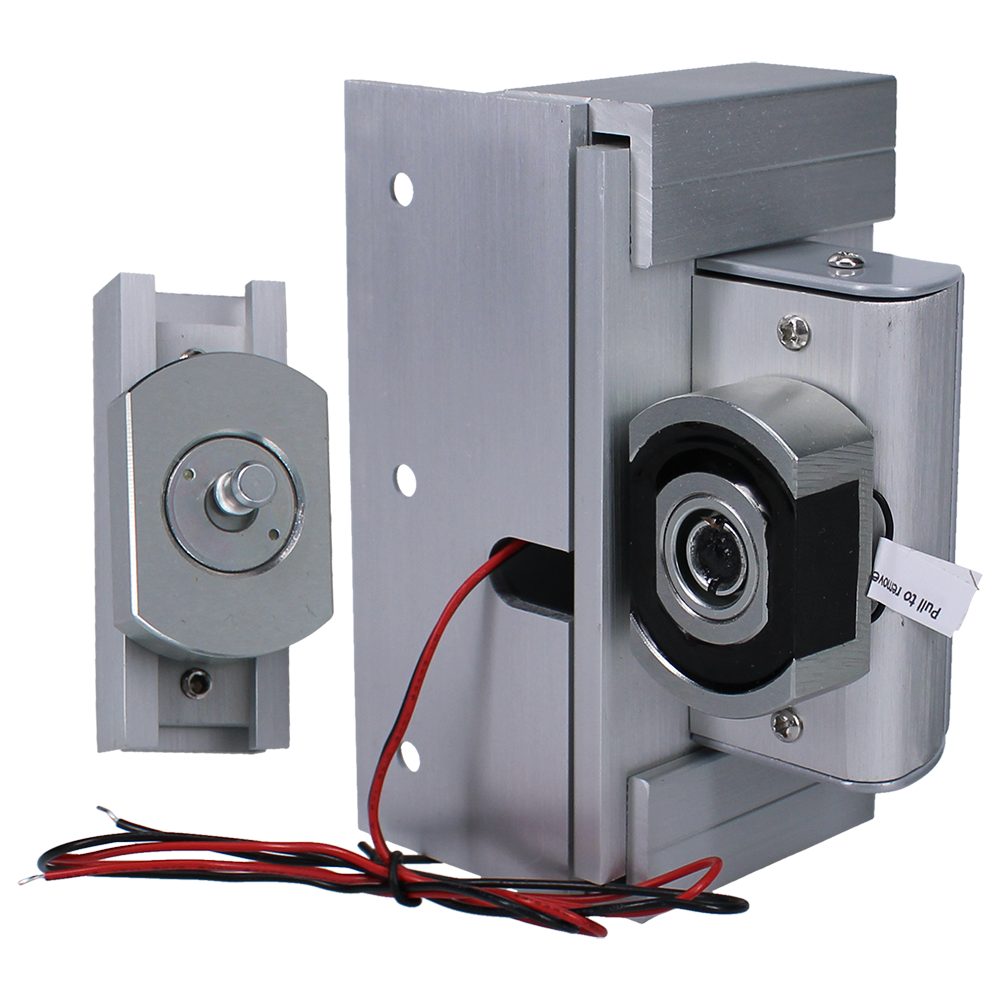

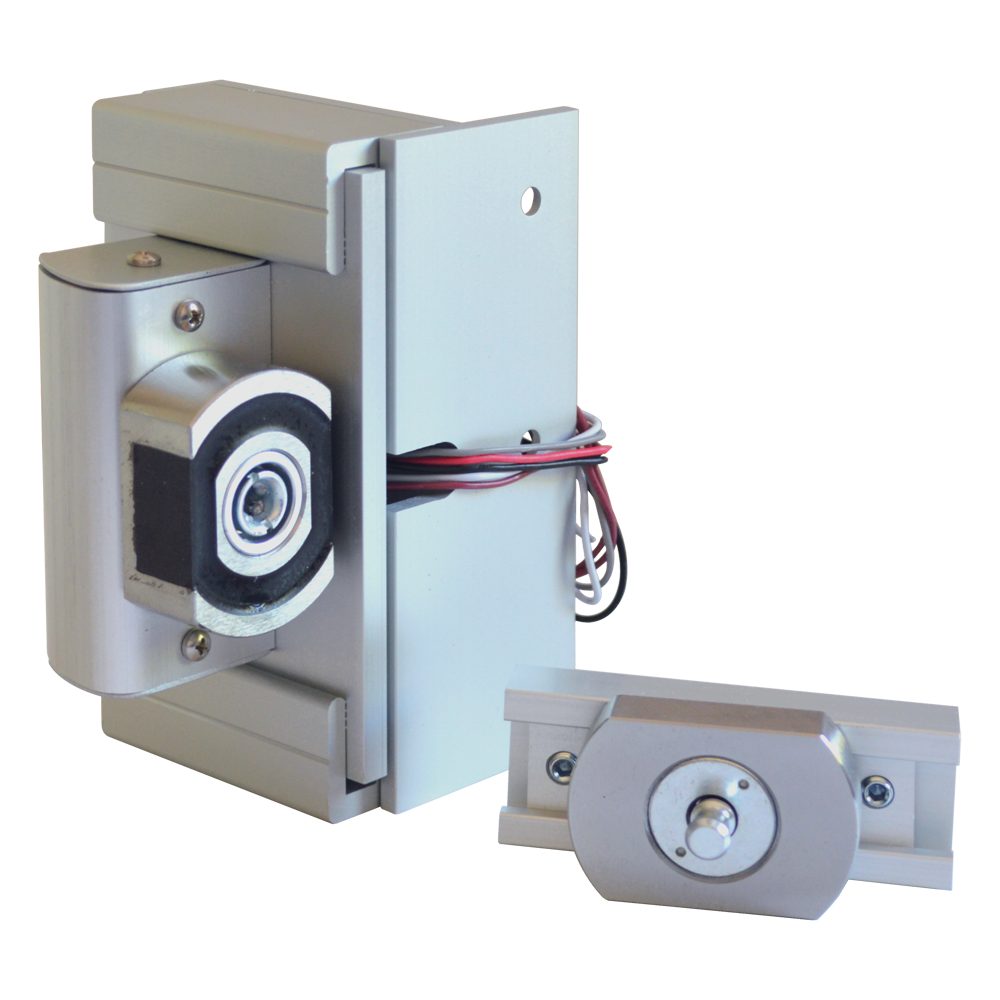

ASEC Micro Power Lock With SDGi Bracket - Open Out

The Asec Micro Power Lock is a high-quality, compact electronic magnetic lock designed specifically for outward-opening aluminium doors. Despite its modest, unobtrusive size, this robust maglock delivers a powerful holding force of 680kg (1500lbs), making it an excellent choice for securing doors where a discreet yet highly secure locking solution is required.

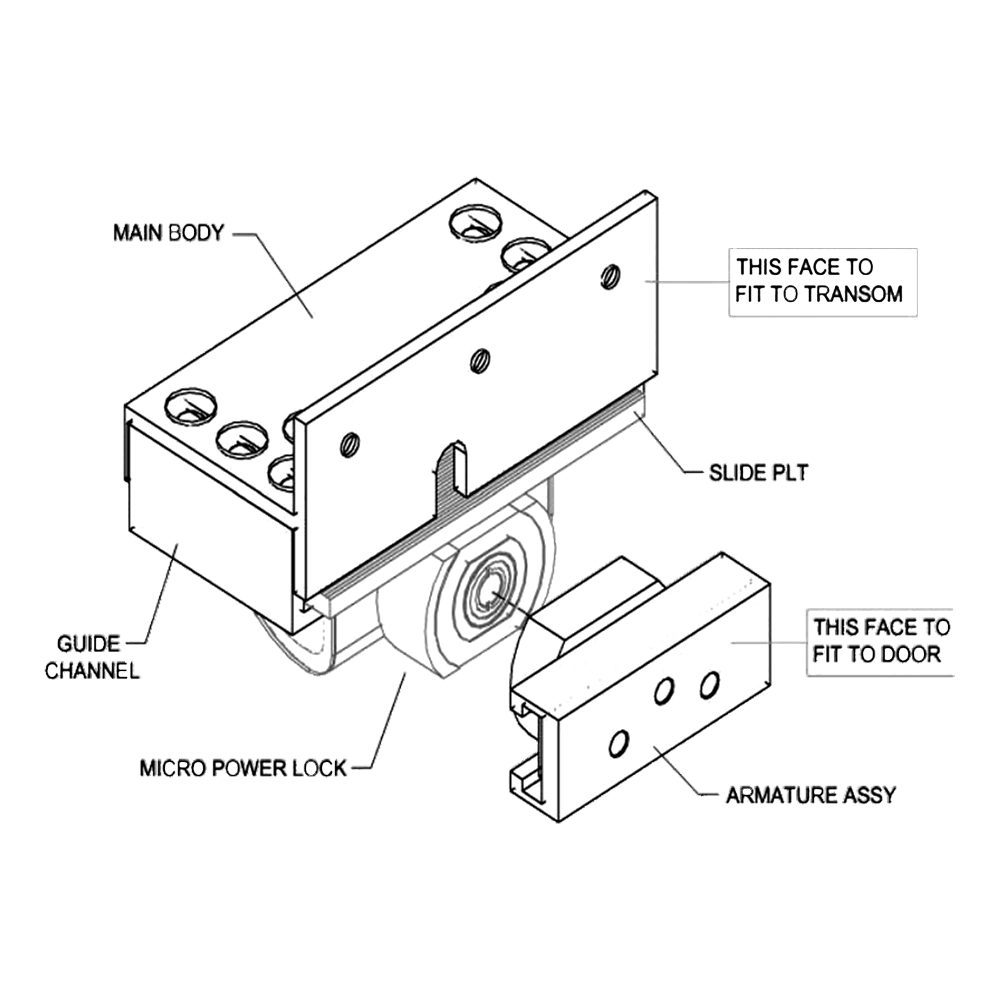

This unit is supplied fully assembled and features the unique SDGi adjustable bracket, giving installers complete freedom to position the lock precisely where needed. The armature is equipped with an adjustable locating pin, ensuring a perfect, hassle-free alignment even after installation. Operating on a multi-voltage range from 12V DC to 24V DC, this monitored lock operates on a fail-unlocked (fail-safe) basis, ensuring safety in the event of a power loss.

Please note: This product is designed for single doors. For double door applications, please purchase two units.

Technical Specifications

• Manufacturer Reference: AS10865
• Holding Force: 680kg (1500lbs)
• Input Voltage: 12/24V DC
• Current Consumption: 0.28A @ 12V / 0.14A @ 24V
• Operation: Fail Unlocked (Fail-Safe)
• Monitored: Yes
• Finish: Satin Anodised Aluminium
• Fitting: Surface
• Fixing: SDGi Bracket

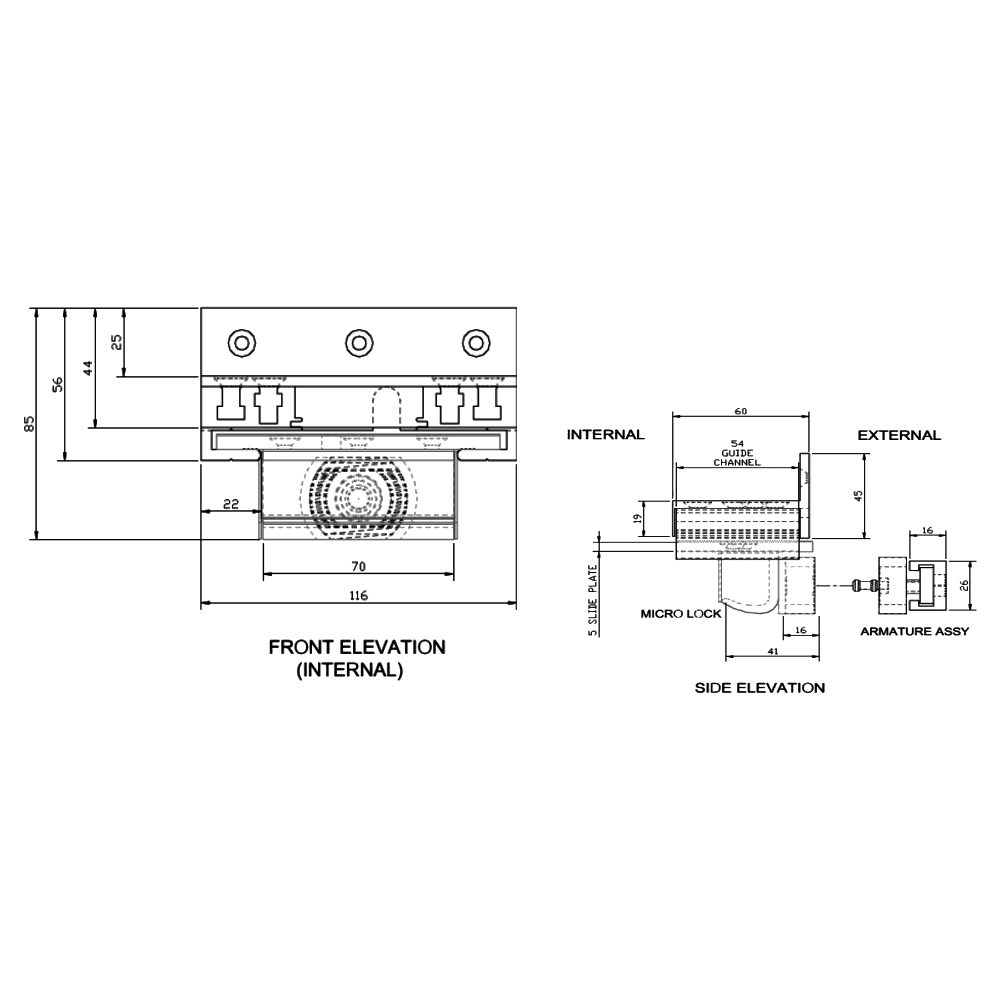

• Magnet Dimensions: 116mm (L) x 41mm (H) x 25mm (D)
• Plate Dimensions: 70mm (W) x 26mm (H) x 12mm (D)
• Overall Depth: 60mm
• Weight: 740g
• Handing: Outward Opening
• Weather Resistant: No
• Guarantee: 1 Year

Key Features

• Compact & Unobtrusive: Ideal for installations requiring a high-quality, low-profile electronic lock.
• Exceptional Holding Force: Delivers a powerful 680kg (1500lbs) of resistance per lock.
• SDGi Adjustable Bracket: Supplied fully assembled with an adjustable bracket for ultimate installation flexibility.
• Perfect Alignment: Features an adjustable locating pin on the armature to guarantee hassle-free alignment post-installation.
• Multi-Voltage Compatibility: Supports both 12V DC and 24V DC systems.
• Fail-Safe Operation: Automatically unlocks in the event of power loss to ensure safe egress.
