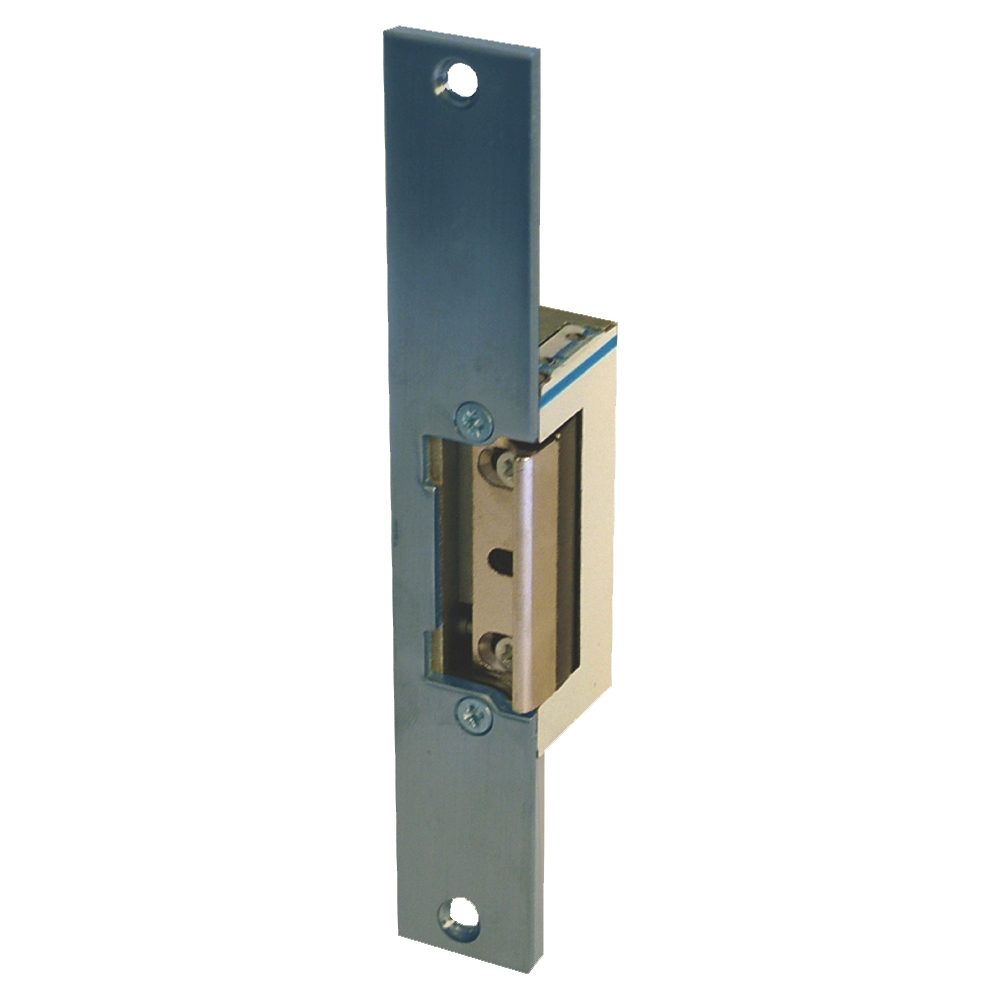

ASEC M12 Mortice Release With Adjustable Jaw

The Asec M12 Mortice Release with Adjustable Jaw is a reliable electric strike designed for low to medium traffic doors. Fitted within the door frame and used in conjunction with a latch, it allows the door to be unlocked remotely as part of an access control system. The adjustable jaw (up to 5mm) provides excellent tolerance during installation and allows for easy adjustment should the door drop over time.

This versatile range of mortice releases is available in several configurations to suit your specific installation requirements. You can choose from multiple input voltages (12V AC, 12V DC, or 24V DC) and operating modes (Fail Locked or Fail Unlocked). The 12V DC and 24V DC versions are continuously rated for reliable, long-term performance.

Please select your preferred voltage, current consumption, operation mode, and weight from the options below to find the perfect fit for your security setup.

Technical Specifications

• Brand: Asec
• Fitting: Mortice
• Holding Force: 300kg (660lbs)

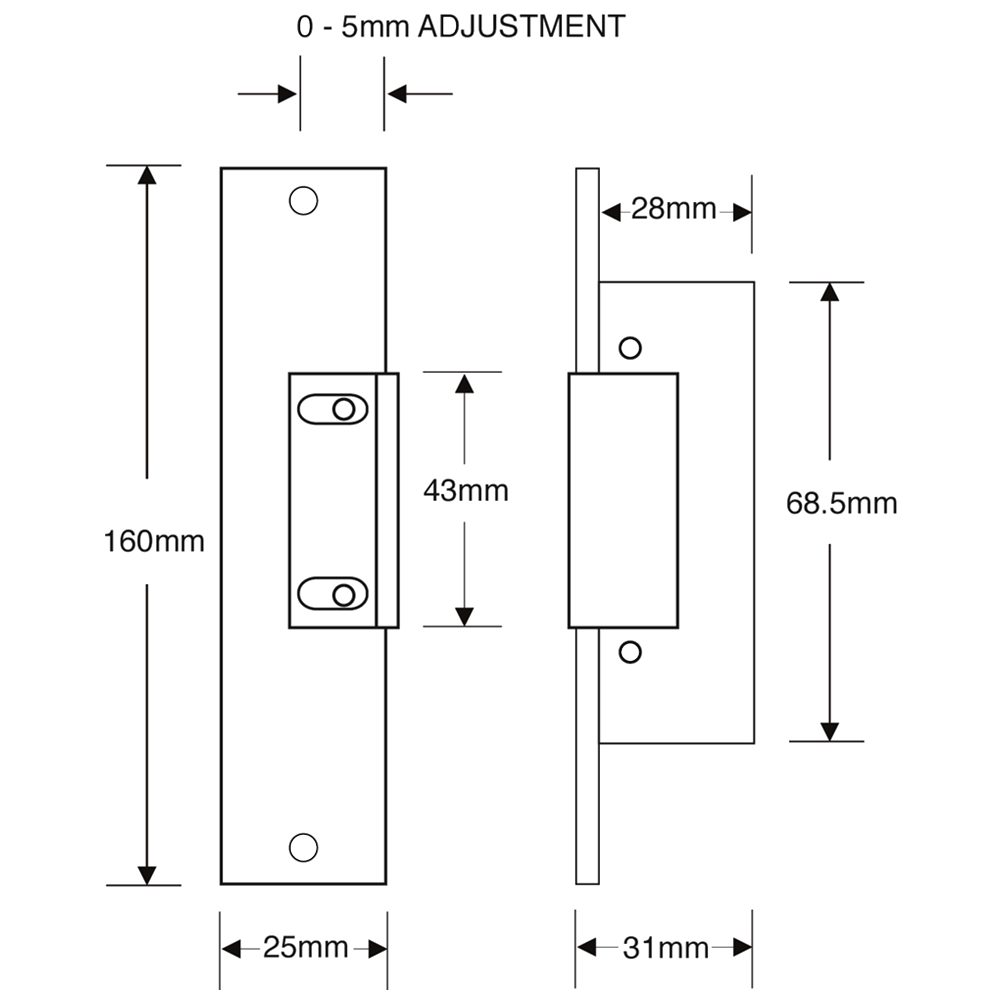

• Faceplate Dimensions: 160mm (H) x 25mm (W)
• Body Dimensions: 67mm (H) x 28mm (D)
• Jaw Dimensions: 41mm (H) x 7mm (D) x 14mm to 17mm (W)
• Adjustable Jaw: Yes (up to 5mm)
• Input Voltage: 12V AC, 12V DC, or 24V DC (please choose from the options below)
• Operation: Fail Locked or Fail Unlocked (please choose from the options below)
• Current Consumption: 0.08A, 0.16A, or 0.65A (please choose from the options below)
• Weight: 240g or 250g (please choose from the options below)
• Manufacturer Reference: AS9524, AS9525, AS9526, AS9527, or AS9528 (please choose from the options below)
• Barcode: Multiple options available (please choose from the options below)
• Finish: Grey
• Monitored: No
• Weather Resistant: No
• Guarantee: 1 Year

Key Features

• Adjustable Jaw: Features an adjustable jaw up to 5mm to allow for easy alignment and tolerance during installation or if the door drops over time.
• Low to Medium Duty: Ideal for low to medium traffic internal doors.
• Continuously Rated: 12V DC and 24V DC models are continuously rated for reliable, ongoing operation.
• Flexible Configurations: Available in multiple voltages and either Fail Locked or Fail Unlocked operations to suit your access control system (please choose from the options below).
• 1-Year Guarantee: Backed by a 1-year manufacturer's guarantee for peace of mind.
