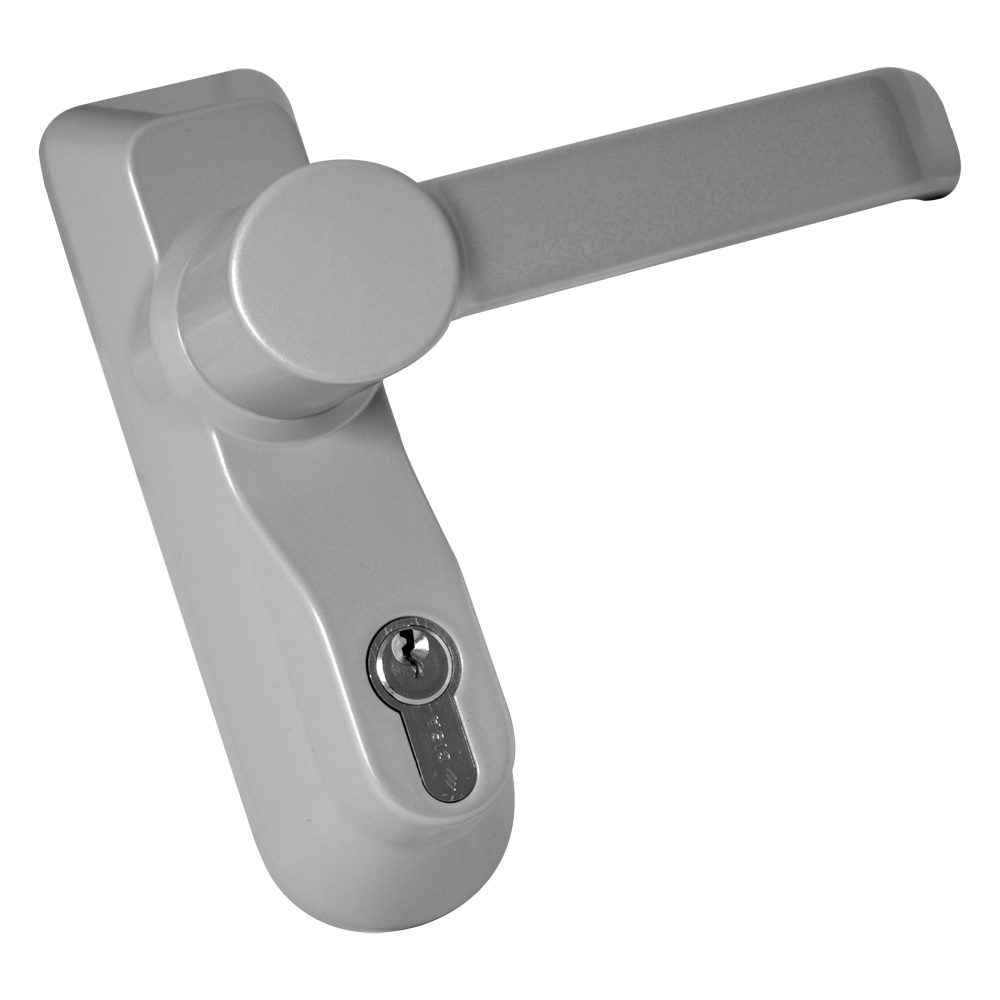

ASEC Lever Operated Outside Access Device

The Asec Lever Operated Outside Access Device (OAD) is a robust, high-security external handle designed to work in conjunction with internal emergency exit hardware, such as panic bars or push pads. It provides a secure, reliable method for authorised personnel to gain entry from the outside of a building through emergency exit doors.

A standout security feature of this unit is its anti-vandal clutch mechanism. When locked, the lever handle rotates freely without engaging the latch mechanism, protecting the internal components from being forced, snapped, or damaged by vandals.

This versatile device is suitable for both timber and metal doors ranging from 40mm to 70mm in thickness. It is fully reversible to suit left or right-handed doors and is supplied complete with a high-quality Cisa Euro cylinder. Additionally, the lever design is BS 8300 compliant, making it suitable for inclusive building accessibility.

Technical Specifications

• Manufacturer Reference: AS3107
• Finish: Silver Enamelled
• Handing: Reversible
• Mechanism: Euro Cylinder (supplied with Cisa Euro cylinder)
• Door Thickness: Suitable for doors between 40mm and 70mm thick
• Door Type: Timber and metal doors

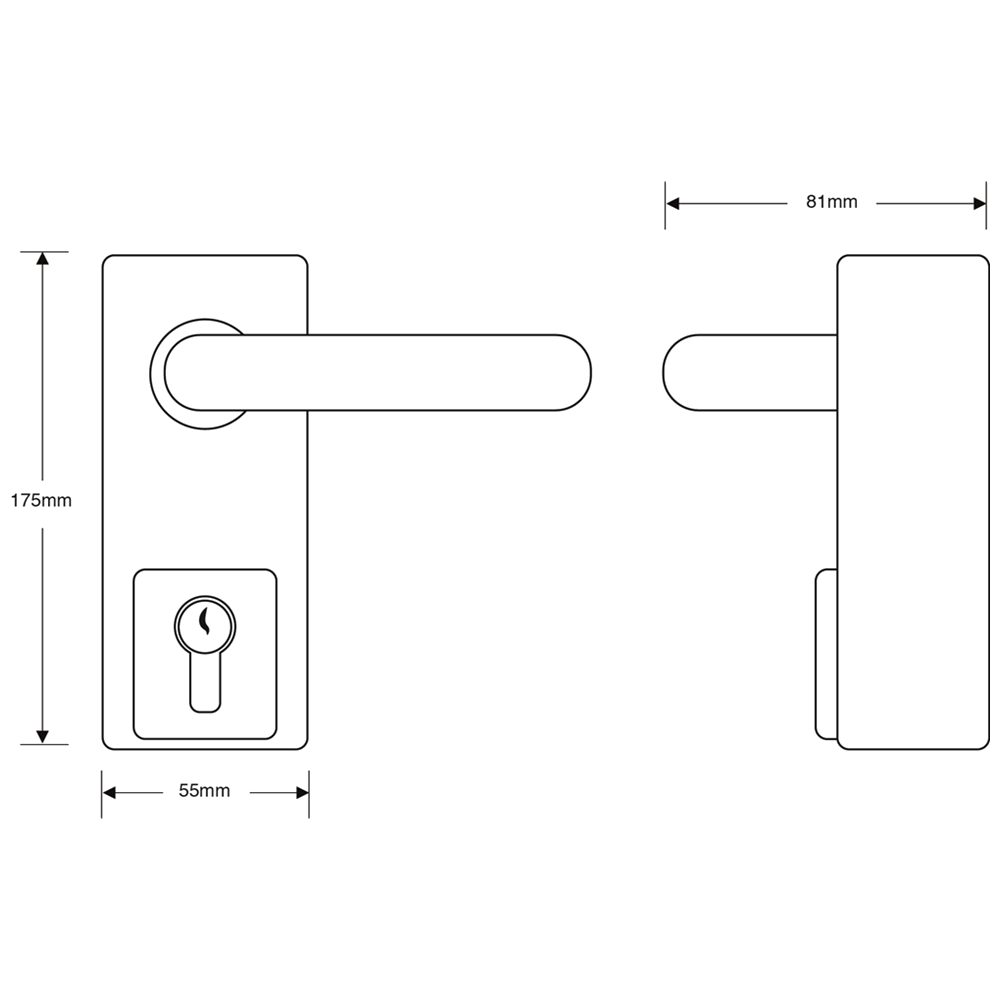

• Height: 175mm
• Width: 55mm
• Depth: 81mm
• Weight: 1.17kg

Key Features

• Anti-Vandal Clutch Mechanism: Lever rotates freely when locked to prevent forced entry and protect internal components from damage
• BS 8300 Compliant: Designed to meet inclusive building accessibility standards
• Complete Kit: Supplied complete with a Cisa Euro cylinder and all necessary fixings
• Versatile Application: Suitable for both timber and metal doors
• Reversible Design: Can be easily installed on both left and right-handed doors
