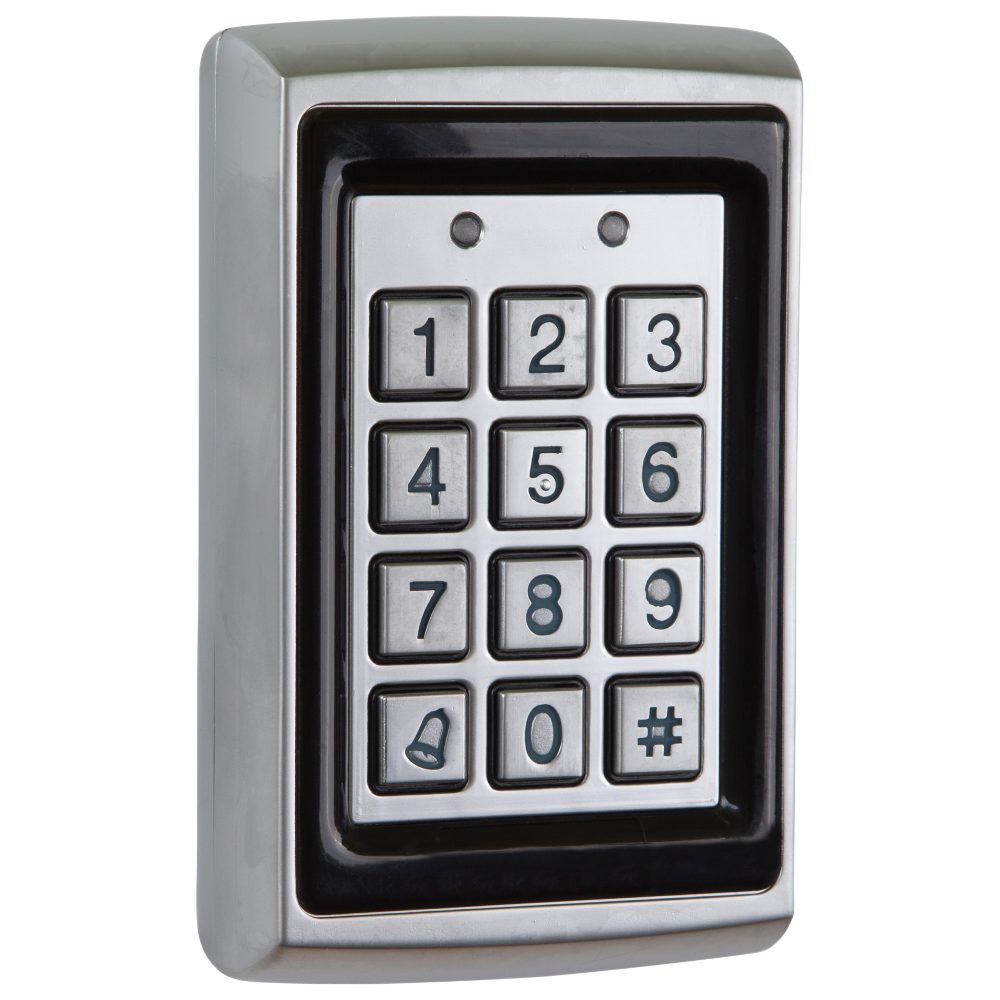

ASEC Internal Surface Proximity Keypad

The Asec Internal Surface Proximity Keypad (AS11891) is a versatile and robust access control solution designed for surface-mounted internal installations. Featuring a durable zinc alloy electroplated casing, this keypad combines a traditional 12-button PIN entry system with an integrated proximity reader compatible with EM cards and fobs. This dual-method entry provides flexible security options for up to 500 users.

Engineered with PCB conformal coated components, the keypad is highly reliable. While designed primarily for internal use, it can be adapted for external applications when fitted with the Asec Rainshield (AS11892, available separately). It features adjustable output timers on both Lock and Aux outputs, an input for a separate Wiegand reader, and optional backlighting for low-light visibility. The unit is supplied complete with a security screw for enhanced tamper resistance.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS11891
• Barcode: 5056240103969
• Input Voltage: 12V DC
• User Capacity: Up to 500 users
• Number of Buttons: 12
• Width: 76mm
• Depth: 25mm
• Weight: 1kg
• Illumination: Yes (Backlit)
• Visual Indication: Yes (LED)
• Weather Resistance: No (suitable for external use only when fitted with Asec Rainshield AS11892, sold separately)
• Packaging: Boxed

Key Features

• Dual Access Methods: Combines a 12-button keypad with a built-in proximity reader for EM cards or fobs.
• Robust Construction: Zinc alloy electroplated casing with PCB conformal coated components for durability.
• Flexible Outputs: Features both Lock and Aux outputs with adjustable output timers.
• Wiegand Input: Includes an input for connecting a separate Wiegand reader.
• Enhanced Visibility: Backlit keypad and LED visual indicators make operation easy in low-light conditions.
• Tamper Resistant: Supplied with a security screw for secure installation.
