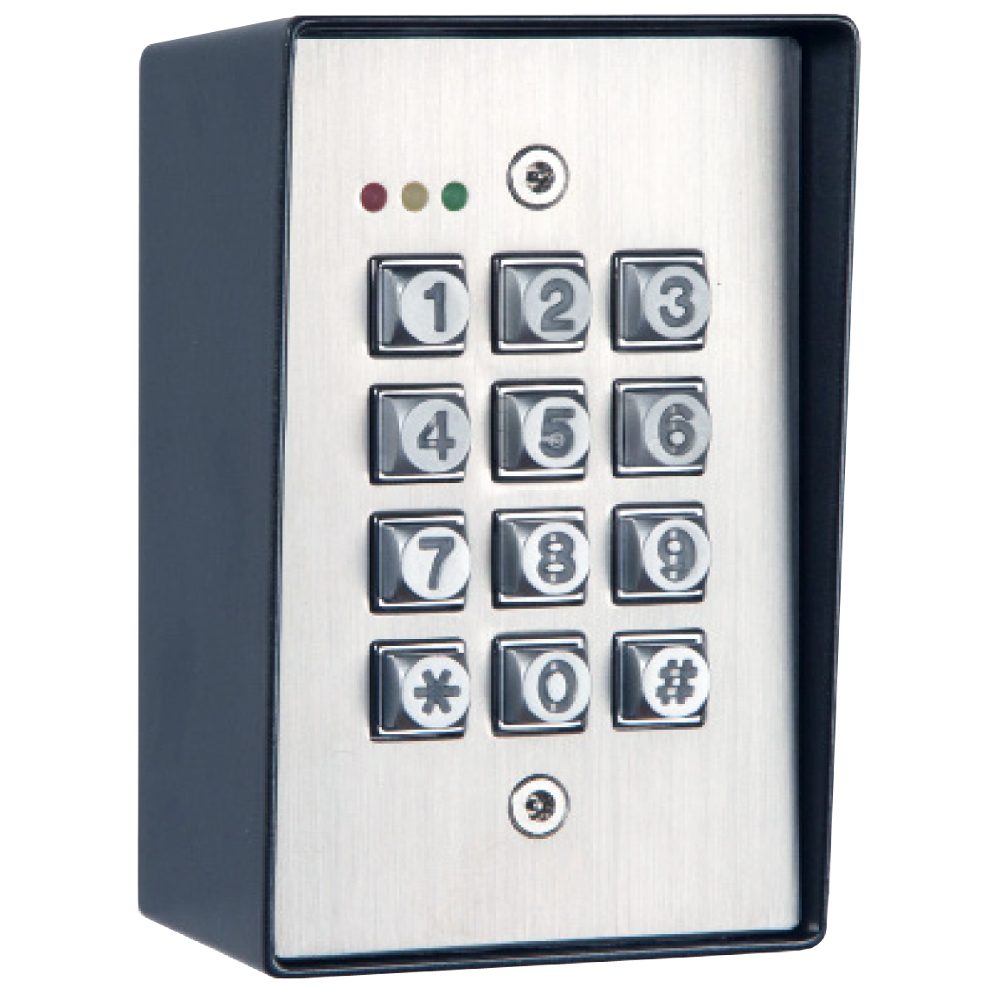

ASEC Internal/External Heavy Duty Keypad

The Asec Internal/External Heavy Duty Keypad is a robust and stylish digital access control solution designed for high-traffic environments. Built to withstand demanding conditions, this vandal-resistant keypad features a durable metal housing with a stainless steel faceplate and keys, making it ideal for both indoor and outdoor installations.

With support for up to 100 users and over 1 million PIN combinations, it offers flexible and secure access management. The keypad is straightforward to program directly via the keys and features backlit buttons for easy operation in low-light conditions. It also includes a dual-relay output, a latching feature, and an adjustable output timer, providing versatile control over your entry points. Fixings are supplied for convenient wall or post mounting.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS11611
• Barcode: 5055120788265
• Input Voltage: 12/24V DC
• Current Consumption: Max 150mA
• Width: 79mm
• Depth: 54mm
• Height: 125mm
• Weight: 518g
• User Capacity: Up to 100 users
• Programming: Via keypad
• Pack Quantity: 1

Key Features

• Heavy-Duty Construction: Vandal-resistant metal housing with a stainless steel plate and keys, suitable for internal and external use.
• Backlit Keys: High-visibility backlit buttons and clear LED visual indication for easy night-time operation.
• Dual Relay Output: Dual-output door mode provides flexible control for multiple entry points.
• Latching Feature: Includes a latching function and an adjustable output timer for tailored access control.
• High Security: Supports up to 100 users with over 1 million possible PIN combinations.
• Flexible Mounting: Supplied with fixings suitable for either wall or post mounting.
