ASEC High Security Escutcheon

The Asec High Security Escutcheon offers a robust layer of protection for euro cylinder locks, designed specifically to combat common forced entry methods such as cylinder snapping. It is manufactured from high-grade 316 stainless steel, ensuring exceptional durability and resistance to harsh weather conditions. This escutcheon has been extensively salt spray tested to ASTM B117 for 2,000 hours and features a lifetime coating guarantee, making it ideal for both internal and external applications.

With its BSI 2-Star Kitemark and Secured by Design approval, this high-security escutcheon provides peace of mind. The bevelled edge design makes it extremely difficult for intruders to grip with pliers or other tools, while the secure bolt-through fixings ensure a solid, tamper-resistant installation.

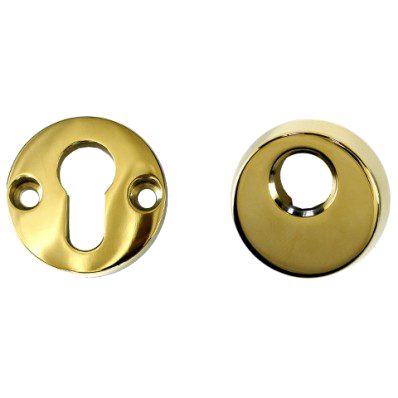

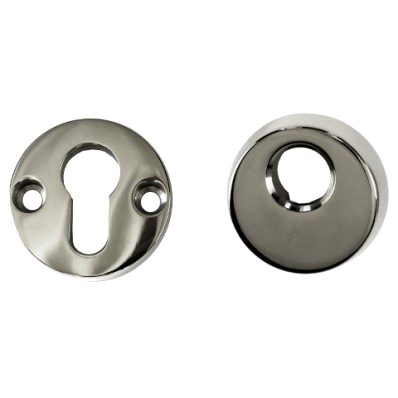

This product is available in multiple finishes, including Polished Stainless Steel, Satin Stainless Steel, and PVD Gold, with corresponding manufacturer references (AS12181, AS12182, and AS12183). Please choose your preferred finish and reference option from the selection below.

Technical Specifications

• Diameter: 50mm
• Screw Centres: 37mm
• Escutcheon Depth: Inner 8mm / Outer 12mm
• Material: 316 Grade Stainless Steel
• Fixing Type: Bolt-through fixings
• Mechanism Compatibility: Euro cylinder (not included)
• Standards: BSI 2 Star Kitemarked, Secured by Design approved
• Salt Spray Testing: Tested to ASTM B117 for 2,000 hours
• Finishes Available: Polished Stainless Steel, Satin Stainless Steel, and PVD Gold (please select from the options below)
• Manufacturer References: AS12181, AS12182, AS12183 (please select from the options below)

Key Features

• High Security Protection: BSI 2-Star Kitemarked and Secured by Design approved to protect euro cylinders against snapping and physical attacks.
• Anti-Grip Design: Bevelled edges prevent intruders from gaining a grip with pliers or tools.
• Superior Corrosion Resistance: Manufactured from 316 grade stainless steel and salt spray tested for 2,000 hours.
• Lifetime Coating Guarantee: Long-lasting finish protection for peace of mind.
• Secure Installation: Supplied with robust bolt-through fixings for a solid fit.
• Multiple Finishes: Available in a choice of finishes to match your door furniture.
