ASEC External Magnet 545Kg Holding Force

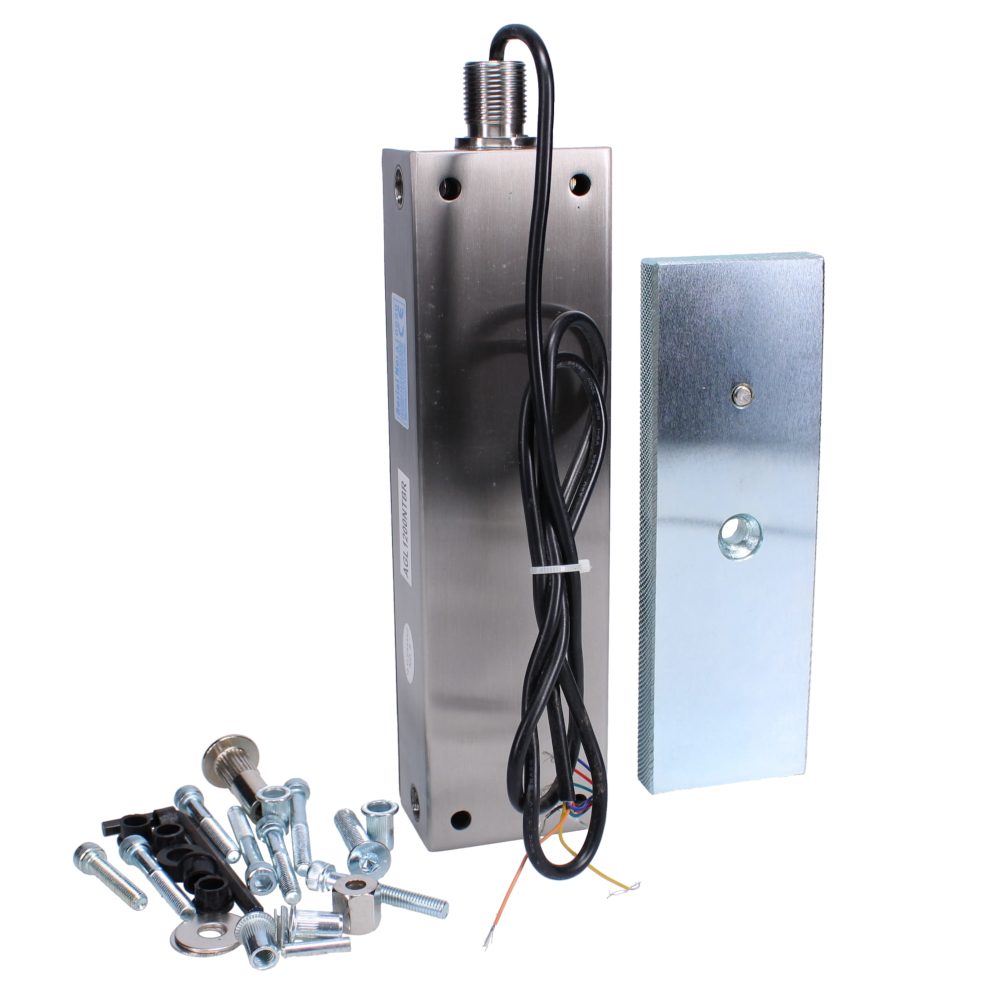

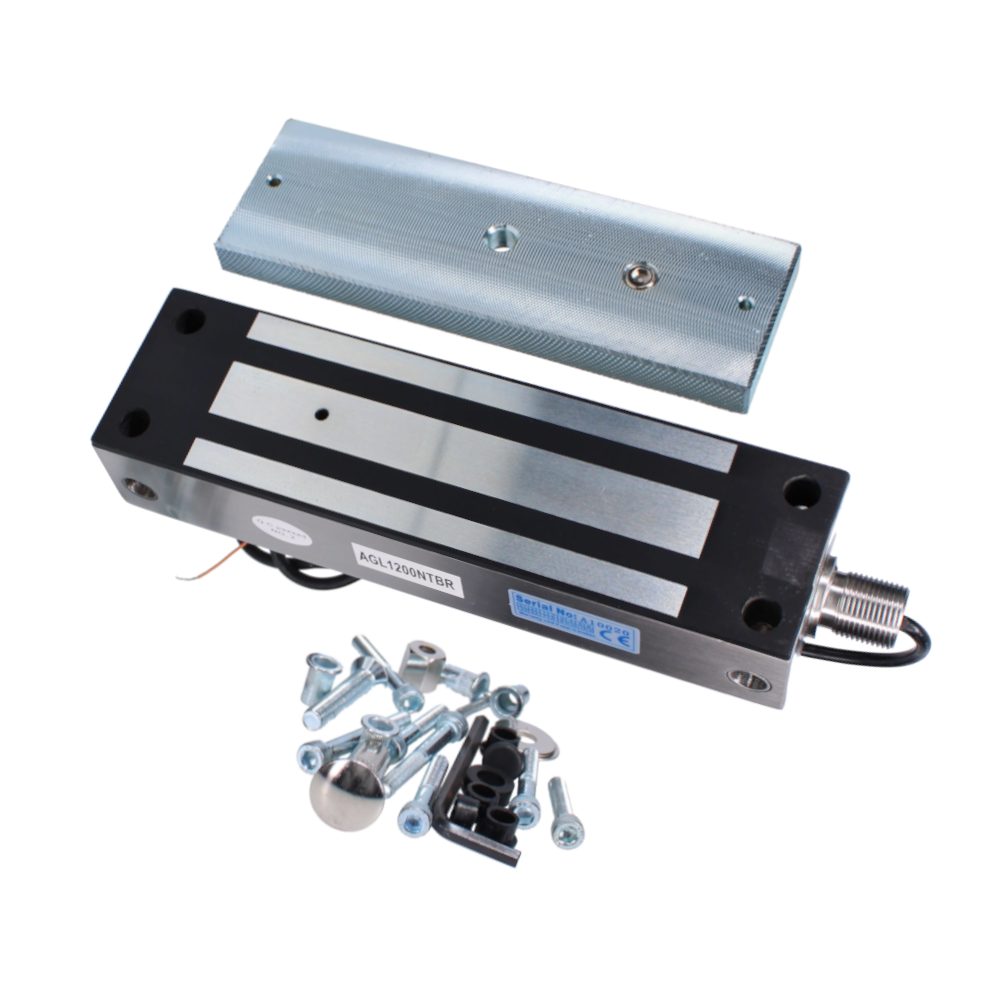

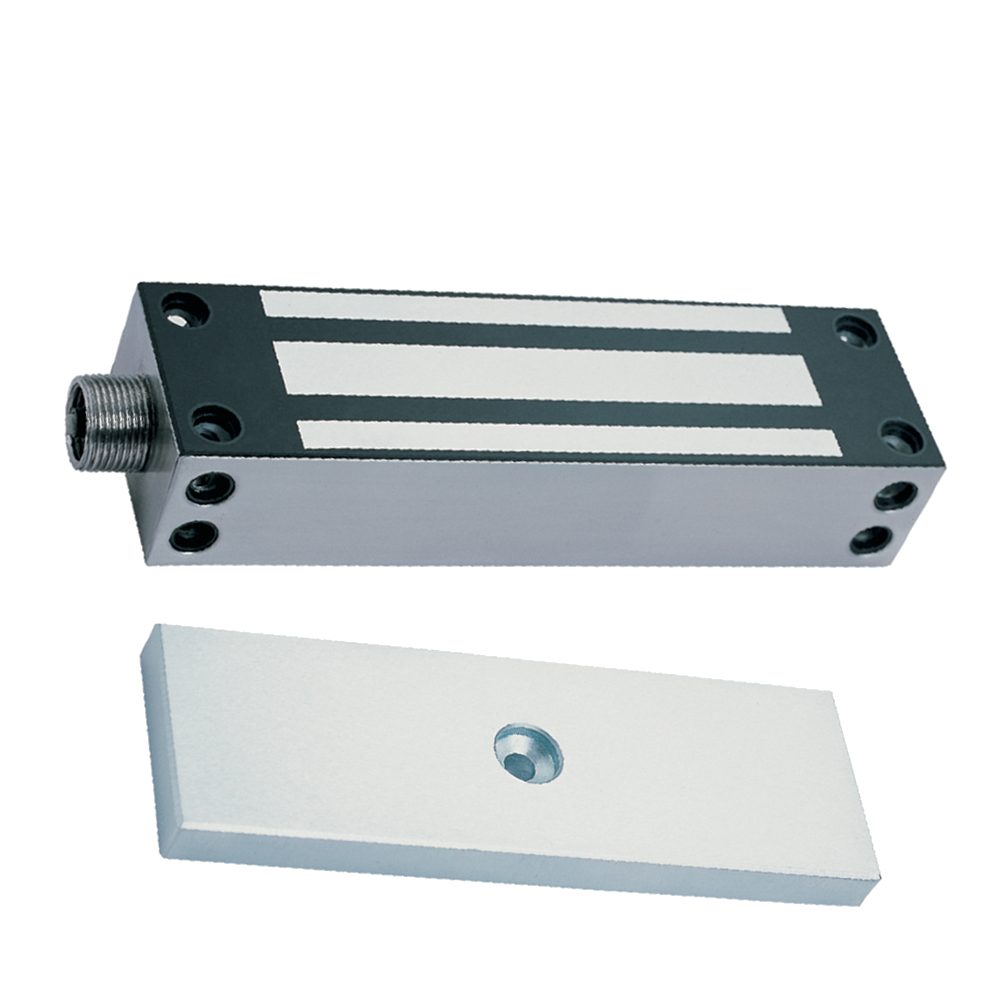

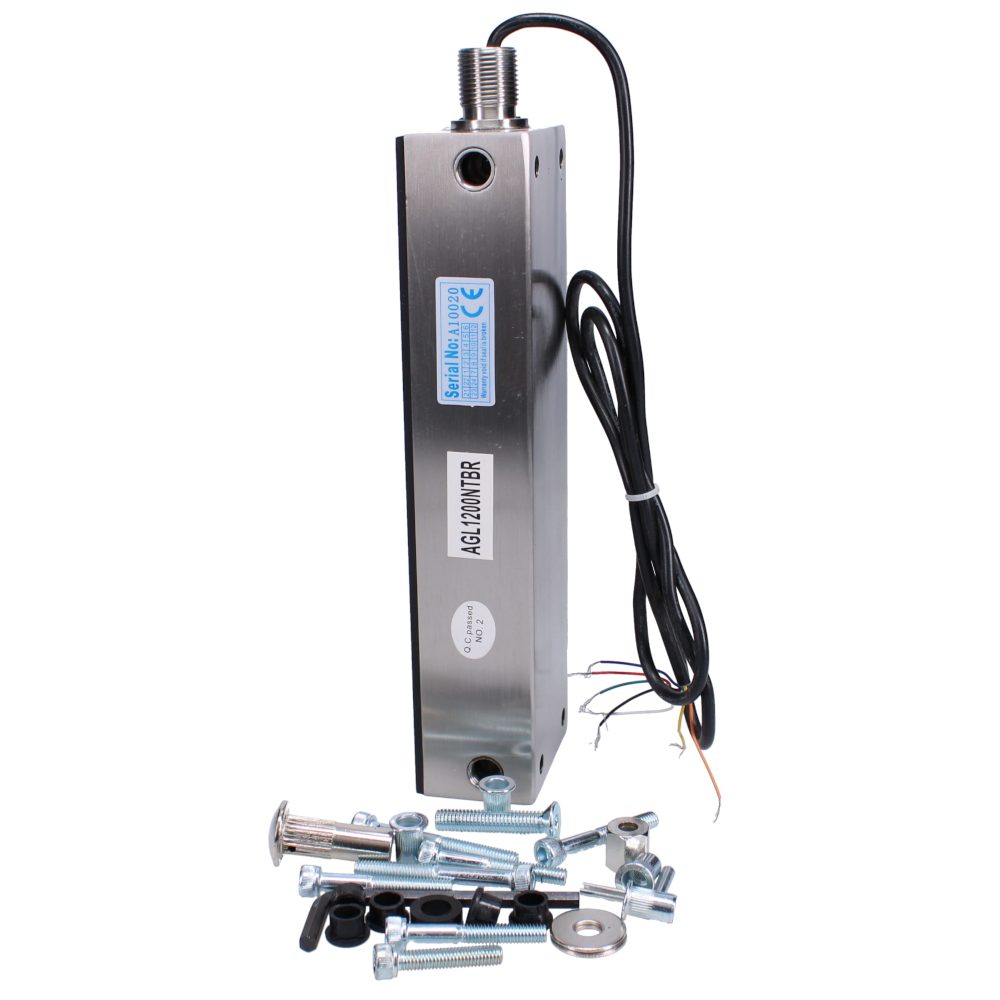

The Asec GL1200NTBR (AS9821) is a heavy-duty, face-fixing external magnetic lock designed specifically for demanding outdoor security applications, such as perimeter gates and external doors. Built from premium Grade 316 stainless steel, this robust electromagnetic lock is engineered to withstand the harshest environments. The magnet body features a protective epoxy compound coating, making it highly corrosion-resistant (ISO tested) and fully waterproof with an IP67 rating.

With a massive holding force of 545kg (1200lbs), it provides exceptional physical security. It operates on dual voltage (12V/24V DC) and functions as fail-unlocked (fail-safe), ensuring safe egress in the event of a power failure. This model is also fully monitored, allowing for real-time lock status integration with your access control system.

While designed for outward-opening applications as standard, inward-opening installations can be achieved using a compatible Z & L bracket (available separately).

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS9821 / GL1200NTBR
• Holding Force: 545kg (1200lbs)
• Input Voltage: 12V / 24V DC
• Current Consumption: 0.46A at 12V DC & 0.23A at 24V DC
• IP Rating: IP67 (Waterproof)
• Material: Grade 316 Stainless Steel
• Operation: Fail Unlocked (Fail Safe)
• Monitoring: Yes
• Operating Temperature: -10°C to 55°C

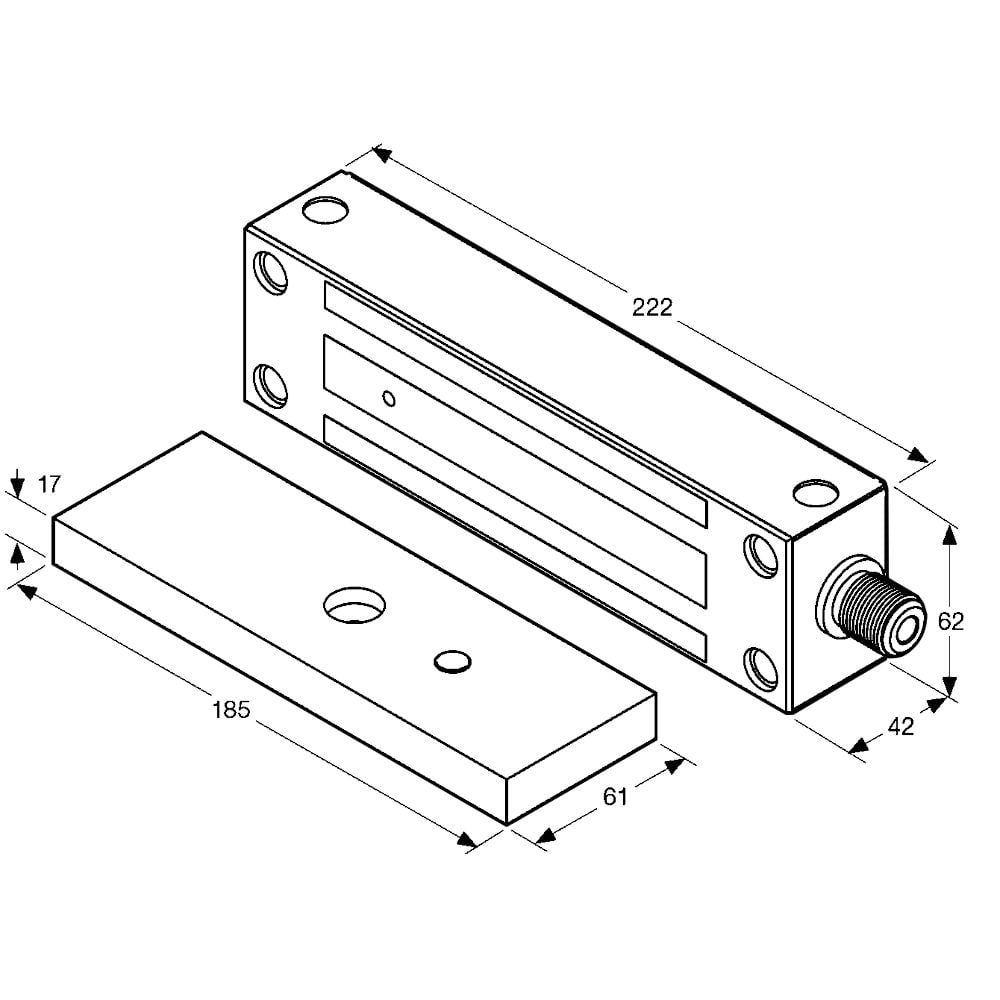

• Dimensions: 222mm (Length) x 62mm (Height) x 42mm (Depth)
• Weight: 5kg

Key Features

• Heavy-Duty Security: Delivers a massive 545kg holding force, making it ideal for securing large external gates and doors.
• Weatherproof & Corrosion Resistant: IP67 rated with a protective epoxy compound coating and Grade 316 stainless steel construction for reliable outdoor performance.
• Dual Voltage Operation: Supports both 12V and 24V DC systems for flexible installation.
• Fail-Safe Operation: Fail-unlocked configuration ensures the lock releases during power loss for safety.
• Integrated Monitoring: Features built-in monitoring to provide real-time lock status feedback to access control systems.
• 1-Year Guarantee: Backed by a 1-year manufacturer's guarantee for peace of mind.
