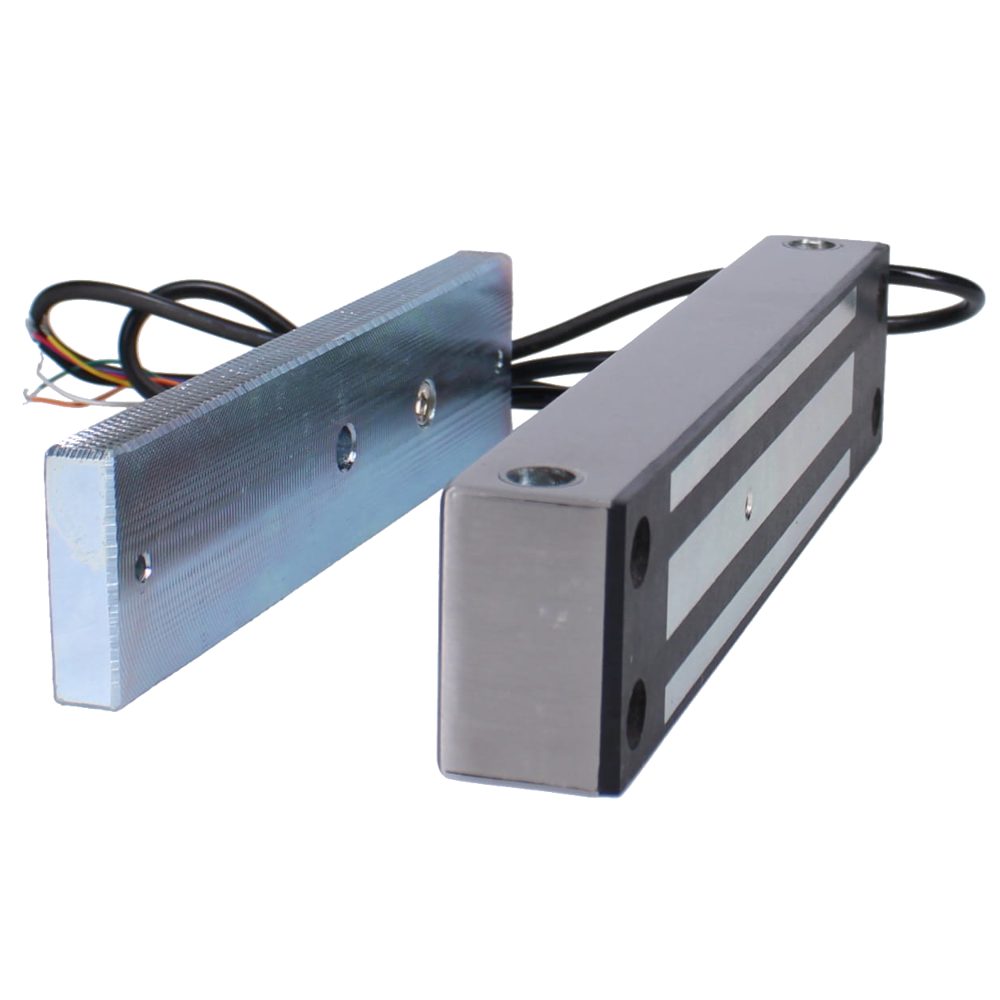

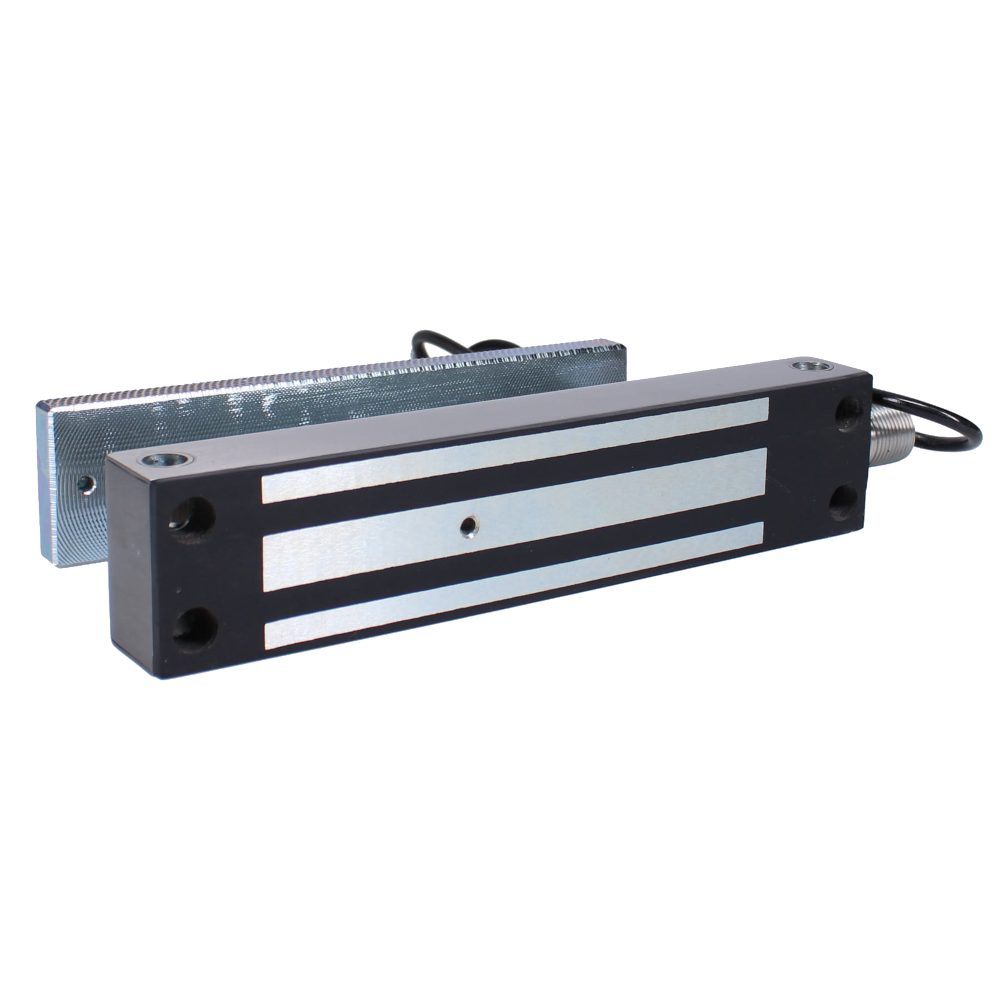

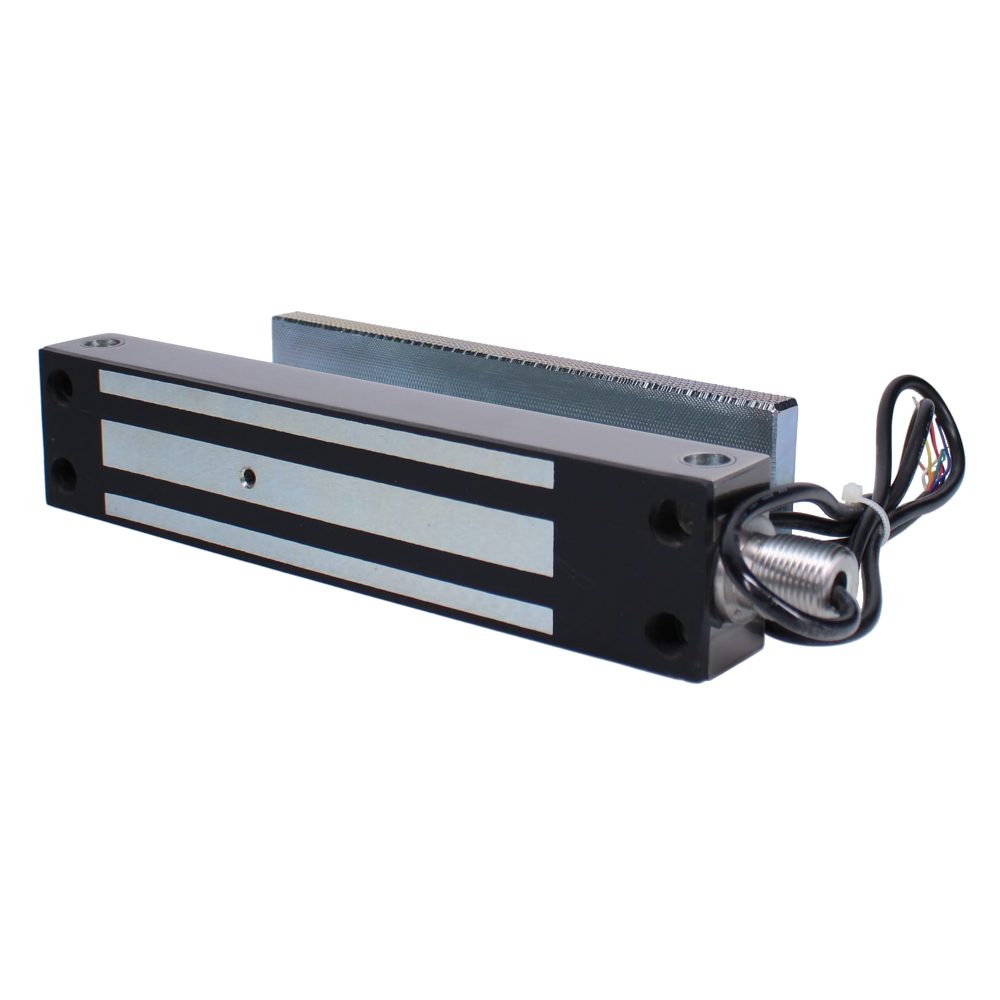

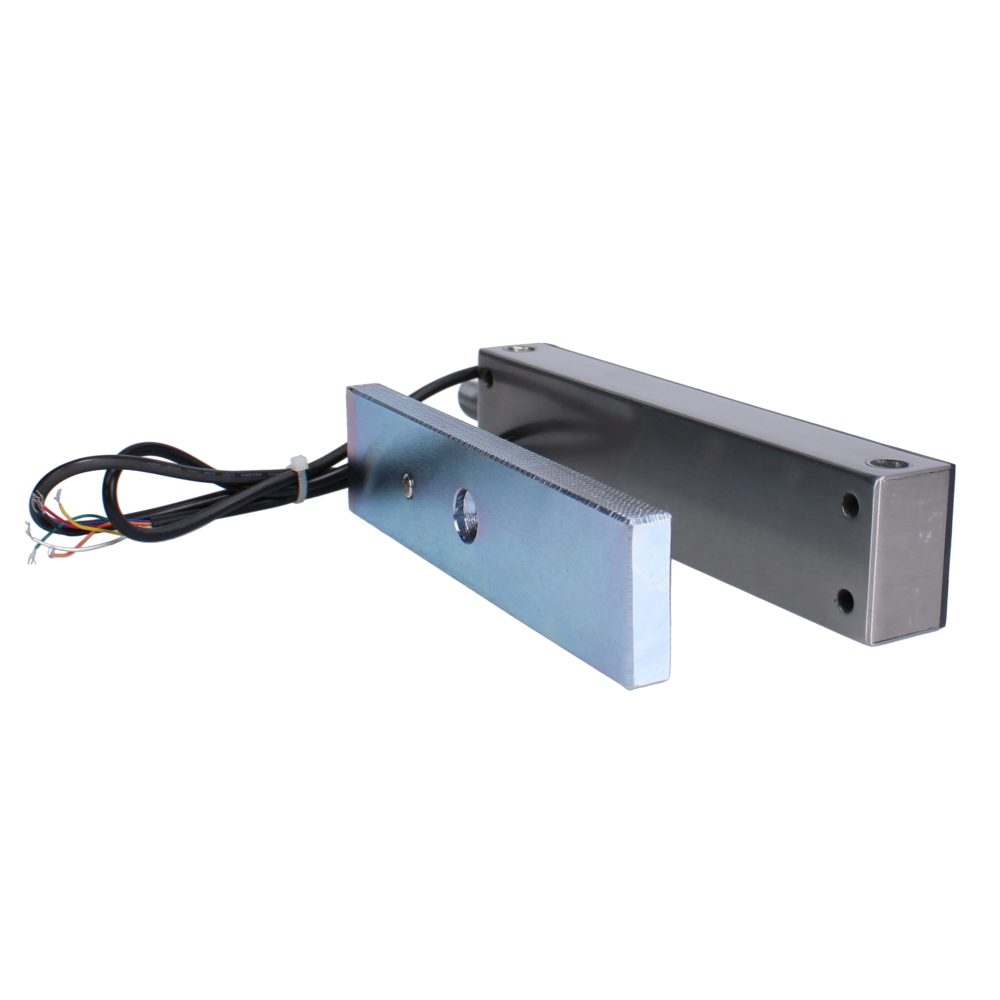

ASEC External Magnet 363Kg Holding Force

The Asec GL850/R (AS9820) is a robust, face-fixing external magnetic lock designed specifically for outdoor security applications, such as gates and external doors. Offering a powerful holding force of 363kg (800lbs), this fail-unlocked (fail-safe) magnet ensures reliable access control and security.

Engineered to withstand harsh outdoor environments, the lock features a high-grade 316 stainless steel body with a protective epoxy compound coating. This construction provides exceptional corrosion resistance (ISO tested) and an IP67 waterproof rating, ensuring long-term durability against the elements. The unit is dual-voltage compatible (12V or 24V DC) and features built-in monitoring to remotely verify the lock status.

Technical Specifications

• Manufacturer Reference: AS9820 (GL850/R)
• Holding Force: 363kg (800lbs)

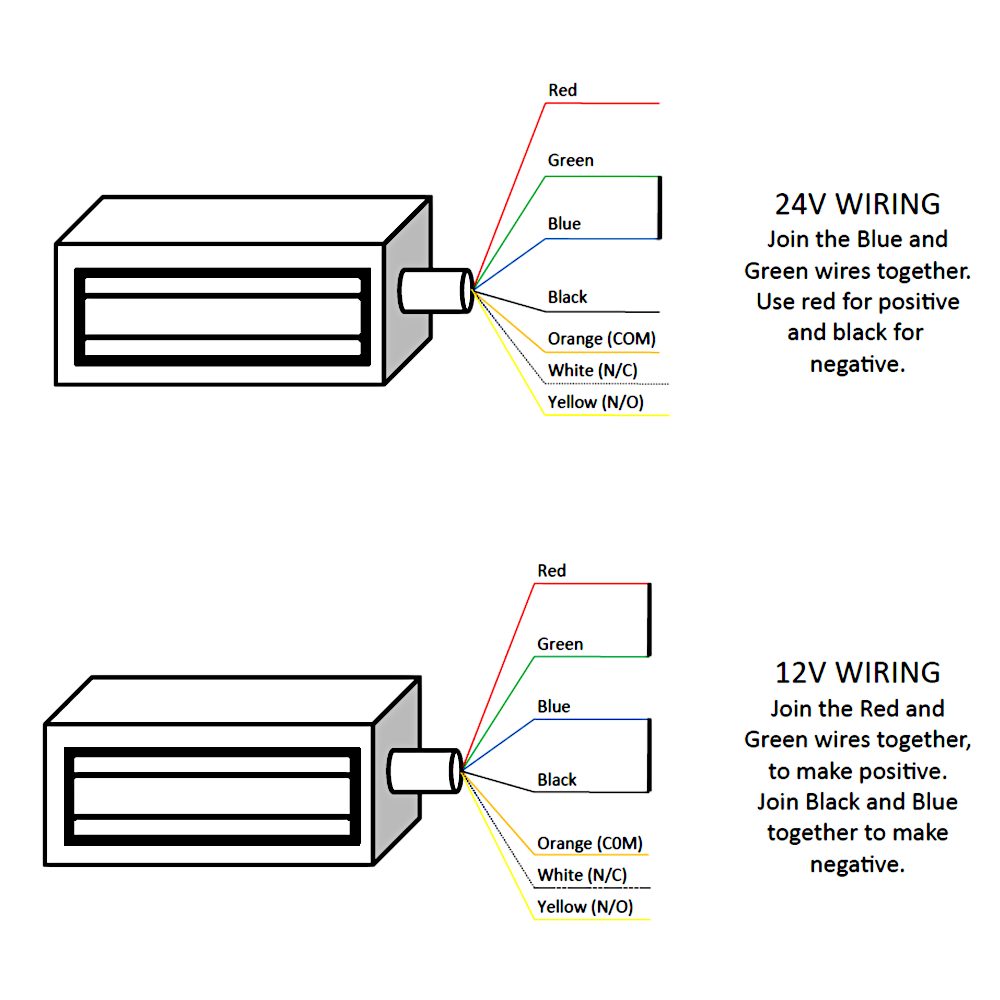

• Input Voltage: 12V / 24V DC
• Current Consumption: 0.34A
• IP Rating: IP67 (Waterproof)
• Material: Grade 316 Stainless Steel
• Operation: Fail Unlocked (Fail Safe)
• Monitored: Yes
• Fitting: Surface / Face Fixed
• Handing: Outward Opening

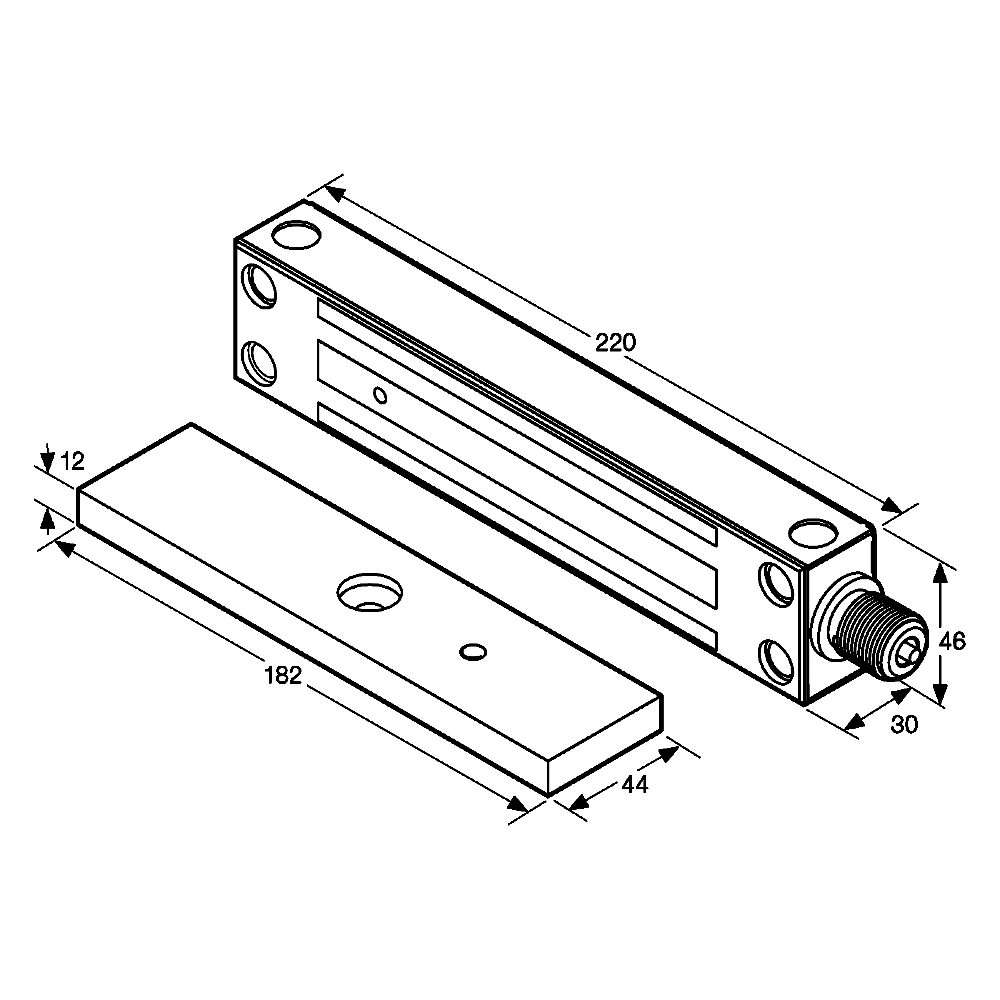

• Magnet Dimensions: 220mm (L) x 46mm (H) x 30mm (D)
• Armature Plate Dimensions: 182mm (L) x 12mm (H) x 44mm (D)
• Weight: 5kg
• Guarantee: 1 Year

Key Features

• Weatherproof Design: IP67 rated and ISO-tested for corrosion resistance, making it ideal for external gates and doors.
• Robust Construction: Grade 316 stainless steel body with a protective epoxy compound coating for maximum durability.
• Dual Voltage: Flexible installation with support for both 12V DC and 24V DC systems.
• Integrated Monitoring: Built-in monitoring allows for remote status tracking of the lock.
• Fail-Safe Operation: Automatically unlocks in the event of a power failure to ensure safe egress.
