ASEC Euro Deadcase
Asec

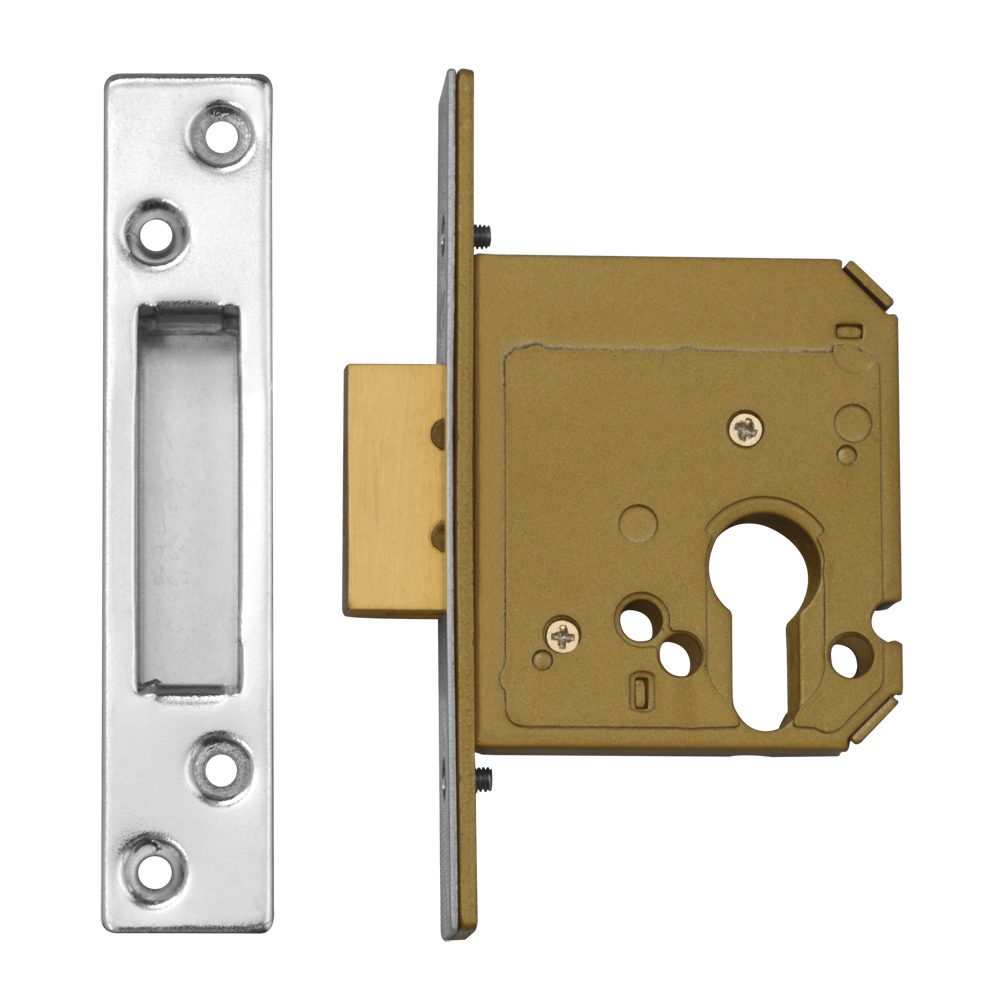

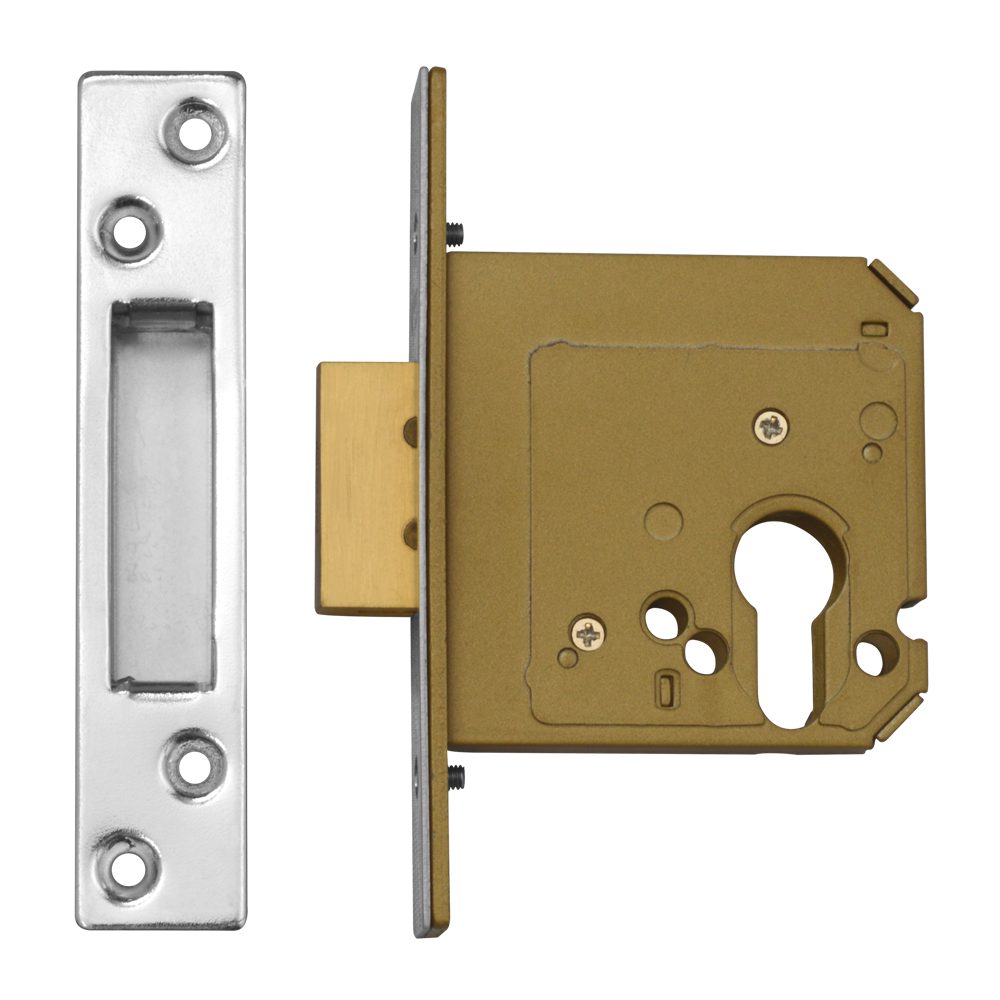

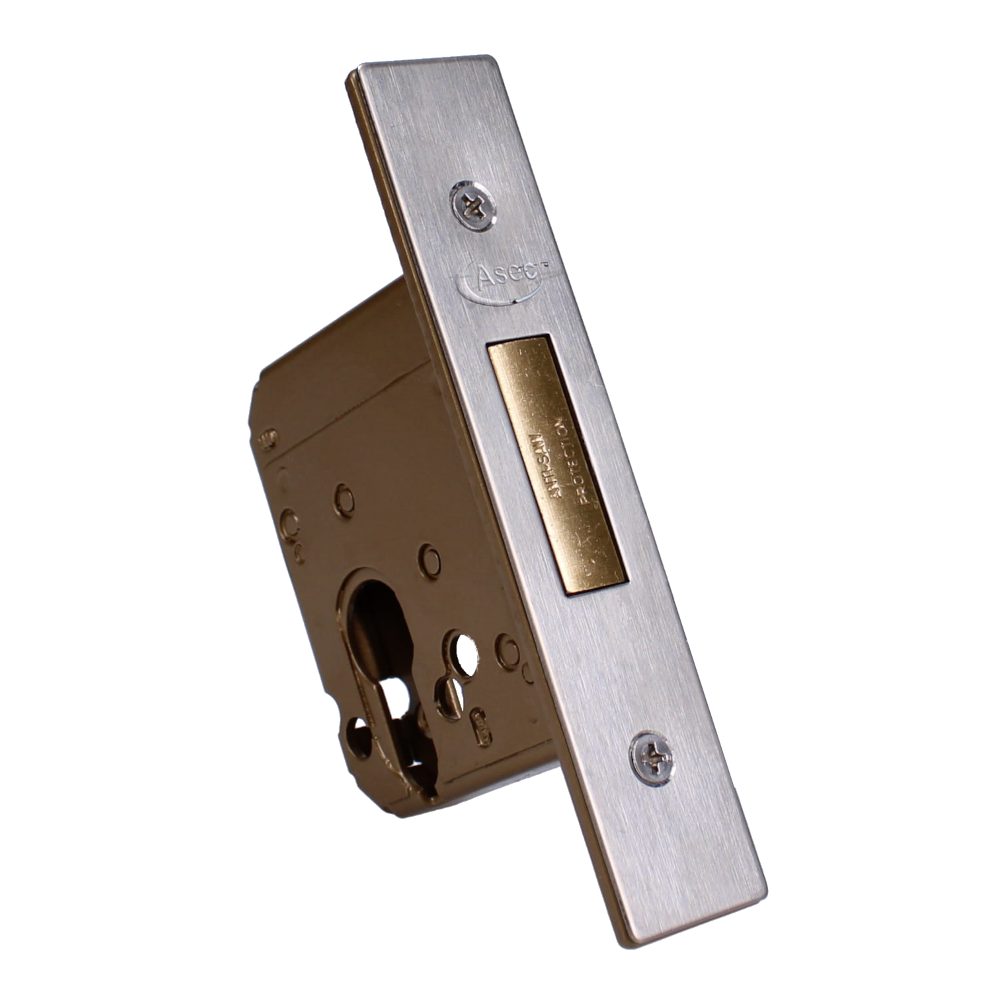

The Asec Euro Deadcase is a high-quality mortice cylinder deadlock case, ideal for use on non-fire doors. It is designed to accommodate standard Euro profile cylinders (sold separately), making it a highly versatile choice for both domestic and commercial security applications.
This deadcase features a robust brass deadbolt and is specifically pierced to accept bolt-through escutcheons, ensuring a secure and professional installation. It comes complete with a boxed keep for a clean, neat finish within the door frame.
The Asec Euro Deadcase is available in multiple configurations to suit your specific door requirements. You can choose from case depths of 64mm or 76mm (with corresponding backsets of 44mm or 56mm) and finishes including Polished Brass or Stainless Steel. Please select your preferred size, finish, and specification from the options below.

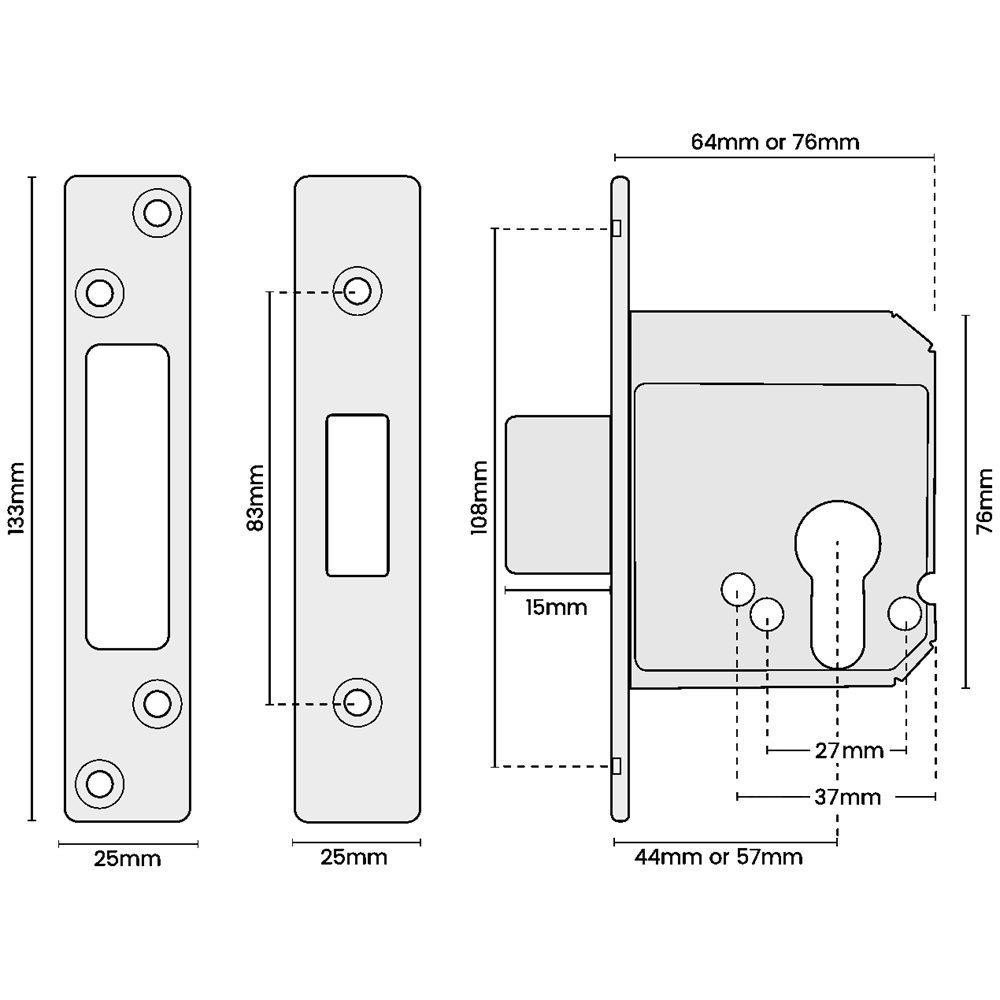

Technical Specifications
- Mechanism: Euro Cylinder
- Case Depth: 64mm or 76mm (please choose from the options below)
- Backset: 44mm or 56mm (please choose from the options below)
- Case Height: 75mm
- Case Width: 15mm
- Forend Length: 132mm
- Forend Width: 25mm
- Screw Centres: 27mm
- Finish: Polished Brass or Stainless Steel (please choose from the options below)
- Forend Finish: Polished Brass or Stainless Steel (please choose from the options below)
- Case Finish: Bronze
- Weight: 520g or 560g (please choose from the options below)
- Pack Quantity: 1
- Packaging: Boxed
Key Features
- Euro Cylinder Compatibility: Designed to suit a wide range of standard Euro profile cylinders (sold separately).
- Bolt-Through Ready: Pierced to accept bolt-through escutcheons for a secure and clean installation.
- Brass Deadbolt: Robust brass deadbolt provides reliable locking.
- Boxed Keep: Supplied with a boxed keep for a neat finish within the door frame.
- Non-Fire Doors: Ideal for use on internal or external non-fire rated doors.
- Multiple Finishes and Sizes: Available in Polished Brass or Stainless Steel finishes, and 64mm or 76mm case depths - please select your options below.
Master locksmiths with BSI accreditation
MLA approved locksmiths, BSI certified key systems, and independently audited security standards.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|
AS11326 | AS11326 |
£
36.56
|
|
|
AS11328 | AS11328 |
£
36.56
|
|
|
AS11330 | AS11330 |
£
36.56
|
|
|
AS11332 | AS11332 |
£
36.56
|
