ASEC Emergency Resettable Door Release Double Pole
Asec

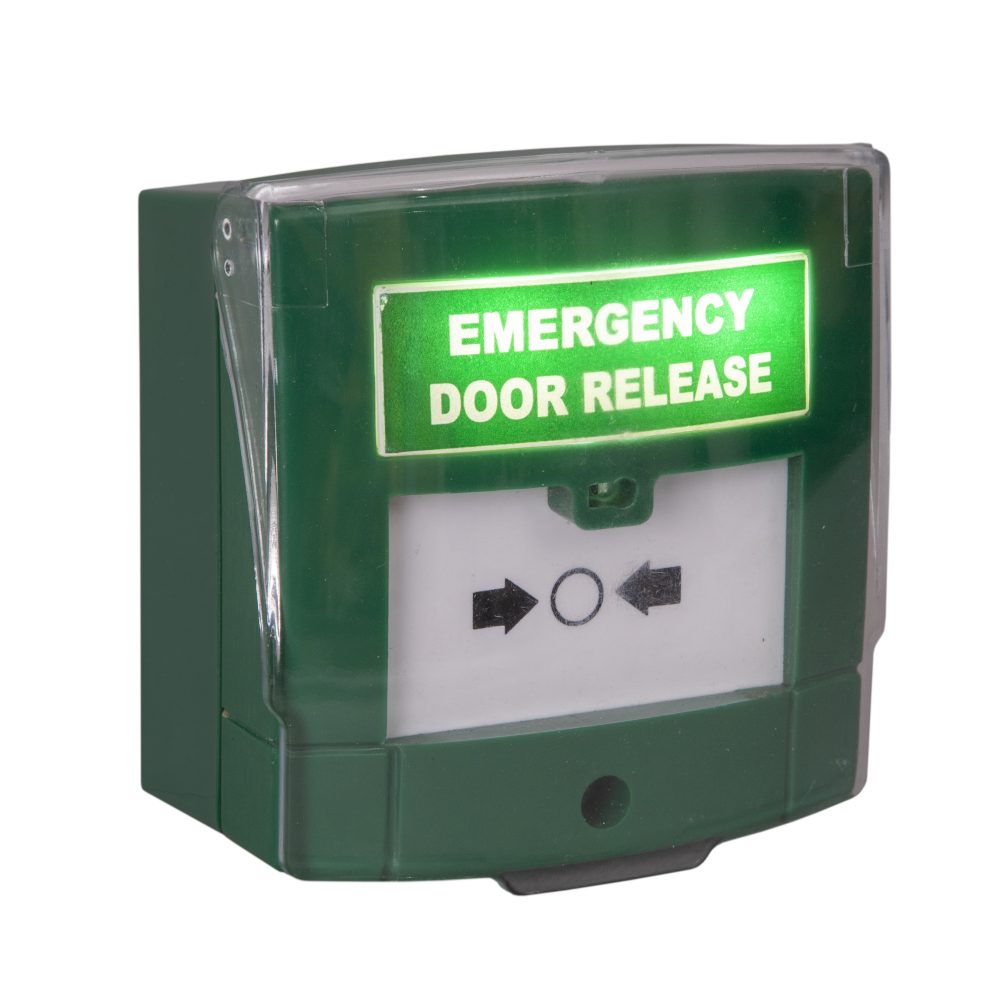

The ASEC Emergency Resettable Door Release Double Pole is a highly visible, green plastic call point designed for access control systems. It provides a reliable emergency override for electronic locks, ensuring occupants can exit safely in an emergency.

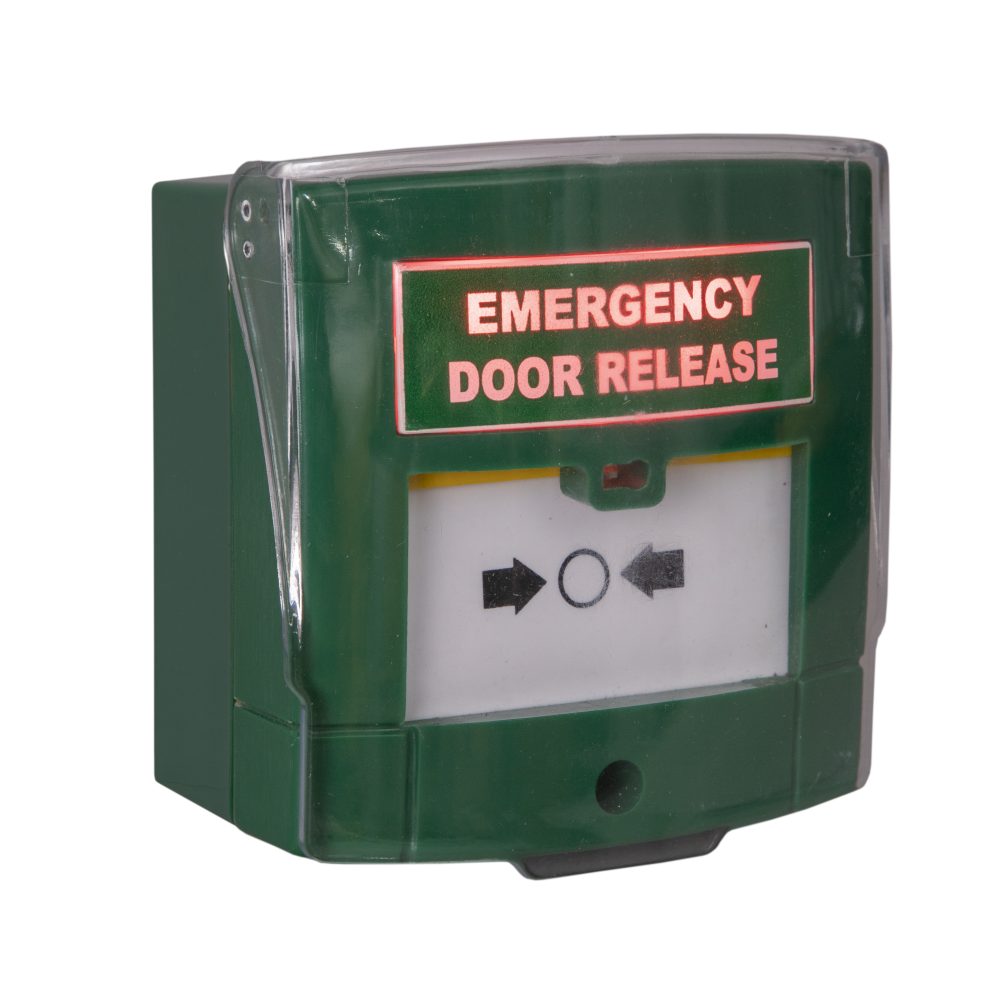

This surface-mounted unit features a double-pole configuration and is fully resettable using a reset key, eliminating the need for replacement glass. For enhanced safety and visibility, it is permanently illuminated and changes from green to red upon activation. It also features both buzzer and LED indications to provide clear audible and visual feedback. A protective flip-up plastic cover is included to prevent accidental activation, making it ideal for busy commercial, public, or residential environments.
Technical Specifications
- Brand: Asec
- Part Number: AS11410
- Voltage: 12-24V DC
- Pole: Double Pole

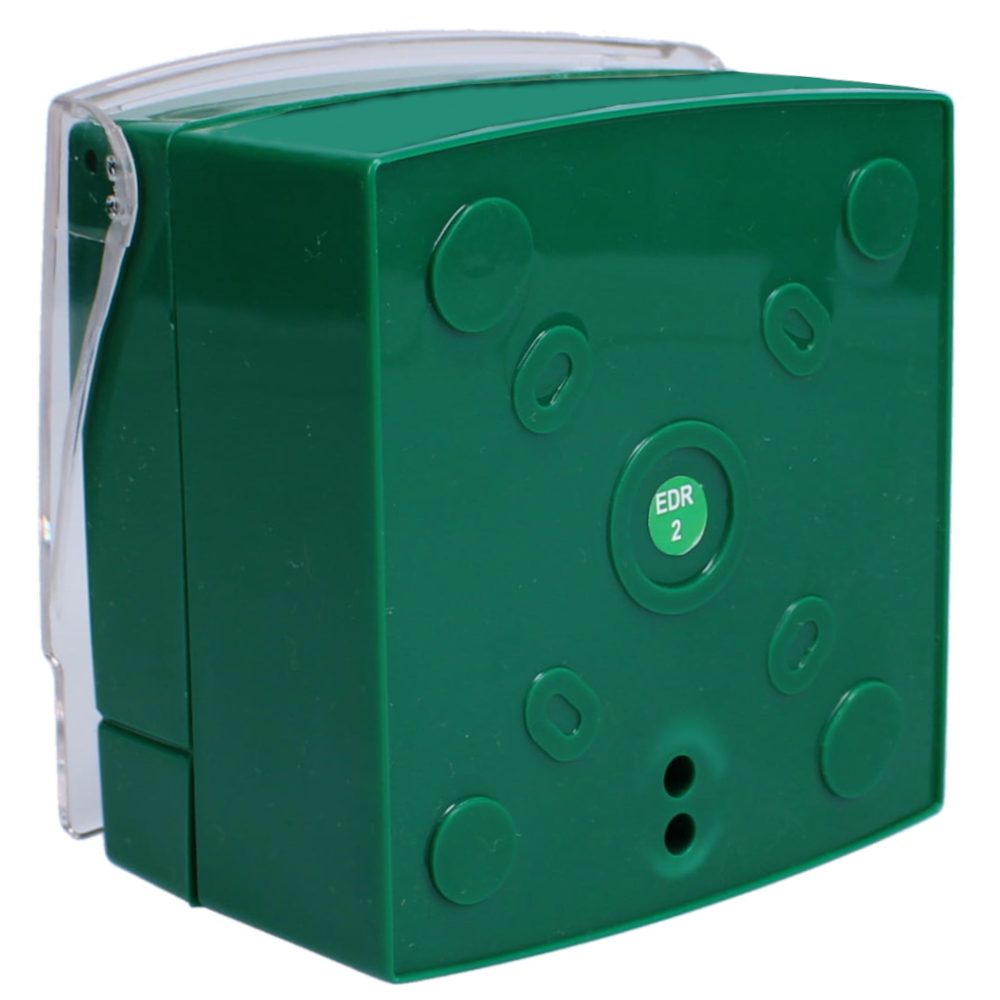

- Fitting: Surface mount
- Finish: Green
- Legend: Emergency Door Release
- Dimensions: 88mm (W) x 85mm (H) x 60mm (D)
- Weight: 250g
Key Features
- Resettable Operation: Easily reset using a key, avoiding the cost and hassle of replacing broken glass.
- Visual & Audible Feedback: Features a built-in buzzer and LED indication, with a permanently lit display that changes to red when activated.
- Protective Cover: Includes a flip-up plastic cover to guard against accidental activation.
- Double Pole Contacts: Provides flexible wiring options for integration with access control and alarm systems.
- High Visibility: Bright green finish with clear "Emergency Door Release" legend ensures it is easy to locate in an emergency.
