ASEC Double Steel Washer Hinge
Asec
The Asec Double Steel Washer Hinge is a durable and reliable choice designed specifically for internal doors. Combining strength with smooth operation, these hinges are ideal for domestic and light commercial applications where consistent performance is required.
Available in a selection of high-quality finishes, including Polished Brass and Chrome Plated, these hinges complement a wide range of interior hardware. They feature a robust steel pin and double washers - available in double steel, phosphor bronze, or steel bronze configurations depending on the variant - which significantly reduce friction to ensure quiet, seamless door movement.
To accommodate different door weights and installation requirements, these hinges are offered in multiple lengths, widths, and body thicknesses. Each hinge is designed with countersunk screw holes to allow for a flush, neat, and professional finish. Please select your required size, finish, thickness, and washer type from the options below.
Technical Specifications
- Brand: Asec

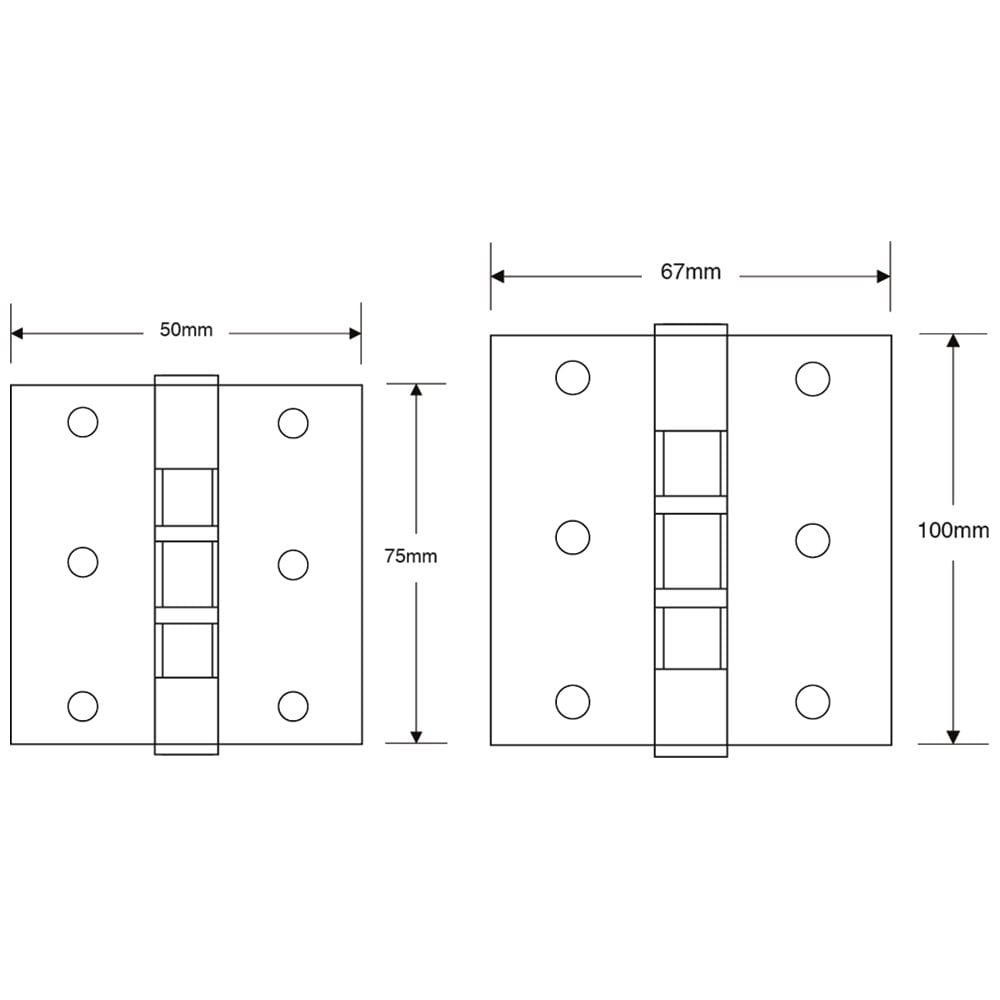

- Length: 75mm or 10.2cm (choose from options below)
- Width: 50mm, 67mm, or 75mm (choose from options below)
- Body Thickness: 2.5mm or 4mm (choose from options below)
- Finish: Polished Brass or Chrome Plated (choose from options below)
- Washer Type: Double Steel, Double Phosphor Bronze, or Double Steel Bronze (choose from options below)
- Pin Material: Steel
- Fixing: Countersunk screw holes
- Packaging: Visi pack
Key Features
- Smooth Operation: Double washers reduce friction for quiet and seamless door movement
- Durable Construction: Built with a strong steel pin for long-lasting performance
- Neat Finish: Countersunk screw holes ensure screws sit flush with the hinge plate
- Versatile Aesthetics: Available in Polished Brass or Chrome Plated finishes to match existing hardware
- Ideal for Internal Doors: Perfect for residential and light commercial internal door installations
- Multiple Options: Available in various sizes, thicknesses, and finishes to suit your specific door requirements
Master locksmiths with BSI accreditation
MLA approved locksmiths, BSI certified key systems, and independently audited security standards.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|

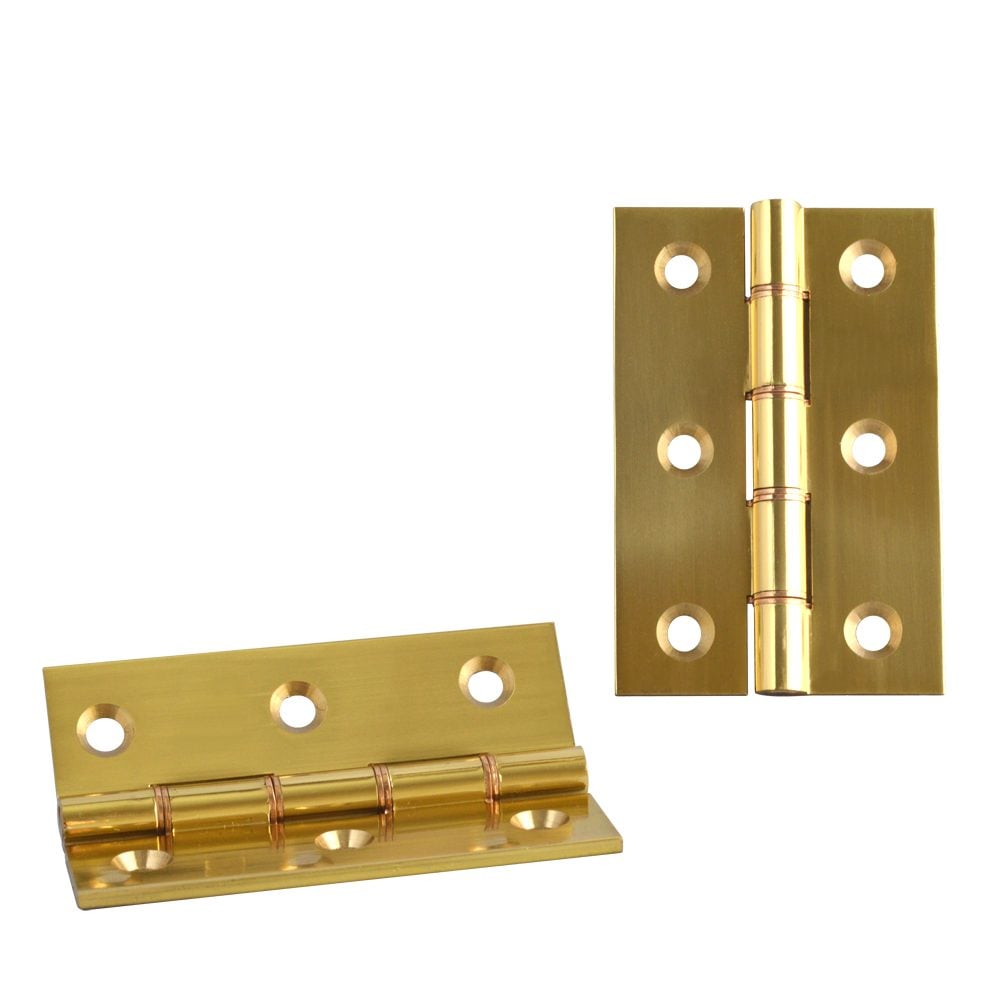

AS1501 | AS1501 |
£
16.66
|
|
|
AS1502 | AS1502 |
£
31.24
|
|
|
AS1503 | AS1503 |
£
36.22
|
|
|
AS1504 | AS1504 |
£
21.76
|
|
|
AS1505 | AS1505 |
£
37.37
|
|
|

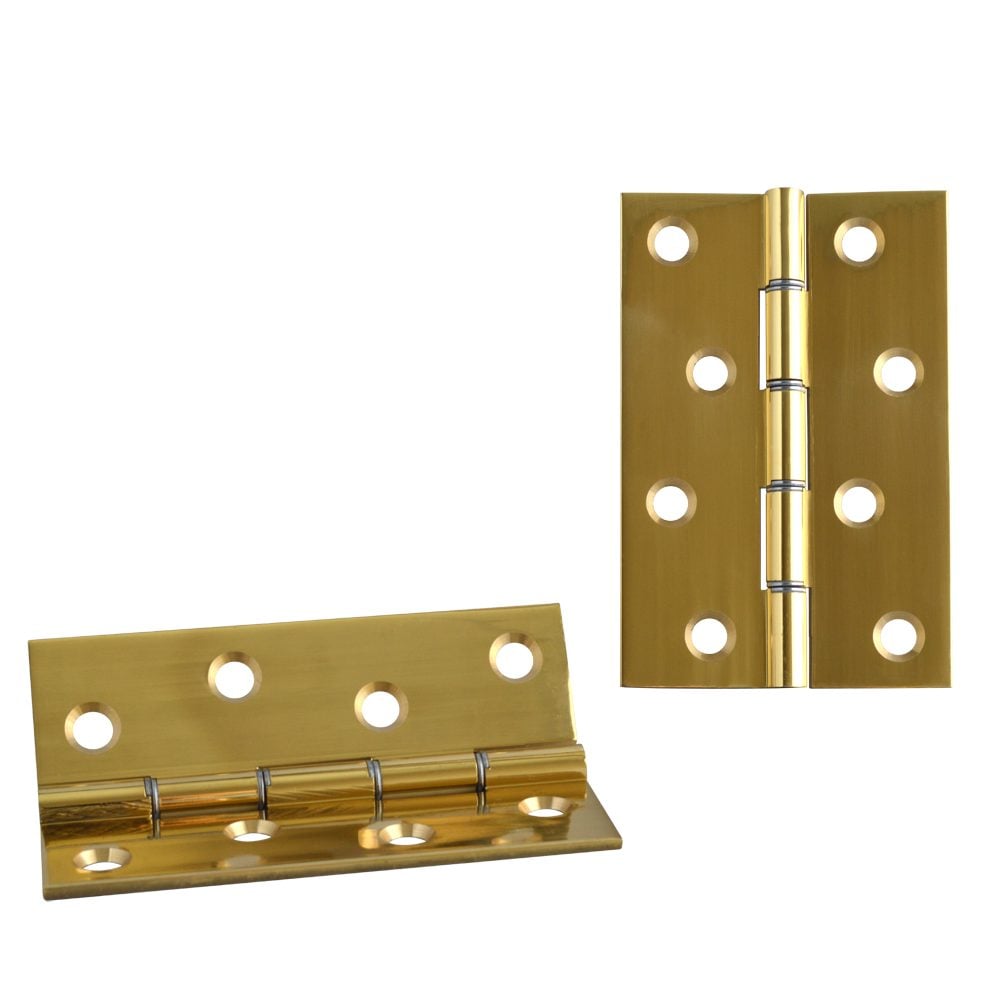

AS1506 | AS1506 |
£
18.76
|
