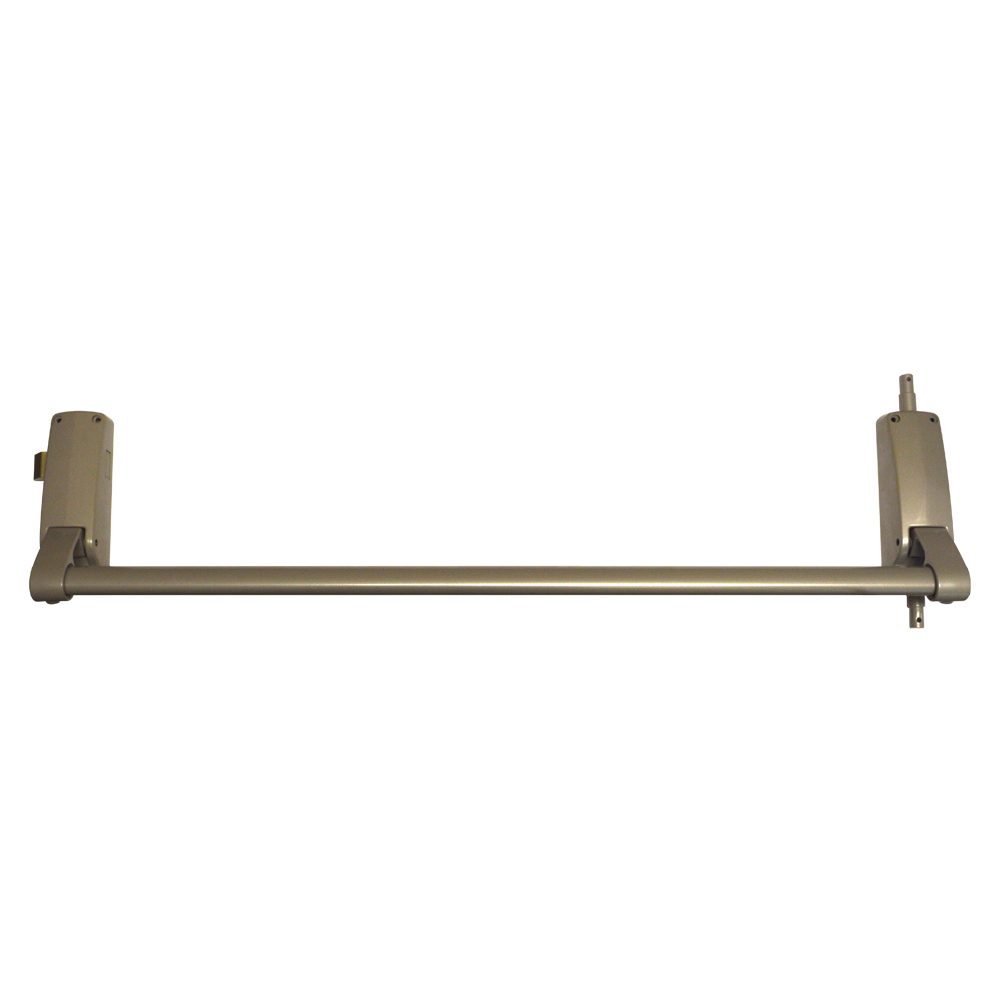

ASEC Double Rebated Panic Bolt Set

The Asec Double Rebated Panic Bolt Set is a high-quality, reliable emergency exit solution designed specifically for double leaf, outward-opening fire escape route doors. Fully compliant with BS EN 1125:2008, this complete set ensures safe and swift egress from public buildings during an emergency.

The set comprises a single panic bolt for the secondary opening leaf, a rim panic latch for the primary opening leaf, and a double door strike to securely latch the doors together. The system is operated by a simple push bar or pad, instantly disengaging the bolts to allow immediate exit. It is suitable for heavy-duty applications, supporting door leaves up to 200kg in weight.

This product is available in multiple handing options, including Left Handed and Reversible configurations, to suit your specific installation requirements. Please select your preferred handing and manufacturer reference from the options below.

Technical Specifications

• Standards: Compliant with BS EN 1125:2008
• Application: Double leaf outward-opening fire escape doors
• Maximum Door Height: 2500mm per leaf

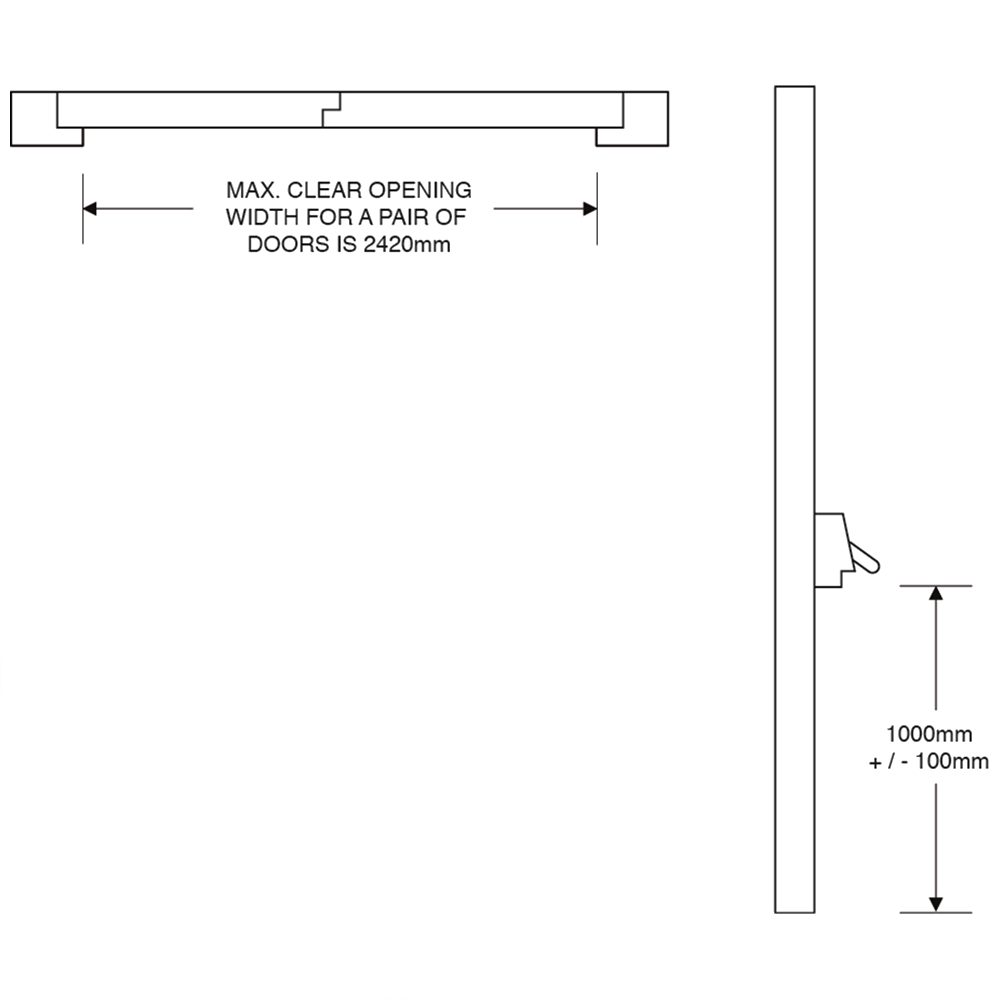

• Maximum Door Width: 1300mm (single leaf) / up to 2420mm (both doors combined)
• Maximum Door Weight: Up to 200kg per leaf
• Finish: Silver Enamelled
• Handing: Left Hand or Reversible (please choose from the options below)

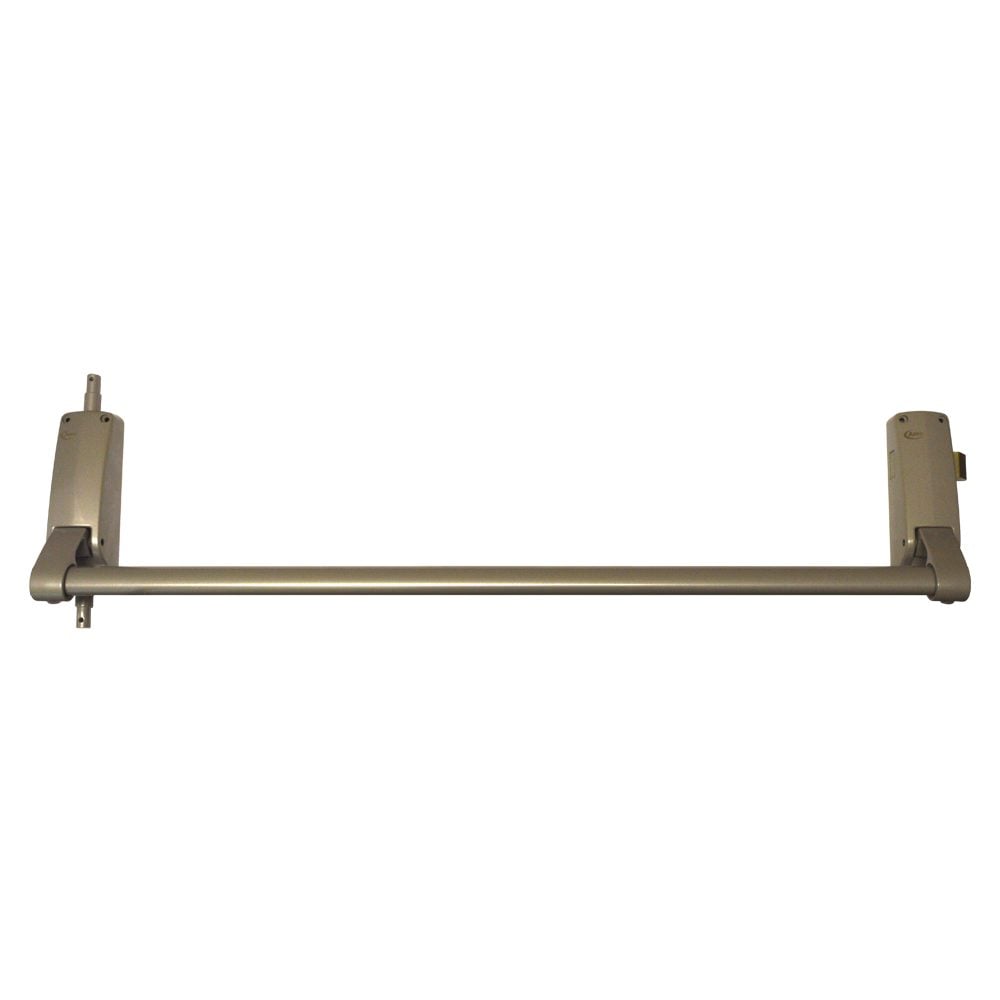

• Manufacturer Reference: AS3103 or AS3104 (please choose from the options below)
• Weight: 6kg
• Pack Quantity: 1
• Packaging: Boxed

Key Features

• Complete Exit Solution: Includes a single panic bolt for the secondary leaf, a rim panic latch for the primary leaf, and a double door strike.
• Easy Emergency Egress: Simple push bar or pad operation instantly disengages the bolts for fast, effortless evacuation.
• Robust Construction: Designed and tested for heavy-use fire escape routes.
• Flexible Installation: Available in multiple handing options to suit different door setups.
