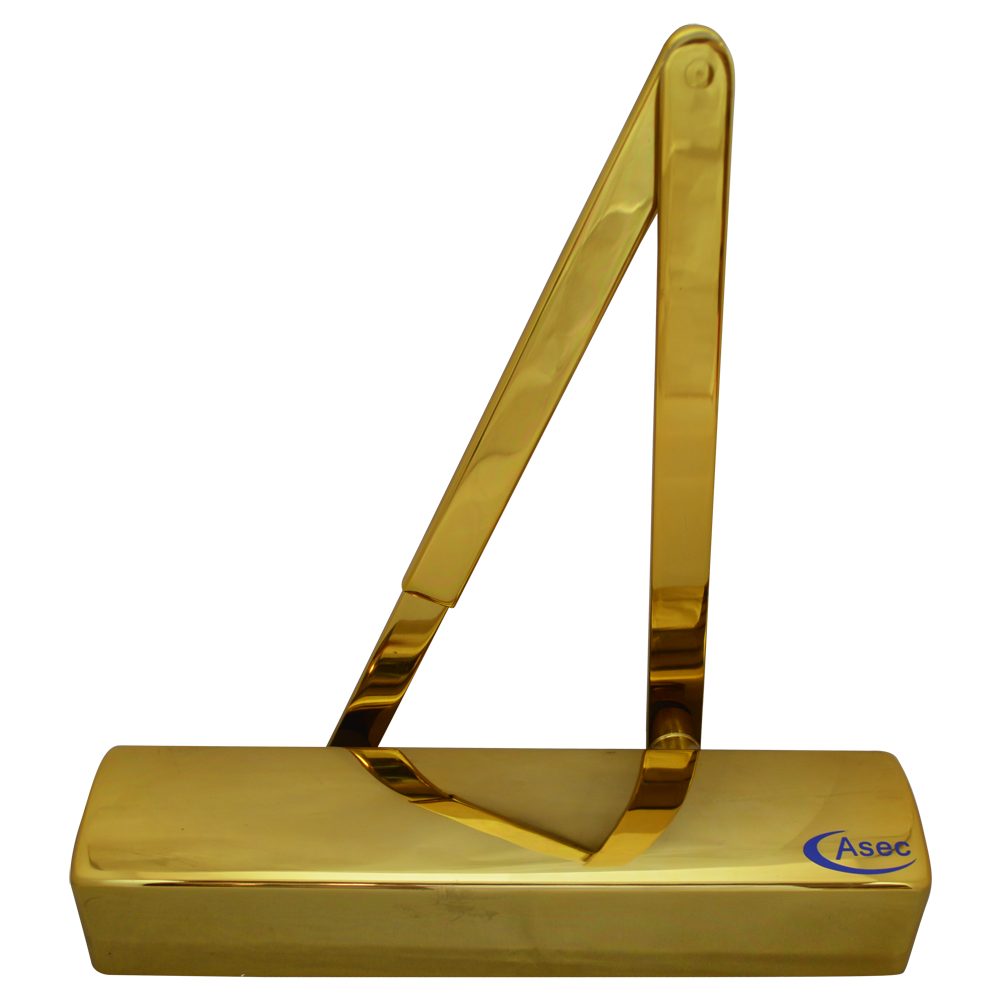

ASEC Classic Size 1-6 Overhead Door Closer

The Asec Classic Size 1-6 Overhead Door Closer is a high-performance architectural door control solution designed for high-use environments. Highly versatile and completely adjustable, this overhead closer is ideal for a wide range of commercial, public, and domestic applications.

A key benefit of this closer is the built-in visual indicator, which makes adjusting the power size (from size 1 to 6) straightforward and precise. It also features built-in backcheck and delayed action options, providing superior control over the door's opening and closing cycles to prevent damage to adjacent walls and ensure safe, accessible passage.

This closer is fire tested for up to 2 hours, making it suitable for fire door installations. It is fully reversible and compatible with Figure 1, Figure 61, and Figure 66 application methods. Supplied with a full cover and a matching arm, this polished brass model offers a clean, cohesive look that seamlessly blends with your existing door hardware.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS3012
• Strength Size: 1 to 6
• Max Door Weight: 120kg
• Max Door Width: 1400mm
• Fire Tested: 2 hours
• Standards: BS EN 1154 compliant
• Application: Fig 1, Fig 61 & Fig 66
• Handing: Reversible
• Finish: Polished Brass
• Dimensions: 30cm (Length) x 56mm (Width) x 56mm (Height) x 56mm (Depth)
• Adjustable Latch Action: Yes
• Backcheck: Yes

Key Features

• Visual Power Indicator: Built-in visual indicator makes adjusting the power size between 1 and 6 simple and accurate.
• Advanced Control: Includes built-in backcheck and delayed action options for enhanced safety and door control.
• High-Traffic Performance: Robust design engineered to withstand the demands of high-use architectural applications.
• Complete Package: Supplied with a full cover and a matching arm in a polished brass finish.
• Fire Door Approved: Fire tested for up to 2 hours and compliant with BS EN 1154 standards.
• Manufacturer's Guarantee: Backed by a 1-year guarantee for peace of mind.
