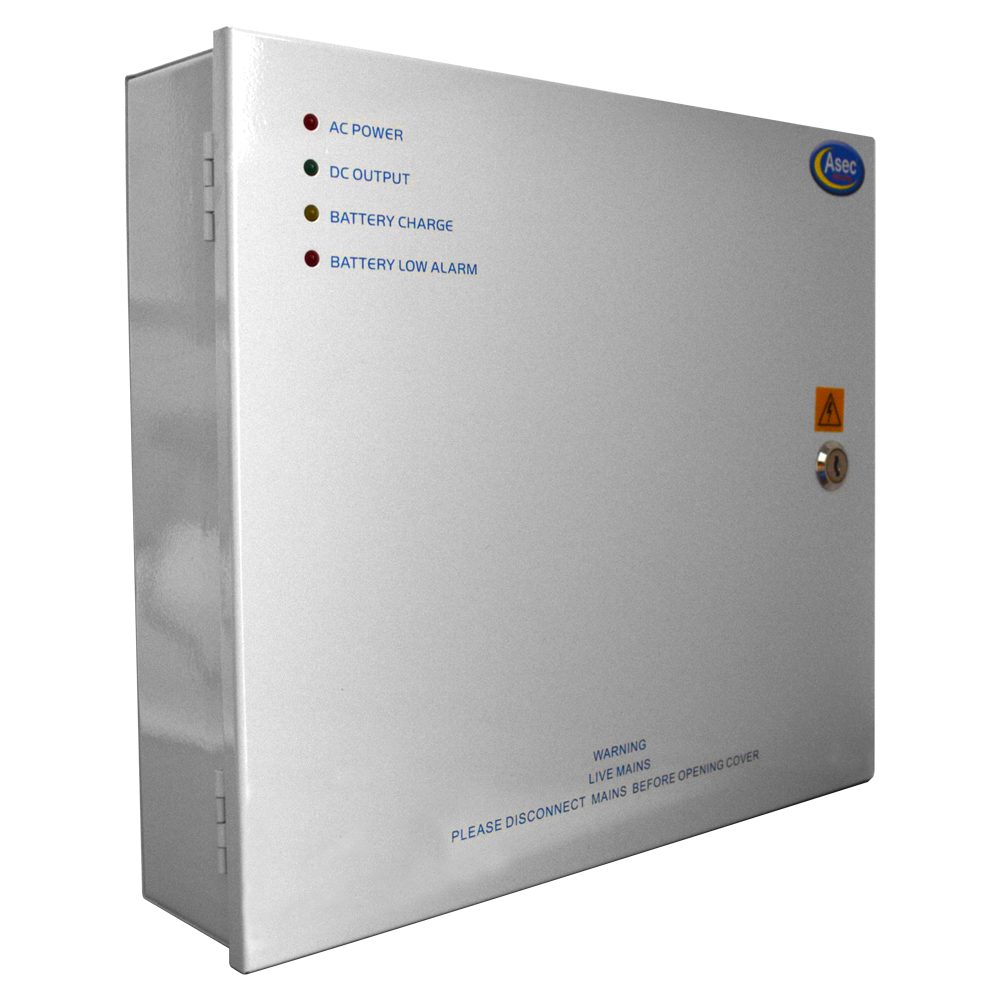

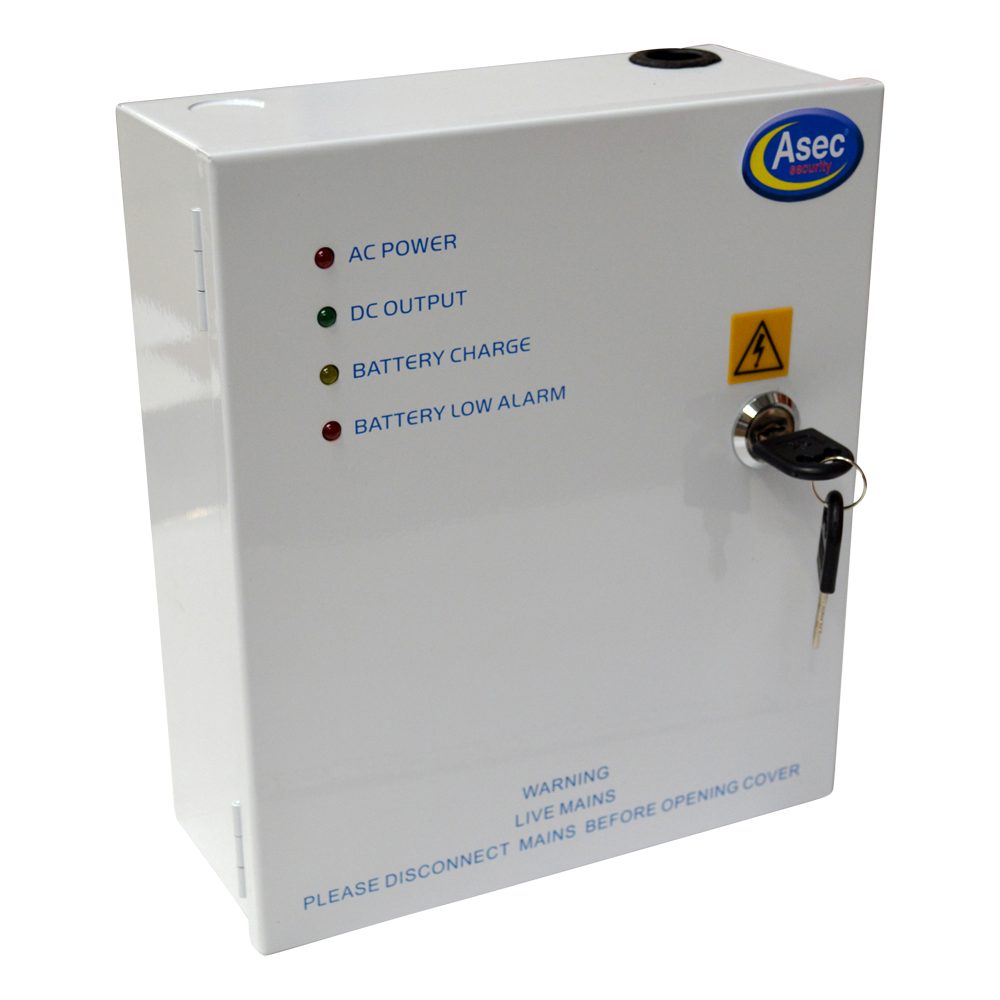

ASEC Boxed Power Supply

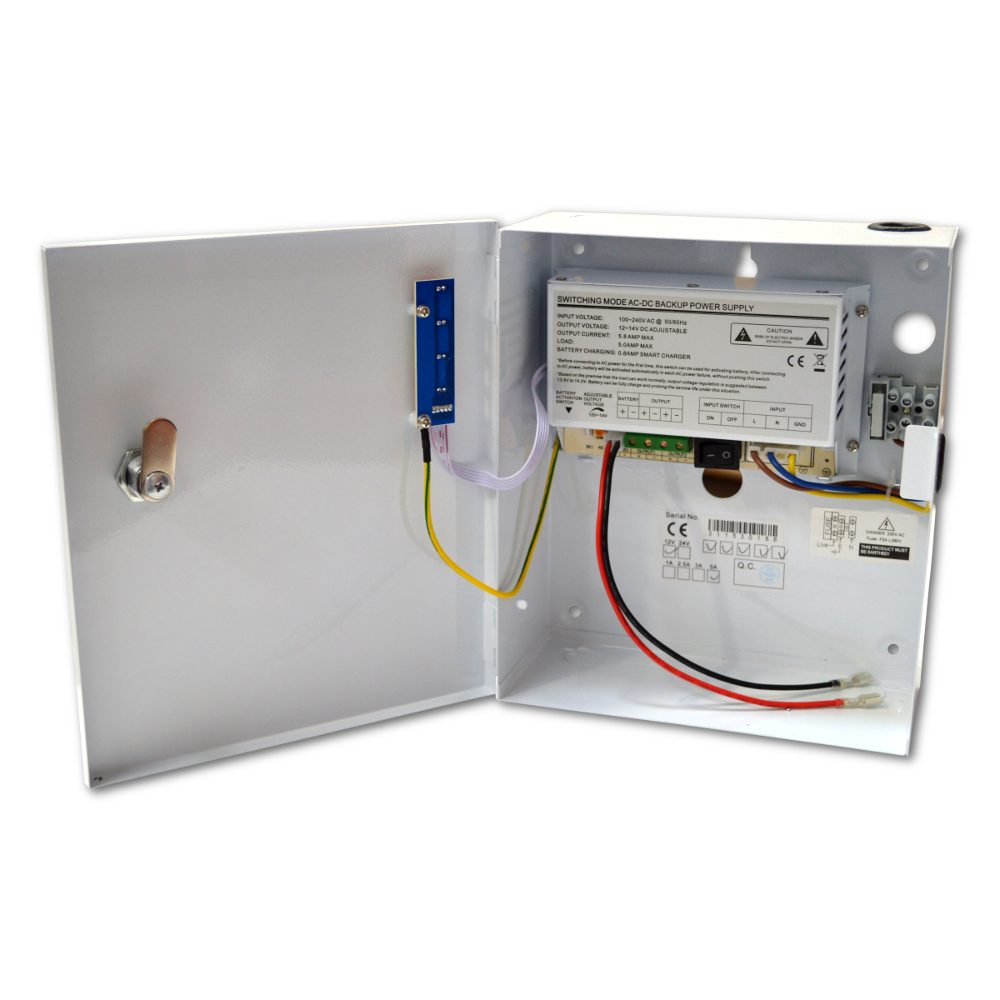

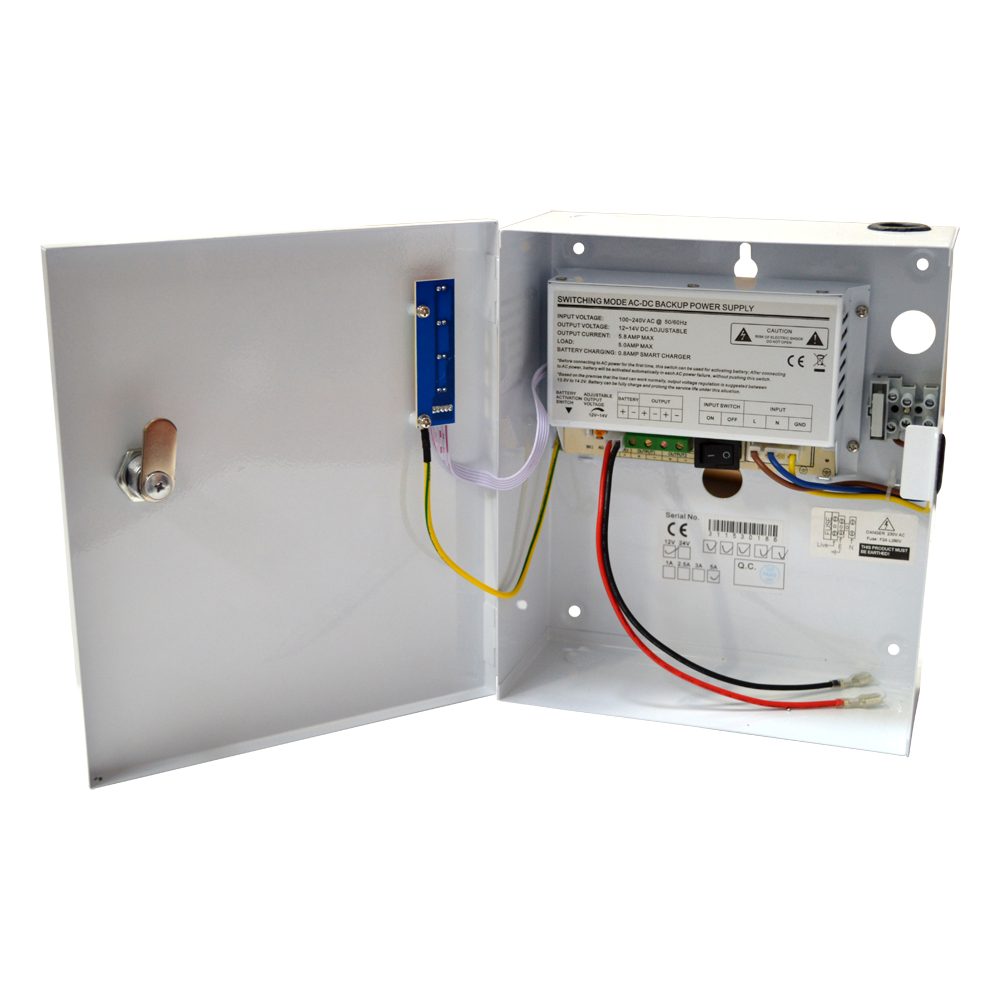

The Asec Boxed Power Supply is a highly reliable power solution housed in a robust, powder-coated steel enclosure. Designed primarily for access control systems and security installations, it provides a smoothed, regulated DC output to keep your equipment running safely and efficiently. It features an integrated battery charging circuit and deep discharge protection to support backup batteries, ensuring continuous operation during a mains power failure.

This versatile power supply is available in multiple configurations to suit various system requirements. Options include output voltages of 12V DC (13.8V) or 24V DC (27.6V), with output currents ranging from 1 Amp up to 5 Amp. The units are housed in either small or large lockable metal boxes, accommodating different backup battery capacities. Please choose your required voltage, current, and box size from the options below.

Technical Specifications

• Input Voltage: 230V AC / 240V AC mains
• Output Voltage: 13.8V DC (12V DC) or 27.6V DC (24V DC) (model dependent)
• Output Current: 1 Amp, 2 Amp, 3 Amp, or 5 Amp (model dependent)
• IP Rating: IP41 (Front only)
• Material: 1.2mm powder-coated steel (White finish)

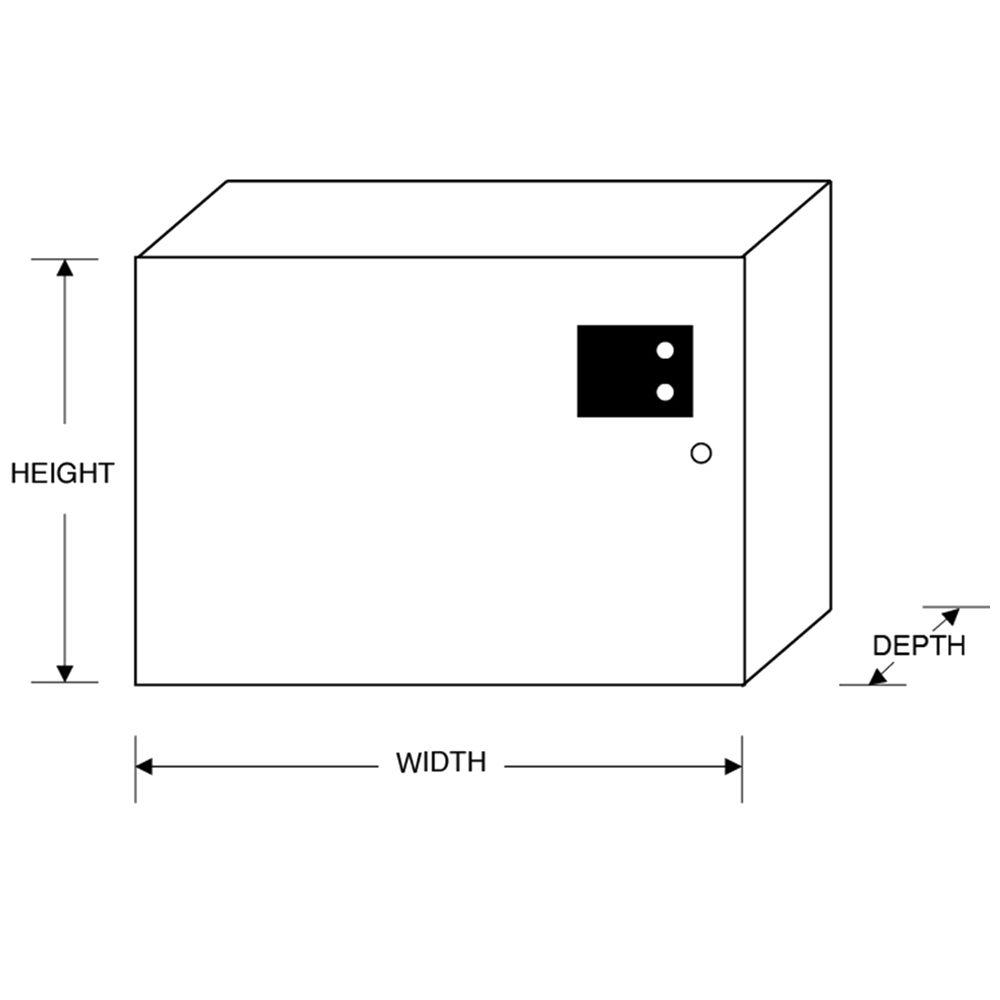

• Small Box Dimensions: 225mm (H) x 195mm (W) x 80mm (D)
• Large Box Dimensions: 310mm (H) x 335mm (W) x 85mm (D)
• Backup Battery Capacity: Up to 7Ah or 2 x 7Ah (model dependent)

Key Features

• Smoothed and regulated DC output for stable and reliable performance
• Integrated battery charging circuit with deep discharge protection
• Secure, key-lockable metal hinged box for physical protection

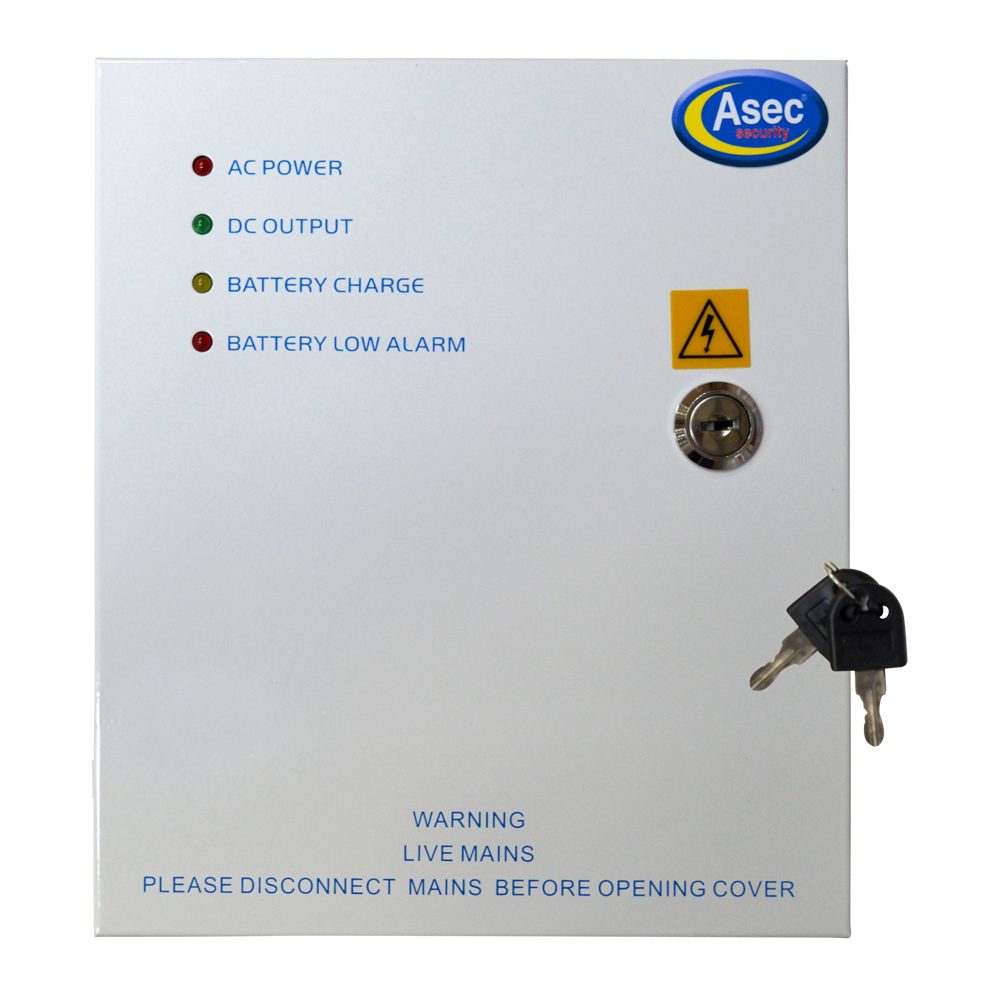

• Multi-LED visual fault indicators for straightforward status monitoring
• Built-in tamper protection and output fuse protection
• Multiple voltage, current, and casing options available to suit your specific installation
