ASEC AS5512 50mm 5 Lever Sashlock

Asec More Asec 5 Lever

Price

£183.96

Select size, finish, and quantity from the variant table.

View options

The Asec AS5512 50mm 5 Lever Sashlock is a slim, narrow-profile mortice sashlock designed specifically for doors with narrow stiles, such as aluminium doors or glass-panelled wooden doors. With a compact 50mm case depth and a 35mm backset, it offers a reliable locking solution where space is limited.

This sashlock features a robust brass deadbolt reinforced with two hardened steel rollers to resist sawing attacks, alongside a fully reversible latch bolt that makes it suitable for both left and right-handed doors. It operates via a 5-lever mechanism, providing 1,000 key differs for enhanced security, and comes supplied with three keys.

This product is available in multiple options, including Polished Brass and Stainless Steel finishes, with corresponding weights, manufacturer references, and barcodes. Please select your preferred finish, manufacturer reference, weight, and barcode from the options below.

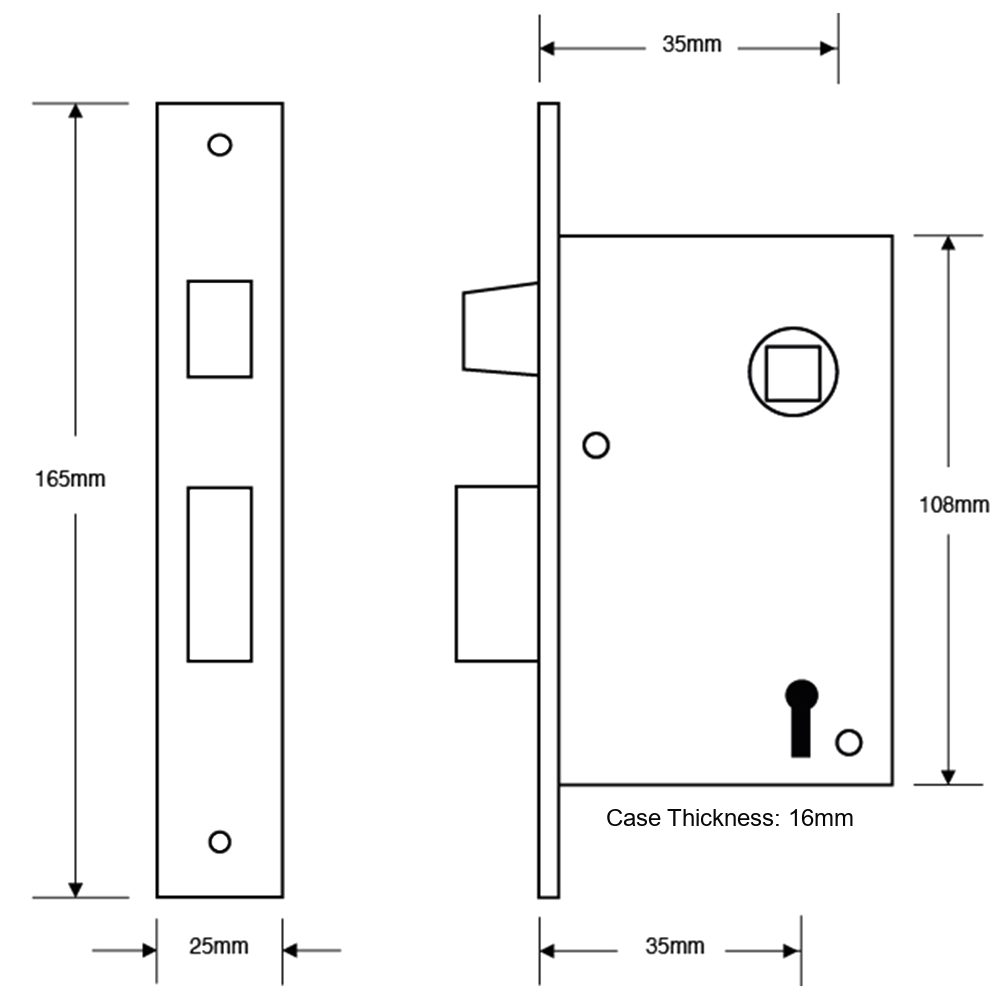

Technical Specifications

Case Depth: 50mm
Backset: 35mm
Case Height: 108mm
Centres: 57mm
Follower: 8mm
Forend Dimensions: 165mm (Length) x 25mm (Width)
Mechanism: 5 Lever (Asec 5 Lever Narrow)
Key Differs: 1,000 (Keyed to differ)
Keys Supplied: 3 keys
Handing: Reversible latch bolt
Finishes Available: Polished Brass or Stainless Steel (please select from the options below)
Manufacturer References: AS11356 or AS11357 (please select from the options below)
Weights: 750g or 760g (please select from the options below)
Barcodes: 5055120674544 or 5055120674551 (please select from the options below)

Key Features

Slim Profile Design: Ideal for narrow stile doors, including aluminium and glass-panelled wooden doors.
Enhanced Security: Brass deadbolt features 2 hardened steel rollers to resist cutting and sawing.
Reversible Latch Bolt: Easily handed on-site to suit both left and right-hung doors.
Multiple Finishes: Available in Polished Brass or Stainless Steel to match existing door hardware.
Supplied with Keys: Comes complete with 3 keys and all necessary fixings.
