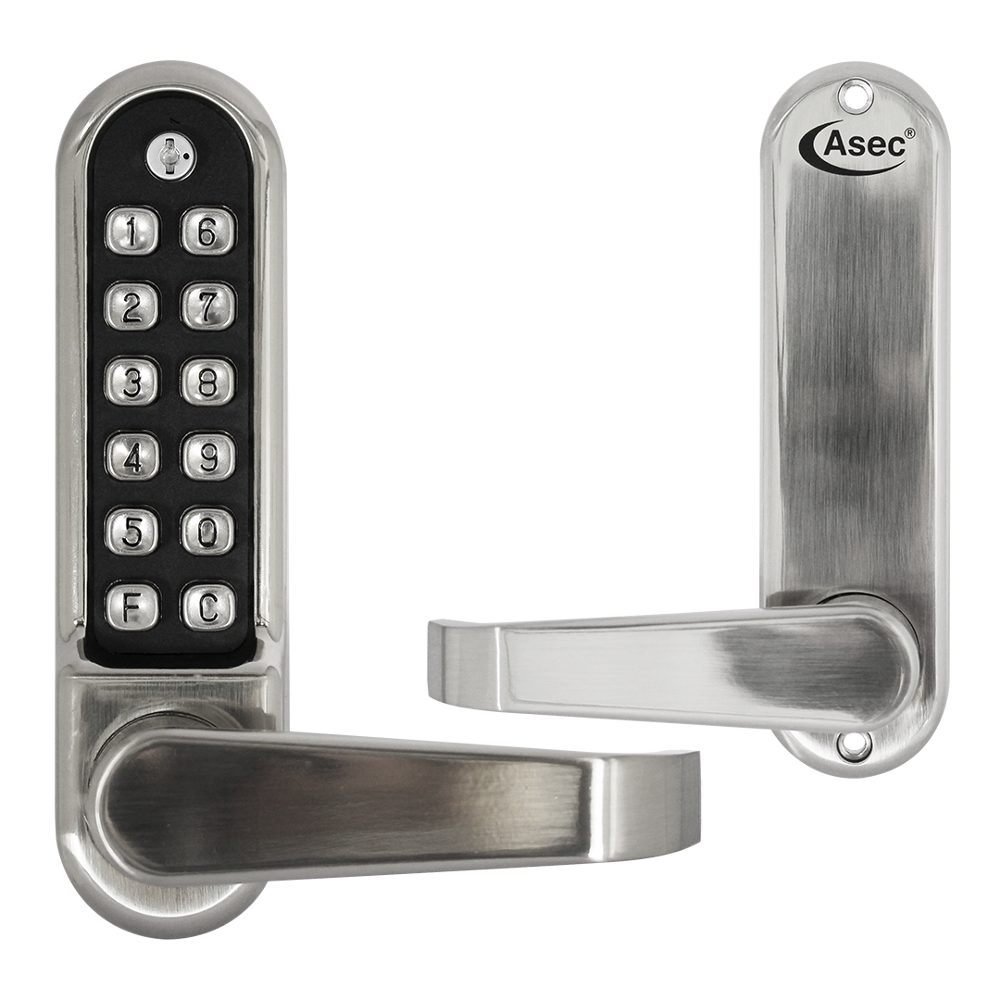

ASEC AS4300 Series Lever Operated Easy Code Change Digital Lock With Optional Free Passage No Latch
Asec
The Asec AS4300 Series Lever Operated Easy Code Change Digital Lock (AS4306) is a robust and versatile mechanical keyless entry solution designed for medium to heavy-duty use on internal or external timber doors. This model features a highly convenient "on-door" code change function, allowing users to update the access code quickly and easily using the supplied key, without the hassle of removing the lock unit from the door.
Equipped with a free-turning lever handle, the lock is designed to resist forced entry attempts by only engaging the mechanism once the correct code is entered. It features 12 large, indented buttons and offers over 1,000 possible code combinations for reliable security. This unit is supplied without a latch, making it an ideal choice for retrofitting or pairing with existing locks that feature an 8mm square follower. It also includes an optional free passage mode, allowing unrestricted access when required, and is fully reversible to suit both left and right-handed doors.
Technical Specifications
- Brand: Asec
- Manufacturer Reference: AS4306
- Finish: Stainless Steel
- Buttons: 12 large indented buttons
- Code Combinations: 1,000+
- Door Thickness: 35mm to 65mm
- Spindle Size: 8mm
- Handing: Reversible (fits left or right-handed doors)
- Key Override: No
- Keys Supplied: 3
- Case Depth Required: 84mm
- Backset: 60mm (when used with compatible latch)
- Guarantee: 5 Year
Key Features
- On-Door Code Change: Quick and easy code changes can be performed without removing the unit from the door.
- Free Passage Mode: Optional passage facility allows the door to be left unlocked for unrestricted access.
- Clutched Lever Handle: Free-turning handle design prevents damage from forced entry attempts.
- Medium to Heavy-Duty: Suitable for high-traffic internal and external timber doors.
- Supplied Without Latch: Ideal for integration with existing lock setups or custom latch configurations.
- Reversible Handing: Suitable for both left and right-handed applications.
