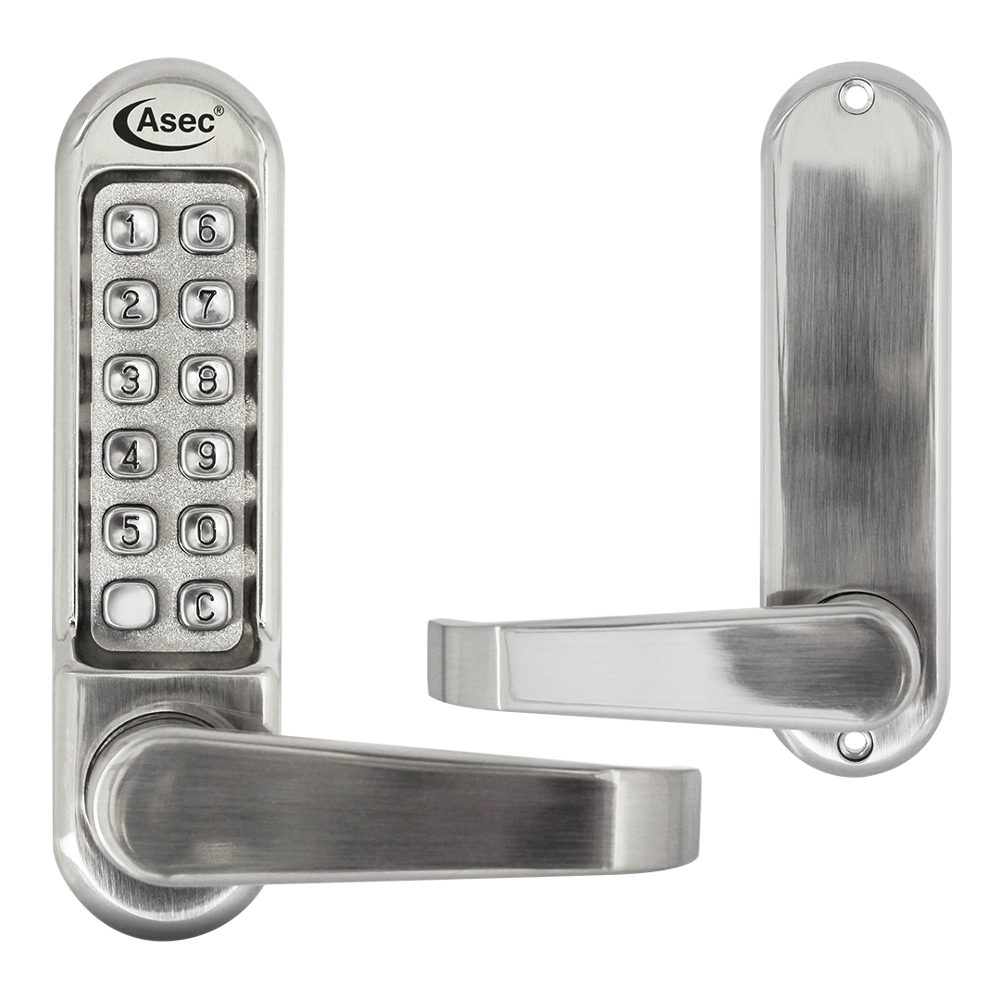

ASEC AS4300 Series Lever Operated Digital Lock No Latch

The Asec AS4300 Series Lever Operated Digital Lock is a heavy-duty, mechanical combination lock designed for medium to heavy-duty use on internal or external timber doors. Supplied complete with lever handles but without a latch, this unit is ideal for installations where you already have an existing latch or lock case in place, or for integration with specific panic hardware.

It features a robust clutched handle mechanism designed to slip under excessive force, protecting the internal lock components from vandalism and forced entry. The lock is equipped with 12 large, indented buttons providing over 2,000 possible code combinations. Finished with a hard-wearing PVD stainless steel coating, it offers excellent durability and weather resistance.

This digital lock is fully reversible for left or right-handed doors and is suitable for door thicknesses ranging from 35mm to 65mm.

This series is available in multiple options, including the standard AS4304 model and the AS4305 model which features an optional free passage function. Please choose your preferred manufacturer reference and barcode from the options below.

Technical Specifications

• Brand: Asec
• Mechanism: Mechanical Digital
• Manufacturer Reference: AS4304 / AS4305 (Please choose from the options below)
• Barcode: 5060275694408 / 5060275694422 (Please choose from the options below)
• Finish: Stainless Steel

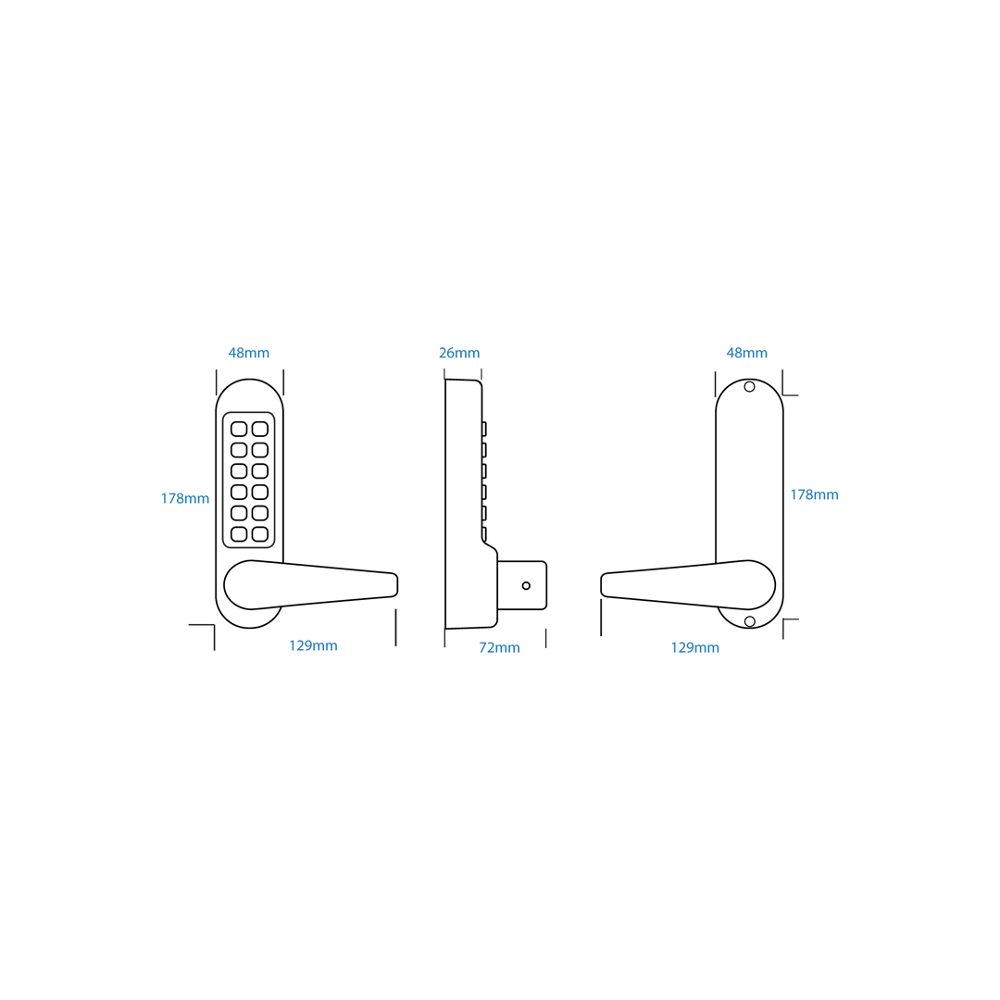

• Door Thickness: 35mm to 65mm
• Backset: 60mm
• Case Depth Required: 84mm
• Spindle: 8mm
• Width: 48mm
• Handing: Reversible
• Number of Buttons: 12
• Combinations: 2,000+
• Operation Inside: Lever Handle Free Exit
• Operation Outside: Lever Handle On Entry Of Code
• Latch: Not supplied (No Latch)
• Guarantee: 5 Year

Key Features

• Heavy-Duty Construction: Designed for medium to heavy-duty use on internal or external timber doors.
• Clutched Handle Operation: Protects internal components against forced entry and vandalism.
• Flexible Options: Available as standard or with an optional free passage function (please choose below).
• Hard-Wearing Finish: PVD stainless steel coating provides excellent weather and wear resistance.
• High Security Combinations: Features 12 large indented buttons offering over 2,000 possible combinations.
• Reversible Handing: Suitable for both left and right-handed door applications.
• 5-Year Guarantee: Backed by a manufacturer's 5-year guarantee for peace of mind.
