ASEC AS2300 Series Digital Lock With Optional Holdback

The Asec AS2300 Series mechanical digital door lock is a versatile and cost-effective solution designed to restrict access to authorised code-holding personnel only. Suitable for both internal and external applications, this keyless entry lock is ideal for commercial and domestic environments alike.

A key benefit of this model is its optional holdback (hold open) facility. The sliding switch can be easily reversed and used as a blanking plate if the hold open function is not required, giving you complete control over access. The user-programmable code is simple to change, offering over 1,000 possible combinations for reliable security.

This digital lock is supplied complete with a 60mm backset tubular latch, fixings, and a 5-year mechanical guarantee. It is designed for straightforward installation on doors between 35mm and 60mm thick.

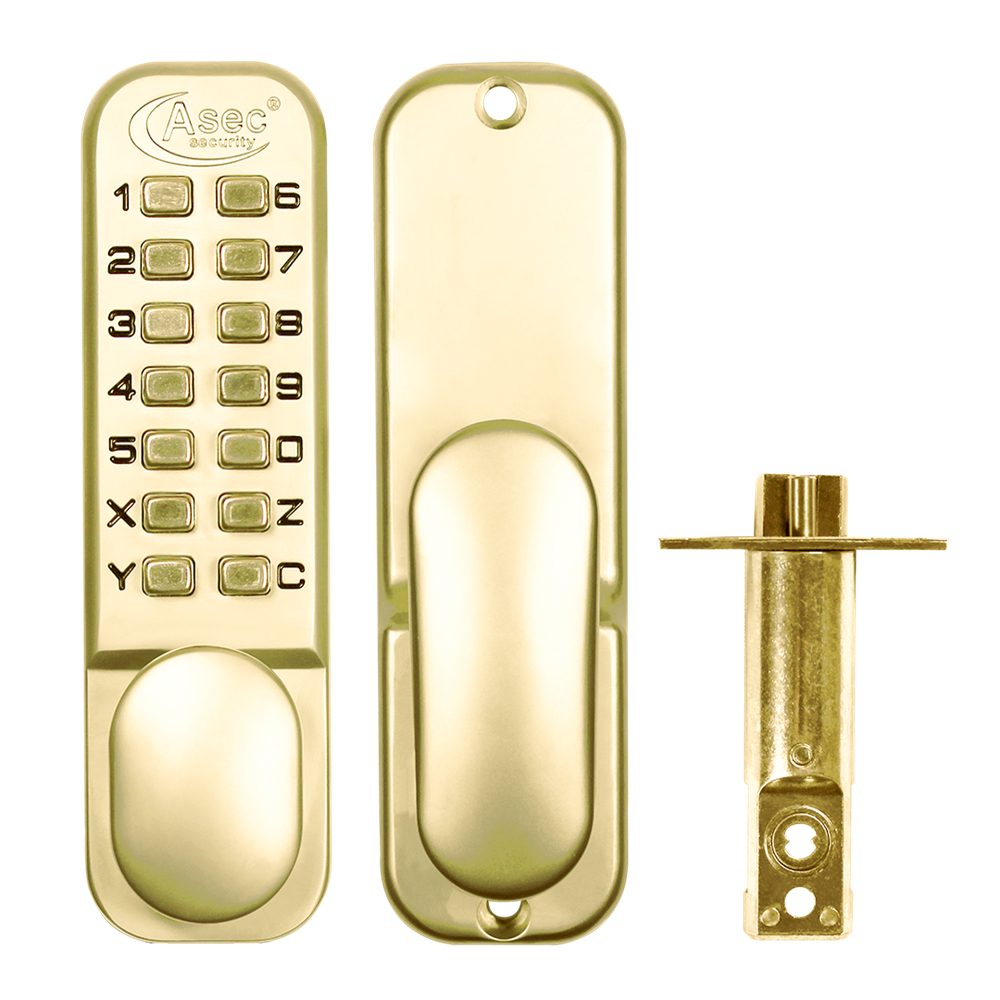

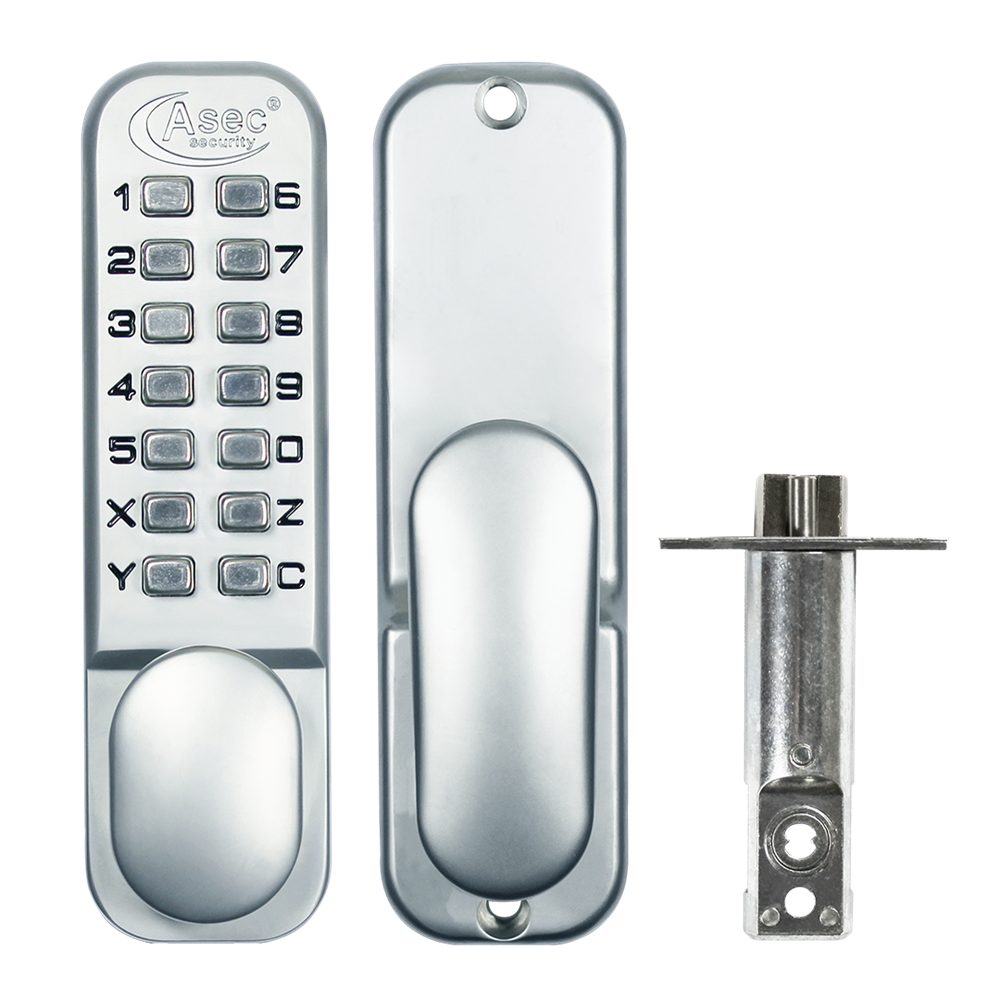

The Asec AS2300 Series is available in multiple finishes, including Polished Brass and Satin Chrome, with corresponding manufacturer references AS2300 and AS2301. Please choose your preferred finish and reference from the options below.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS2300 / AS2301 (Please choose from the options below)
• Finish: Polished Brass / Satin Chrome (Please choose from the options below)
• Backset: 60mm
• Case Depth Required: 80mm
• Door Thickness: 35mm to 60mm
• Code Length: 4 to 7 digits
• Number of Buttons: 14
• Handing: Reversible (suitable for left or right-handed doors)

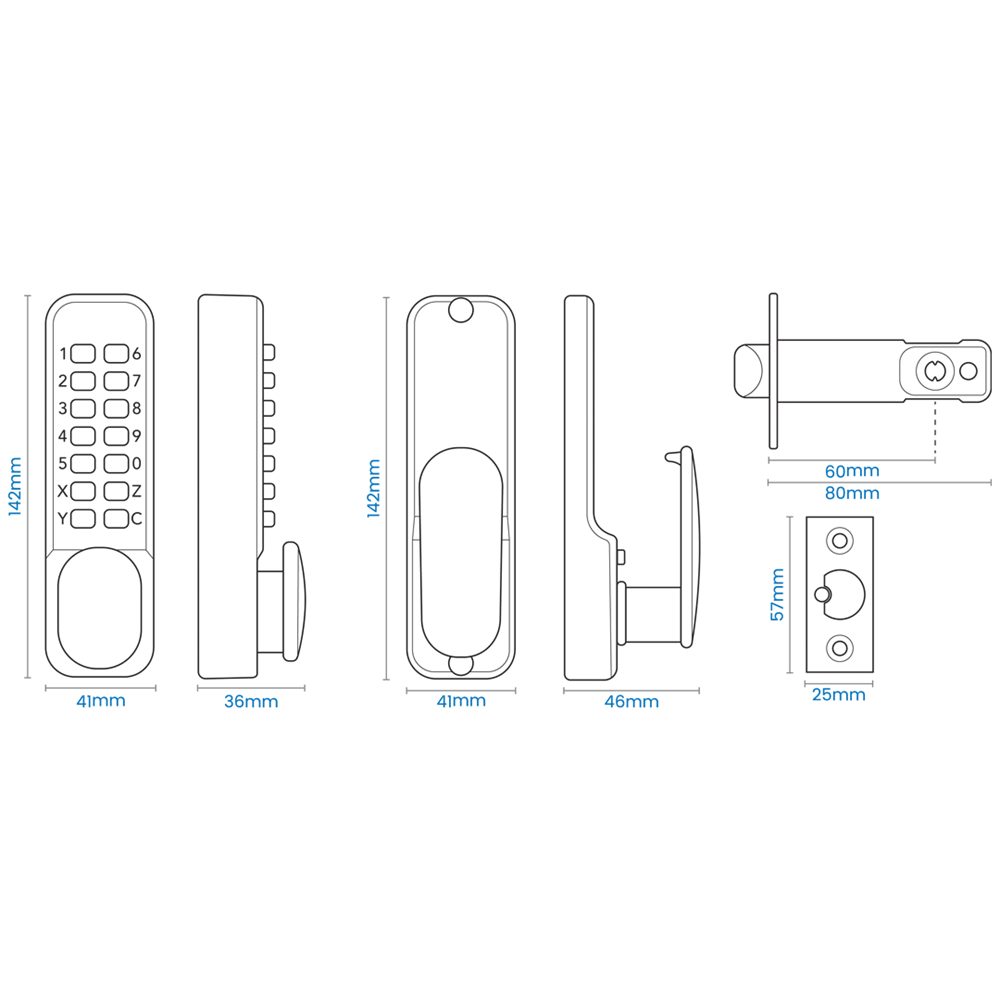

• Dimensions: 142mm (H) x 41mm (W)
• Operation: Thumbturn entry on code input (outside), free exit thumbturn (inside)
• Key Override: No

Key Features

• Optional Holdback Facility: Features a sliding switch for hold-open functionality, which can be reversed and used as a blanking plate if not required.
• Versatile Application: Suitable for both internal and external installations on doors between 35mm and 60mm thick.

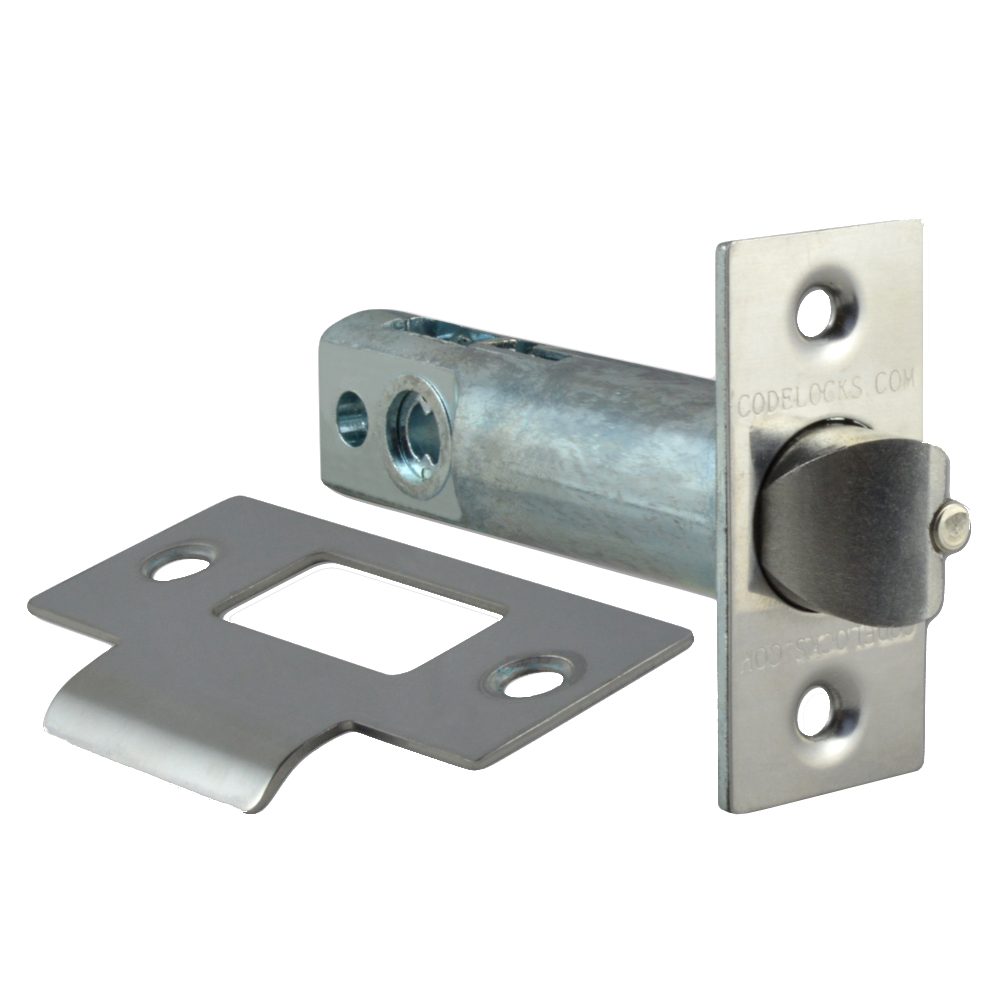

• Complete Kit: Supplied with a 60mm standard tubular latch, fixings, and templates for simple installation.
• Robust Security: Offers over 1,000 user-programmable code combinations with easy code changing.
• Mechanical Operation: Requires no batteries or electrical wiring.
• 5-Year Guarantee: Backed by a 5-year mechanical guarantee from Asec for long-term peace of mind.
