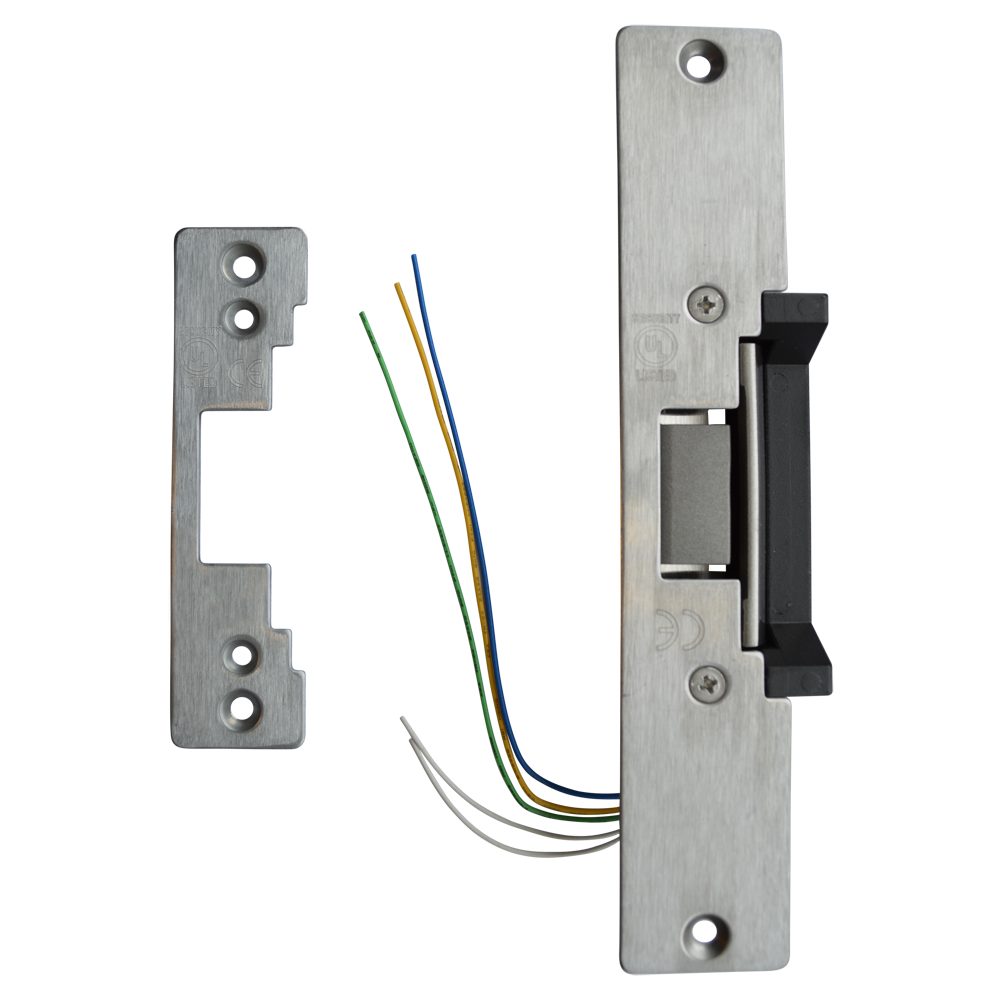

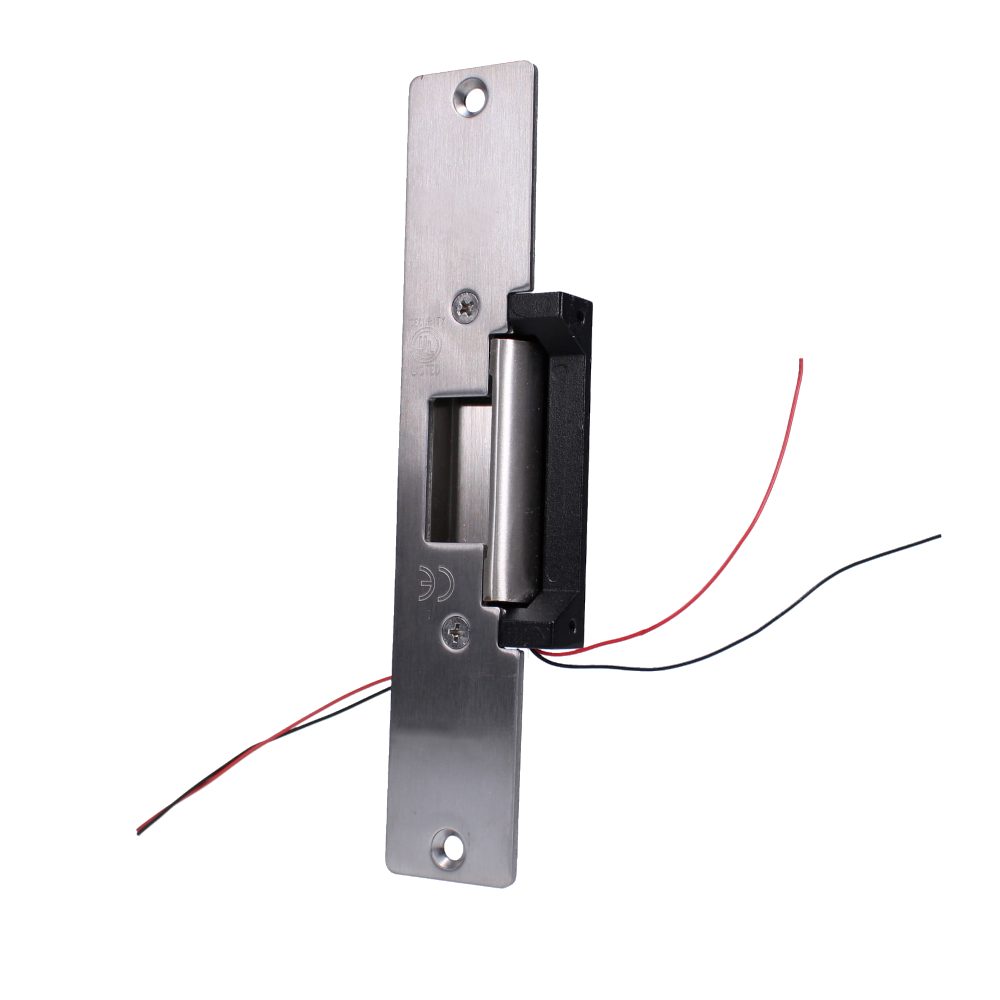

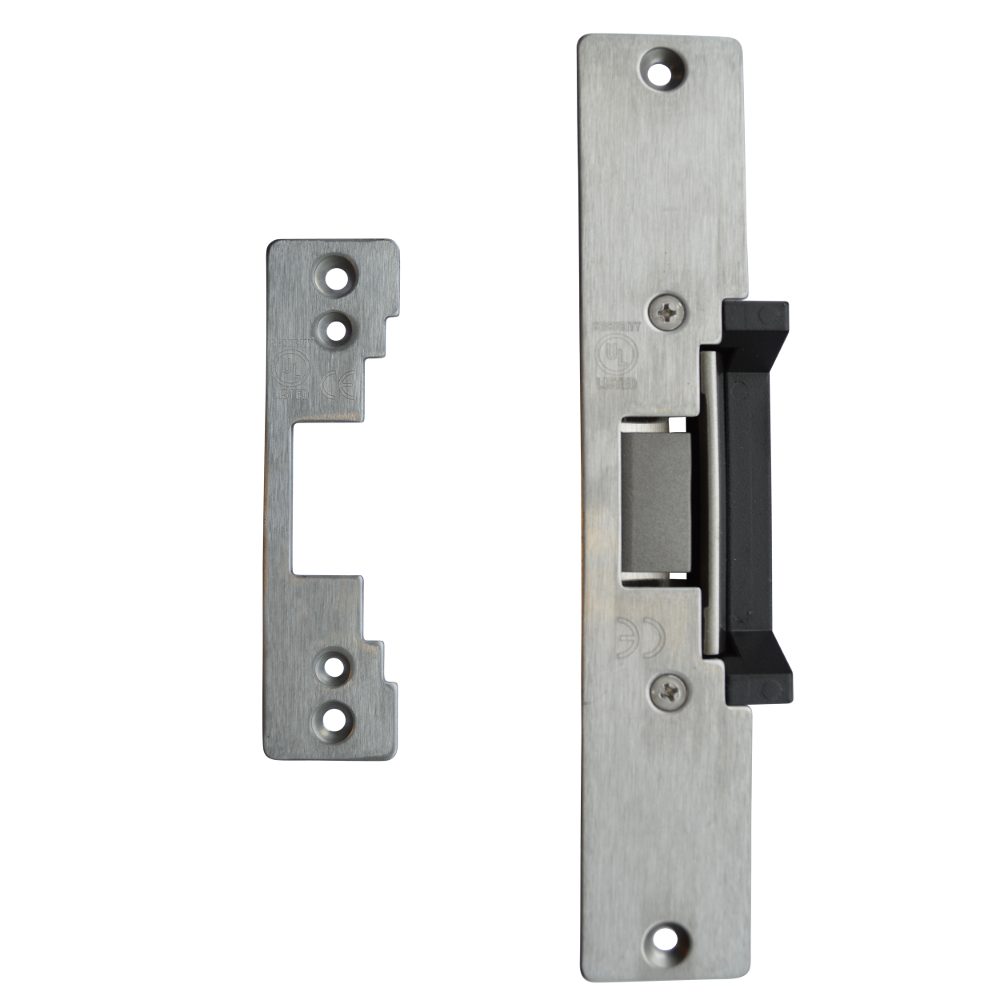

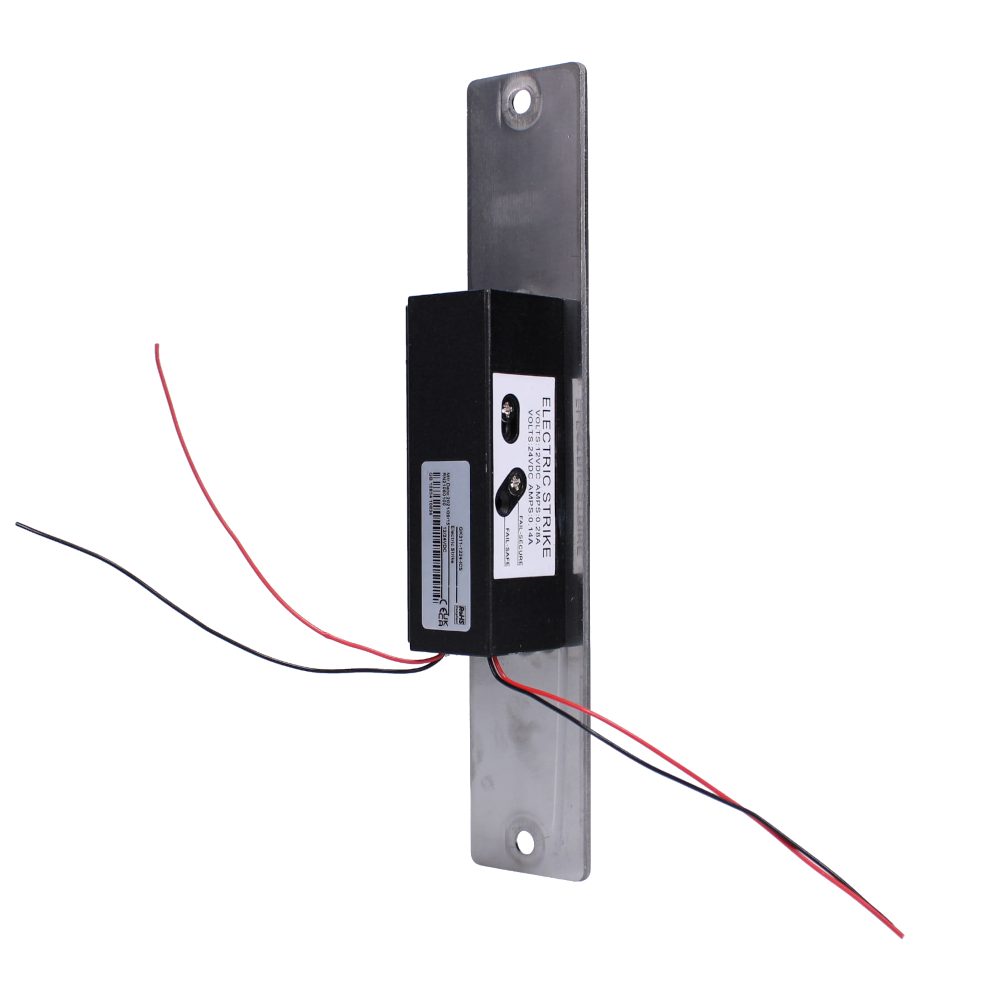

ASEC ANSI Mortice Release
Asec
The Asec ANSI Mortice Release is a highly versatile and robust electric strike designed for secure access control systems. This ANSI-style release is supplied with both long and short stainless steel faceplates, making it suitable for both timber and metal door installations. It features a site-reversible operation, allowing you to easily switch between fail locked (fail secure) and fail unlocked (fail safe) modes with no loose pins to worry about.
This mortice release is available in several configurations, including monitored and non-monitored versions, as well as options for 12V DC or dual 12/24V DC input voltage. Depending on the model selected, specifications such as body height (83mm to 85mm), faceplate width (32mm to 40mm), jaw dimensions, and current consumption will vary. Please choose your preferred configuration from the options below to suit your specific installation requirements.
Technical Specifications
- Fitting: Mortice
- Finish: Stainless Steel
- Input Voltage: 12V DC or 12/24V DC (depending on option selected)

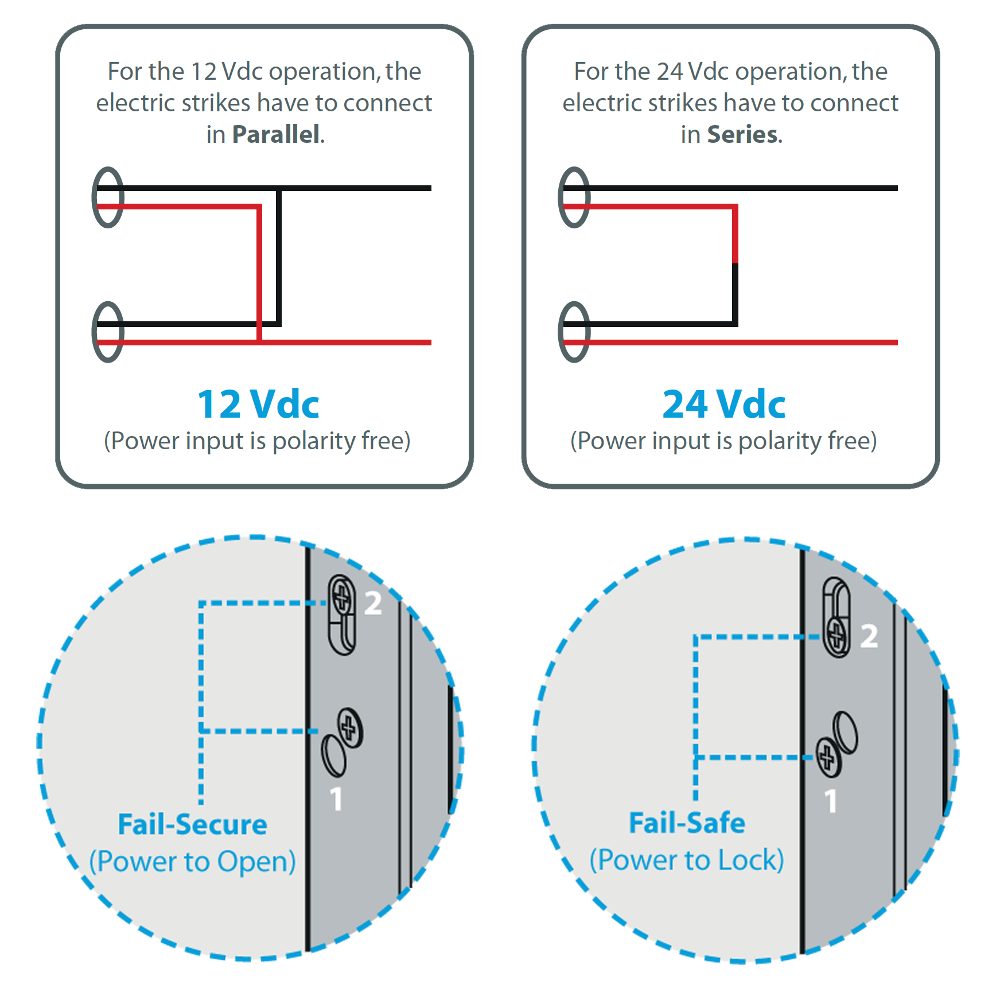

- Operation: Fail Locked / Fail Unlocked (Site Reversible)
- Monitoring: Available in monitored and non-monitored versions (please choose from the options below)
- Holding Force: 900Kg to 907Kg (2,000 lbs)

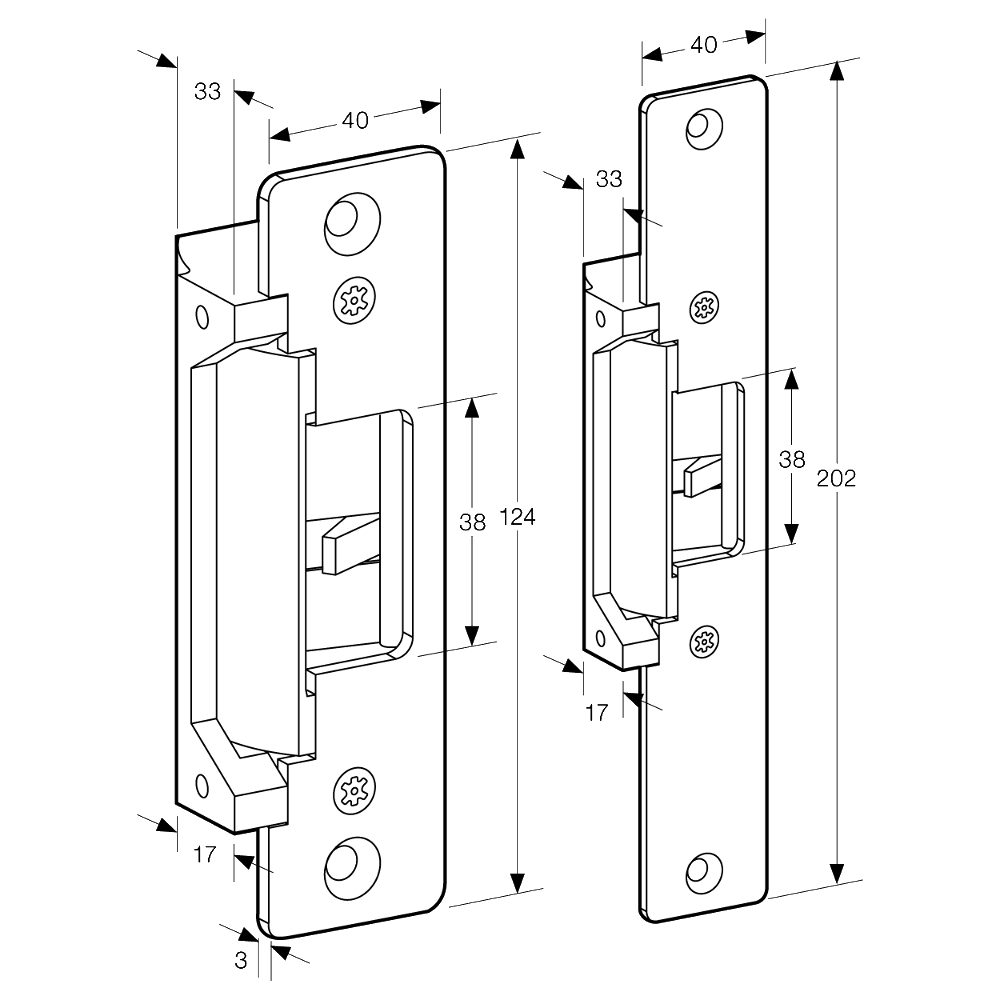

- Body Height: 83mm to 85mm
- Body Depth: 35mm
- Faceplate Height: Short (124mm) or Long (200mm - 201mm)
- Faceplate Width: 32mm to 40mm
- Jaw Dimensions: 11mm - 12mm (Depth) x 36mm - 38mm (Height) x 16mm - 17mm (Width)
- Current Consumption: 0.1A to 0.25A @ 12V DC (and up to 0.2A @ 24V DC for dual-voltage models)
- Operating Temperature: -10°C to 45°C
- Weight: 100g to 700g
- Guarantee: 1 Year
Key Features
- High Security: Offers a robust holding force of up to 2,000 lbs (907Kg)
- Site Reversible: Easily switched between fail locked (fail secure) and fail unlocked (fail safe) with no loose pins
- Dual Faceplates Included: Supplied with both long (timber installation) and short (metal installation) stainless steel faceplates
- Highly Durable: Tested to withstand up to 1,000,000 cycles
- Versatile Configurations: Available in monitored and non-monitored options to suit your access control requirements
Master locksmiths with BSI accreditation
MLA approved locksmiths, BSI certified key systems, and independently audited security standards.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|
AS10638 | AS10638 |
£
133.52
|
|
|
AS9824 | AS9824 |
£
160.96
|
|
|
AS9878 | AS9878 |
£
182.95
|
