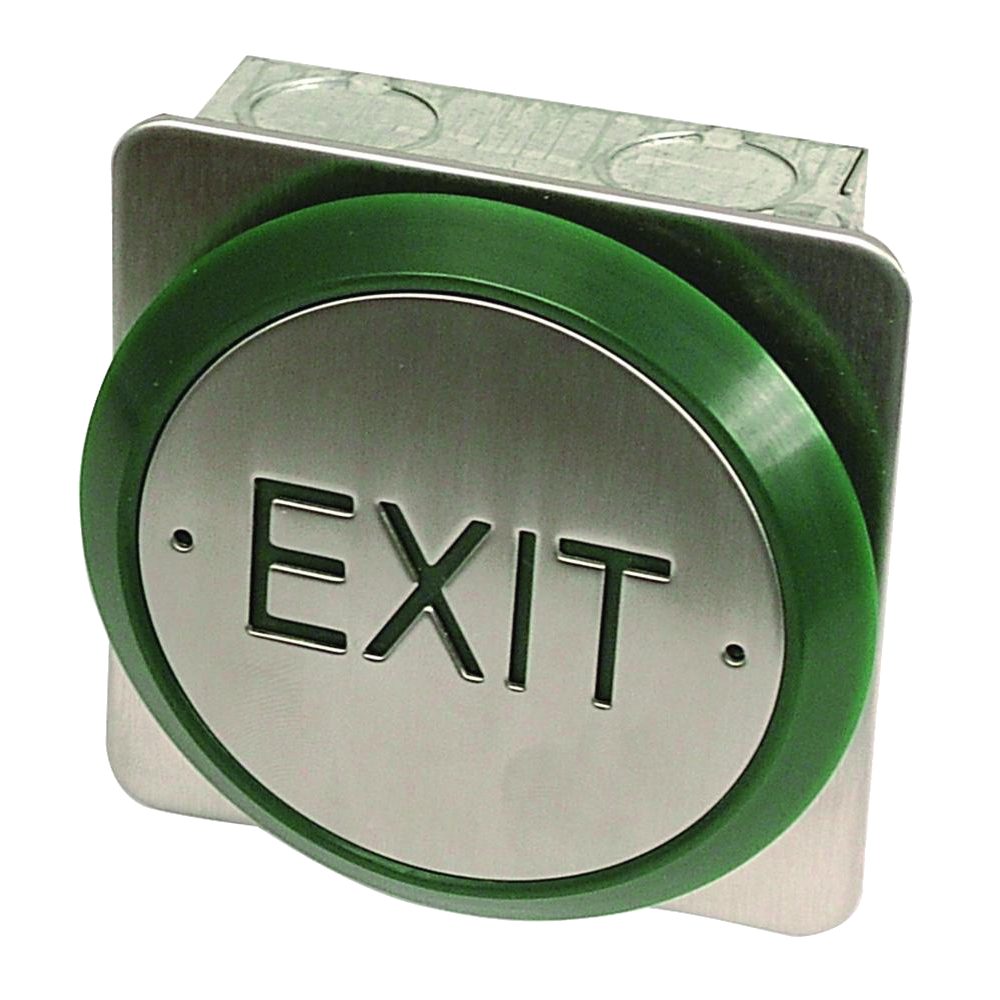

ASEC All Active Small Push Plate Exit Button

The Asec All Active Small Push Plate Exit Button is an ideal solution for high-traffic and mixed-use environments. Designed for ease of use, the entire face of the plate acts as an active touch-point, allowing users to activate the switch by pressing anywhere on its surface. This "all-active" design makes it highly accessible and straightforward to operate for all users, particularly in areas with diverse accessibility needs.

Constructed with a robust 2mm stainless steel mounting plate, this exit button is built to withstand frequent use. It features a low-profile switch at the rear, keeping the overall depth minimal. The "Exit" legend is cleanly etched directly into the plate to ensure long-lasting visibility that won't wear away over time.

The unit comes complete with a 25mm gang box and security screws, facilitating a secure surface-mounted installation. With 5-amp double-pole contacts and support for both normally open (N/O) and normally closed (N/C) outputs, it offers versatile integration with standard 12V or 24V DC access control systems.

Technical Specifications

• Brand: Asec
• Part Number: AS9872
• Input Voltage: 12/24V DC
• Current Rating: 5A @ 30V
• Outputs: N/O & N/C
• Operation: Momentary
• Connections: 2 to 4
• Fitting: Surface
• Finish: Stainless Steel
• Legend: Exit

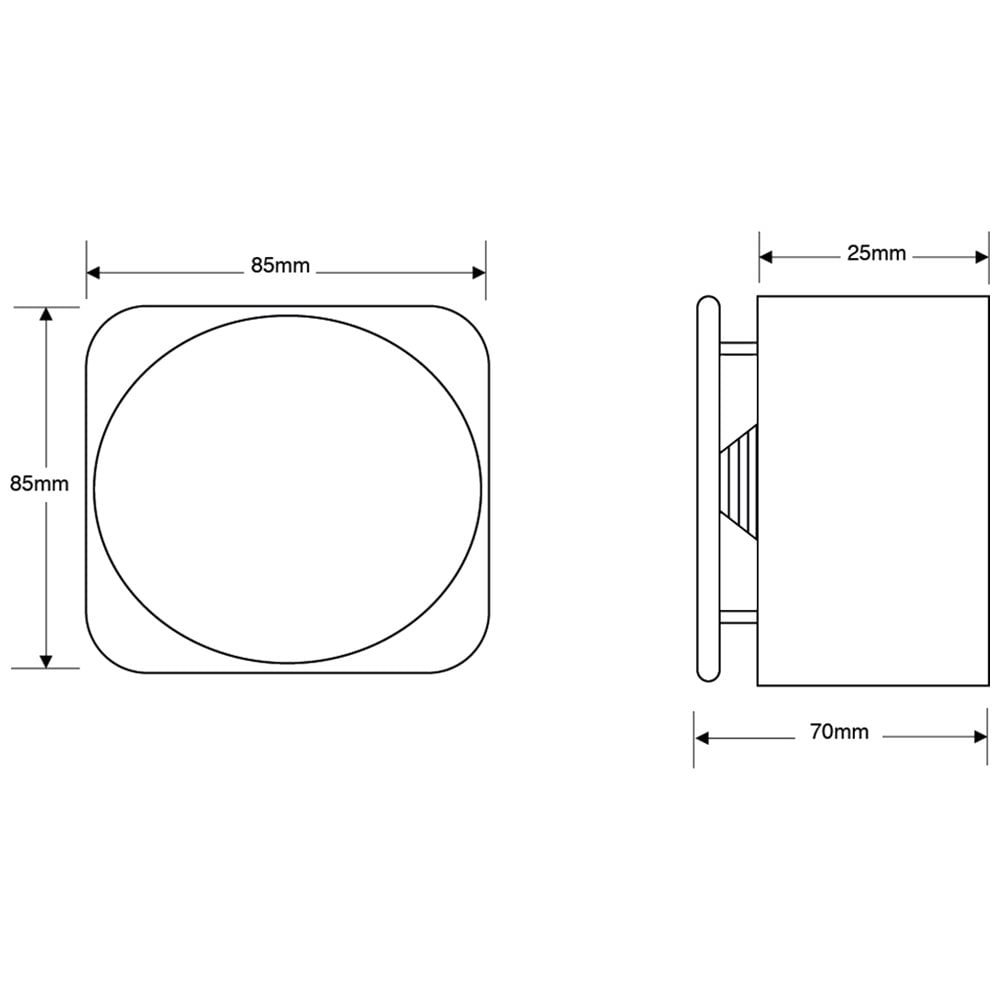

• Width: 85mm
• Depth: 27mm
• Diameter: 87mm
• Weight: 170g

Key Features

• All-Active Plate: Touch-anywhere action makes it incredibly easy to operate, ideal for mixed-traffic areas.
• Durable Construction: Features a robust 2mm stainless steel mounting plate with an etched "Exit" legend that won't wear off.
• Low-Profile Design: Equipped with a low-profile switch at the rear of the plate to maintain a neat, unobtrusive profile.
• Complete Kit: Supplied with a 25mm gang box and security screws for a secure surface-mount installation.
• Double Pole Contacts: 5-amp double pole contacts provide reliable and versatile wiring options.
