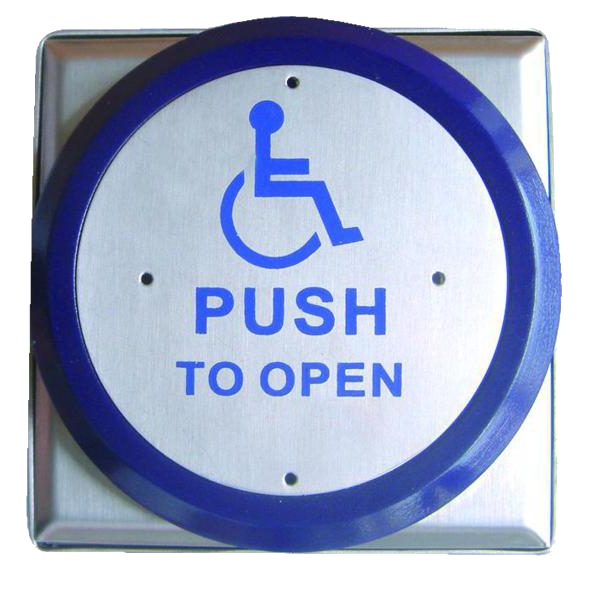

ASEC All Active Large Surface Push Plate DDA Exit Button

The Asec All Active Large Surface Push Plate DDA Exit Button is an oversized, highly accessible exit button designed to assist less able users in navigating access-controlled doors. Featuring a robust 2mm stainless steel mounting plate, this surface-mounted button is ideal for public buildings, offices, and healthcare facilities where ease of use is paramount.

With its "all active" touch-anywhere action, users can activate the switch by pressing any part of the large plate, making it incredibly easy to operate even with limited dexterity. The plate is clearly etched with a bold "Push To Open" legend. It features a low-profile switch at the rear of the plate to ensure a neat, compact installation, and is supplied complete with security screws to deter tampering.

Operating on a momentary action with both normally open (N/O) and normally closed (N/C) outputs, this exit button supports 12/24V DC input voltage and is rated at 5 Amps @ 30V.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS9870
• Fitting: Surface
• Finish: Stainless Steel
• Input Voltage: 12/24V DC
• Current Rating: 5A @ 30V
• Operation: Momentary
• Outputs: N/O & N/C
• Connections: 2 to 4
• Legend: Push To Open
• Illumination: No
• Width: 85mm
• Depth: 33mm
• Diameter: 87mm
• Weight: 260g
• Pack Quantity: 1

Key Features

• All-Active Action: Touch-anywhere plate design allows activation from any angle or point of contact, making it ideal for less able users.
• Durable Construction: Built with a robust 2mm stainless steel mounting plate for long-lasting performance.
• Low-Profile Design: Features a low-profile switch at the rear of the plate for a clean, unobtrusive installation.
• Tamper Resistant: Supplied complete with security screws to prevent unauthorised removal or tampering.
• Clear Signage: Etched with a highly visible "Push To Open" legend to guide users clearly.
