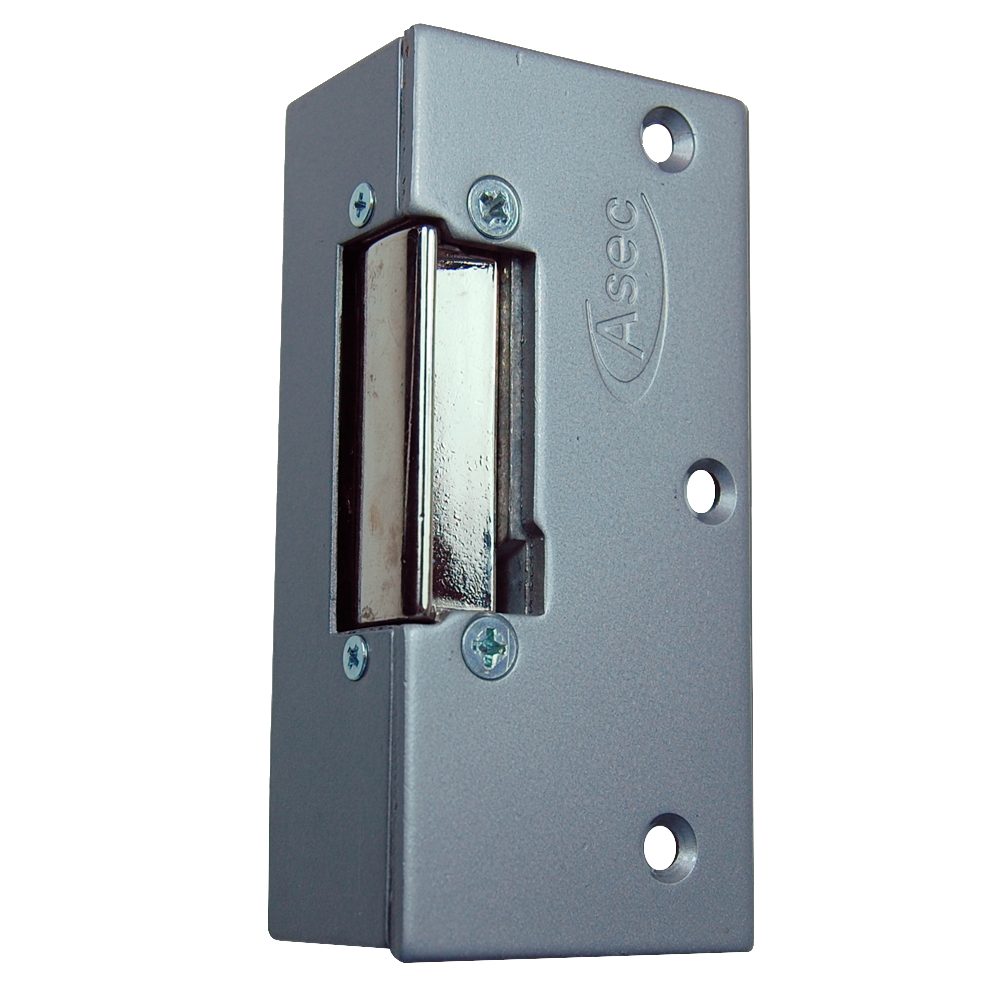

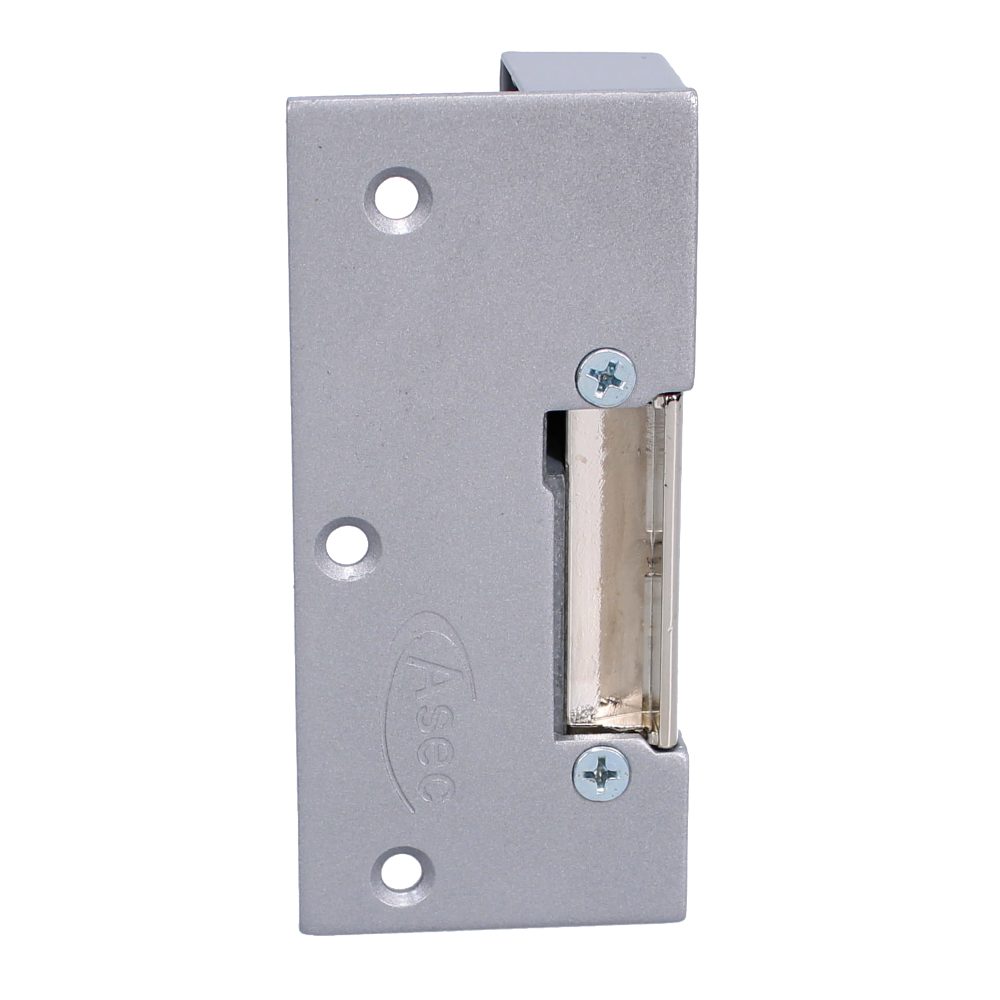

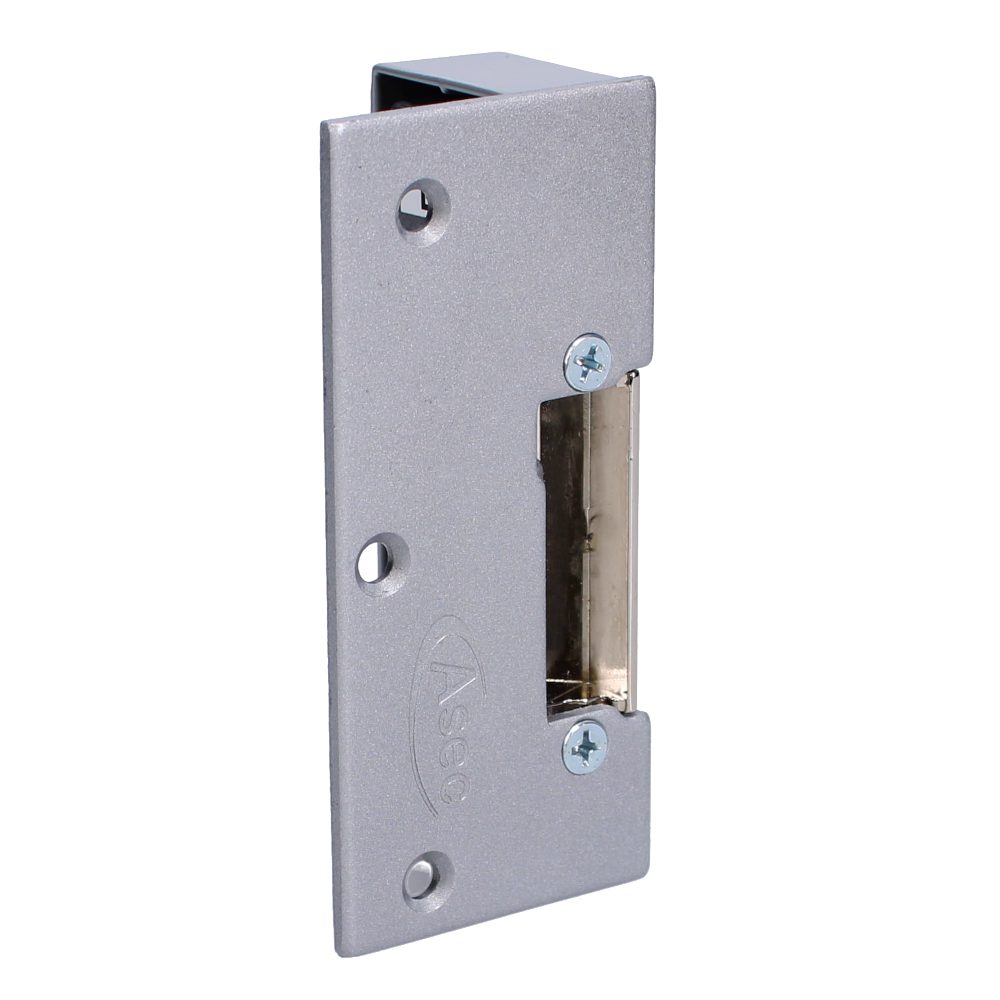

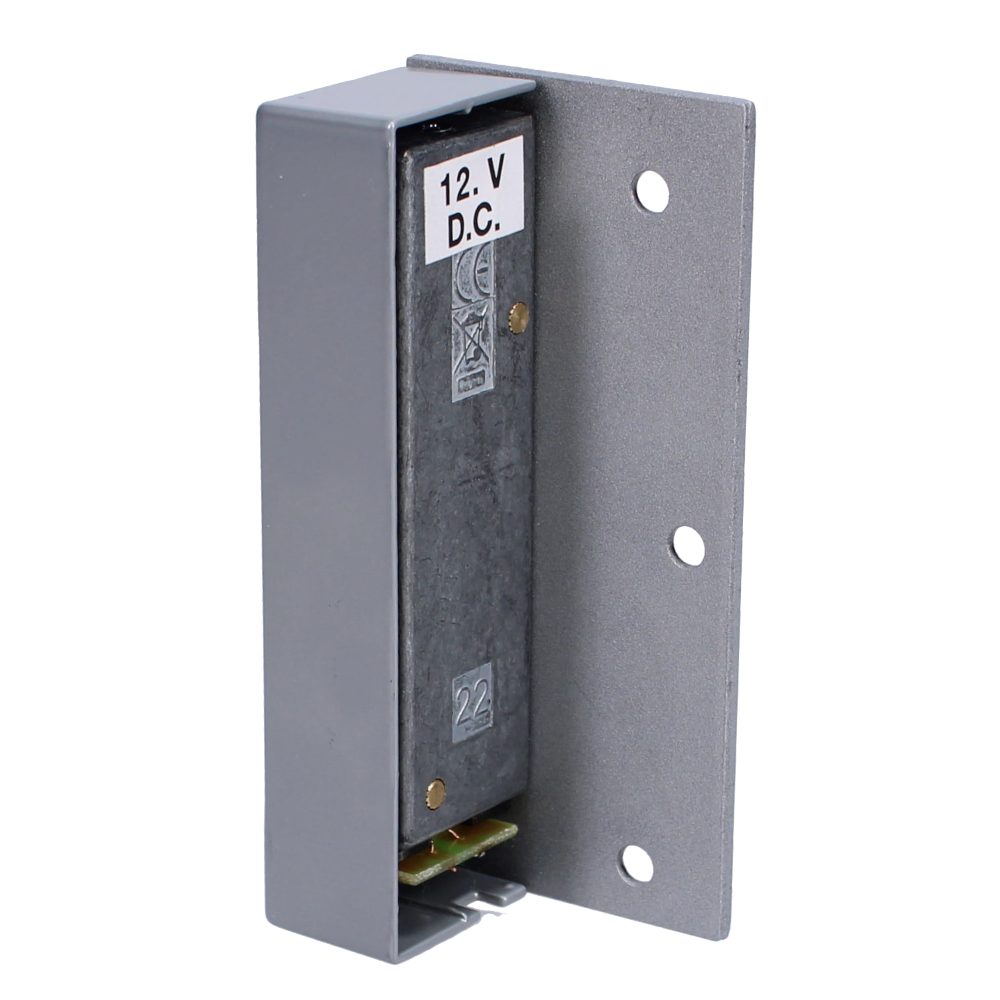

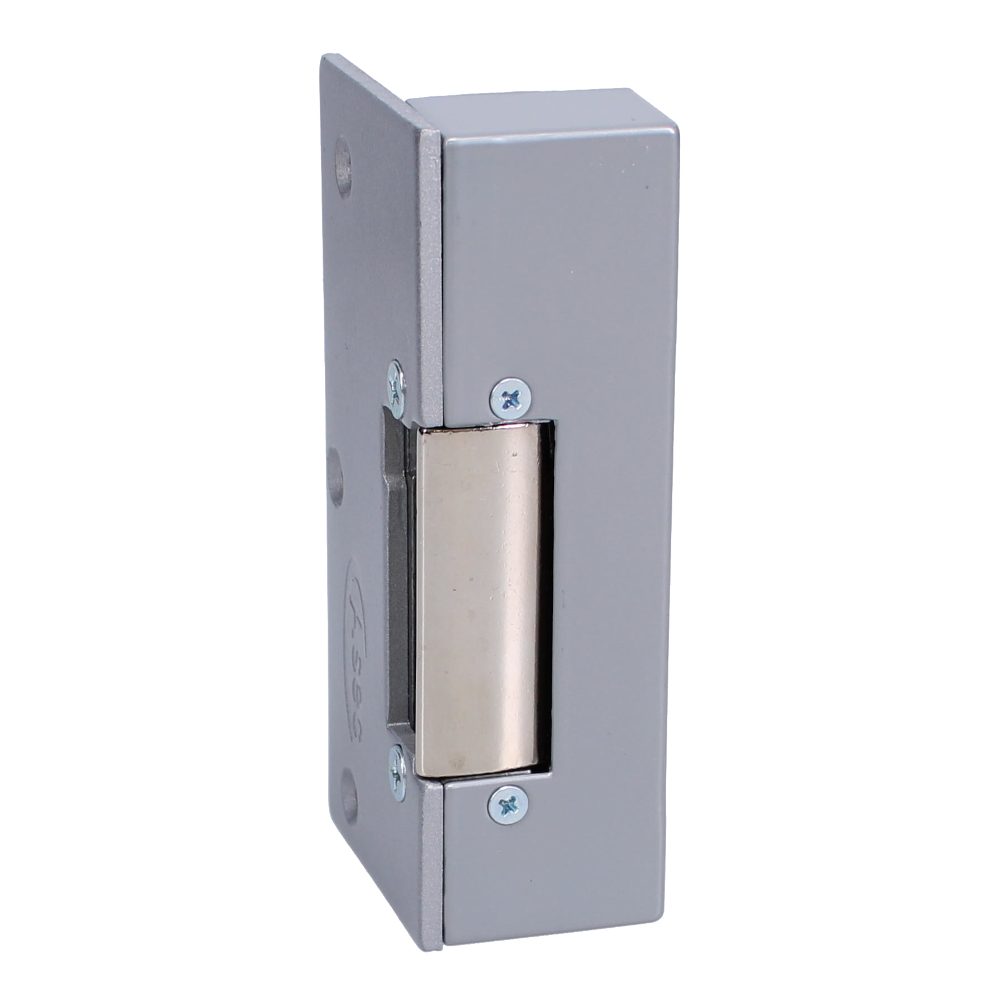

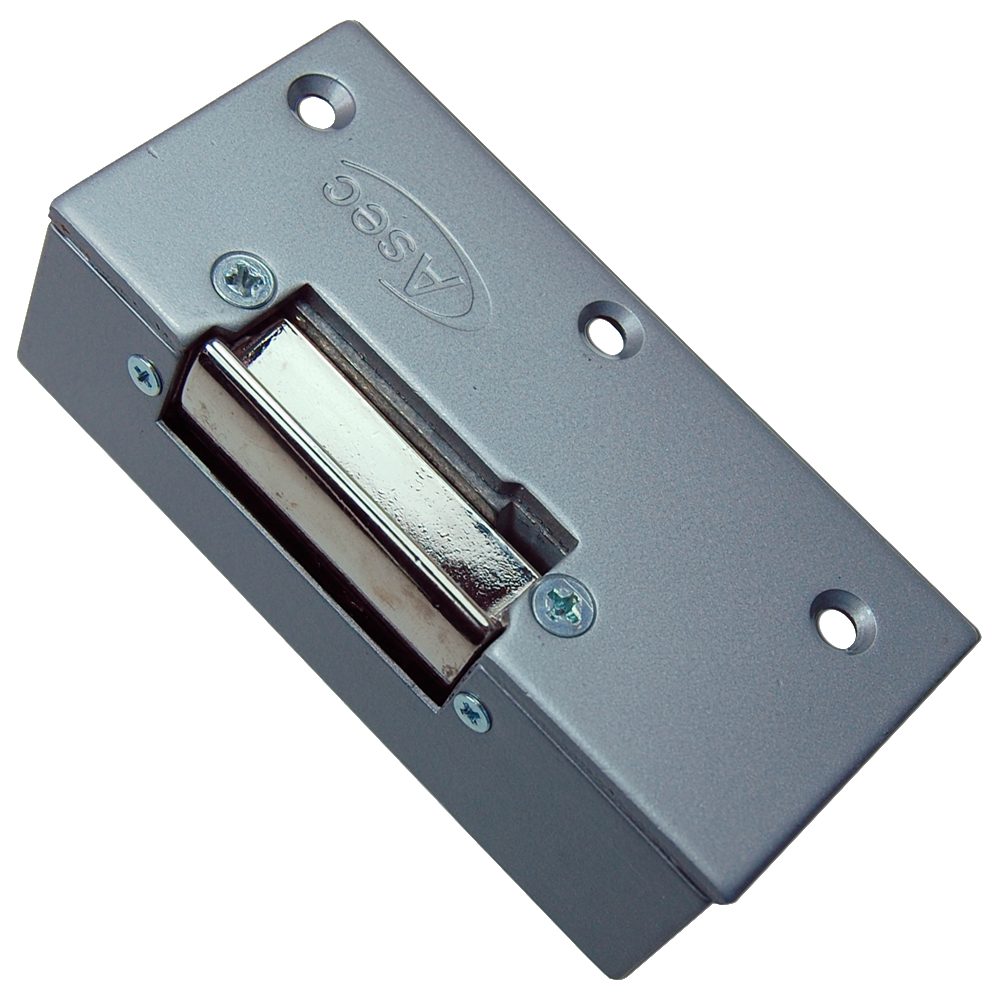

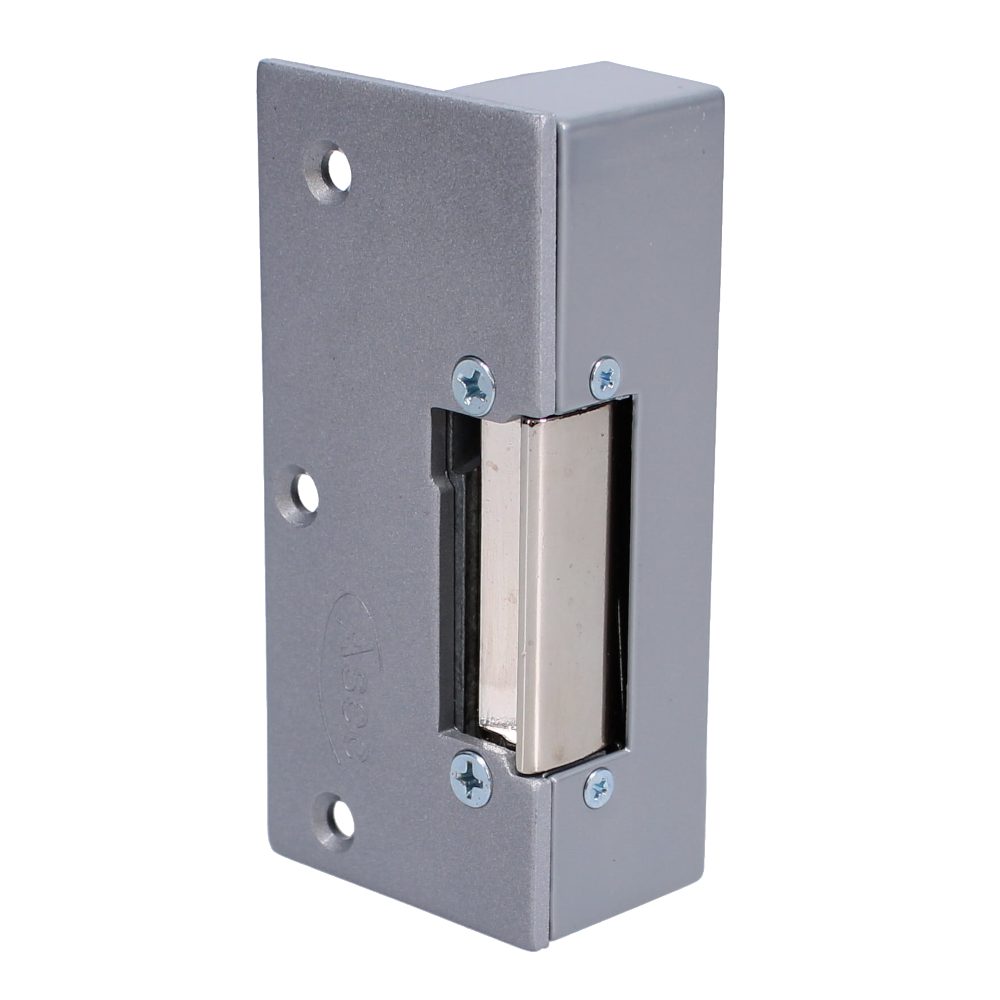

ASEC A95R Rim Release

The Asec A95R Rim Release is a fail-unlocked (fail-safe) electric strike designed for inward-opening doors. Ideal for low-duty applications, this surface-mounted rim release is easy to install and works in conjunction with a rim latch to provide remote locking control as part of an access control system.

This release features a continuously rated DC coil and is available in both 12V DC and 24V DC options. Depending on your system requirements, you can choose between the 12V DC model (AS9561) with a 0.16A current consumption, or the 24V DC model (AS9562) with a 0.08A current consumption. Please select your preferred input voltage, current consumption, and manufacturer reference from the options below.

With a robust grey finish and a holding force of up to 295kg (650lbs), the Asec A95R offers reliable, light-duty security.

Technical Specifications

• Fitting: Rim
• Operation: Fail Unlocked (Fail Safe)
• Input Voltage: 12V DC or 24V DC (please choose from the options below)
• Current Consumption: 0.16A or 0.08A (please choose from the options below)
• Manufacturer Reference: AS9561 or AS9562 (please choose from the options below)
• Barcode: 5055120629247 or 5055120629223 (please choose from the options below)
• Holding Force: 295kg / 650lbs
• Handing: Inward opening only

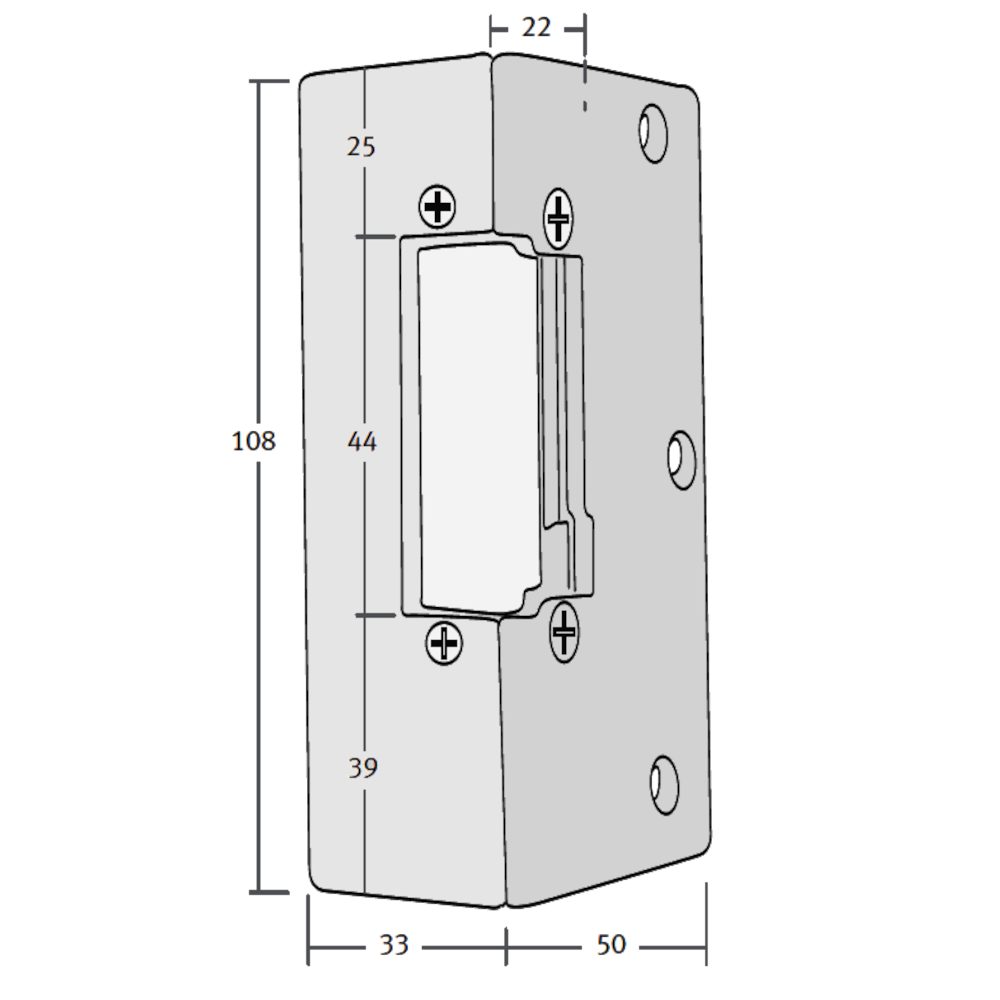

• Body Dimensions: 108mm (H) x 33mm (W) x 21mm (D)
• Faceplate Dimensions: 108mm (H) x 50mm (W)
• Jaw Dimensions: 44mm (H) x 11mm (W) x 8mm (D)
• Adjustable Jaw: No
• Finish: Grey
• Guarantee: 1 Year

Key Features

• Fail-Unlocked Operation: Automatically releases the lock in the event of a power failure, ensuring safe egress
• Continuously Rated: 12V DC and 24V DC coils are continuously rated to prevent overheating
• Light Duty Application: Ideal for low-duty domestic or light commercial installations
• Inward Opening: Specifically designed for inward-opening doors
• Voltage Options: Available in 12V DC or 24V DC configurations to match your power supply (please select below)
