ASEC A95C Surface Release

Asec More Asec Surface

From

£78.84

Select size, finish, and quantity from the variant table.

View options

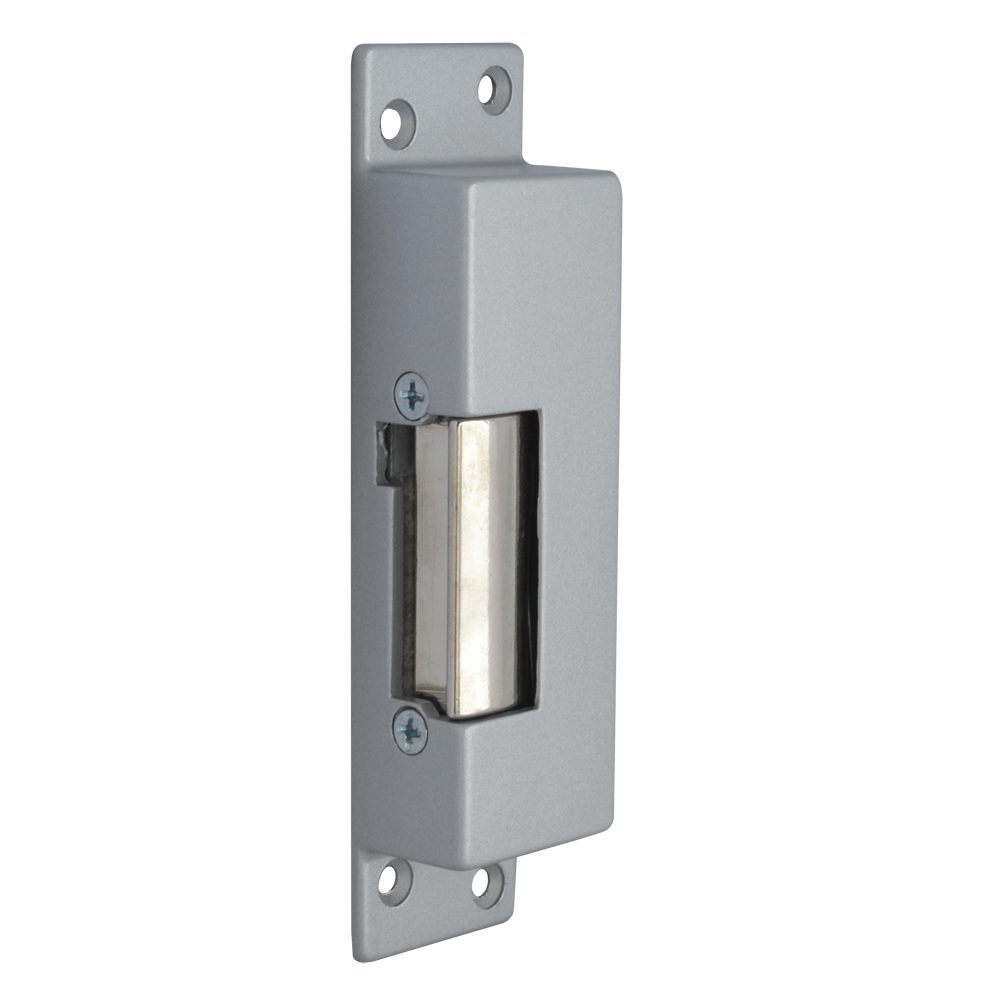

The Asec A95C Surface Release is a rim-fitted electric release designed to replace the standard keep on a surface-mounted rim nightlatch. This surface-mounted electric strike is ideal for low-duty applications, enabling remote door unlocking via intercoms or access control systems.

This release features a fail-unlocked (fail-safe) operation, meaning it will unlock in the event of a power failure to allow safe exit. It is designed specifically for inward-opening doors and comes complete with packing pieces to assist with installation.

The Asec A95C is available in both 12V DC and 24V DC options, which are continuously rated. Please select your preferred input voltage, current consumption, and manufacturer reference from the options below to suit your specific system requirements.

Technical Specifications

Brand: Asec
Fitting: Surface
Operation: Fail Unlocked
Input Voltage: 12V DC or 24V DC (please choose from the options below)
Current Consumption: 0.08A or 0.16A (please choose from the options below)

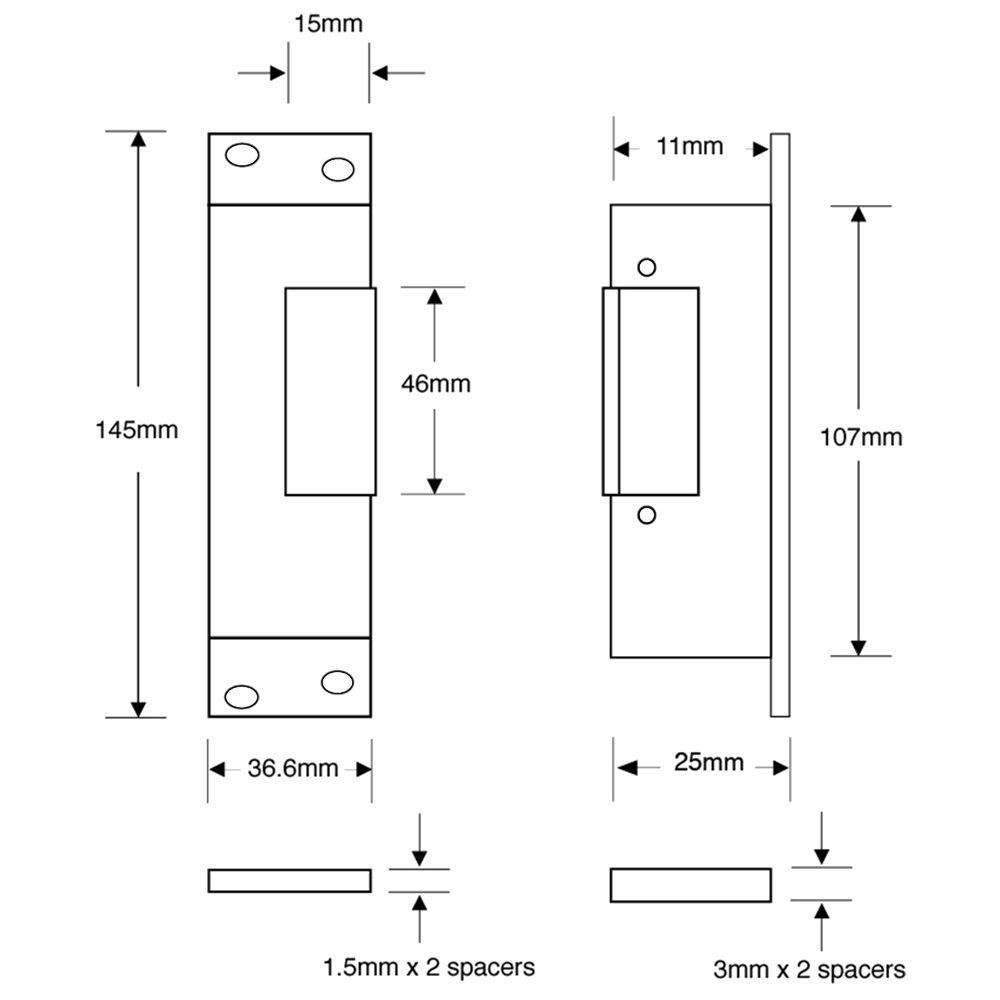

Holding Force: 295Kg / 650Lbs
Body Height: 106mm
Body Depth: 36mm
Faceplate Height: 145mm
Faceplate Width: 36mm
Jaw Height: 40mm
Jaw Width: 11mm
Jaw Depth: 8mm
Handed: Inward Opening
Finish: Grey
Guarantee: 1 Year
Monitored: No
Adjustable Jaw: No
Weather Resistant: No
Manufacturer Reference: AS9559 or AS9560 (please choose from the options below)

Key Features

Rim Nightlatch Replacement: Designed to fit in place of the standard keep on a rim nightlatch.
Fail Unlocked (Fail Safe): Remains unlocked in the event of a power failure.
Continuously Rated: Both 12V DC and 24V DC options are continuously rated.
Complete Kit: Supplied complete with packing pieces for straightforward installation.
Low Duty: Designed for low-duty, inward-opening applications.
