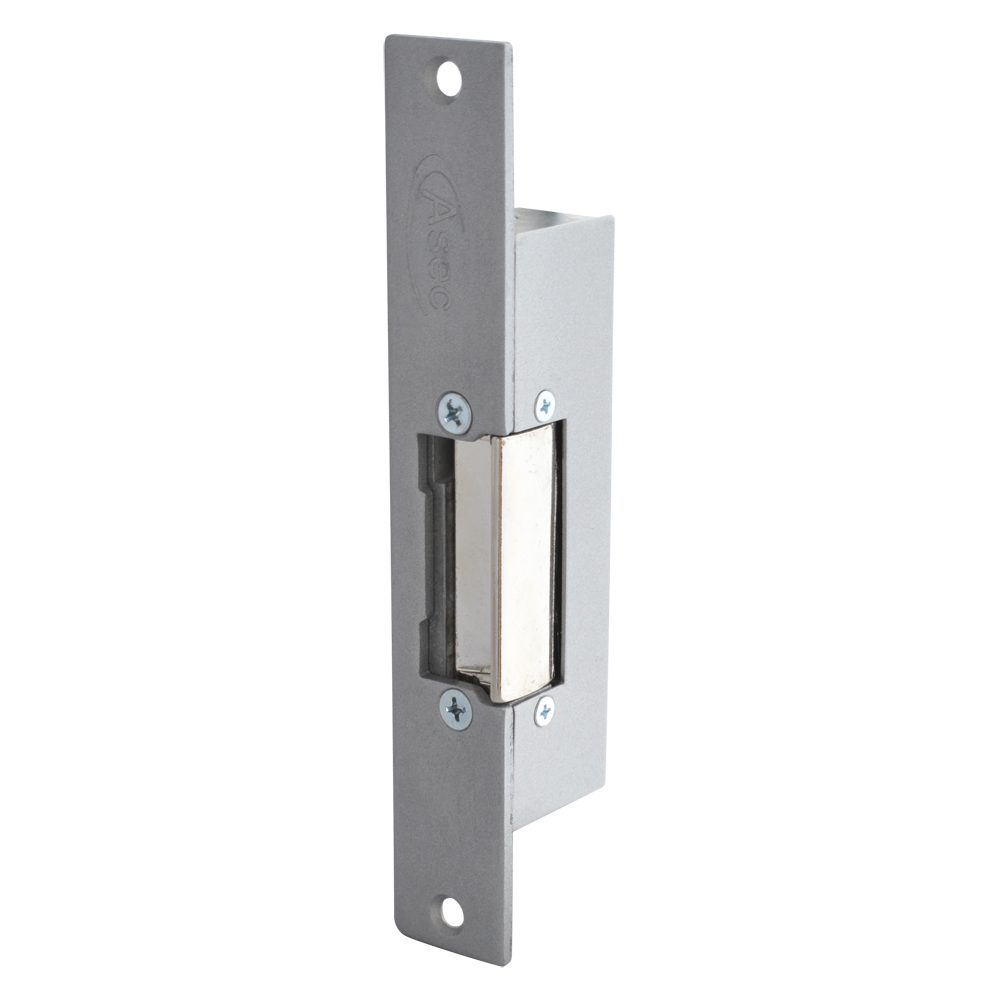

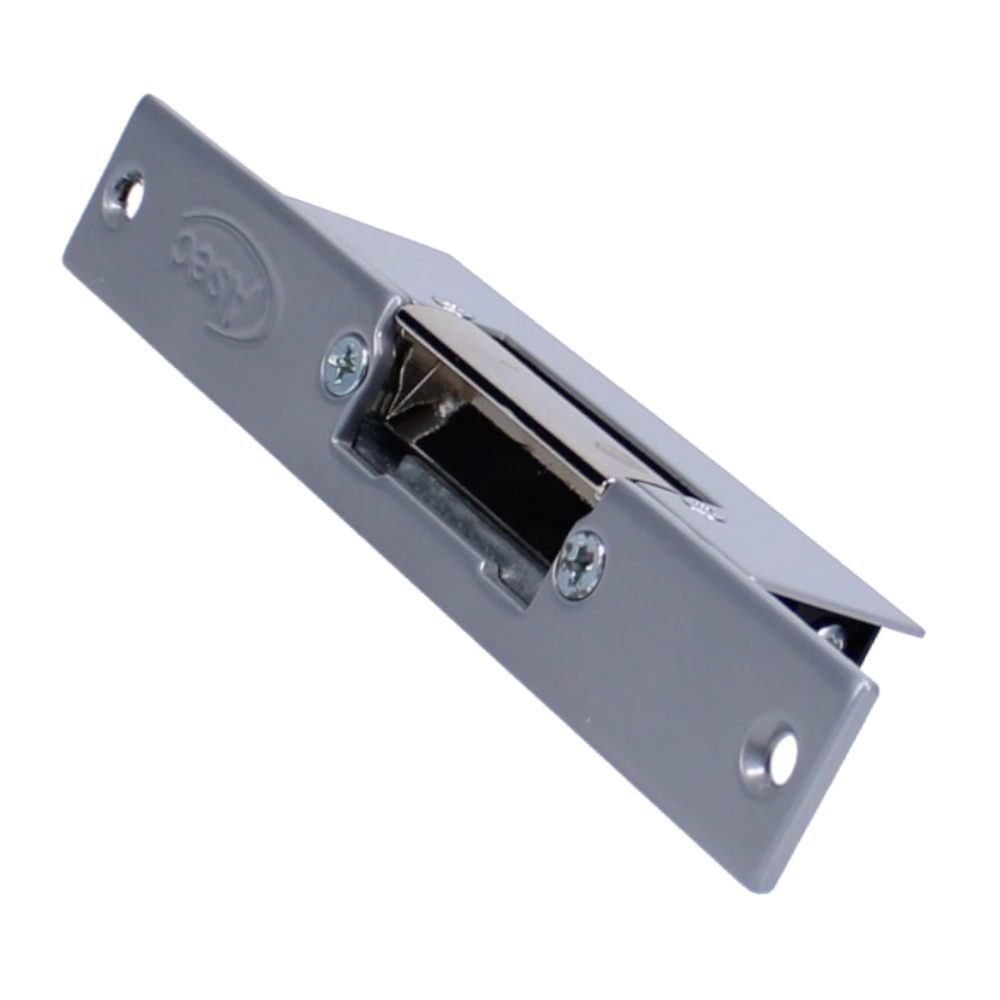

ASEC A95 Mortice Release

The Asec A95 Mortice Release is a robust electric strike designed to work seamlessly with mortice nightlatches and latches. Fitted directly within the door frame, it allows the door to be unlocked remotely, making it an ideal choice for integration into access control systems.

This fail-unlocked (fail-safe) release features a strong holding force of 295kg (650lbs) and is continuously rated for reliable, long-term operation. It is available in multiple input voltage options, including 12V DC and 24V DC, with corresponding current consumptions of 0.16A or 0.08A. Please select your required voltage, current consumption, and manufacturer reference (AS9557 or AS9558) from the options below.

With a durable grey finish and a compact body depth of 28mm, this mortice release offers a clean, professional installation for a variety of commercial and domestic security applications.

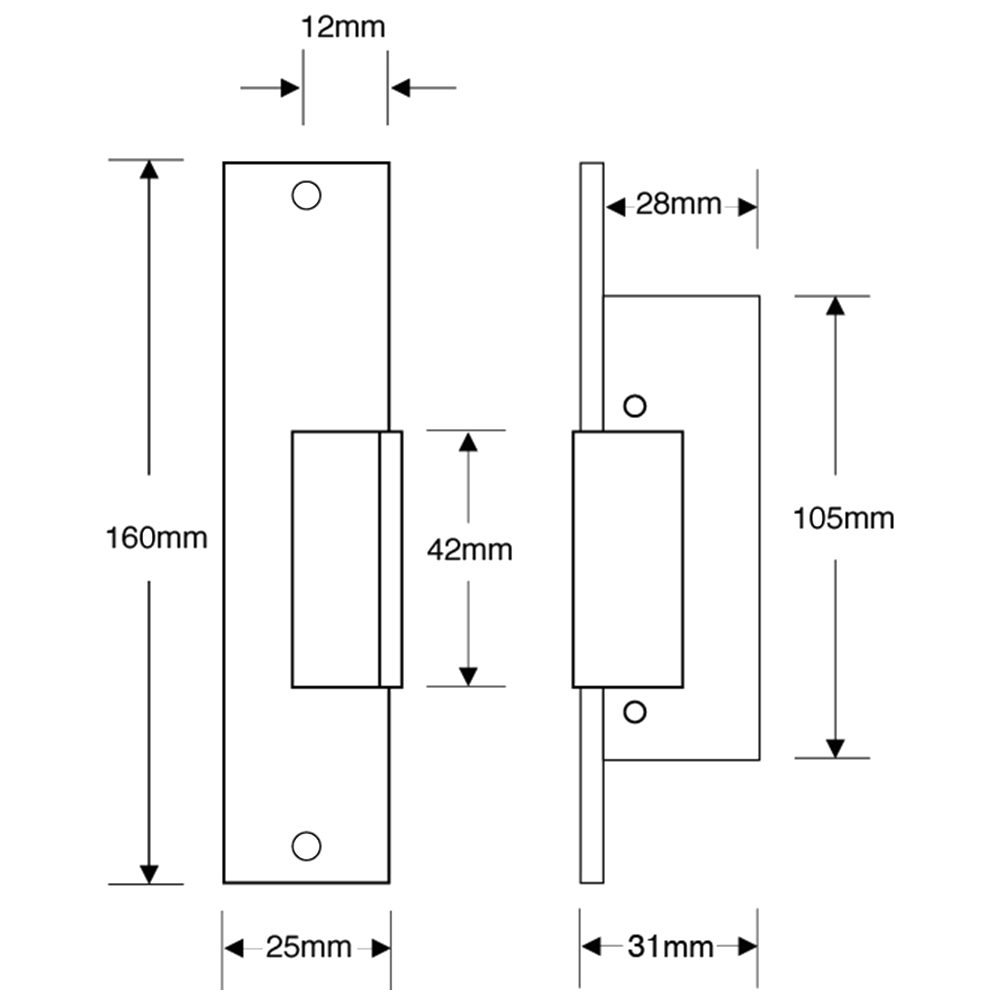

Technical Specifications

• Faceplate Dimensions: 160mm (H) x 25mm (W)
• Body Dimensions: 105mm (H) x 28mm (D)
• Jaw Dimensions: 42mm (H) x 12mm (W) x 8mm (D)
• Holding Force: 295kg / 650lbs
• Input Voltage: 12V DC or 24V DC (please choose from the options below)
• Current Consumption: 0.16A or 0.08A (please choose from the options below)
• Operation: Fail Unlocked (Fail Safe)
• Finish: Grey
• Fitting: Mortice
• Guarantee: 1 Year

Key Features

• Remote Access Control: Designed to work with mortice nightlatches and latches to allow remote door unlocking.
• Fail-Unlocked Operation: Automatically unlocks in the event of a power failure to ensure safe egress.
• Continuously Rated: Both the 12V DC and 24V DC options are continuously rated for reliable, ongoing use.
• Robust Construction: Features a strong holding force of 295kg (650lbs).
