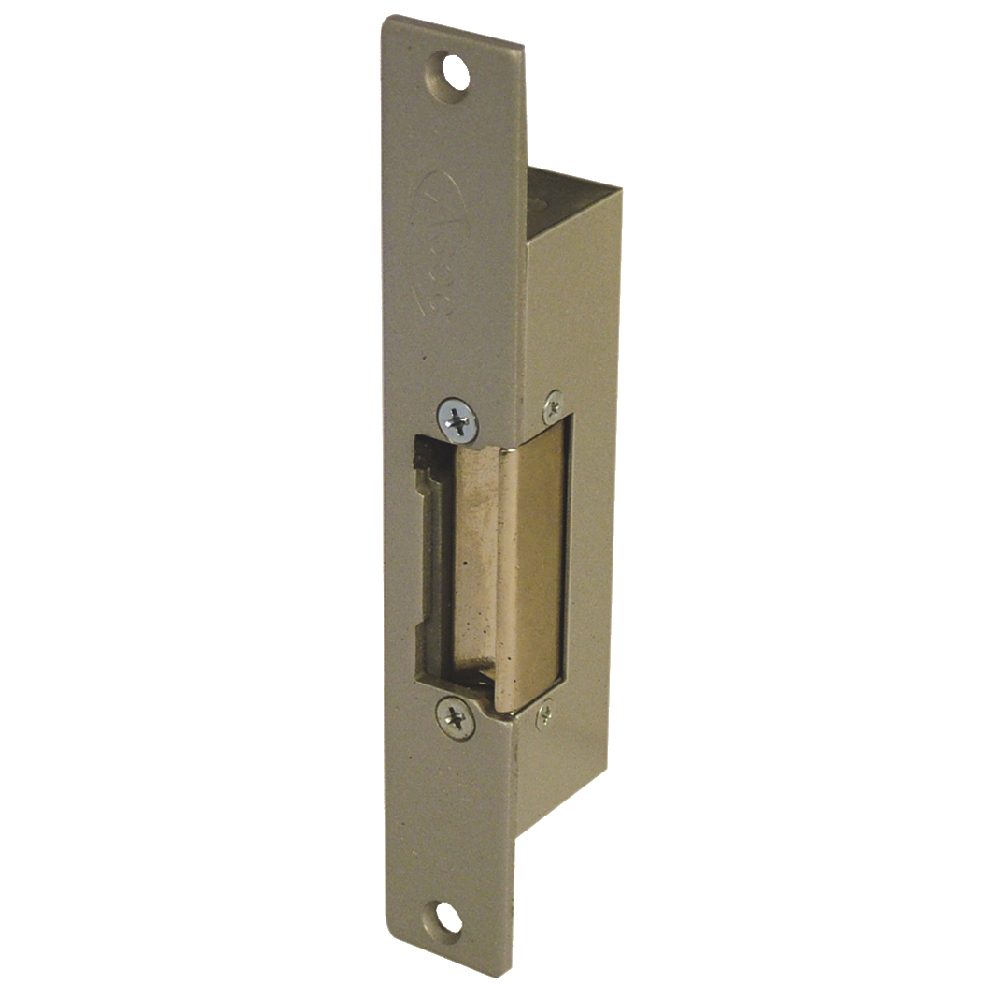

ASEC A3 Mortice Release With Hold Open

The Asec A3 Mortice Electric Release with Hold Open is a low-duty electric strike designed for mortice installation. It provides a reliable fail-locked (fail-secure) operation, ensuring the door remains locked and secure in the event of a power failure.

A key feature of the A3 model is its manual hold-open override. By incorporating an unlatching lever within the release mechanism, users can manually set the strike to allow free, unrestricted access when activated. This makes it ideal for environments where doors need to be left unlocked during specific periods, such as business hours or deliveries.

Constructed with a durable grey finish, this electric release offers a robust holding force of up to 295kg (650lbs). It operates on a 12V AC power supply with a current consumption of 0.65A. The unit is supplied boxed as a single pack and comes with a 1-year manufacturer's guarantee.

Technical Specifications

• Fitting: Mortice
• Operation: Fail Locked (F/L)
• Input Voltage: 12V AC
• Current Consumption: 0.65A
• Holding Force: 295kg / 650lbs
• Finish: Grey

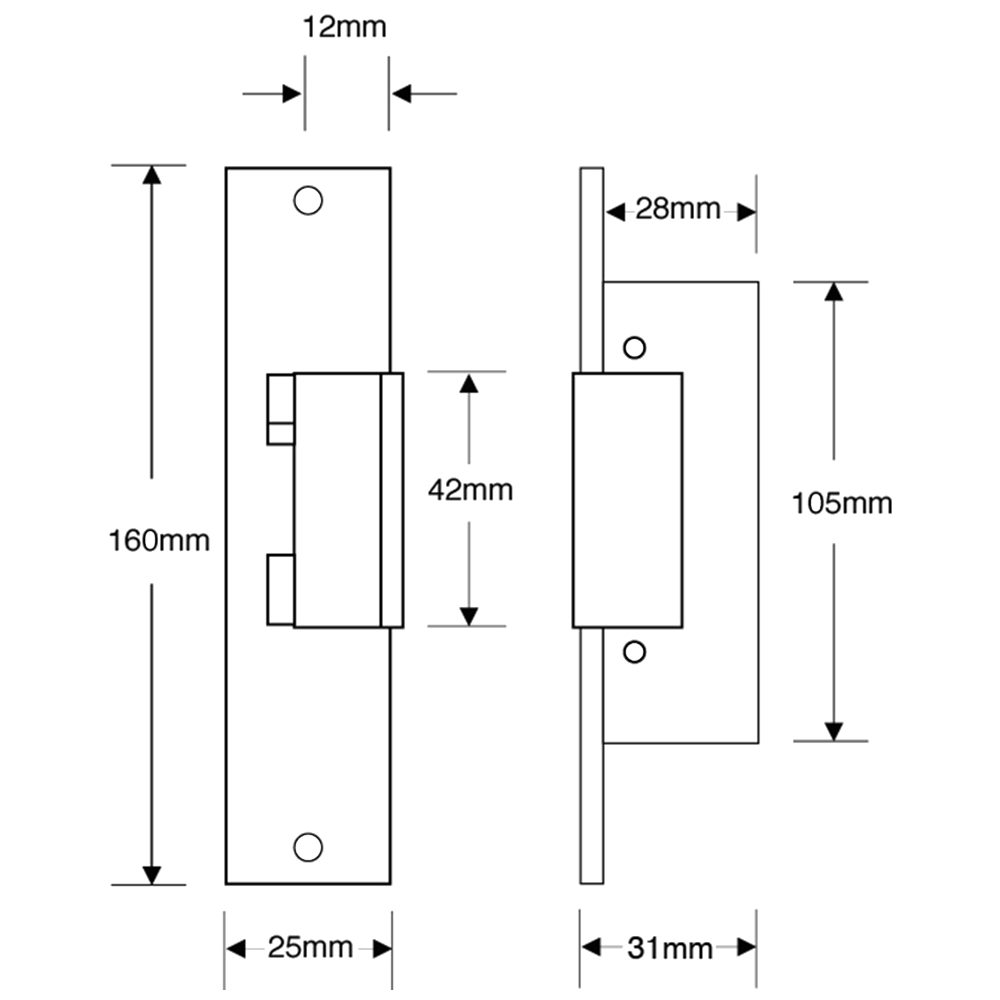

• Body Height: 105mm
• Body Depth: 28mm
• Faceplate Height: 160mm
• Faceplate Width: 25mm
• Jaw Dimensions: 45mm (H) x 11mm (W) x 8mm (D)
• Adjustable Jaw: No
• Weather Resistant: No
• Guarantee: 1 Year

Key Features

• Manual Hold Open: Features an integrated unlatching lever within the release to allow free, unrestricted access when activated.
• Fail Locked Security: Keeps the door locked and secure in the event of a power cut.
• Low Duty Rating: Ideal for low-traffic internal doors.
• Strong Holding Force: Offers up to 295kg (650lbs) of resistance.
• Complete Package: Supplied boxed as a single unit with a grey finish faceplate.
