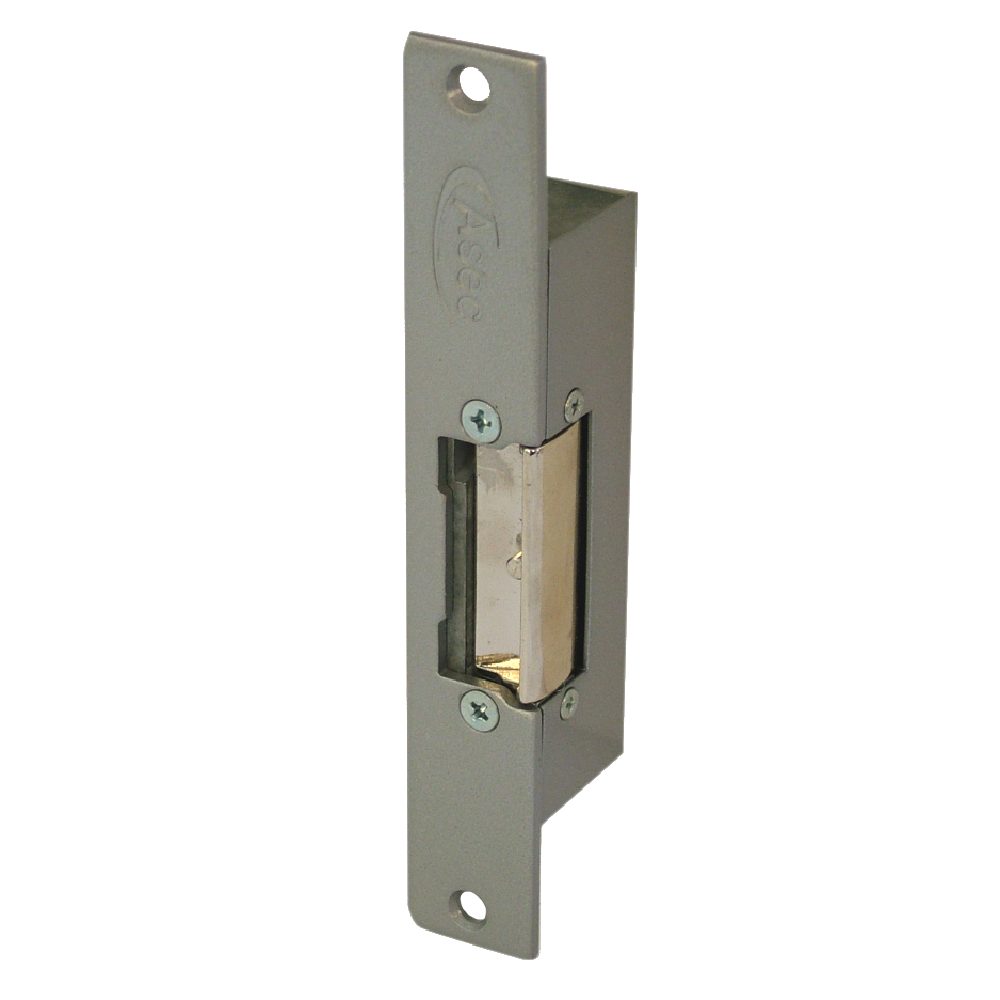

ASEC A2 Mortice Release With Delayed Action

The Asec A2 Mortice Release with Delayed Action (AS9544) is a reliable, low-duty electric release designed to be fitted within a door frame. When integrated with an access control system and a standard latch, it allows doors to be unlocked remotely with ease.

A key feature of this model is its clever delayed action mechanism. Once powered, the unit remains unlocked until the door has been opened, and it will automatically re-lock as soon as the door is closed. This ensures the door is never left unsecured if there is a delay between the release being triggered and the user walking through.

Operating on a Fail Locked configuration, the release requires power to unlock and remains securely locked in the event of a power failure. It is powered by a 12V AC input, draws 0.65A, and offers a robust holding force of up to 295kg (650lbs). Finished in a neutral grey, it comes complete with a 1-year manufacturer's guarantee.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS9544
• Fitting: Mortice
• Operation: Fail Locked
• Input Voltage: 12V AC
• Current Consumption: 0.65A
• Holding Force: 295kg / 650lbs

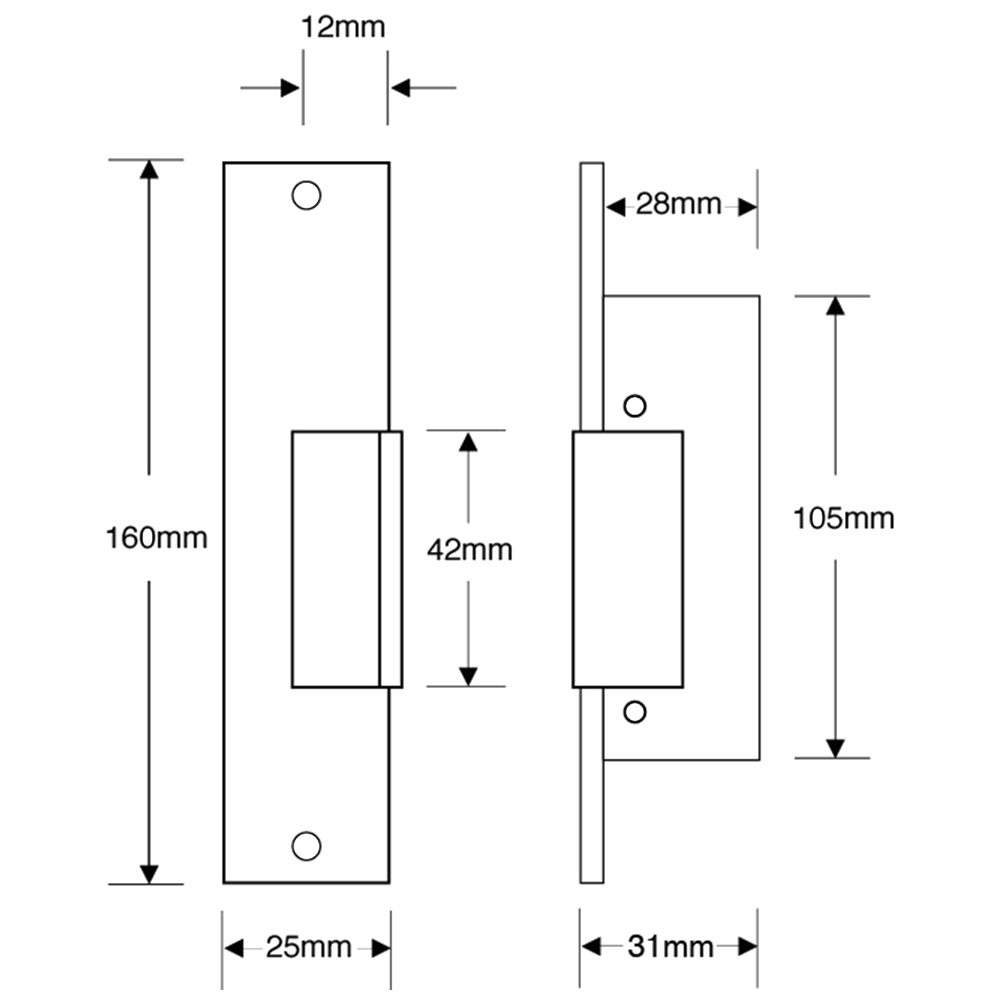

• Faceplate Height: 160mm
• Faceplate Width: 25mm
• Body Height: 105mm
• Body Depth: 28mm
• Jaw Height: 45mm
• Jaw Width: 11mm
• Jaw Depth: 8mm
• Adjustable Jaw: No
• Monitored: No
• Finish: Grey
• Guarantee: 1 Year

Key Features

• Delayed Action: Stays unlocked once powered until the door is opened, then automatically re-locks upon closing.
• Fail Locked Security: Remains locked during power outages to maintain building security.
• Robust Holding Force: Provides up to 295kg (650lbs) of resistance.
• Low-Duty Application: Ideal for standard, low-traffic doors.
• Mortice Fitting: Designed to fit neatly within the door frame.
