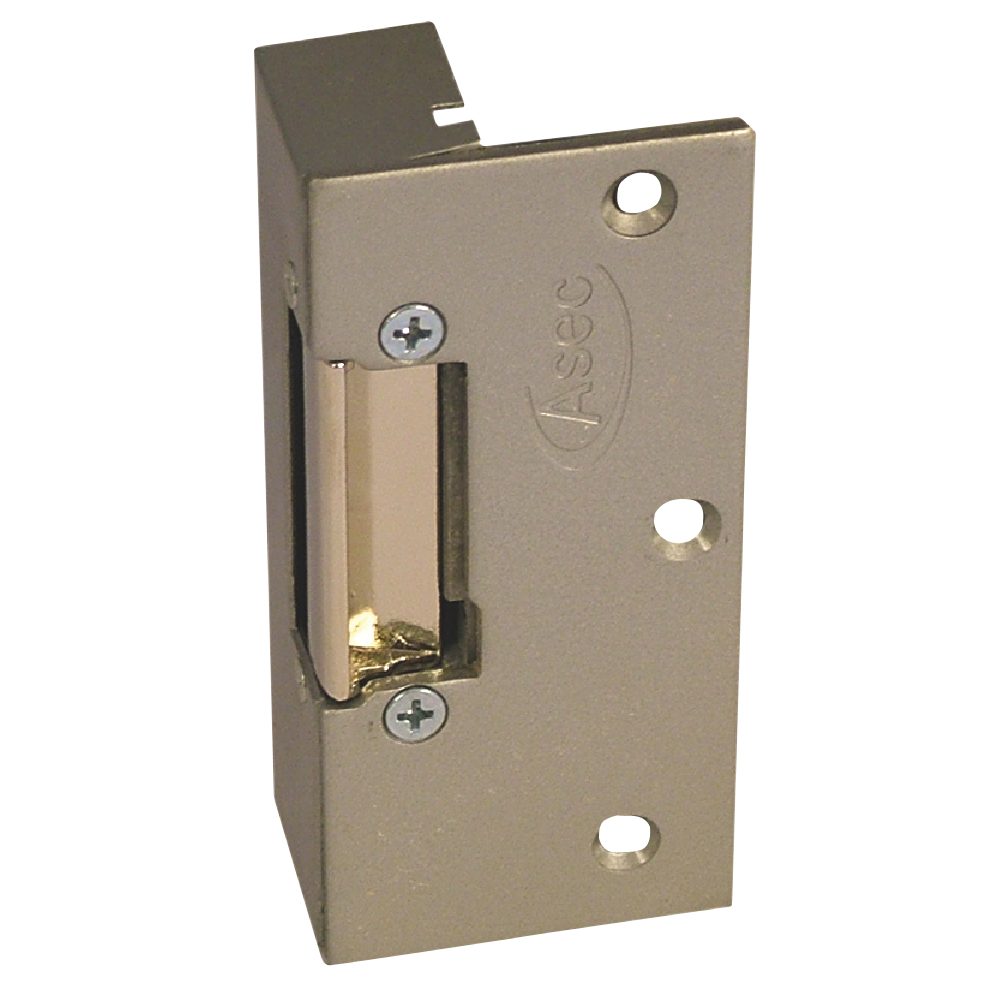

ASEC A1R Rim Release

The Asec A1R Rim Release is a rim-fitted electric release designed to replace the standard keep on an inward-opening rim nightlatch. This low-duty electric strike provides a convenient way to control access through timber doors, offering a reliable fail-locked (fail-secure) operation where the door remains locked in the event of a power failure.

This versatile rim release is supplied complete with packing pieces to ensure a precise fit during installation. It is available in multiple input voltage options, including 12V AC, 12V DC, and 24V DC, with current consumption options of 0.08A, 0.16A, or 0.65A. Please note that the 12V DC and 24V DC models are continuously rated, whereas the 12V AC model is intermittently rated.

Please select your required input voltage, current consumption, and manufacturer reference (AS9541, AS9542, or AS9543) from the options below to suit your specific access control system.

Technical Specifications

• Fitting Type: Rim-fitted (replaces nightlatch keep)
• Operation: Fail Locked (Fail Secure)
• Input Voltage: 12V AC, 12V DC, or 24V DC (please choose from the options below)
• Current Consumption: 0.08A, 0.16A, or 0.65A (please choose from the options below)
• Holding Force: 295kg (650lbs)
• Handing: Inward opening only

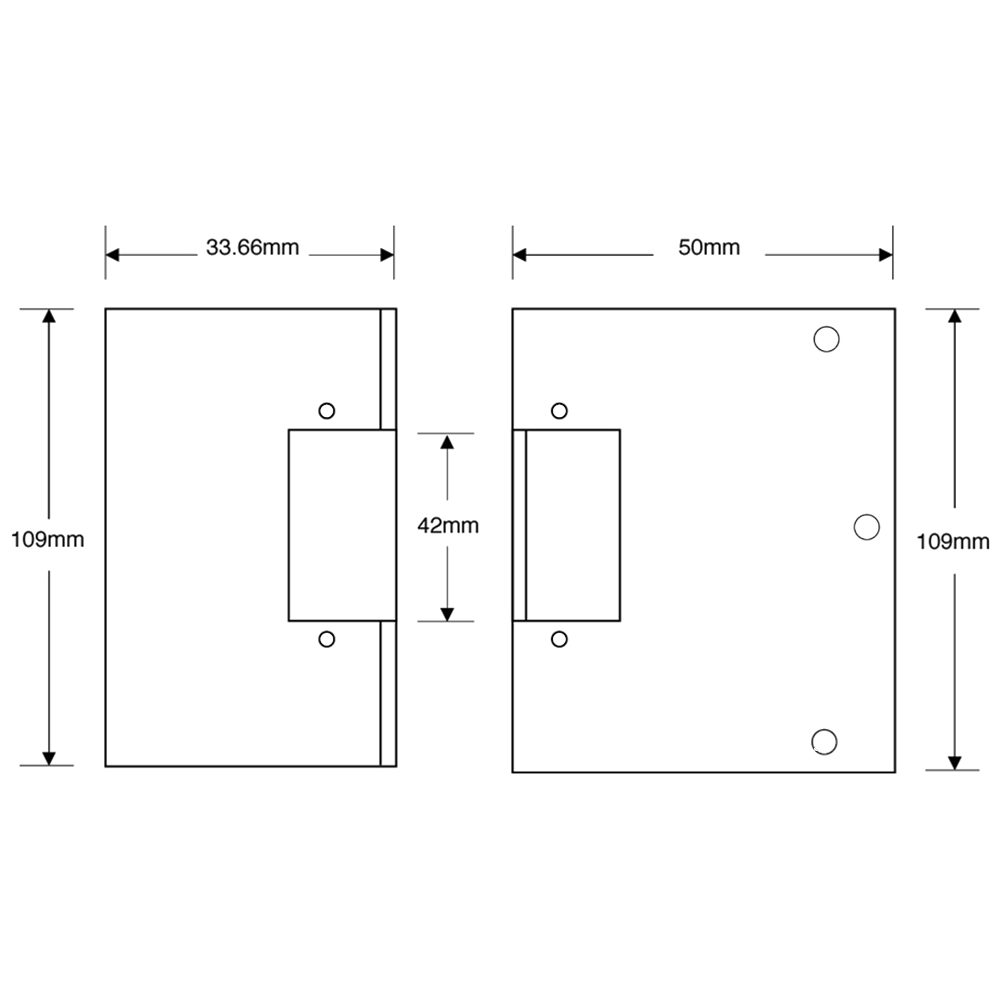

• Body Dimensions: 108mm (H) x 21mm (D)
• Faceplate Dimensions: 108mm (H) x 50mm (W)
• Jaw Dimensions: 40mm (H) x 11mm (W) x 8mm (D)
• Finish: Grey
• Duty: Low duty
• Monitoring: Non-monitored
• Weather Resistance: No (suitable for internal use)
• Manufacturer Reference: AS9541, AS9542, or AS9543 (please choose from the options below)
• Guarantee: 1 Year

Key Features

• Easy Retrofitting: Designed to directly replace the standard keep on a rim nightlatch.
• Continuous Rating: 12V DC and 24V DC variants are continuously rated for extended operation.
• Fail-Locked Security: Remains securely locked during a power outage to maintain building security.
• Complete Kit: Supplied with packing pieces to facilitate a straightforward and accurate installation.
• Robust Holding Force: Offers up to 295kg (650lbs) of holding force.
