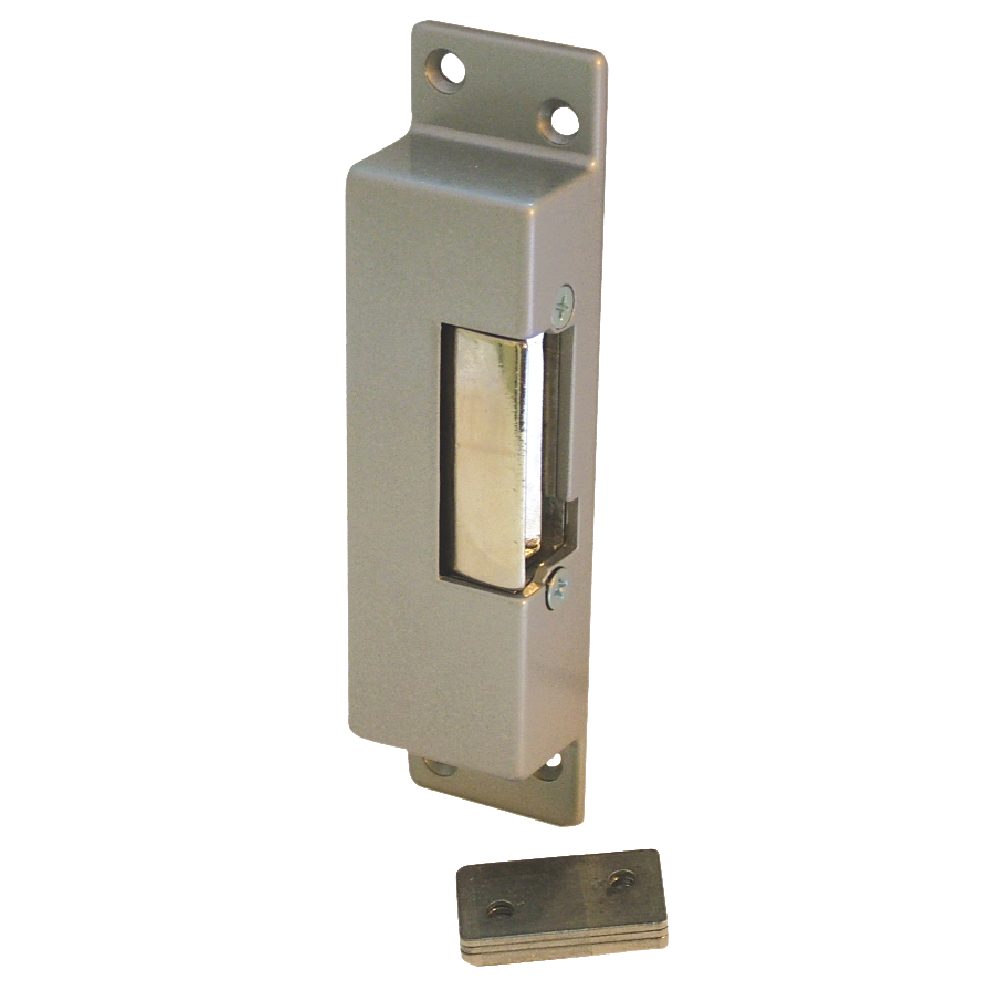

ASEC A1C Surface Release

The Asec A1C Surface Mounted Electric Release is a rim-fitted electric strike designed to work in conjunction with a rim latch, allowing doors to be unlocked remotely as part of an access control system. It is easy to install and is specifically designed for inward-opening rebated doors.

This low-duty release is supplied complete with two sets of packing pieces (one pair of 3mm and one pair of 1.5mm) to assist with precise fitting. It features a fail-locked (fail-secure) operation, meaning the door remains secure in the event of a power outage. The DC-powered models are continuously rated, making them suitable for continuous duty.

This release is available in several configurations. Please select your preferred input voltage (12V AC, 12V DC, or 24V DC), current consumption, and manufacturer reference (AS9536, AS9537, or AS9538) from the options below.

Technical Specifications

• Brand: Asec
• Fitting: Surface mounted
• Operation: Fail Locked (Fail Secure)
• Handing: Inward opening only
• Holding Force: 295kg / 650lbs
• Faceplate Height: 145mm
• Faceplate Width: 36mm
• Body Height: 106mm
• Body Depth: 36mm
• Jaw Height: 40mm
• Jaw Width: 11mm
• Jaw Depth: 8mm
• Input Voltage: 12V AC, 12V DC, or 24V DC (please select from the options below)
• Current Consumption: 0.08A @ 24V DC, 0.16A @ 12V DC, or 0.65A @ 12V DC (please select from the options below)
• Finish: Grey
• Guarantee: 1 Year

Key Features

• Remote Access Control: Allows doors to be unlocked remotely when used with a rim latch
• Surface Mounted: Easy to install directly onto the surface of the frame
• Supplied with Packers: Includes two sets of packing pieces (1 pair of 3mm and 1 pair of 1.5mm) for precise fitting
• Continuously Rated DC: 12V DC and 24V DC versions are continuously rated
• Fail Locked Security: Remains locked in the event of a power failure to maintain security
• Suitable for Rebated Doors: Designed specifically for inward opening rebated doors
