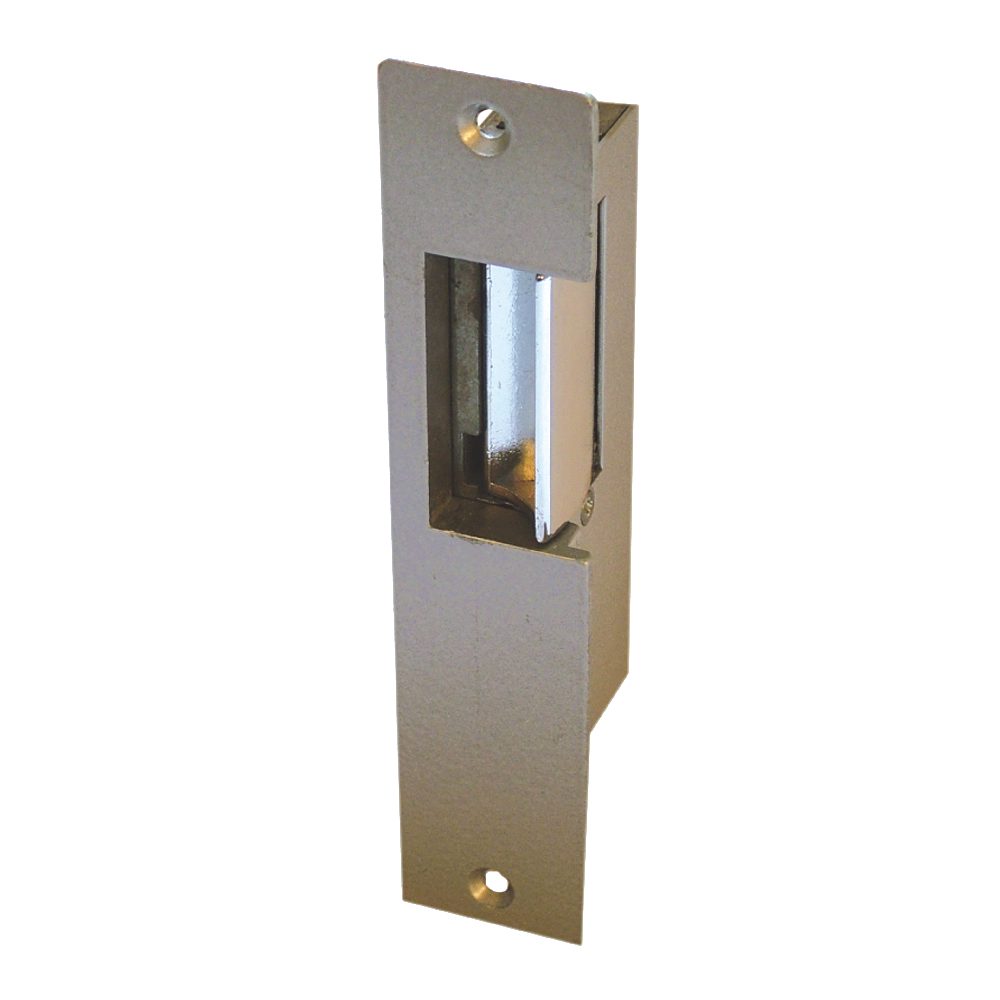

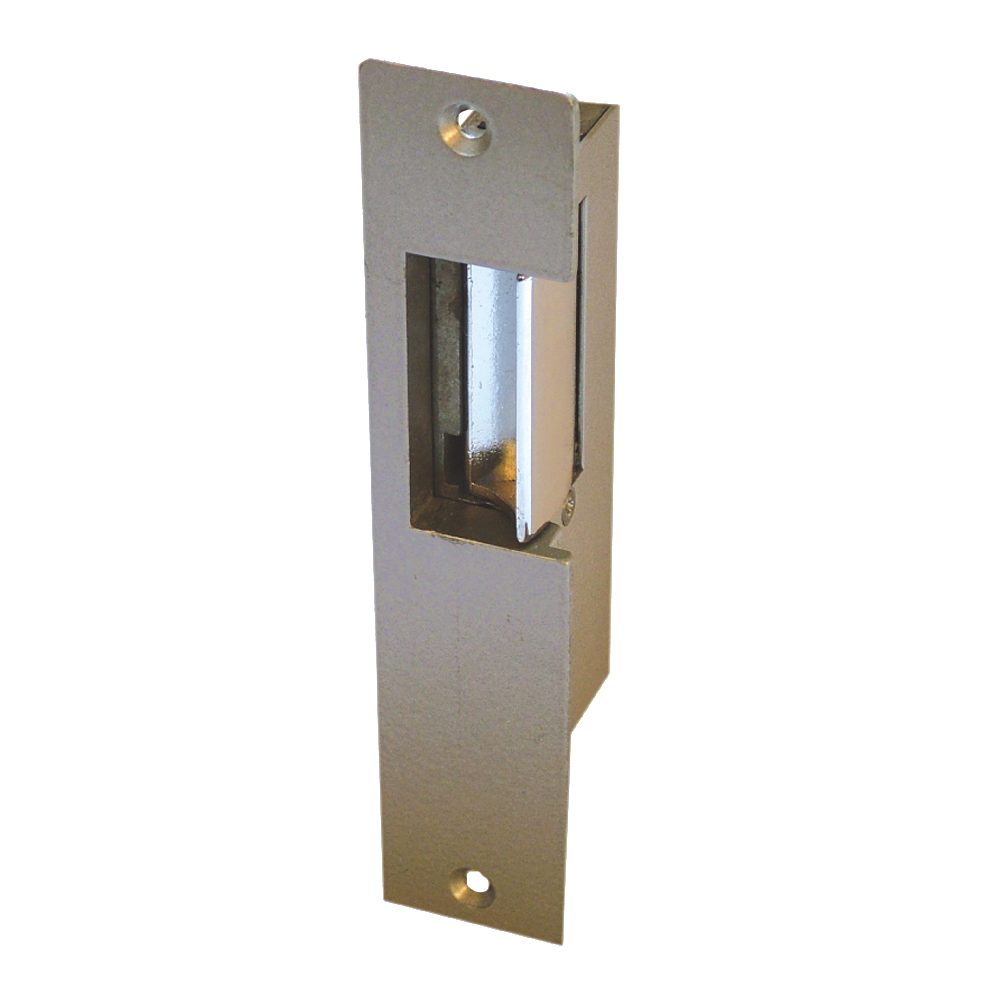

ASEC A11 & A15 Deep Jaw Mortice Release

The Asec A11 & A15 Deep Jaw Mortice Release is designed to be fitted within a door frame, working in conjunction with a latch to allow remote door unlocking as part of an access control system. Featuring a deeper jaw than standard releases, it is ideal for accommodating larger bolts and latches.

This low-duty mortice release is available in several configurations to suit your installation requirements. Depending on your setup, you can choose between 12V AC or 12V DC input voltages, with the 12V DC models being continuously rated. It is also available in both Fail Locked and Fail Unlocked operations, with current consumption ranging from 0.16A to 0.65A and weights between 370g and 380g.

Please select your required input voltage, operation type, and manufacturer reference (AS9533, AS9534, or AS9535) from the options below to find the perfect fit for your security system.

Technical Specifications

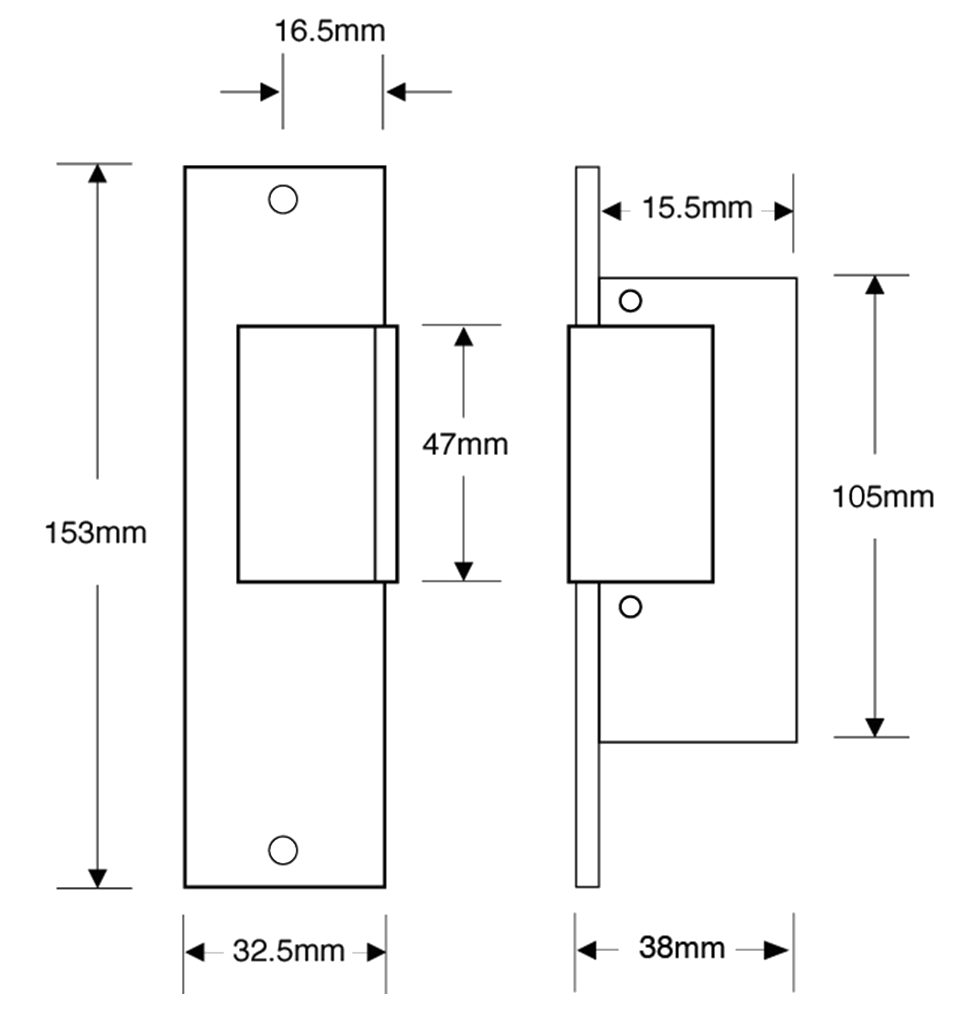

• Faceplate Dimensions: 152mm (H) x 32mm (W)
• Body Dimensions: 105mm (H) x 20mm (D)
• Jaw Dimensions: 47mm (H) x 15mm (W) x 15mm (D)
• Holding Force: 295kg (650lbs)
• Finish: Grey
• Input Voltage: 12V AC or 12V DC (please choose from the options below)
• Operation: Fail Locked or Fail Unlocked (please choose from the options below)
• Current Consumption: 0.16A or 0.65A (please choose from the options below)
• Weight: 370g to 380g (please choose from the options below)
• Adjustable Jaw: No
• Monitored: No
• Weather Resistant: No
• Guarantee: 1 Year

Key Features

• Deep Jaw Design: Deeper 15mm jaw depth to easily accept larger bolts and latches.
• Remote Access Control: Integrates with access control systems to allow remote door unlocking.
• Continuously Rated DC Models: 12V DC options are continuously rated for reliable performance.
• Flexible Configurations: Available in Fail Locked and Fail Unlocked operations to meet your safety and security needs.
• Robust Holding Force: Offers a strong holding force of up to 295kg (650lbs).
• Low Duty: Ideal for low-duty applications.
