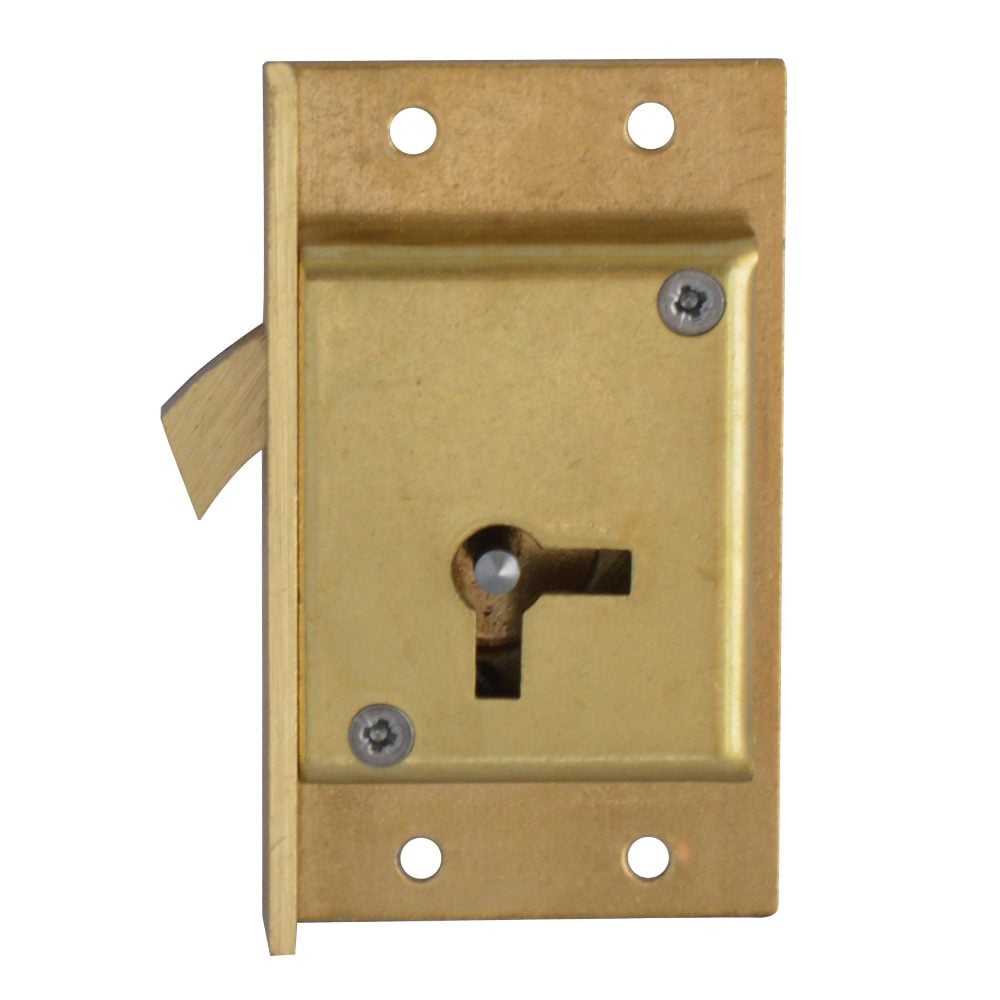

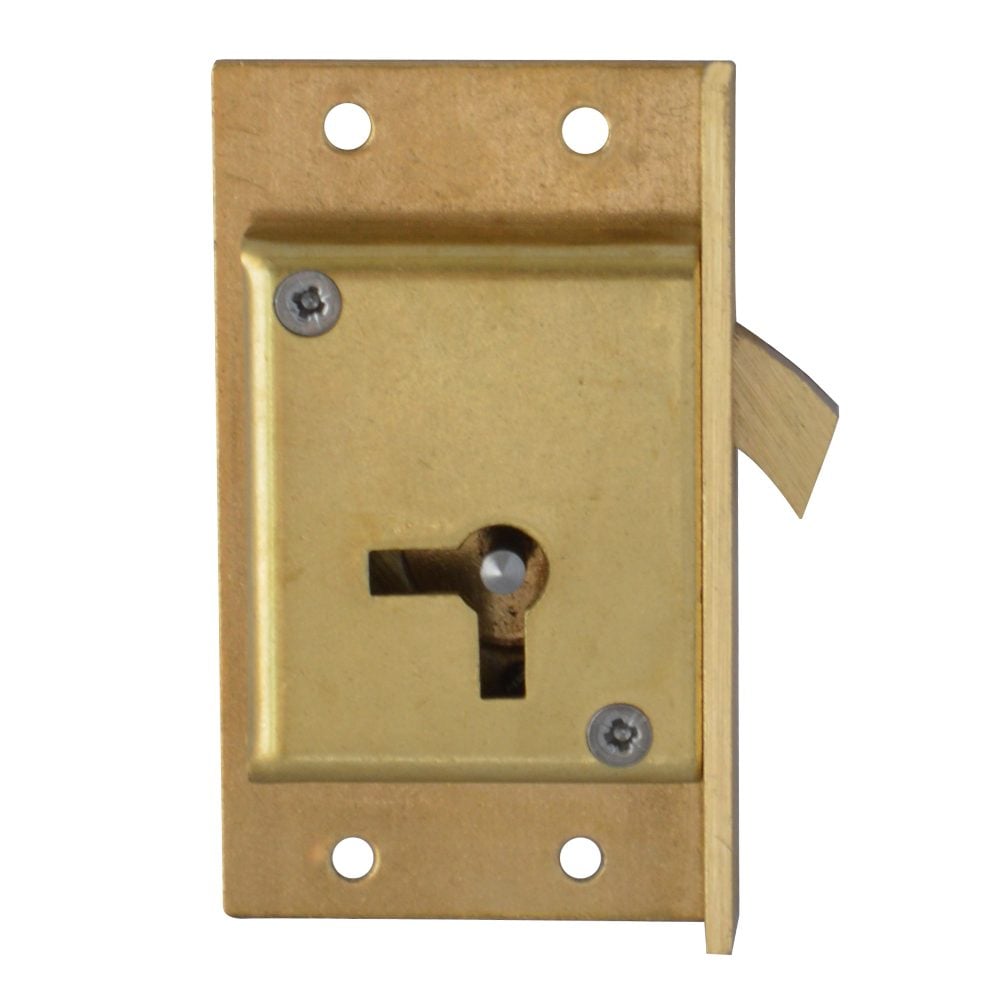

ASEC 80 4 Lever Cut Cupboard Lock

The Asec No. 80 Cut Cupboard Lock is a high-quality, flush-fitting lock designed specifically for sliding cupboard doors, cabinets, and desks. As a "cut" lock, it is installed into a cut-out on the edge of the door or drawer, allowing the lock plate to sit flush with the woodwork for a clean, professional finish.

Featuring a secure hook bolt, this lock is ideal for securing sliding doors where a standard straight bolt would not hold. Please note that this lock is non-reversible, so selecting the correct handing is essential. It is available in both Left Hand and Right Hand configurations, with a choice of 2 Lever or 4 Lever mechanisms. Please choose your required handing, mechanism, manufacturer reference, and barcode from the options below.

Each lock is supplied complete with a matching strike plate and two keys, finished in an attractive Satin Brass.

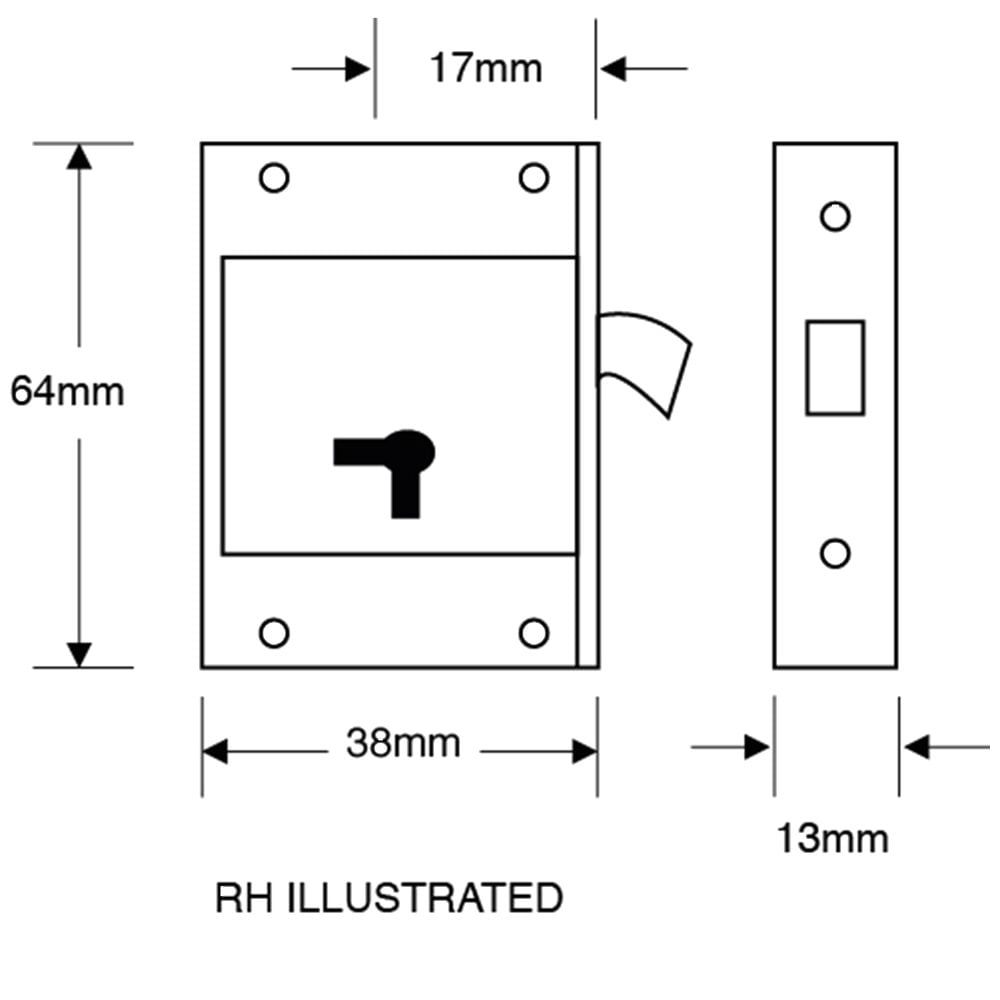

Technical Specifications

• Brand: Asec
• Backset: 21mm
• Case Height: 64mm
• Case Width: 38mm
• Case Depth: 10mm
• Forend Width: 13mm
• Finish: Satin Brass
• Keys Supplied: 2
• Keying: Keyed To Differ
• Handing: Left Hand or Right Hand (please choose from the options below)
• Mechanism: 2 Lever or 4 Lever (please choose from the options below)
• Manufacturer Reference: AS6517 or AS6518 (please choose from the options below)
• Barcode: 5055120607795 or 5055120607801 (please choose from the options below)

Key Features

• Ideal for sliding cupboard doors, cabinets, and desks
• Cut-in design allows the lock to sit flush with the edge of the door for a neat, professional finish
• Secure hook bolt mechanism prevents sliding panels from being pulled apart
• Non-reversible handing (please select Left Hand or Right Hand below)
• Supplied complete with a matching strike plate and 2 keys
• Durable and attractive Satin Brass finish
