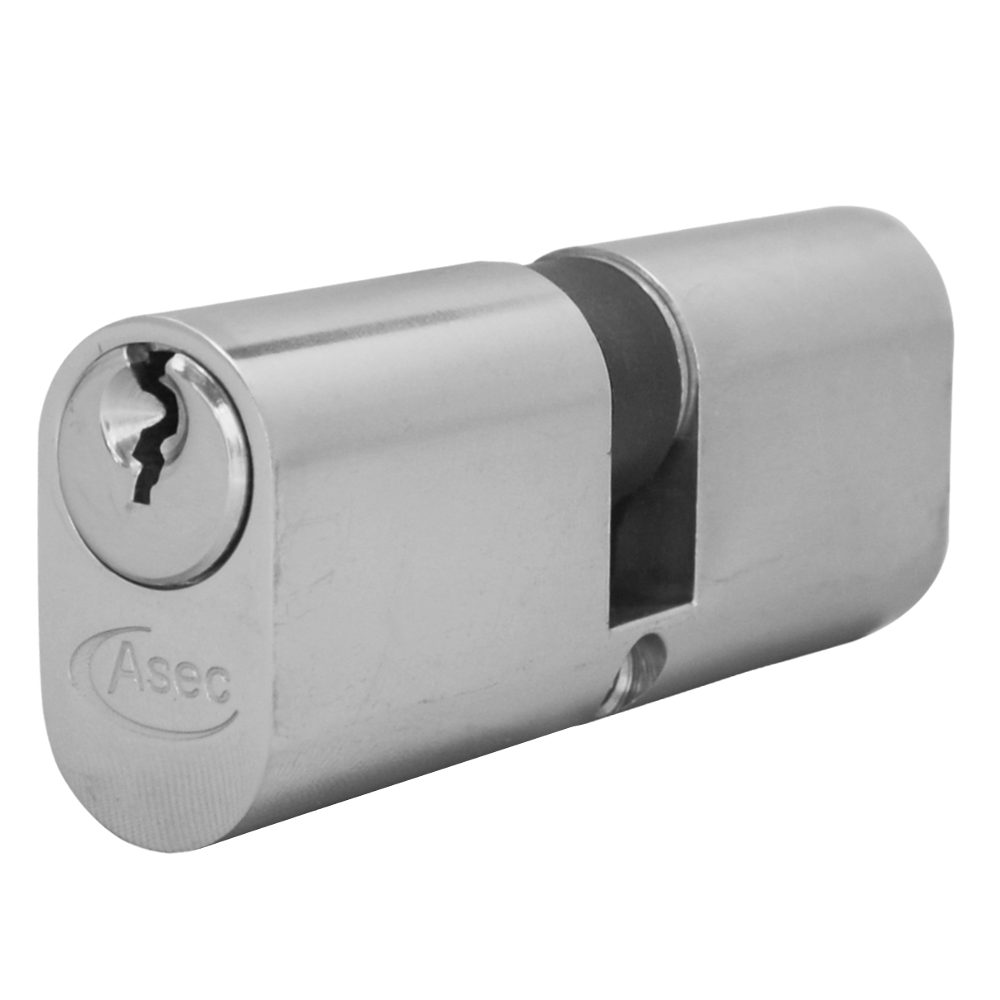

ASEC 5-Pin Oval Double Cylinder

The Asec 5-Pin Oval Double Cylinder is an excellent entry-level locking solution, offering reliable security for doors requiring key access from both sides. Designed to fit standard oval profile lock cases, this double cylinder is a versatile and cost-effective choice for domestic and light commercial applications.

Each cylinder is supplied complete with three keys and a cylinder retaining screw, ensuring you have everything needed for a straightforward installation. To suit your specific door requirements, this cylinder is available in a range of overall body lengths from 60mm to 80mm and comes in a choice of Polished Brass or Nickel Plated finishes. Please select your preferred size, finish, and packaging option from the selection below.

Technical Specifications

• Cylinder Profile: Oval
• Cylinder Type: Double cylinder (key entry from both ends)
• Mechanism: 5-pin system

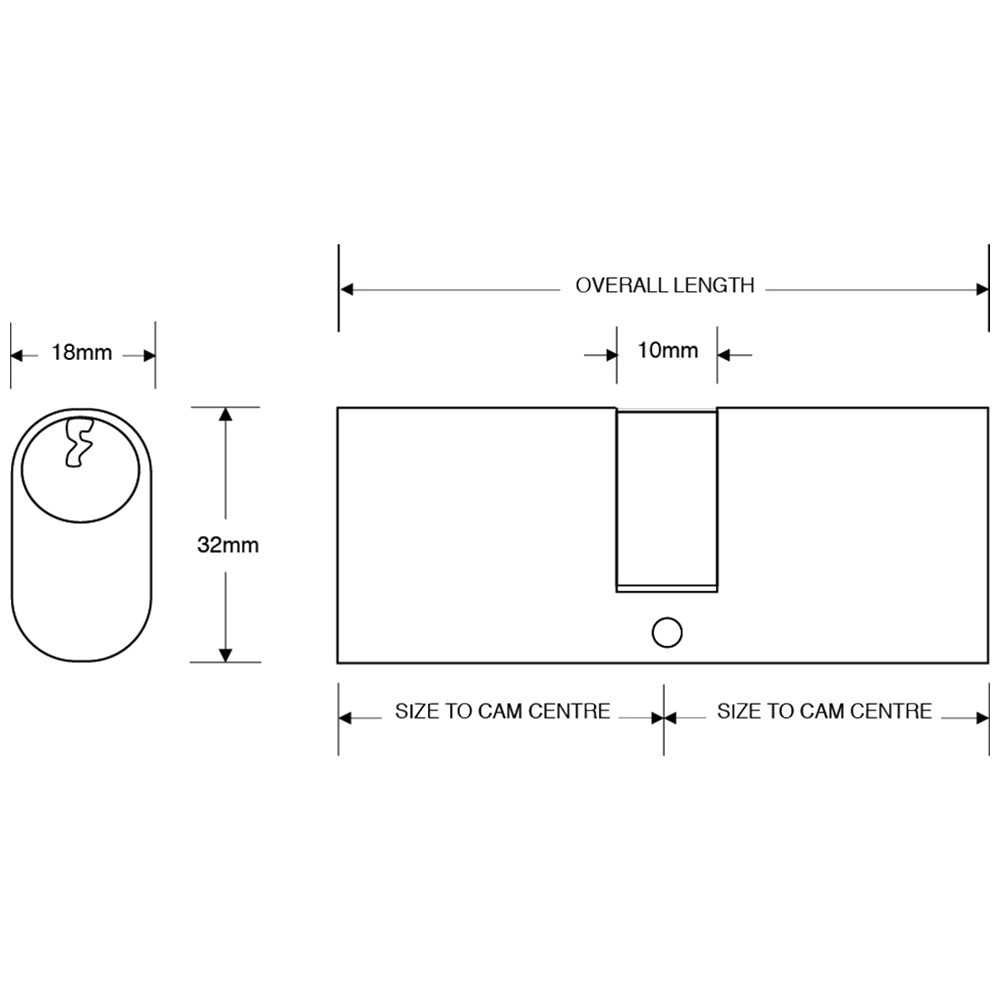

• Overall Body Lengths: 60mm, 70mm, and 80mm (please select from the options below)

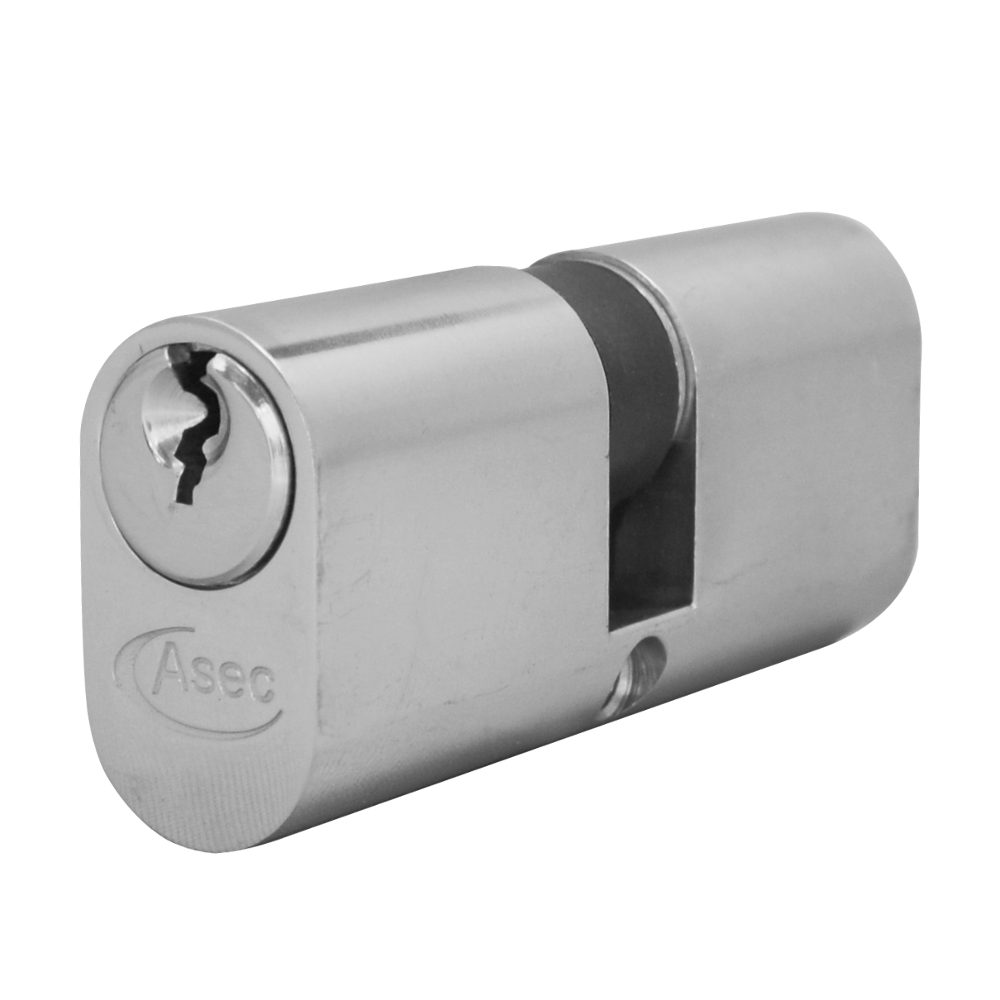

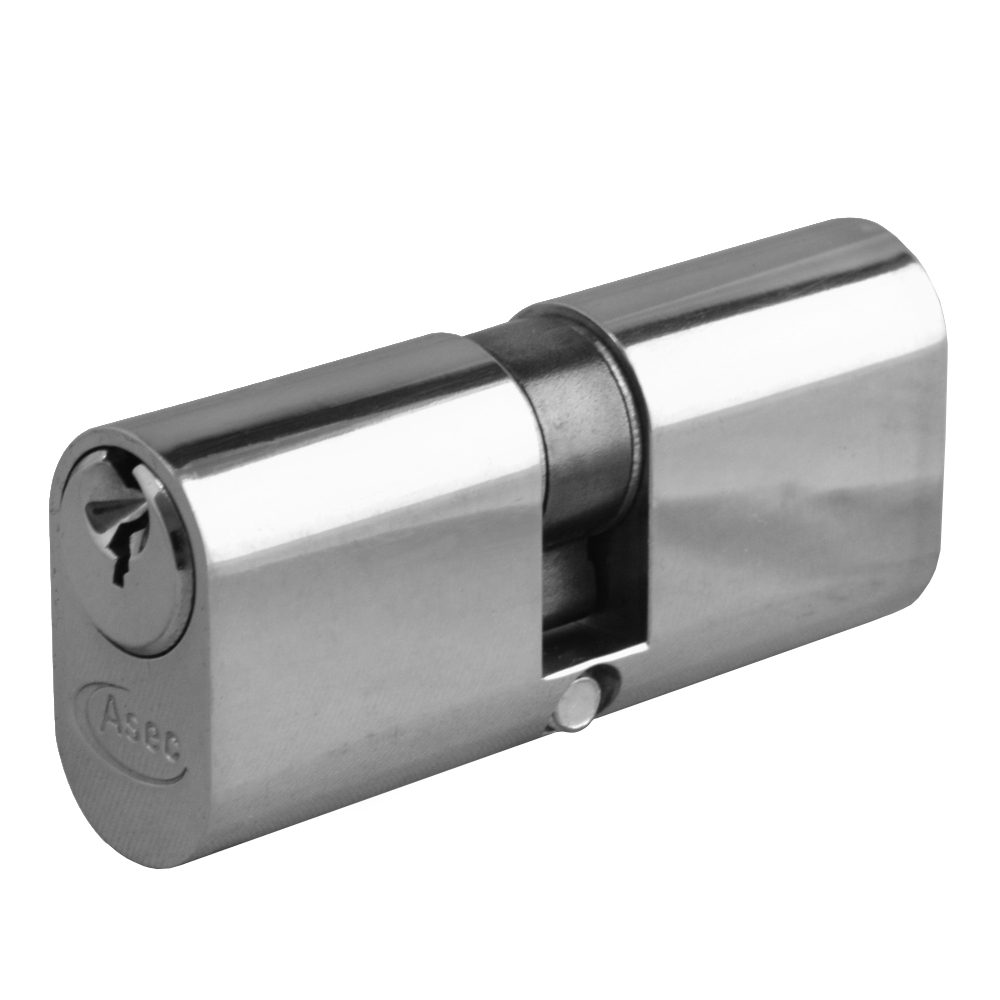

• Cylinder Sizes Available: 30/30, 35/35, and 40/40 (please select from the options below)

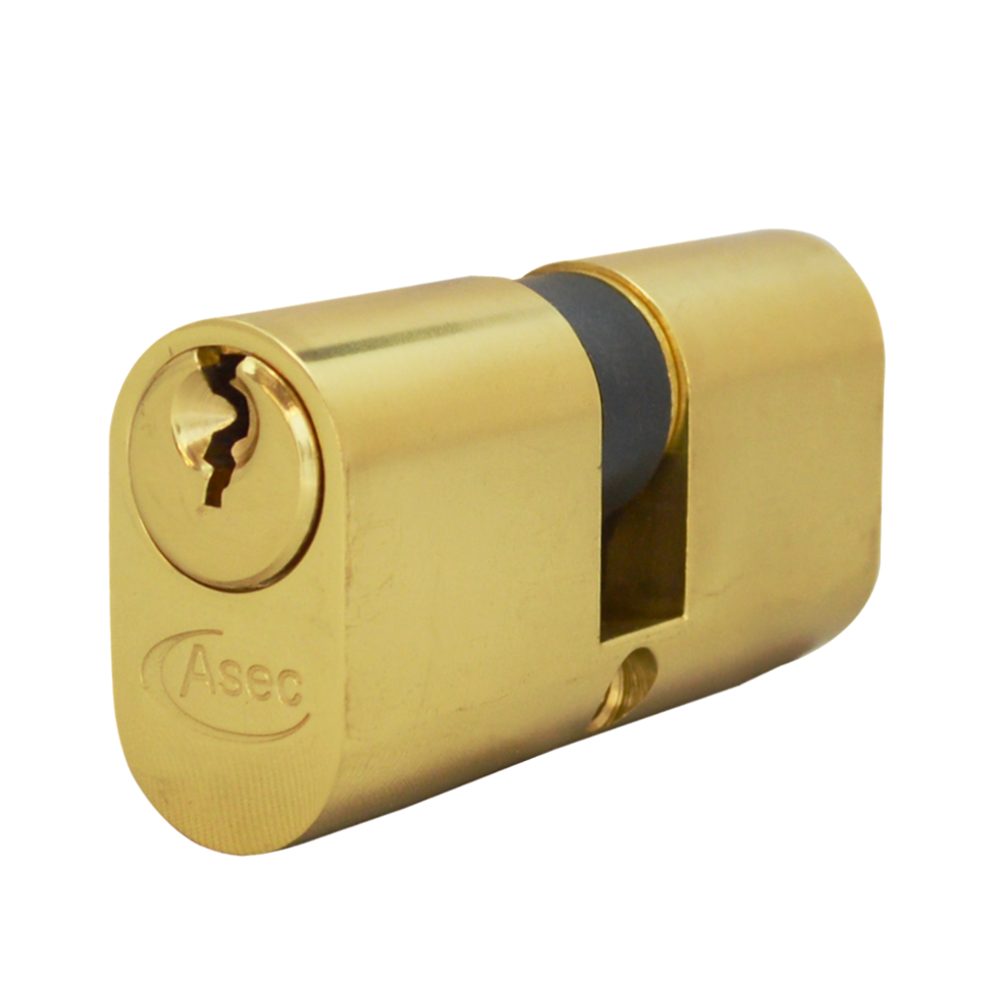

• Finishes: Nickel Plated or Polished Brass (please select from the options below)
• Keying: Keyed to differ
• Keys Supplied: 3 keys
• Fire Tested: Grade 0

Key Features

• Reliable Entry-Level Security: An ideal, cost-effective choice for standard security requirements.
• Double-Sided Key Access: Conveniently operates with a key from both the inside and outside of the door.
• Complete Kit: Supplied with 3 keys and a cylinder retaining screw for immediate installation.
• Versatile Options: Available in multiple sizes, finishes, and packaging types to match your existing door hardware.
