ASEC 5 Lever Deadlock

The Asec 5 Lever Deadlock is a reliable and secure mortice lock designed specifically for internal residential and office doors. Fully certified to EN 12209:2003 and fire-tested for up to 30 minutes (1/2 hour), this deadlock is suitable for use on fire doors, providing both safety and security.

It features a robust brass deadbolt reinforced with two hardened steel inserts to resist sawing, alongside five close-gated levers equipped with an anti-pick device to deter unauthorized entry. Supplied with two plated steel keys and offering up to 500 key differs, it provides dependable protection for your internal spaces.

This versatile deadlock is available in multiple case depths, backsets, and finishes, with a choice of boxed or visi packaging. Please select your preferred size, finish, and packaging options from the selection below.

Technical Specifications

• Standards: EN 12209:2003 certified
• Fire Rating: 1/2 hour (30 minutes) fire tested
• Mechanism: 5 Lever

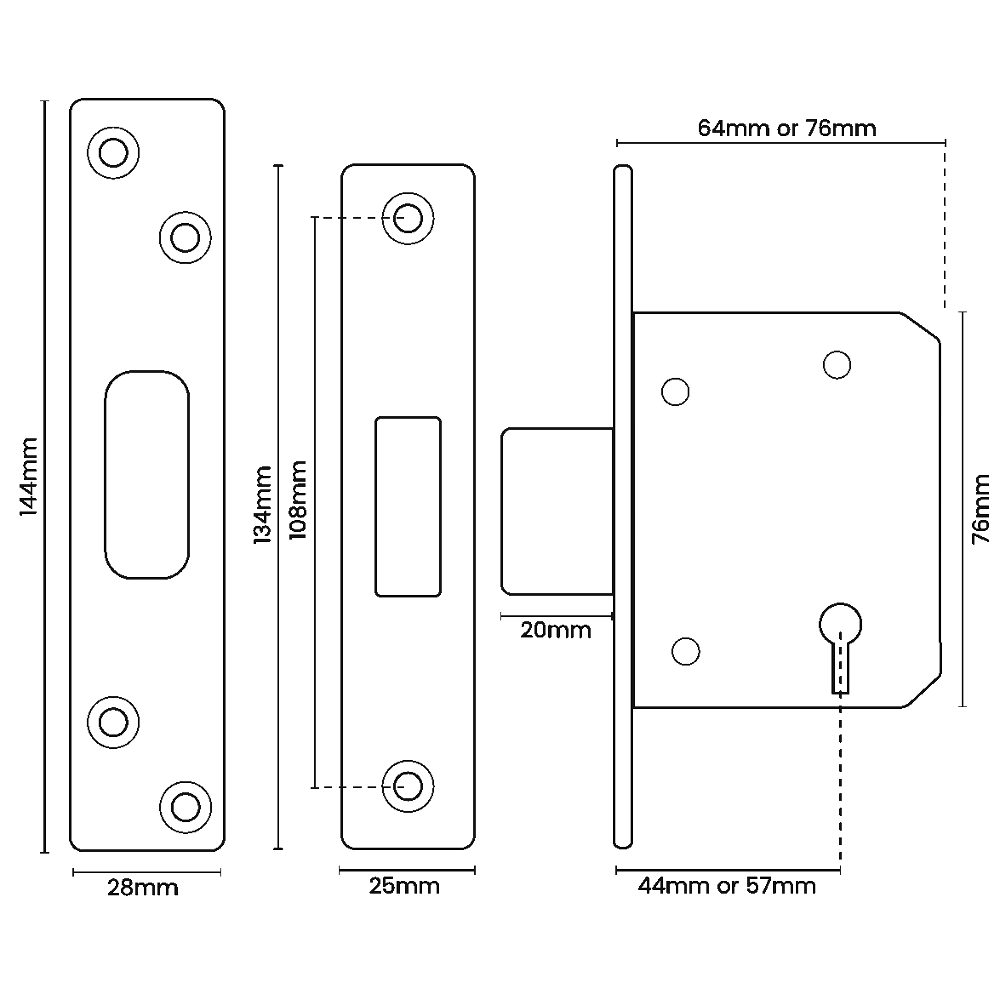

• Case Depth: 64mm or 76mm (please choose from the options below)
• Backset: 44mm or 57mm (please choose from the options below)
• Case Height: 76mm
• Forend Dimensions: 134mm (L) x 25mm (W)

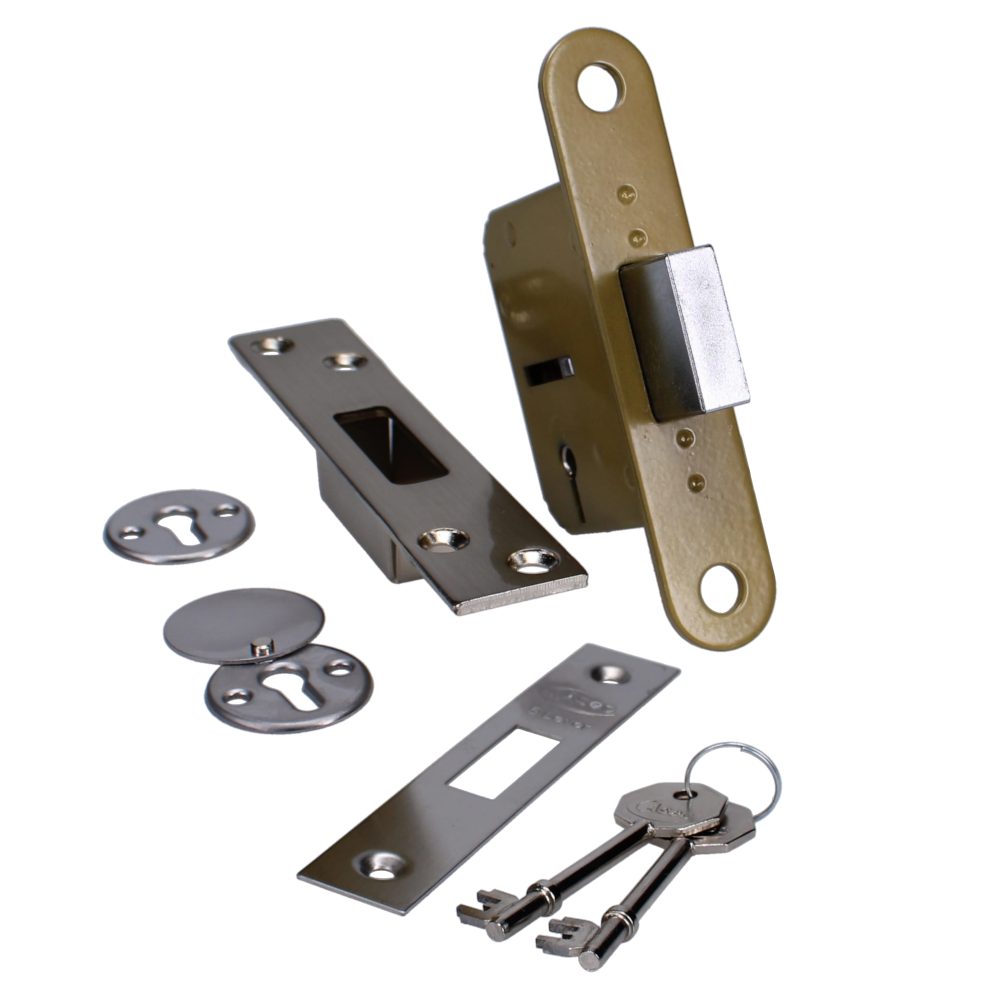

• Keys Supplied: 2 plated steel keys
• Differs: 500
• Handing: Reversible

Key Features

• Anti-Pick Protection: 5 close-gated levers with an integrated anti-pick device to resist manipulation.
• Saw-Resistant Deadbolt: Solid brass deadbolt featuring 2 hardened steel inserts.
• Fire Door Approved: Suitable for use on 30-minute internal fire doors.

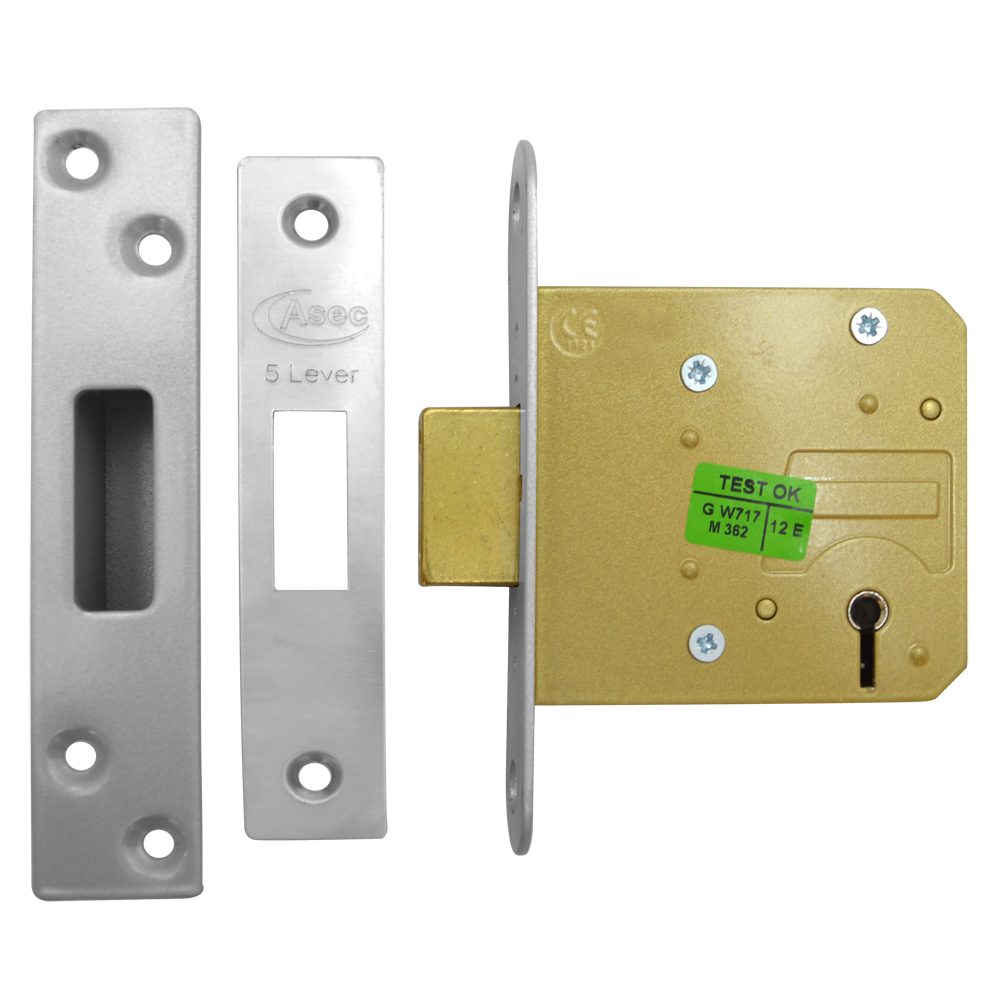

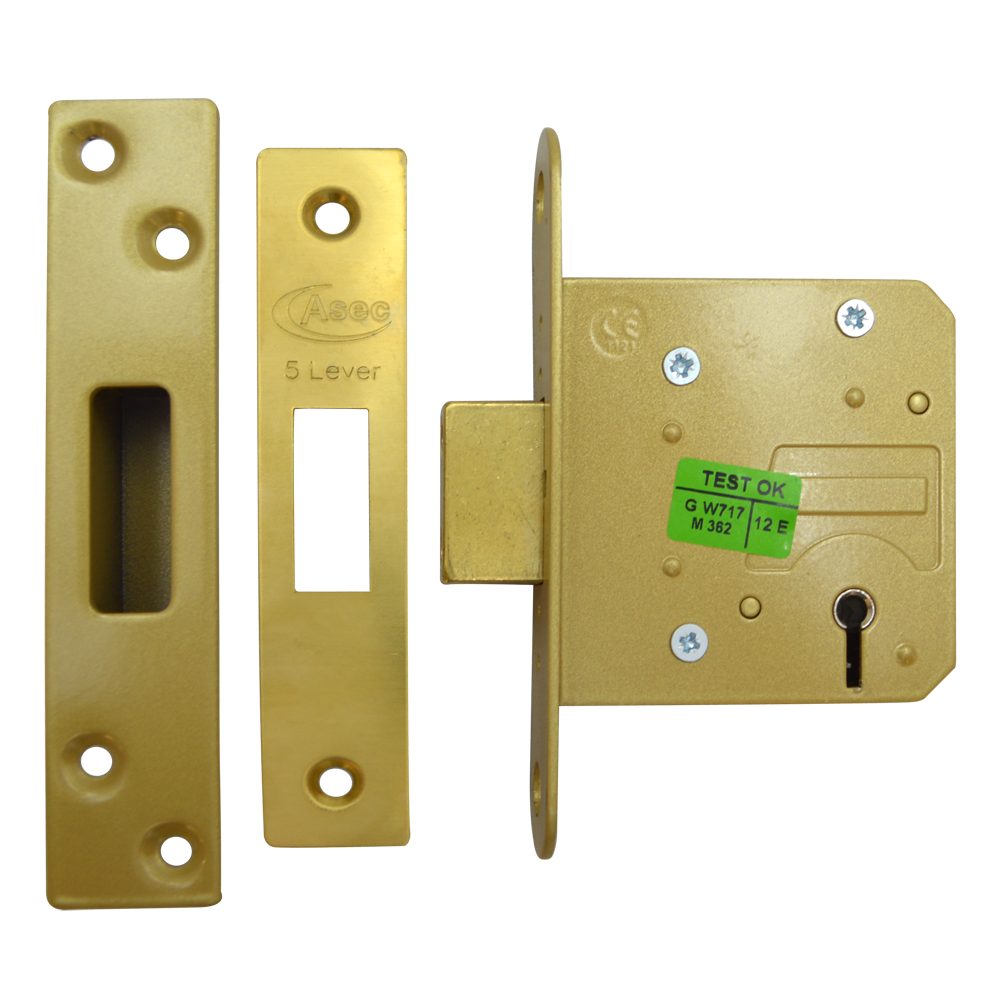

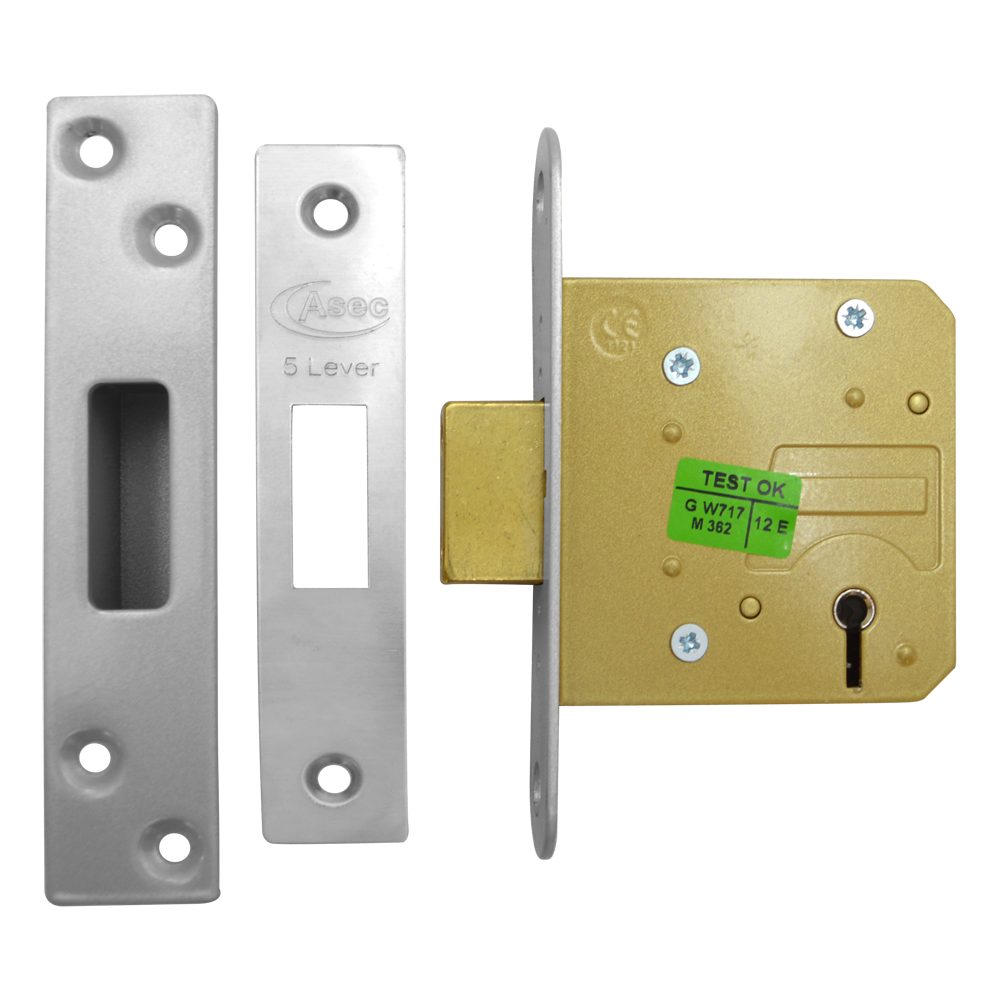

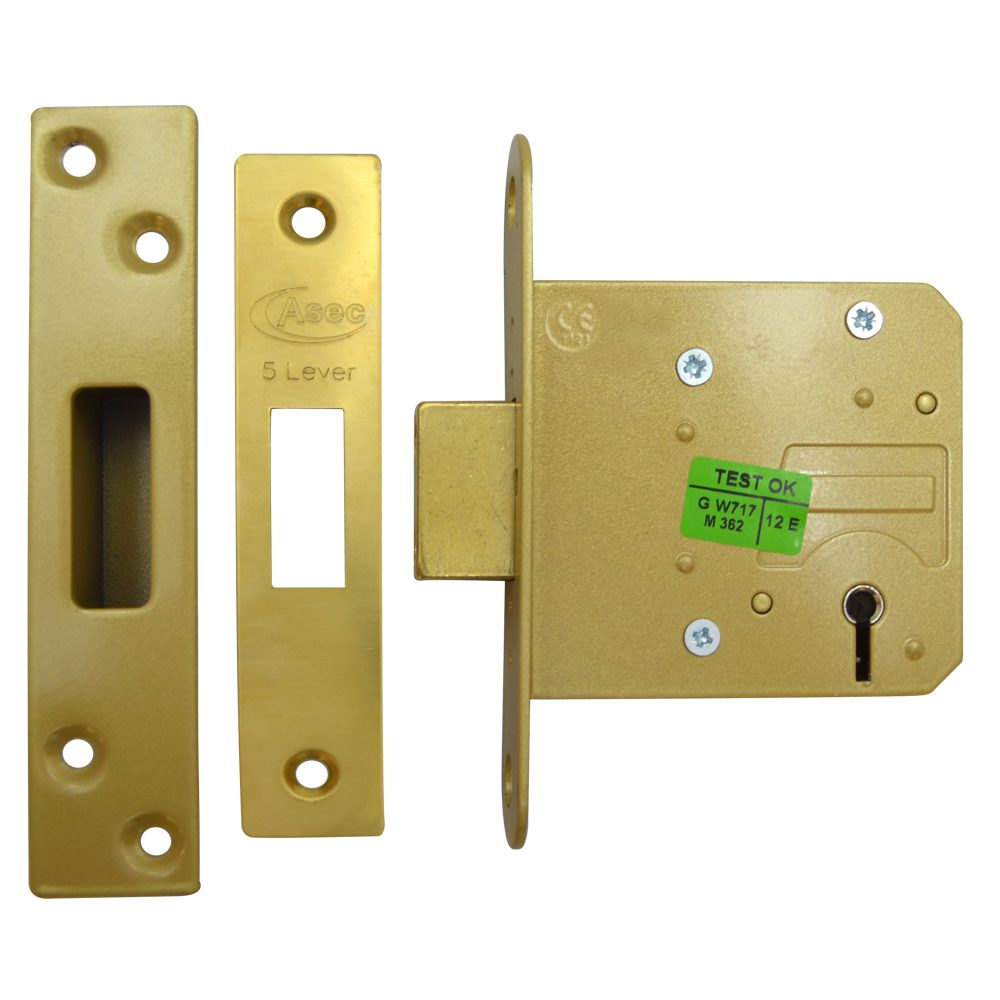

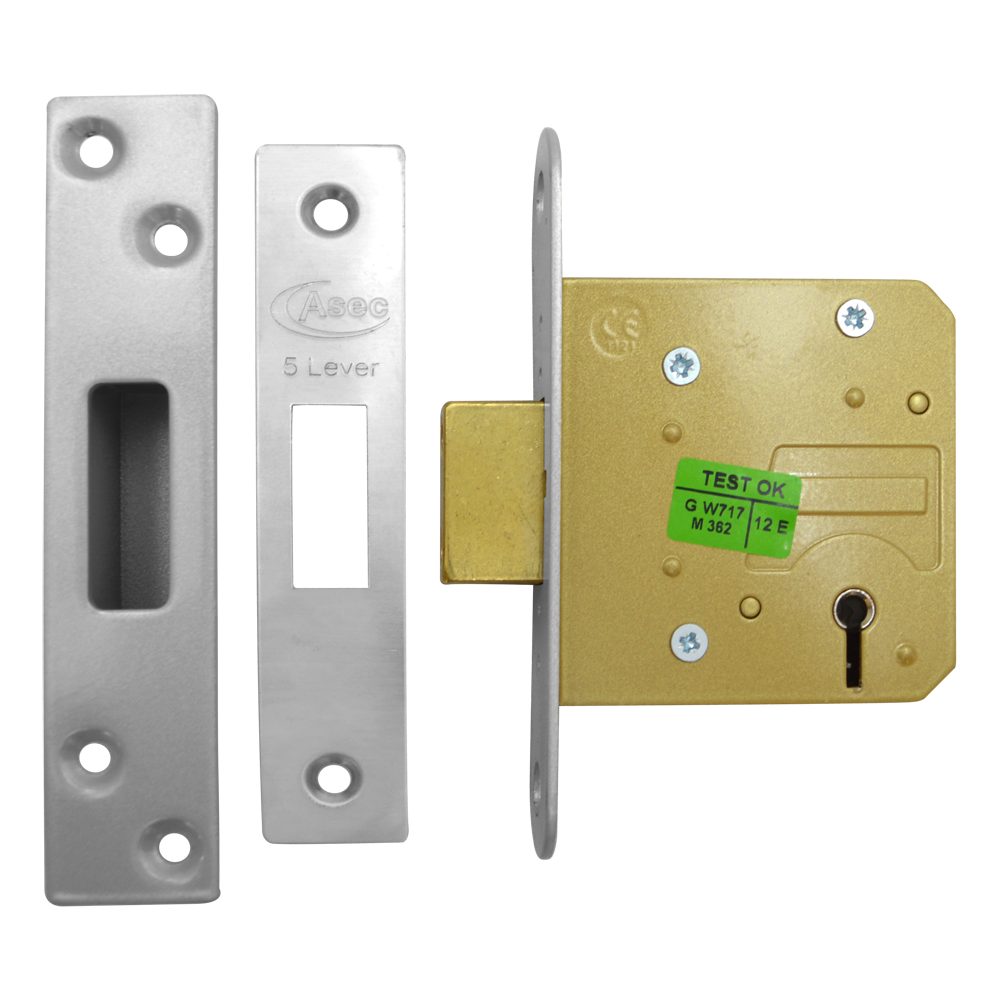

• Multiple Finishes: Available in Polished Brass, Satin Chrome, or Stainless Steel (please choose from the options below).
• Flexible Packaging: Choose between boxed or visi retail packaging below.
• Manufacturer Guarantee: Backed by a 5-year guarantee for peace of mind.
