ASEC 24V DC 2 Amp Boxed Power Supply
Asec
The Asec 24V DC 2 Amp Boxed Power Supply (AS9875) is a reliable and robust power solution designed specifically for access control and fire safety installations. It is ideal for powering systems such as electromagnetic hold-open magnets, electric locks, and other security hardware.

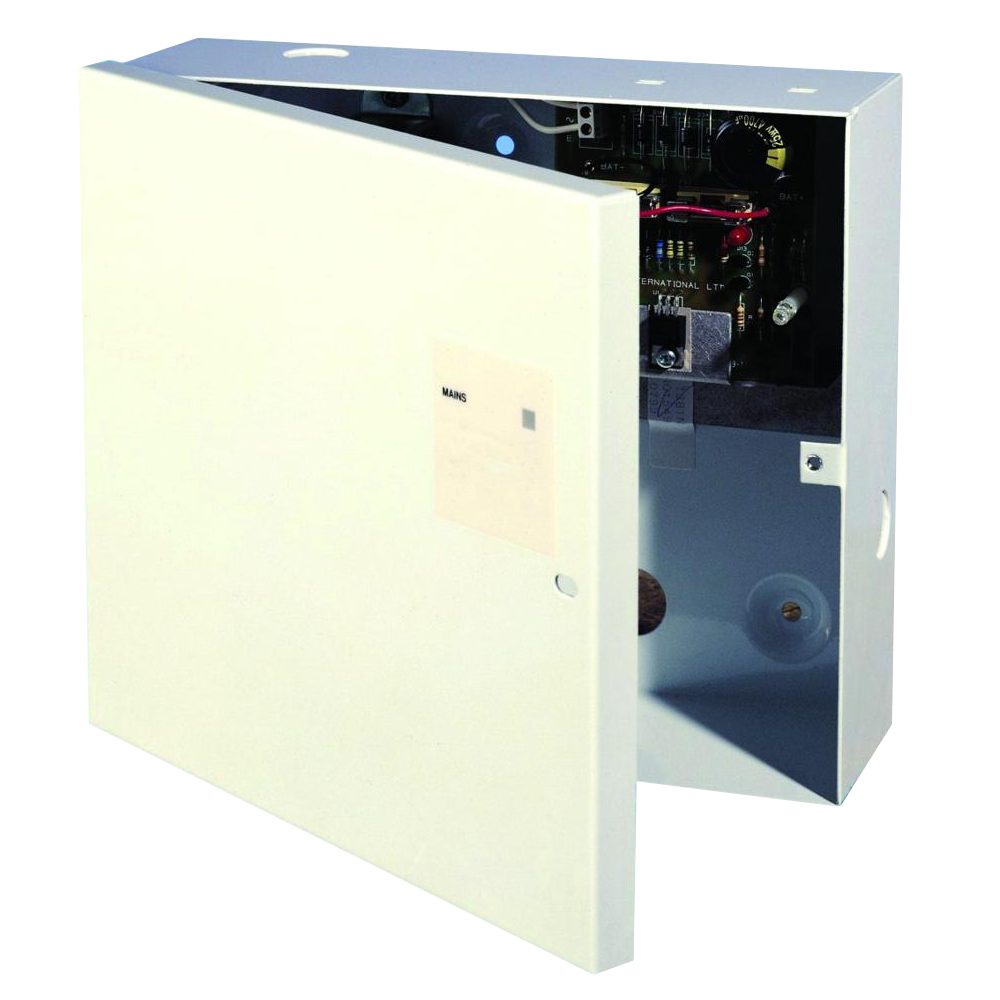

Housed in a clean, white-finished metal enclosure, this power supply operates on a standard 230V AC mains input to deliver a stable 24V DC output at 2 Amps. For added reliability and ease of maintenance, it features built-in output fuse protection and a multi-LED visual fault indicator to quickly identify system issues. The unit is rated IP41 (front only) and complies with key electrical safety and electromagnetic standards, ensuring safe and dependable operation in both commercial and residential settings.
Technical Specifications
- Manufacturer Reference: AS9875
- Input Voltage: 230V AC mains
- Output Voltage: 24V DC
- Output Current: 2 Amp
- IP Rating: IP41 (Front Only)
- Dimensions: 200mm (H) x 230mm (W) x 80mm (D)
- Weight: 2kg
- Case Finish: White
- Backup Battery: No
- Output Fuse Protection: Yes
- Output Splitter Module: Optional (Elmdene: FOM 8)
- Electrical Safety Standard: EN60950:2000
- Electromagnetic Compliance: EN50081-1:1992 & EN50130-4:1996
Key Features
- Versatile Application: Ideal for fire and access control systems, including hold-open magnets and electric locks.
- Visual Diagnostics: Multi-LED visual fault indicators allow for quick and easy troubleshooting.
- Robust Enclosure: Housed in a durable white metal box with an IP41 front rating.
- Built-in Protection: Features integrated output fuse protection to safeguard connected devices.
- Fully Compliant: Meets rigorous UK and European electrical safety and electromagnetic standards.
