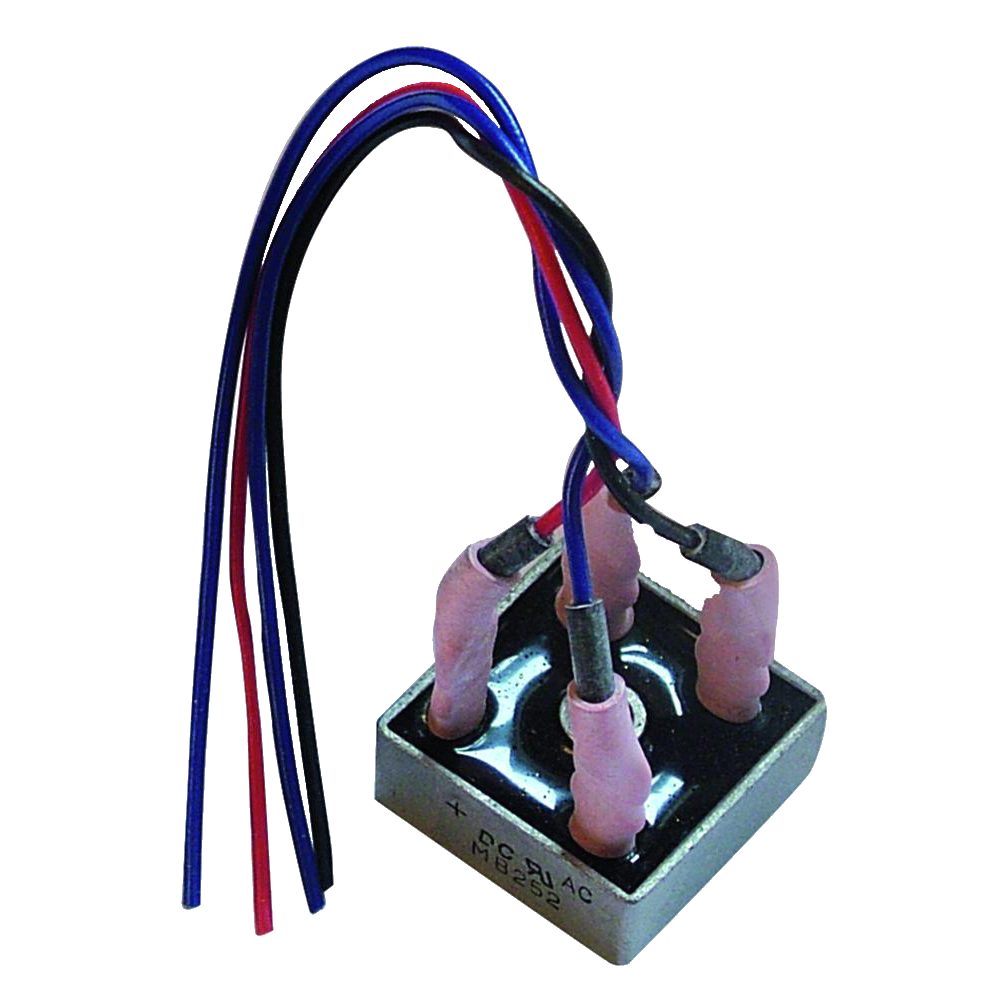

ASEC 12V AC/DC Bridge Rectifier

The Asec 12V AC/DC Bridge Rectifier is a compact semiconductor module designed to convert an alternating current (AC) power supply into a direct current (DC) output. This rectifier is specifically suited for access control installations, particularly when connecting to a fail-secure locking device. When a 12V AC input is applied, the module delivers a stable 12V DC output to reliably operate the lock.

With a maximum current rating of 2 Amps and a compact, lightweight design, this black-finished rectifier is easy to install in tight spaces within door frames or control boxes. It provides a simple, efficient solution for powering DC-rated locking hardware from an existing AC power source.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS9764
• Input Voltage: 12/24V AC
• Output Voltage: 12/24V DC
• Maximum Output Current: 2A
• Voltage Rating: 30V

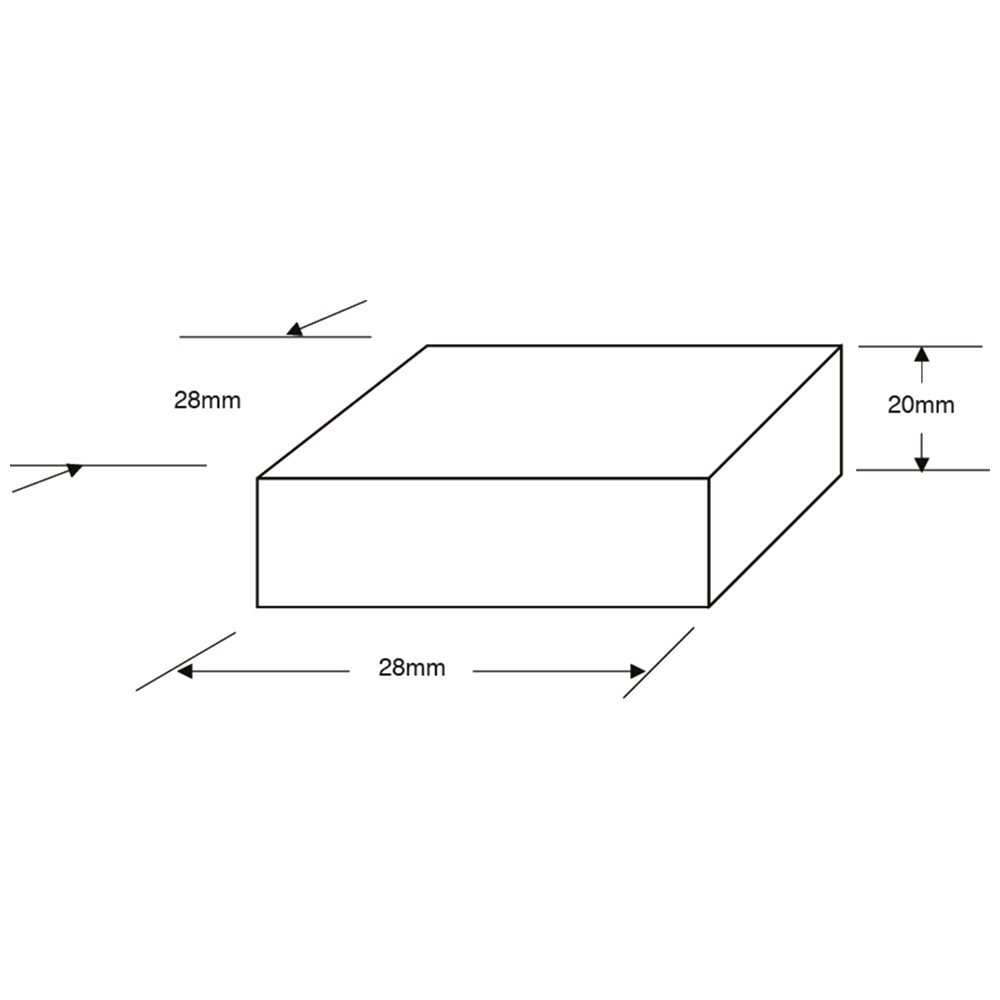

• Dimensions: 28mm (W) x 28mm (H) x 20mm (D)
• Weight: 40g
• Finish: Black
• Pack Quantity: 1

Key Features

• AC to DC Conversion: Efficiently converts an AC power supply to a DC output.
• Fail-Secure Compatibility: Ideal for connecting to fail-secure locking devices, providing a 12V DC output when a 12V AC input is applied.
• High Current Capacity: Supports a maximum current of up to 2 Amps.
• Compact Design: Small footprint allows for easy installation in restricted spaces.
• Durable Construction: Reliable semiconductor module rated up to 30V.
