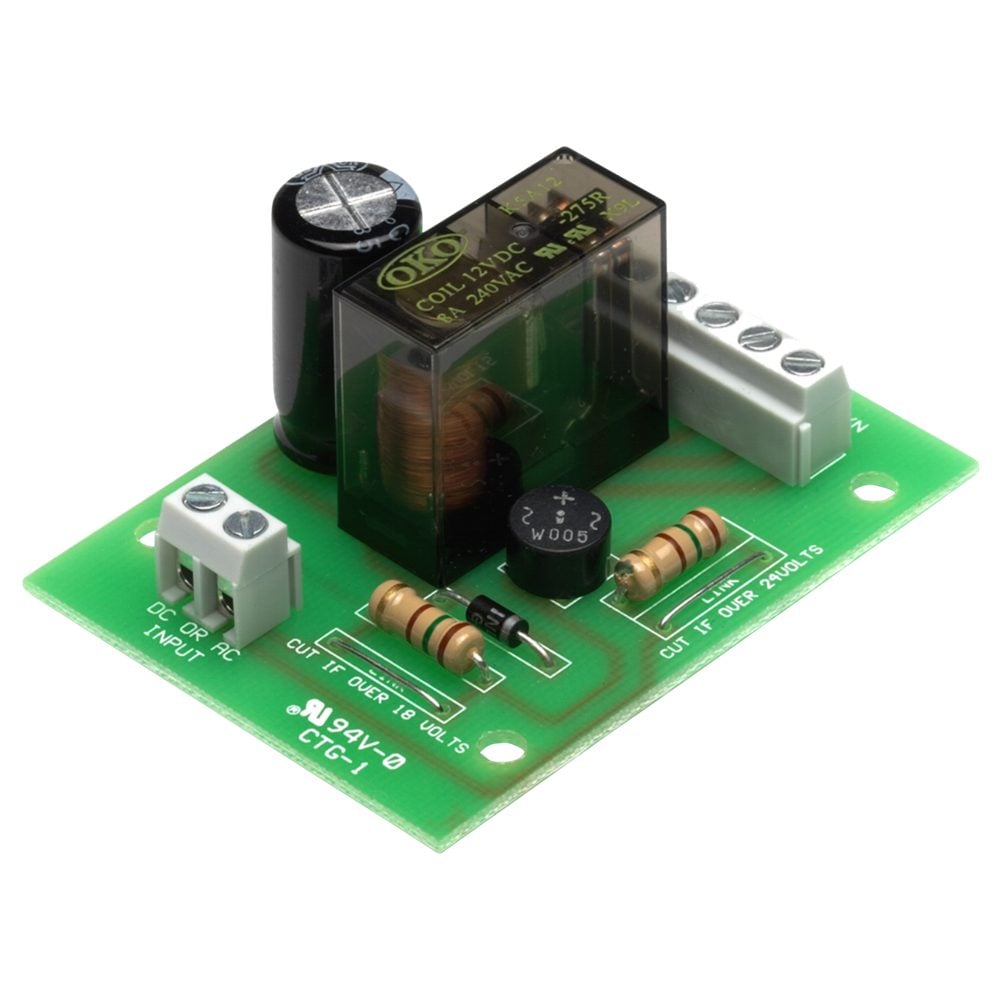

ASEC 12V/24V AC/DC Double Pole Change Over Relay

The Asec 12V/24V AC/DC Double Pole Change Over Relay is a highly versatile relay module designed for professional access control and door entry systems. It is particularly useful for applications such as controlling a DC locking device when operating on an AC-based entry system.

Supplied in a compact, boxed format, this reliable relay features a double pole change-over contact with two volt-free outputs. It supports a wide power input range of 12V to 28V AC/DC, making it an essential and adaptable accessory for security and door automation installations.

Technical Specifications

• Manufacturer Reference: AS11825
• Input Voltage: 12V / 24V AC/DC (12V - 28V AC/DC power input)
• Output: Two volt-free contacts
• Pole: Double pole change-over
• Dimensions: 69mm (Length) x 59mm (Width) x 30mm (Height/Depth)
• Weight: 100g
• Weather Resistant: No
• Guarantee: 1 Year

Key Features

• Versatile Switching: Ideal for door entry systems, such as controlling a DC locking device from an AC-based system.
• Double Pole Change-Over Contact: Offers flexible control with two independent volt-free outputs.
• Wide Voltage Range: Supports power inputs from 12V to 28V AC/DC.
• Convenient Packaging: Supplied boxed as a single pack for easy handling and installation.
