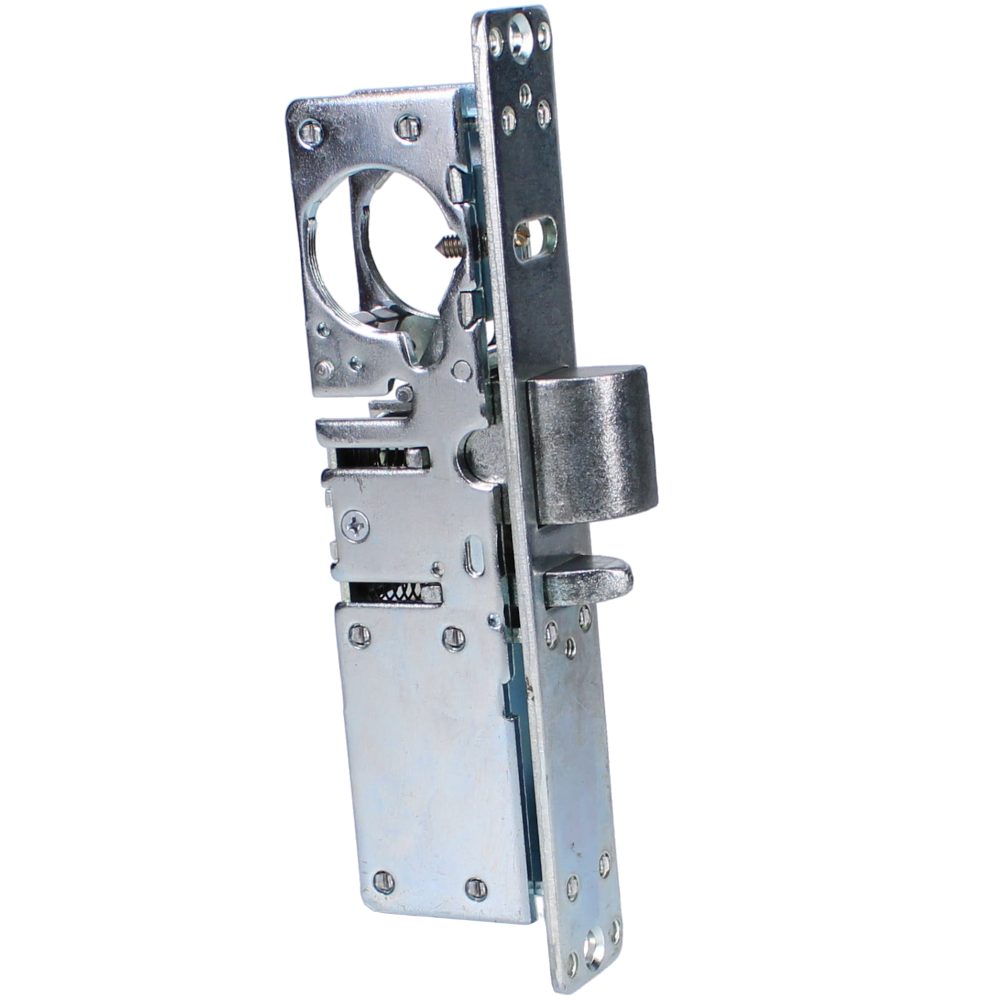

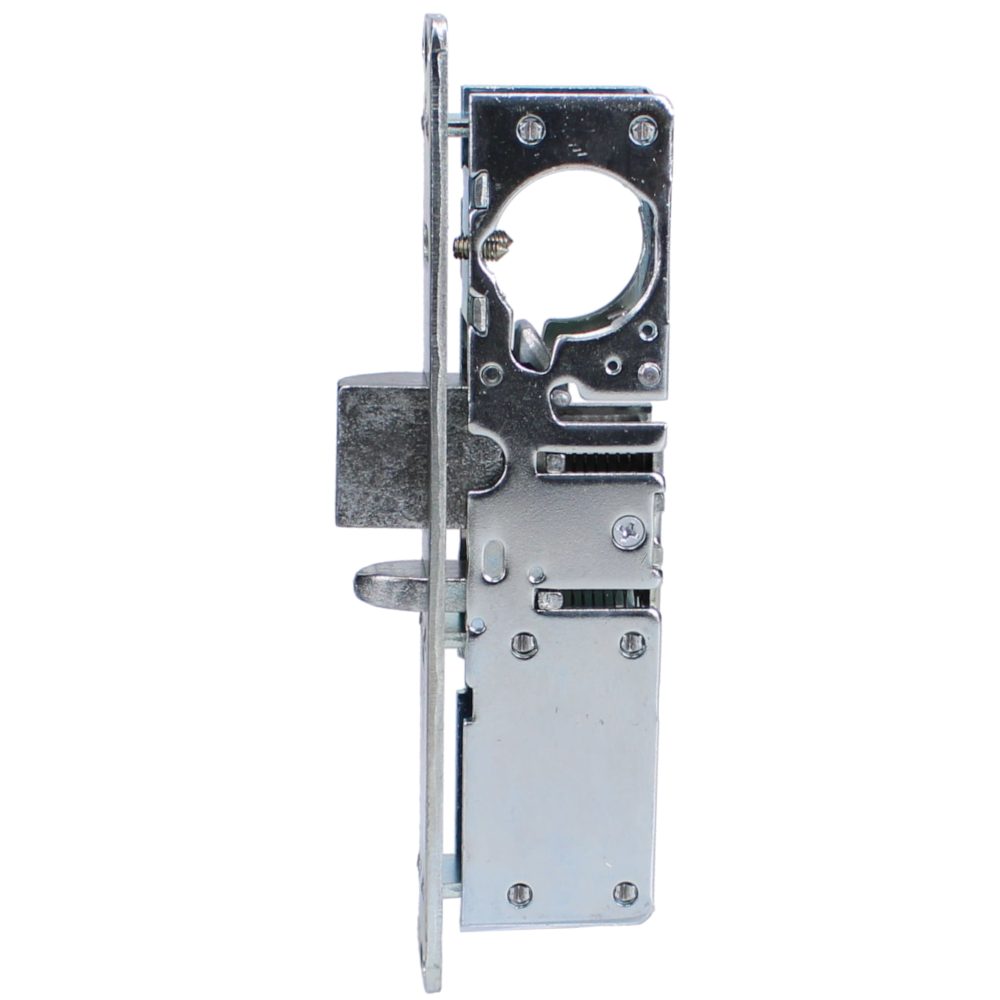

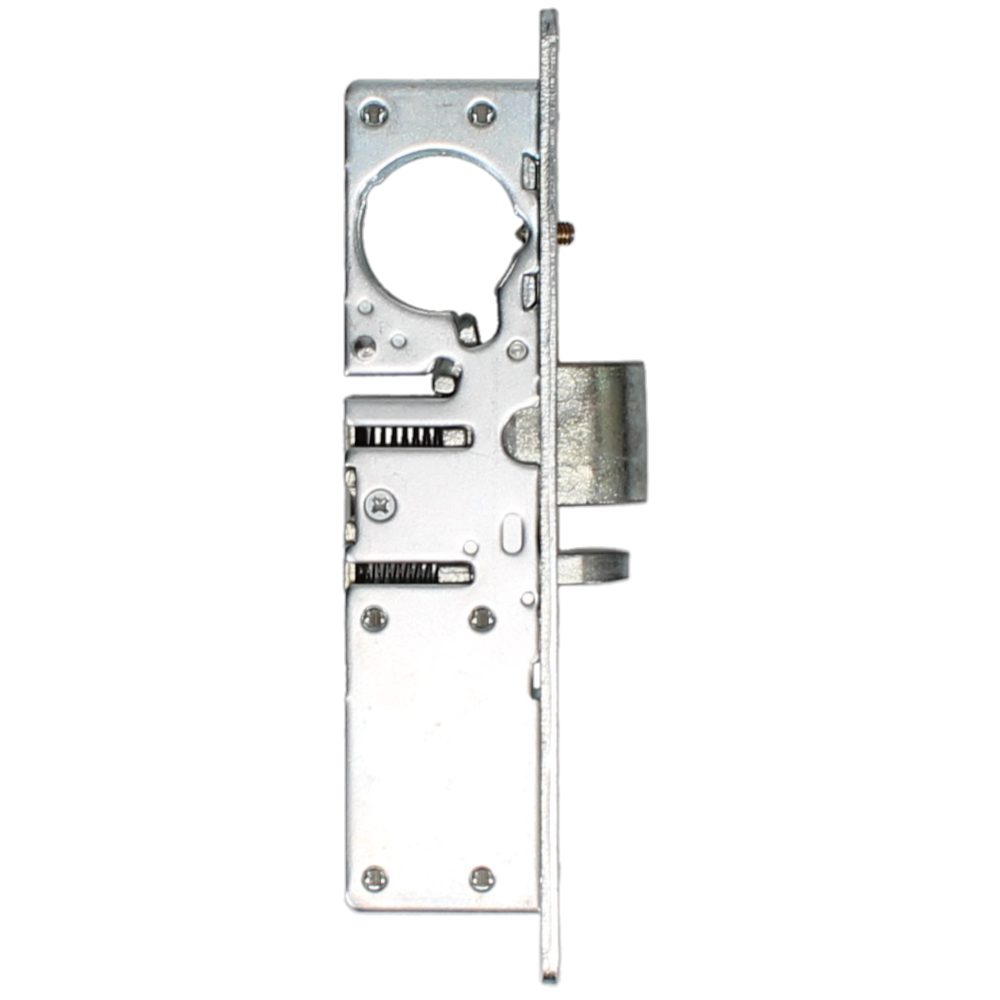

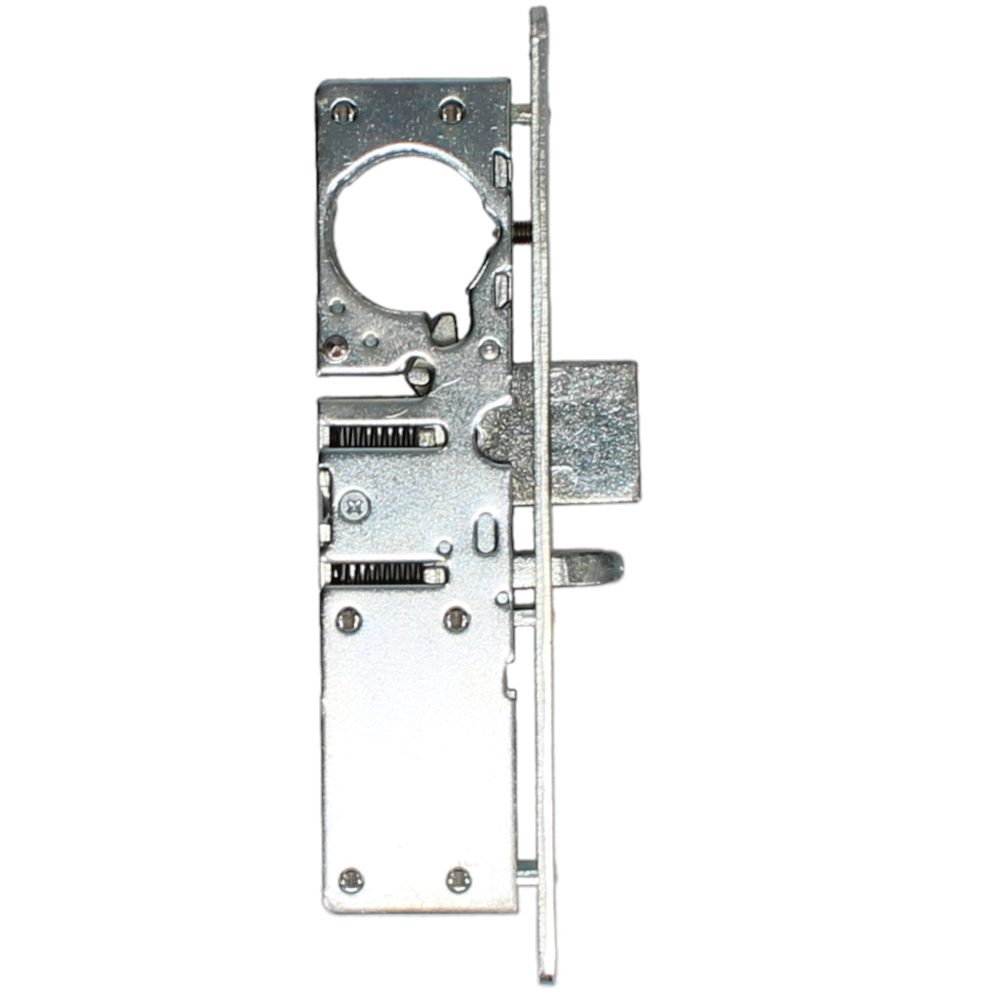

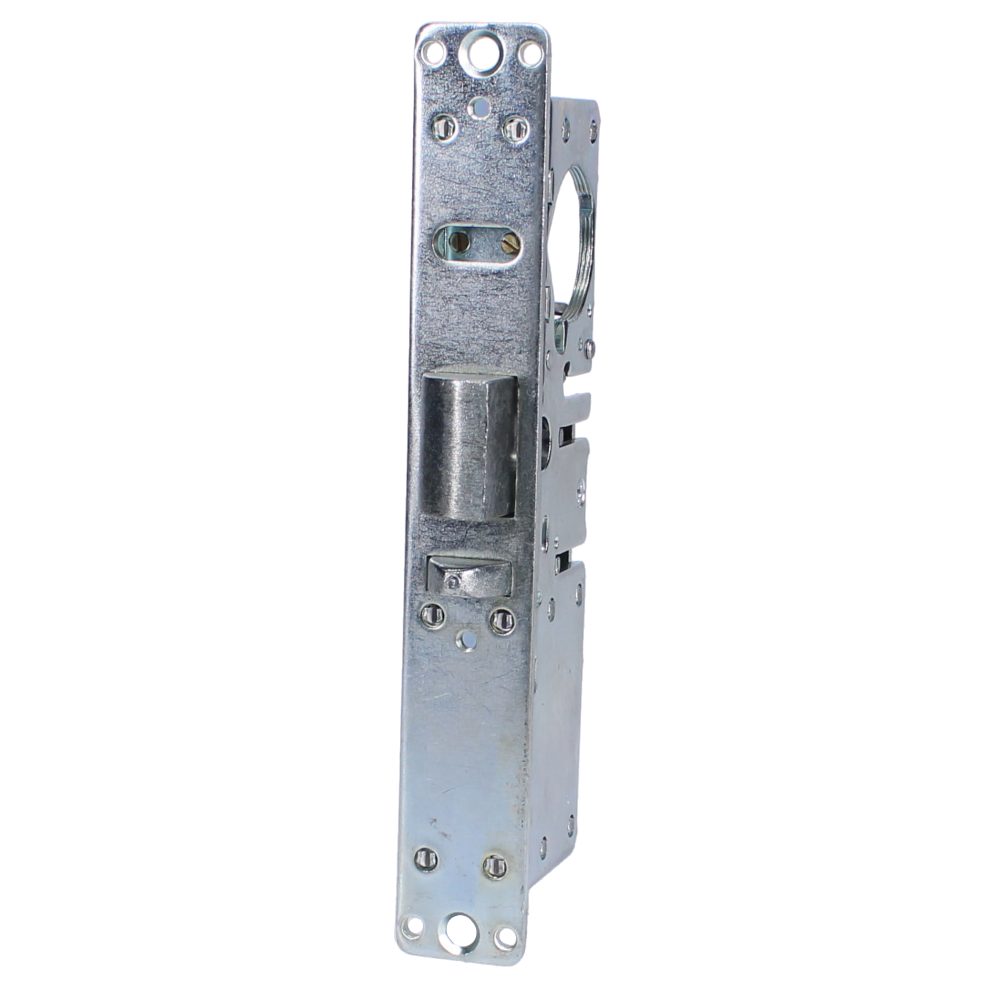

ALPRO Screw-In Mortice Deadlatch Case

The Alpro Screw-In Mortice Deadlatch Case is a highly reliable, narrow-style latch body designed primarily for commercial aluminium doors where automatic locking upon closure is required. This round mortice cylinder deadlatch offers flexible security control and is fully compatible with Alpro's range of electric strikes to provide remote access control functionality.

The deadlatch can also be operated using exit trim, such as the Alpro 459 paddle handle (requires a cam plug). When the door is closed, the deadlatching mechanism prevents the latch bolt from being forced back or tampered with, ensuring robust security.

This product is supplied as a case only (without a faceplate, cylinder, or handles). It accepts standard 1 5/32" screw-in key or thumbturn cylinders and fits industry-standard ANSI cut-outs.

Please note that this deadlatch is available in multiple configurations. You can choose from 25mm or 28mm backsets, and left-hand or right-hand operations. Please select your required backset, handing, and case depth from the options below.

Technical Specifications

• Mechanism: Screw-in cylinder (accepts standard 1 5/32" screw-in key or thumbturn cylinder)
• Backset: 25mm or 28mm (please choose from the options below)

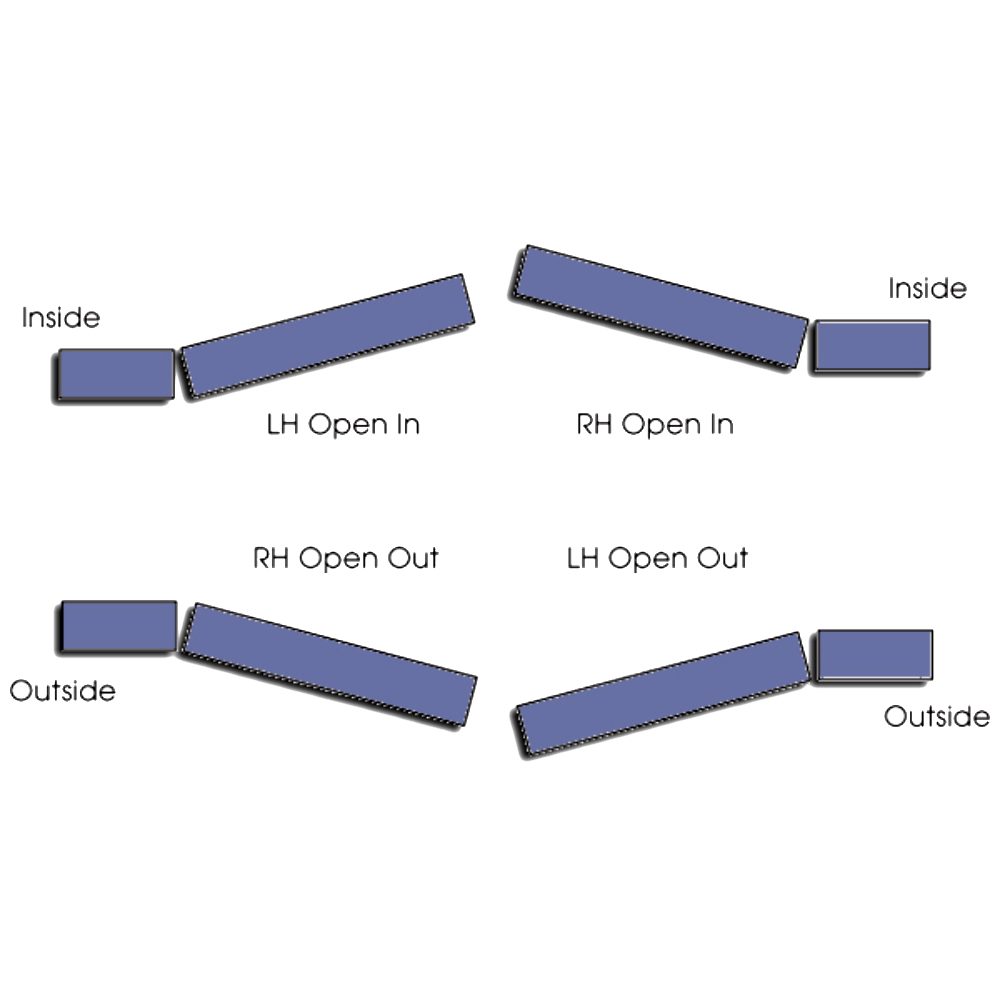

• Handing: Left Hand or Right Hand (please choose from the options below)
• Case Depth: 41.4mm or 45.2mm (please choose from the options below)
• Case Height: 147.3mm
• Forend Length: 174.6mm
• Case Finish: Plated Steel
• Forend Finish: Satin Anodised Aluminium (SAA)
• Door Gap Compatibility: Designed for doors with a 3mm gap
• Weight: 470g to 750g (depending on configuration)

Key Features

• Automatic Locking: Latches automatically upon door closure for reliable commercial security.
• Deadlatching Protection: Prevents the latch bolt from being forced back when the door is closed.
• Electric Strike Compatibility: Can be paired with Alpro electric strikes for remote access control.
• Flexible Operation: Compatible with Alpro 459 paddle handles (requires a cam plug, available separately).
• Holdback Facility: Features a convenient latch holdback function.
• Standard Cut-Outs: Fits industry-standard ANSI cut-outs for straightforward installation.
• Reversible Cam Plugs: Non-handed cam plugs can be easily reversed in the field.
