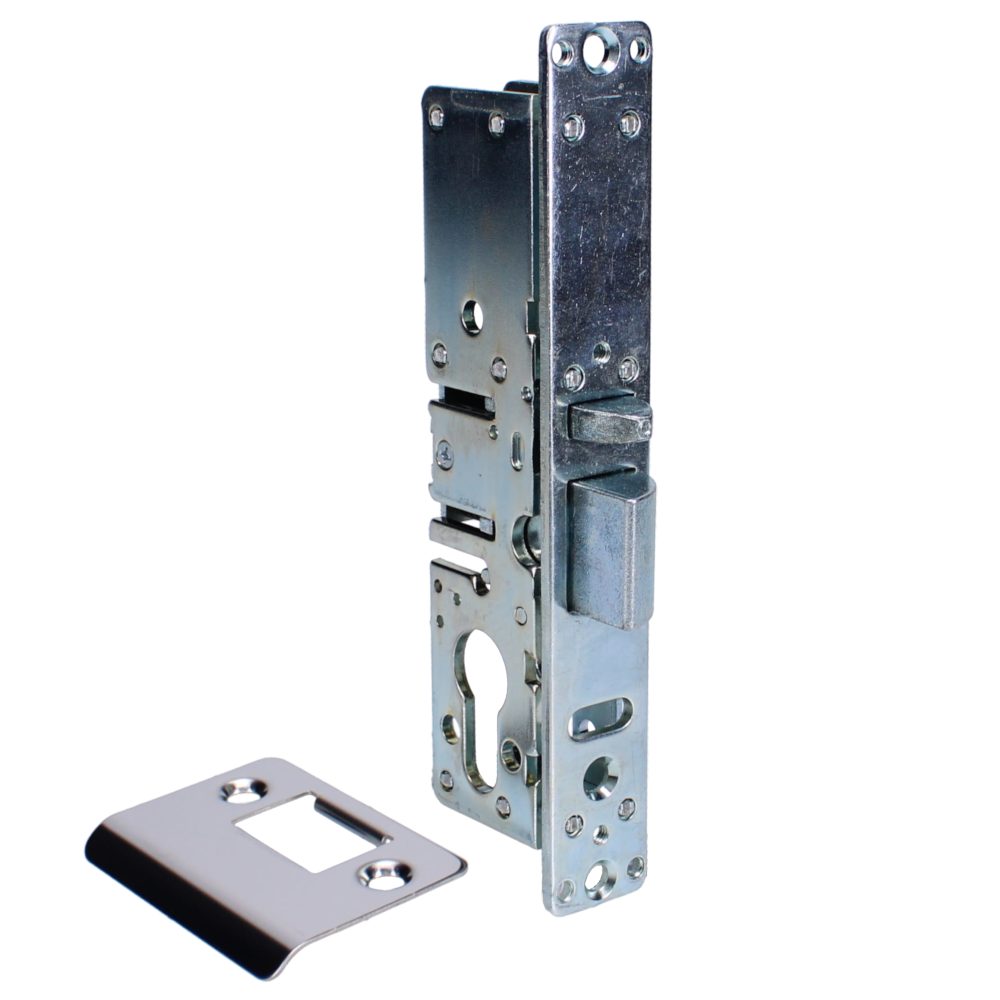

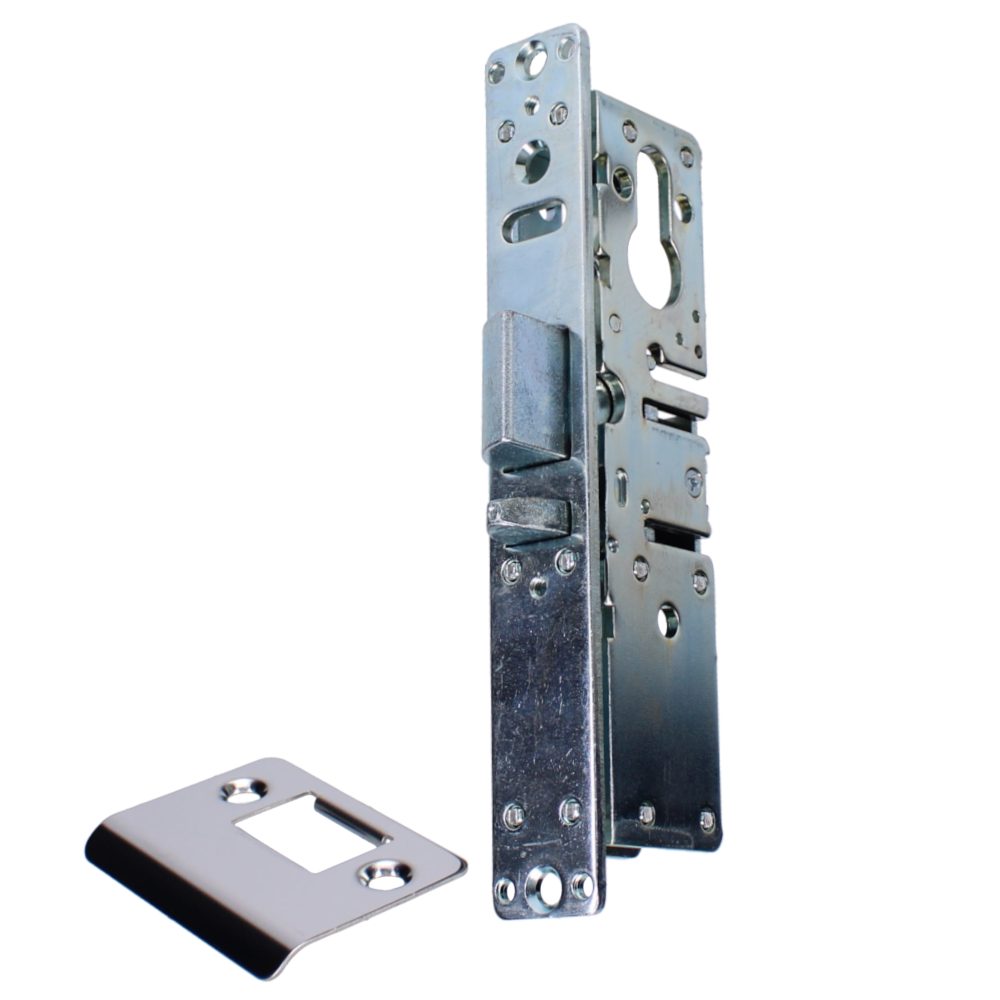

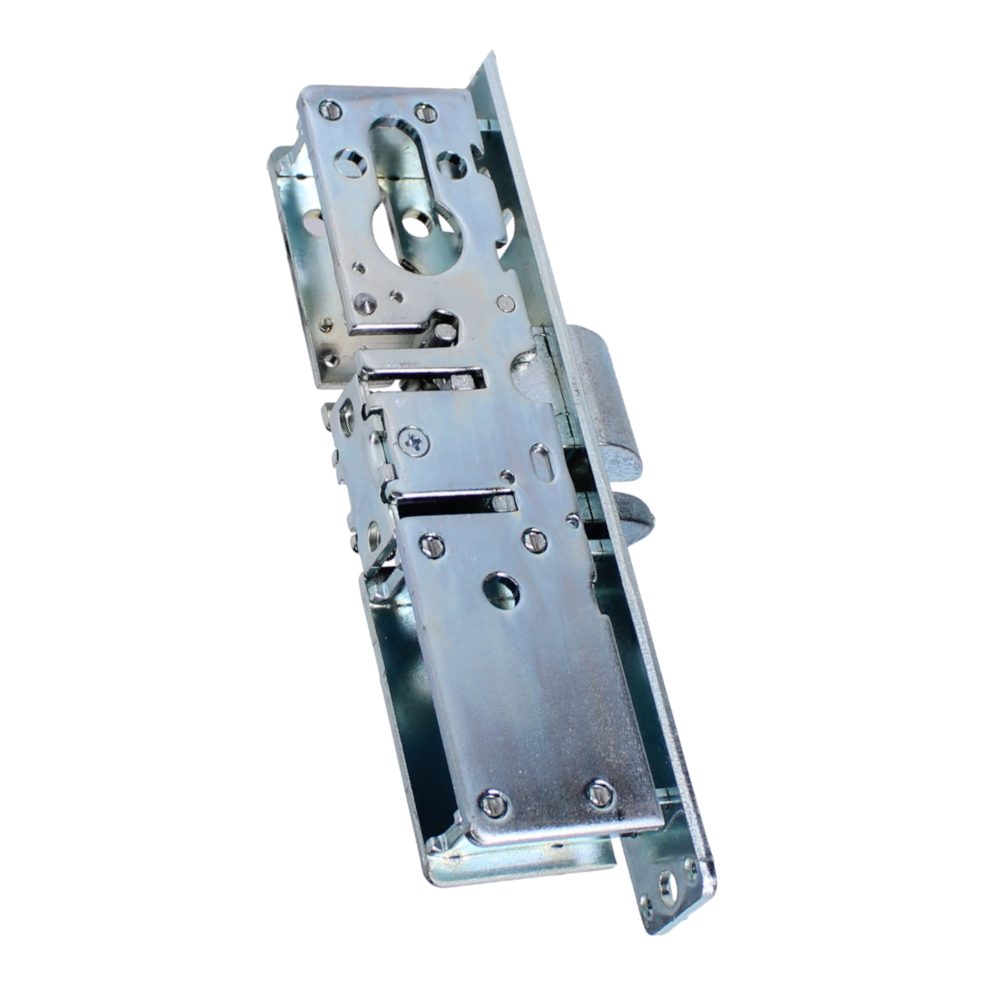

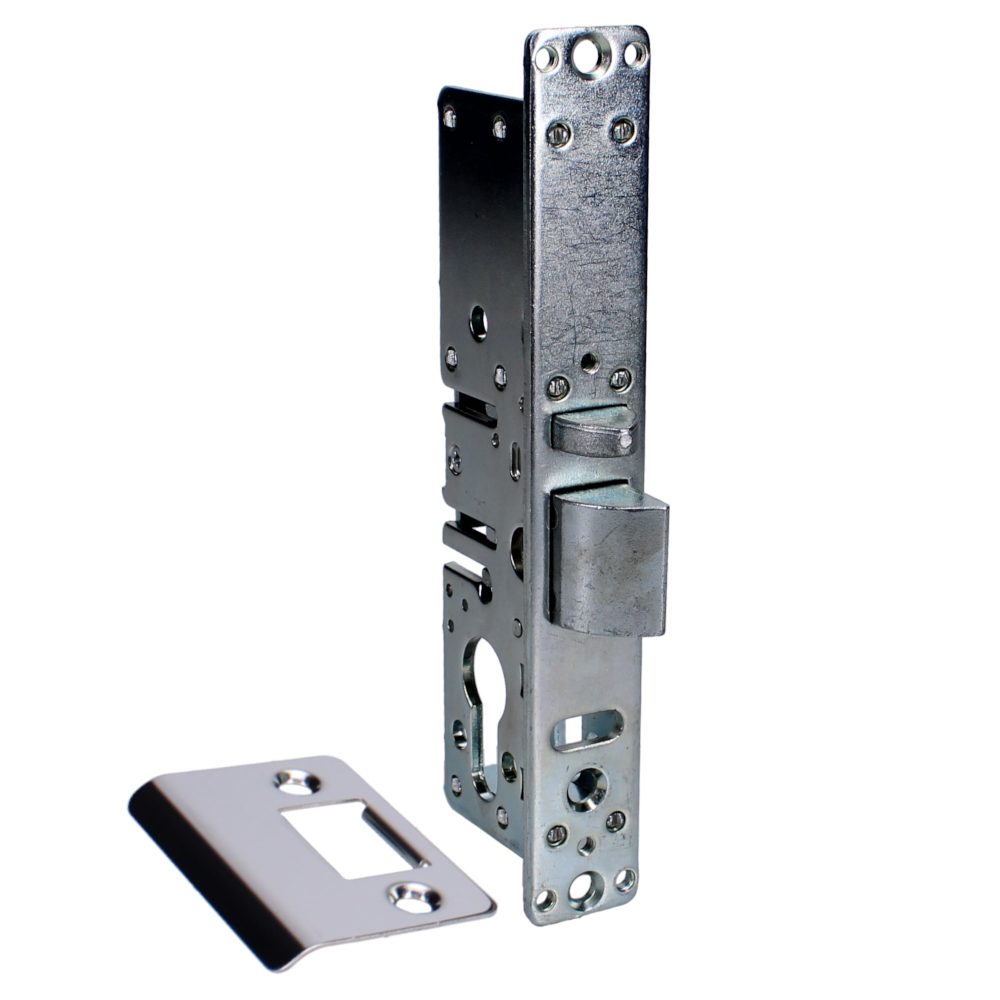

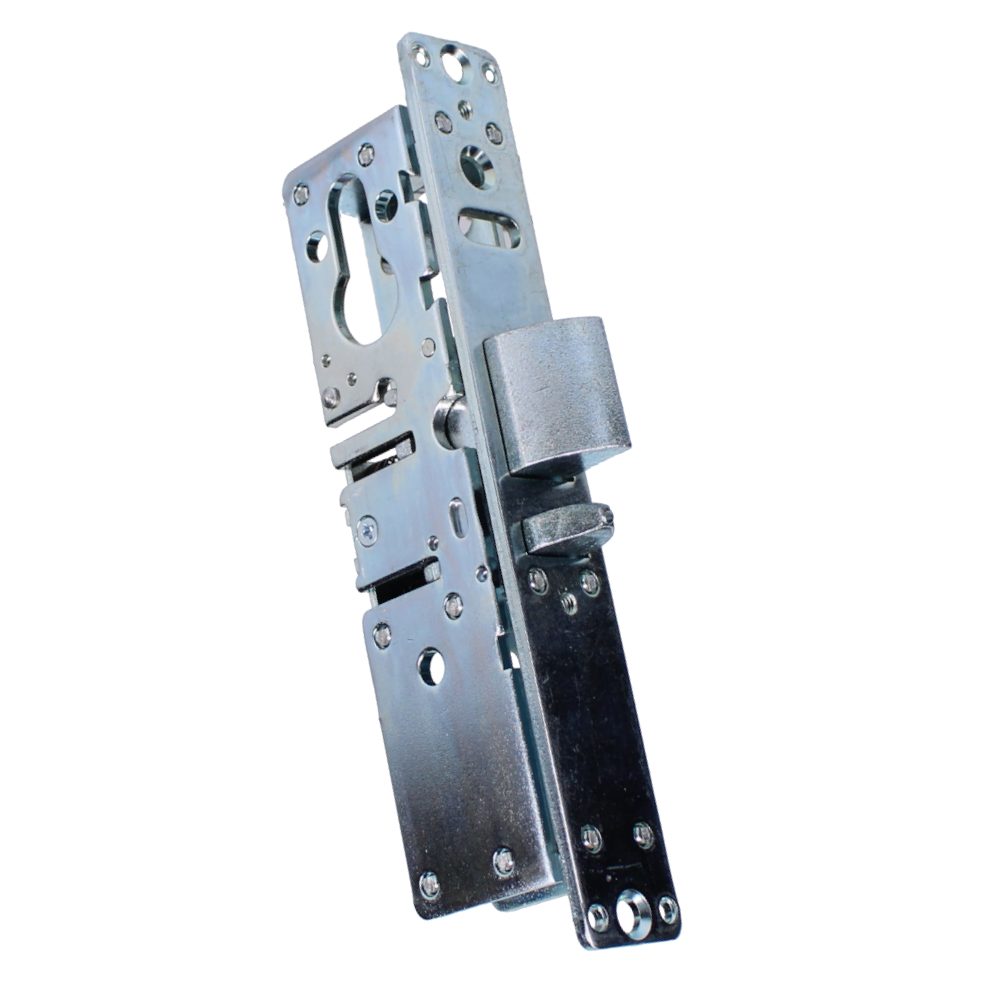

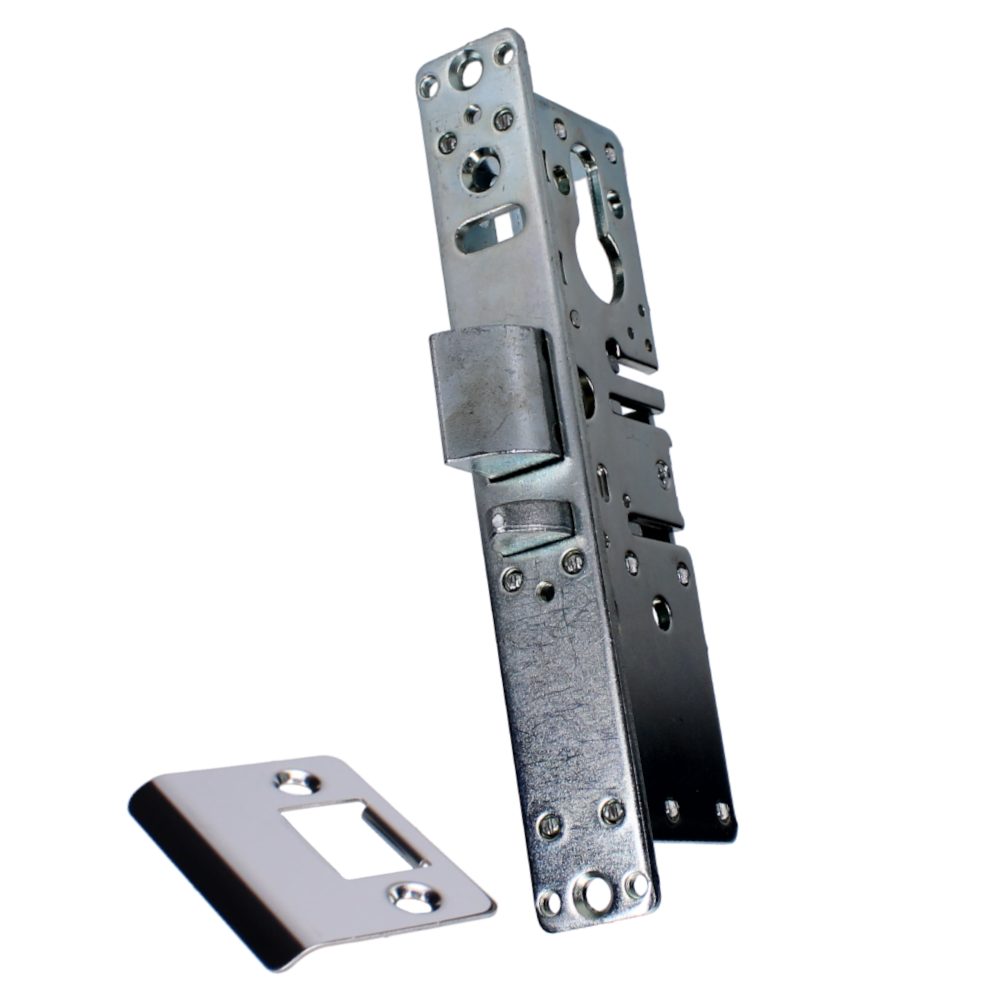

ALPRO Euro Mortice Deadlatch Case

The Alpro Euro Mortice Deadlatch Case offers flexible security control and is ideal for both commercial and residential applications. It is designed to accept standard 17mm Euro profile cylinders and thumbturns, and can be paired with Alpro's range of electric strikes to enable remote access control.

This deadlatch case features a convenient latch hold-back facility and industry-standard ANSI cut-outs. The non-handed cam plugs are fully reversible in the field, and the unit is designed to operate on doors with a 3mm door gap. Please note that the deadlatch is supplied without a faceplate, and the backset measurement includes a 3mm faceplate.

This product is available in multiple configurations, including 25mm or 28mm backsets, case depths of 41.4mm or 45.2mm, and left-hand or right-hand (reversible) handing. Please select your required options from the selection below.

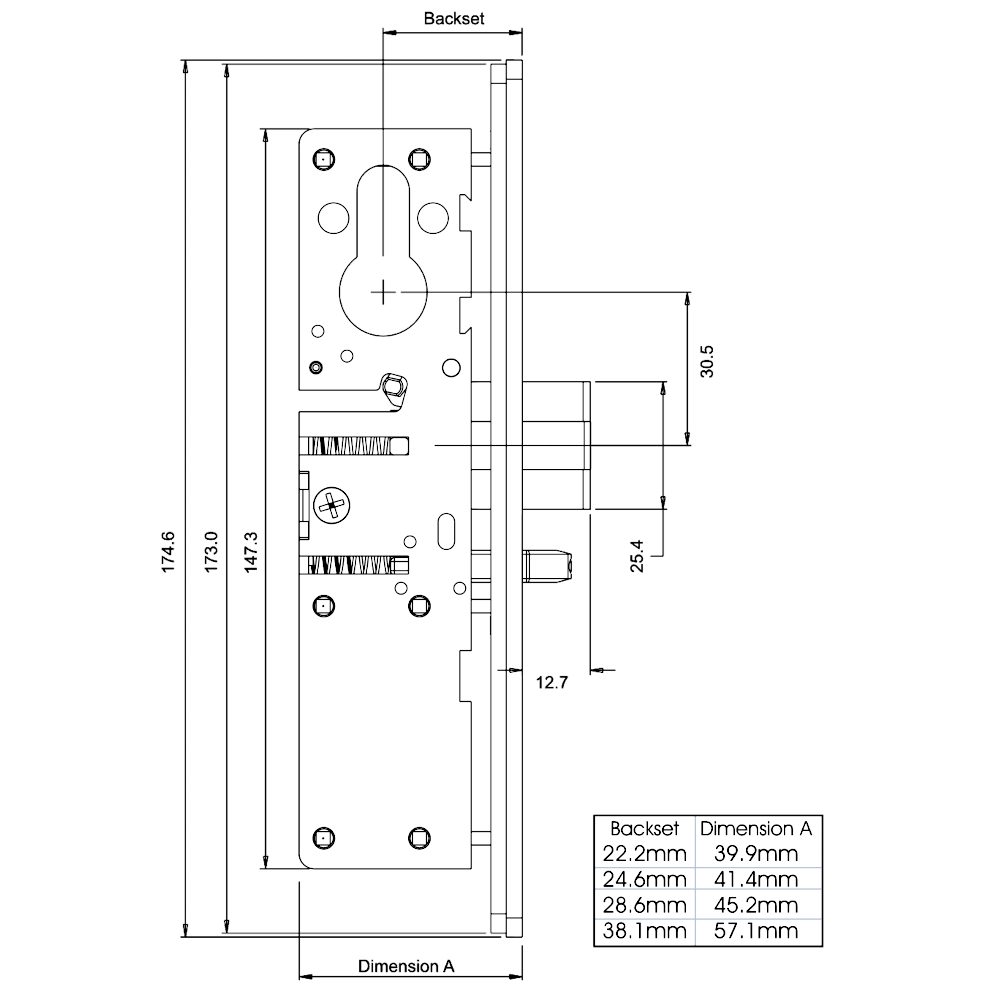

Technical Specifications

• Mechanism: Euro Cylinder (accepts standard 17mm Euro profile cylinders and thumbturns)
• Backset: 25mm or 28mm (please choose from the options below)
• Case Depth: 41.4mm or 45.2mm (please choose from the options below)
• Case Height: 147.3mm
• Forend Length: 174.6mm

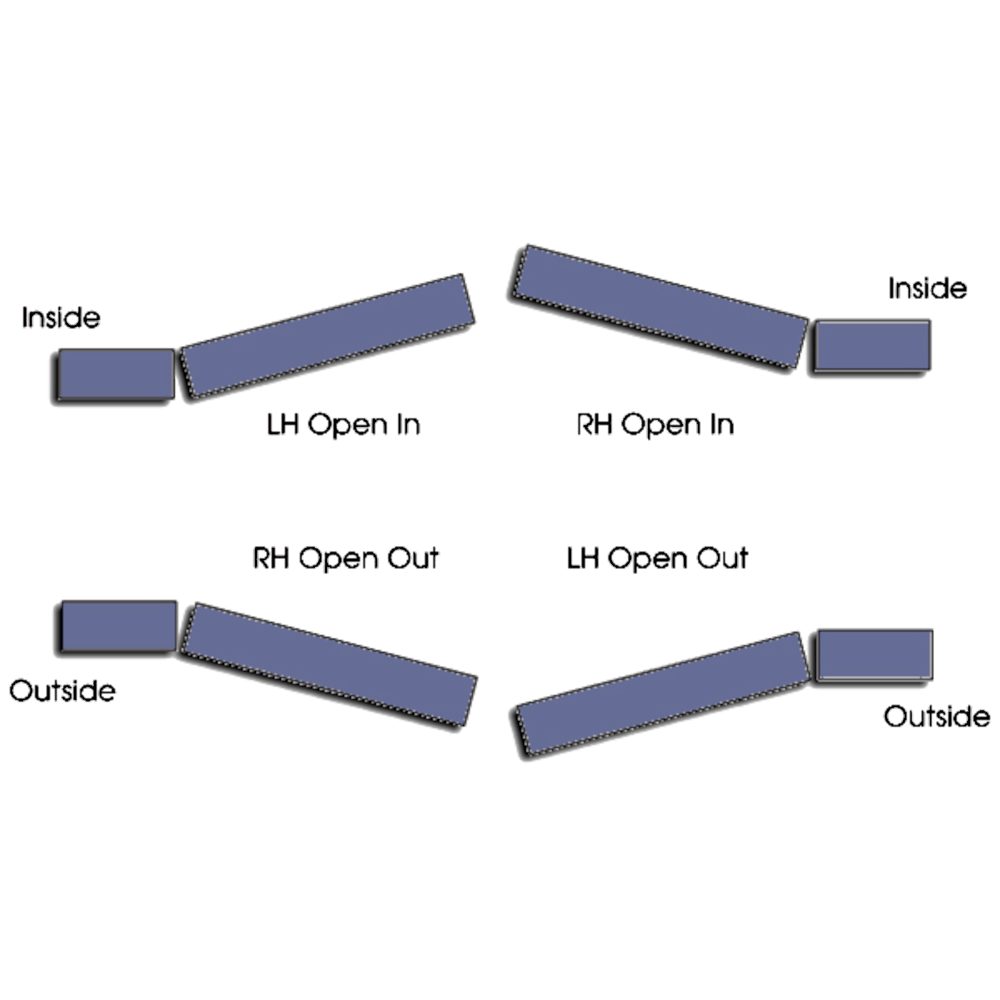

• Handing: Left Hand (Reversible) or Right Hand (Reversible) (please choose from the options below)
• Case Finish: Plated Steel
• Forend Finish: Satin Anodised Aluminium
• Door Gap: Designed for doors with a 3mm gap

Key Features

• Remote Access Integration: Can be used alongside Alpro electric strikes for remote access control
• Field Reversible: Non-handed cam plugs allow easy handing adjustment on site
• Latch Hold-Back: Features a hold-back facility to allow free passage when required
• Standard Cut-Outs: Fits industry-standard ANSI cut-outs for straightforward installation

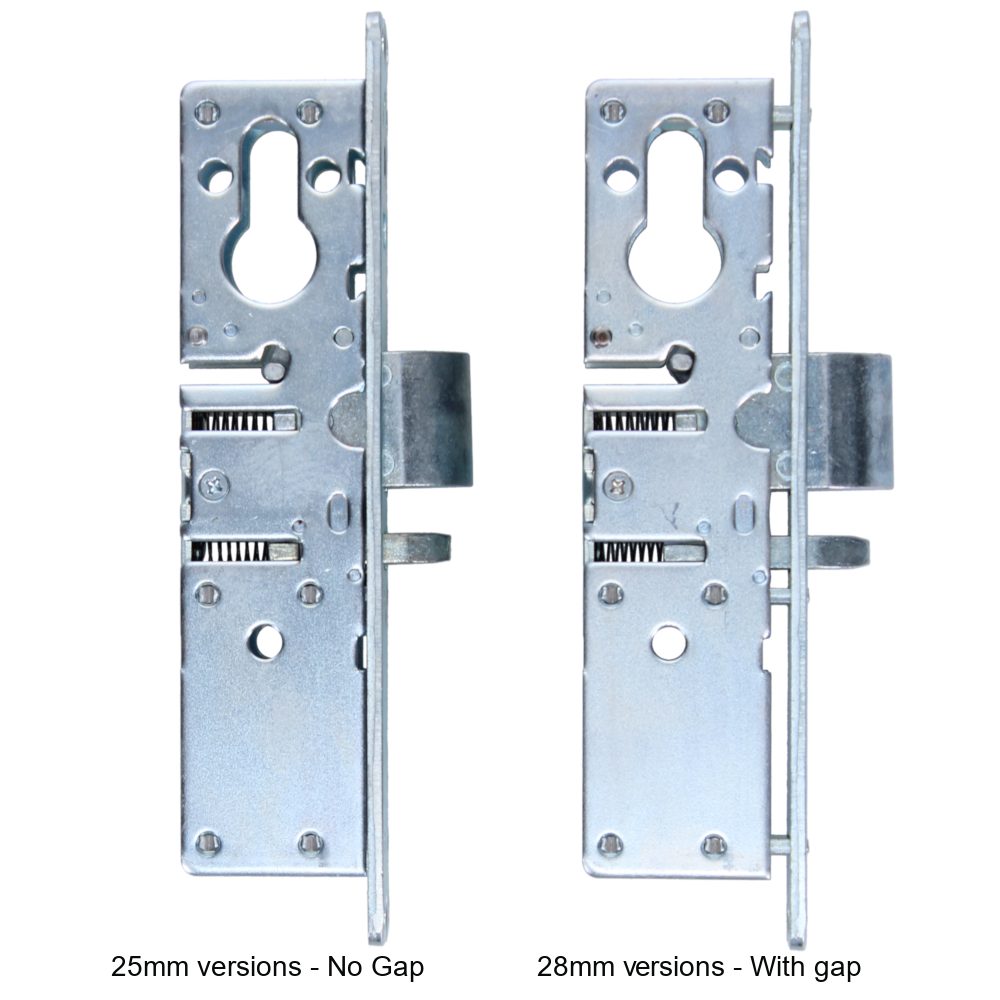

• No-Gap Design: 25mm versions have no gap between the forend and the lock body
