ALPRO EB1001 Solenoid Bolt
Alpro

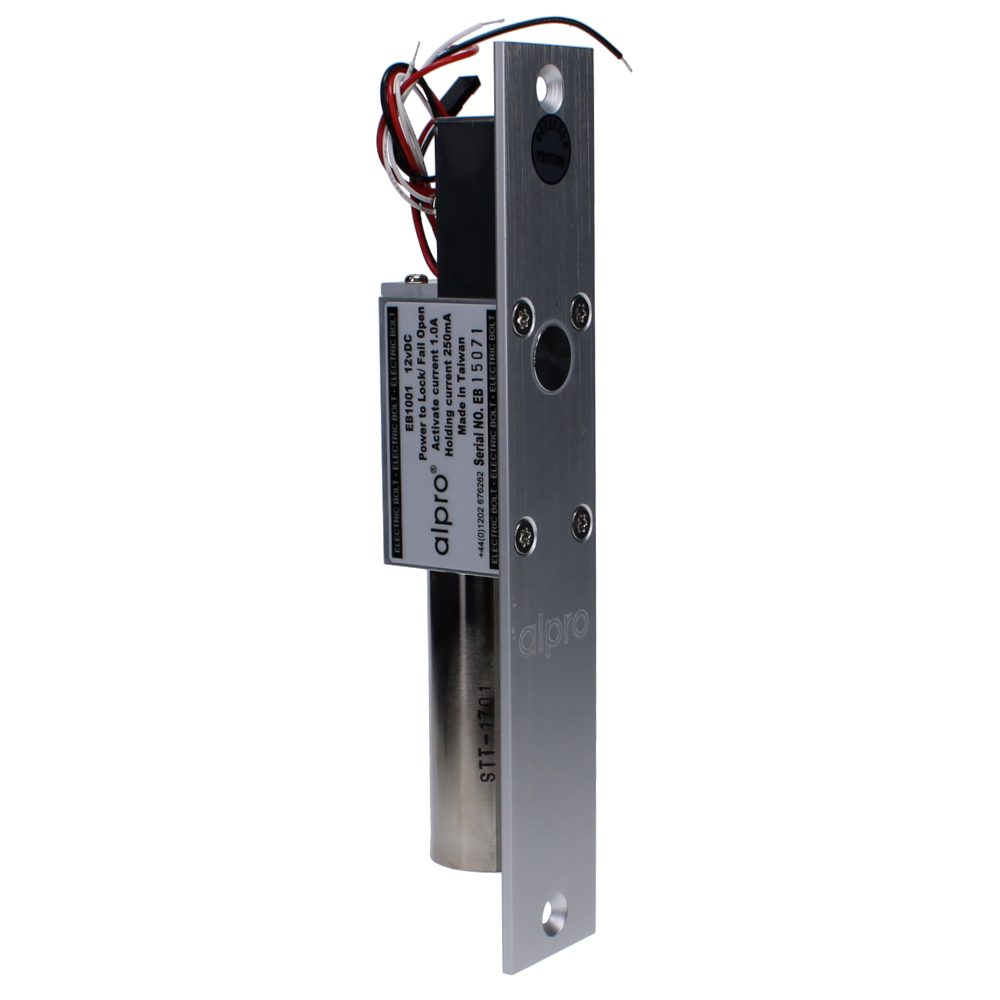

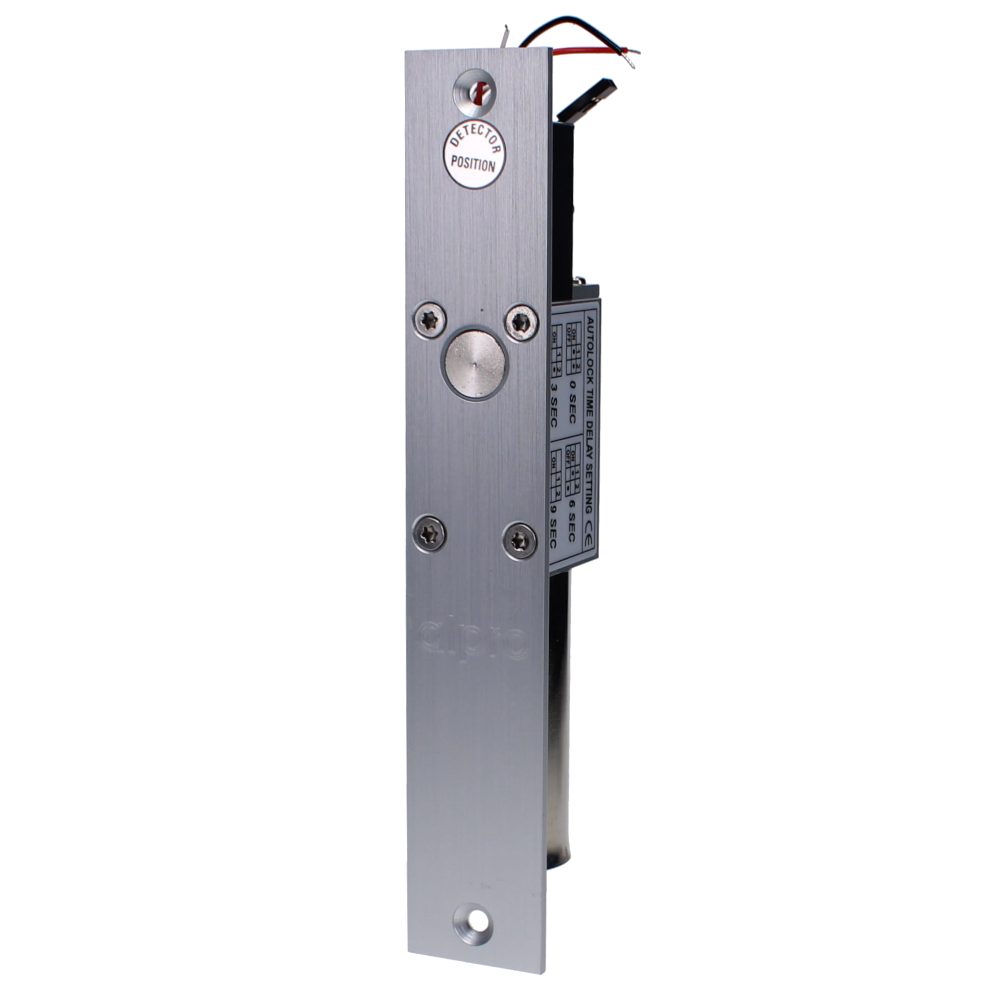

The Alpro EB1001 Solenoid Bolt is a high-security electric locking solution designed for remote access and exit control. Highly versatile, it is suitable for most timber and metal doors, including sliding or swing, and single or double-action operations. It can be mortice-mounted either vertically or horizontally within the door frame or the door itself.
Operating on a fail-safe (fail unlocked / power to lock) basis, the bolt retracts automatically upon power loss to ensure safe, free egress. It features built-in dual monitoring with a door position switch and a bolt position indicator, alongside a selectable auto-relock delay timer that can be set to 0, 3, 6, or 9 seconds.
Constructed with a robust 15mm diameter stainless steel bolt and a satin anodised aluminium finish, the EB1001 is built for long-term reliability. It comes complete with a plug-in LED bolt indicator as standard and is fully protected against transient voltages and reverse polarity.
Technical Specifications
- Input Voltage: 12V DC (±15%)
- Current Consumption: 1.0A (activating/pull), 0.25A (holding)
- Operation: Fail Unlocked (Fail Open / Power to Lock)
- Holding Force: 680kg (1500lbs)
- Bolt Diameter: 15mm
- Bolt Throw: 15mm

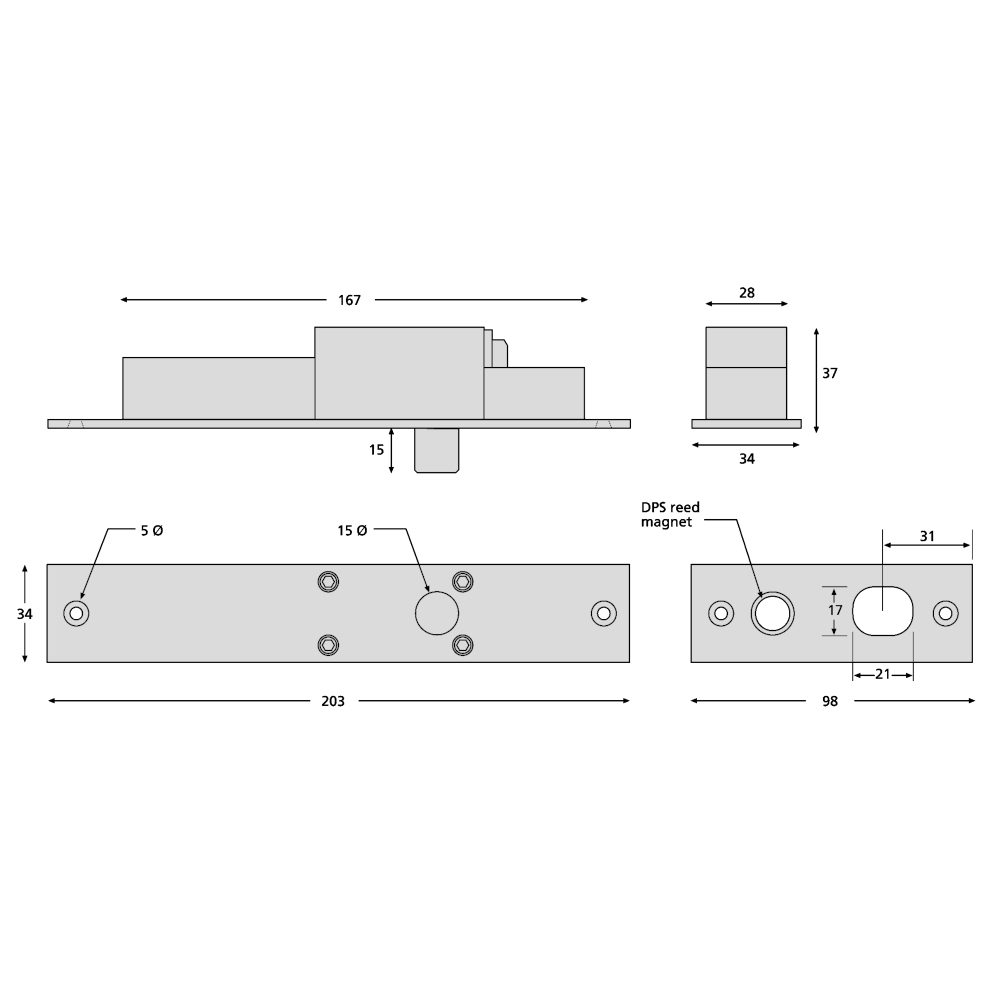

- Dimensions: Faceplate: 203mm (H) x 34mm (W); Body: 34mm (H) x 37mm (W) x 28mm (D)
- Fitting: Mortice (vertical or horizontal)
- Monitoring: Door position switch & bolt position indicator

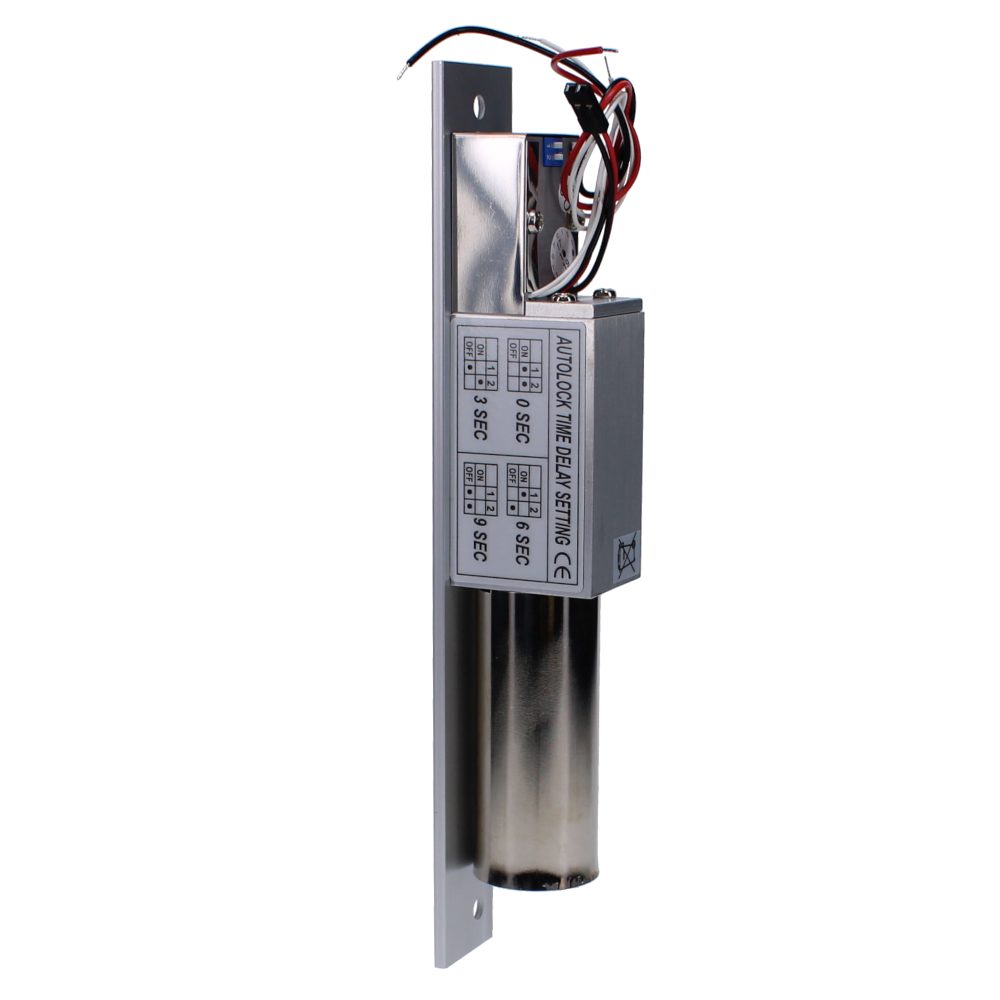

- Auto-Relock Delay: Selectable 0, 3, 6, or 9 seconds
- Finish: Satin Anodised Aluminium
- Guarantee: 3 Year Manufacturer's Guarantee
Key Features
- Versatile Installation: Suitable for timber and metal doors, sliding or swing, and single or double-action configurations.
- Fail-Safe Security: Fail unlocked operation ensures the bolt retracts during a power failure for safe emergency egress.
- Integrated Monitoring: Features built-in door position and bolt position monitoring for enhanced access control integration.
- Adjustable Auto-Relock: Selectable delay timer allows you to set relock times to 0, 3, 6, or 9 seconds.
- Durable Construction: Features a 15mm stainless steel bolt and a continuously rated solenoid with reverse polarity protection.
- LED Indicator: Supplied with a plug-in LED bolt indicator as standard for clear visual status.
