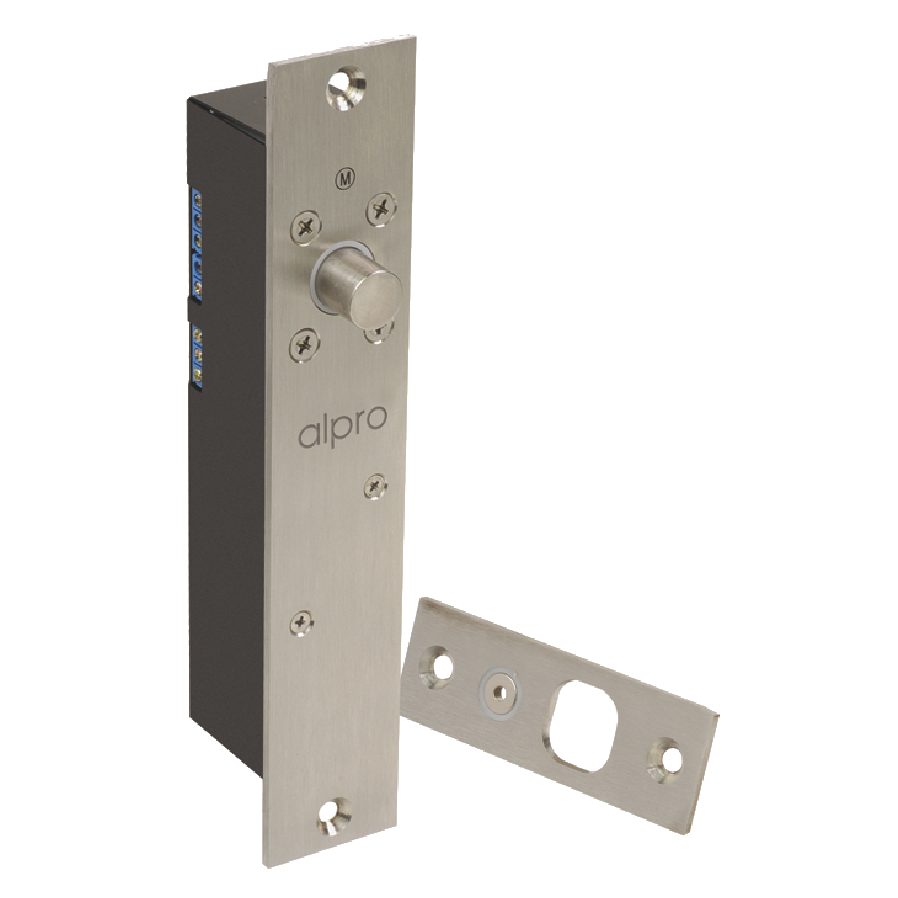

ALPRO DB38 12V/24V DC Monitored Solenoid Bolt SS

The Alpro DB38 is a high-security, transverse-action deadlocking solenoid bolt designed for applications requiring exceptional physical strength. Building on the advanced electronic design of the DB25, the DB38 features a larger 14.2mm diameter bolt pin to deliver a massive 2,000kg holding force, making it the ideal choice for heavy-duty security on both timber and metal doors.

Operating on a dual-voltage 12V/24V DC input, this mortice-mounted solenoid bolt functions as fail-unlocked (fail-safe), ensuring safe egress in the event of a power failure. It features dual monitoring to provide real-time feedback on both door and bolt positions, allowing for seamless integration with access control and security systems. With its robust stainless steel construction and built-in microprocessor to prevent overheating, the DB38 offers reliable, continuous operation.

Technical Specifications

• Input Voltage: 12V / 24V DC
• Current Consumption: Pull 1.6A, Hold 0.22A at 12V DC; Pull 1.25A, Hold 0.09A at 24V DC
• Operation: Fail Unlocked (Fail Safe)
• Fitting: Mortice
• Application: Metal and timber doors
• Bolt Pin Diameter: 14.2mm
• Bolt Throw: 14mm

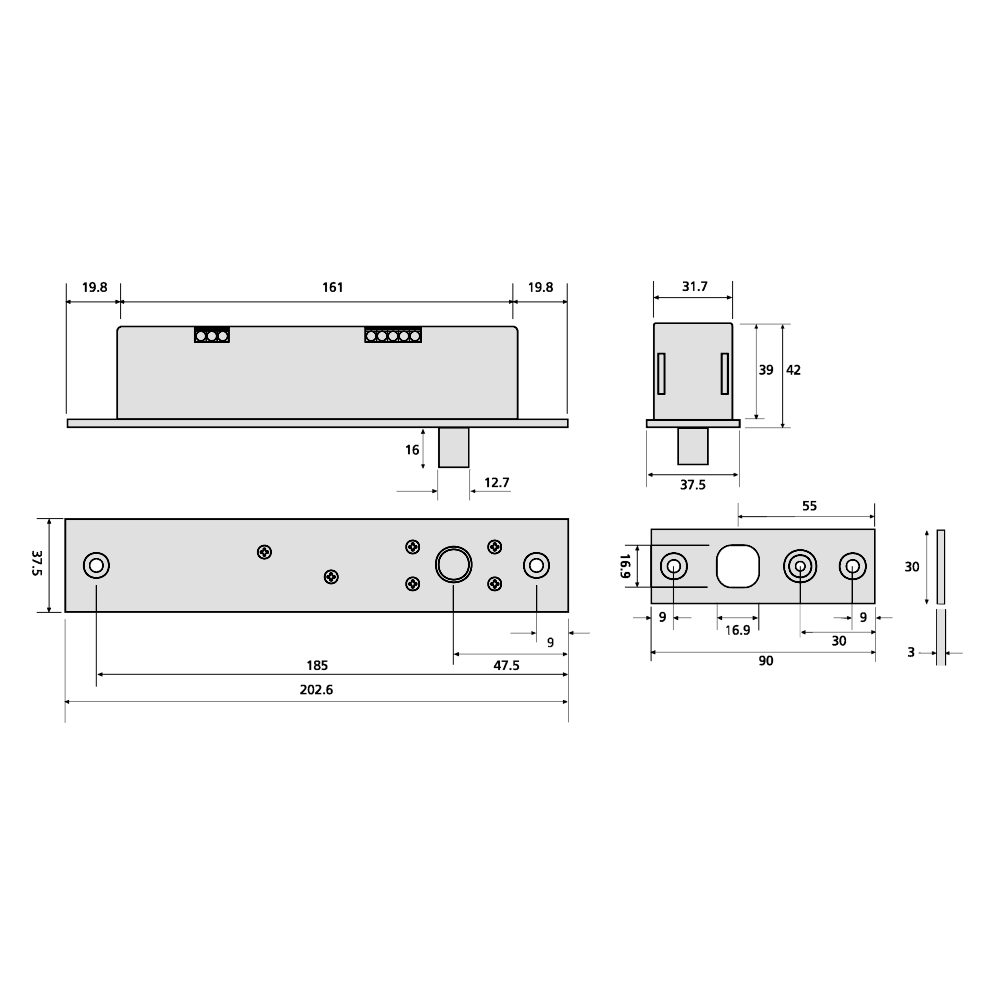

• Body Dimensions: 162mm (H) x 32mm (W) x 39mm (D)
• Monitoring: Dual monitored (bolt and door position)
• Finish: Stainless Steel
• Key Override: No
• Weight: 560g

Key Features

• High Physical Strength: Features a robust 14.2mm diameter bolt pin providing an impressive 2,000kg holding force.
• Dual Monitoring: Integrated bolt and door position switches offer comprehensive feedback for access control systems.
• Fail-Safe Operation: Fail-unlocked configuration ensures the door unlocks automatically if power is lost.
• Dual Voltage Compatibility: Operates on either 12V or 24V DC for installation flexibility.
• 5-Year Guarantee: Backed by Alpro's 5-year manufacturer's guarantee for long-term peace of mind.
