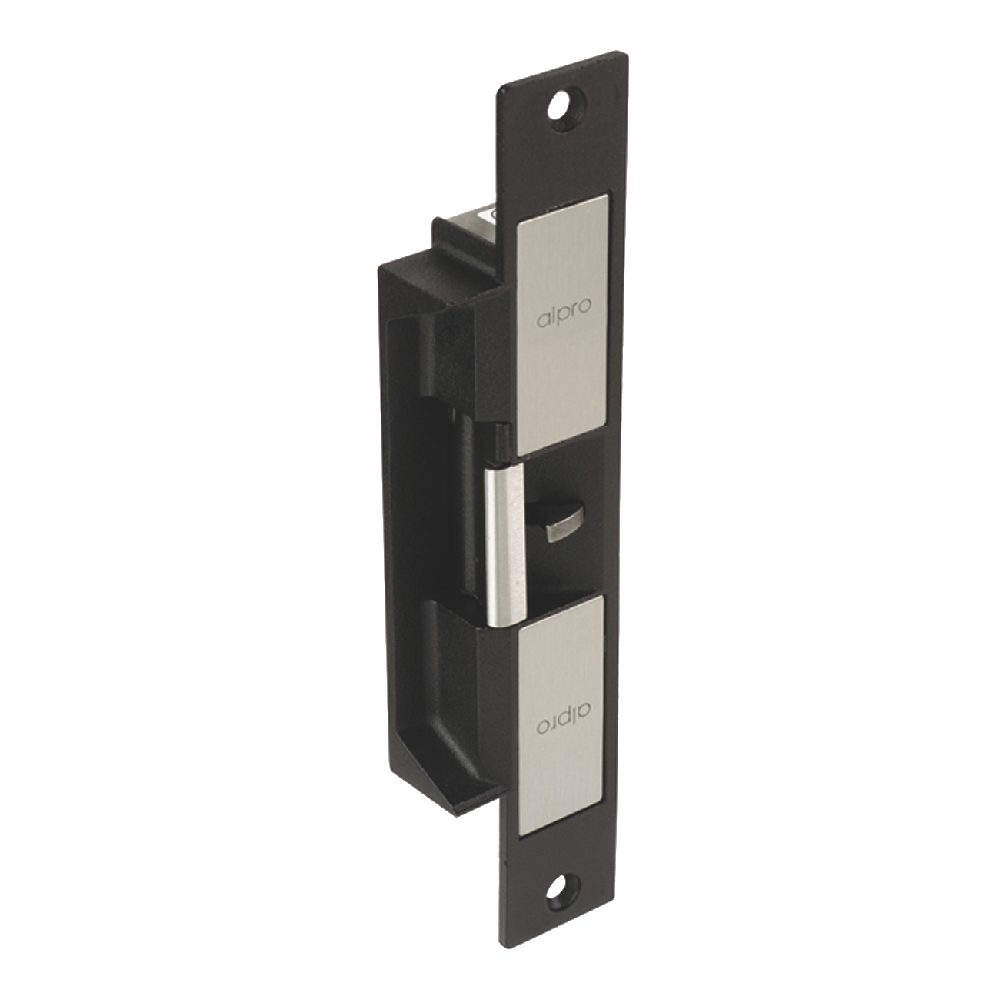

ALPRO AL2000 Series 12V/24V DC Monitored Mortice Release

The Alpro AL2000 Series (AL2001) is a premium, high-security monitored electric strike designed specifically for timber and metal door applications. Engineered with a robust, one-part stainless steel body and striker, this mortice release offers exceptional strength and durability, boasting a factory-tested holding force of up to 1,380kg (3,000lbs).

This highly versatile unit is 12/24V DC selectable on-site and features a compact, shallow body with an overall depth of just 26mm, making it ideal for installations where space is limited. It provides comprehensive security feedback with built-in latch, door, and anti-tamper monitoring.

Designed to withstand challenging environments, the AL2000 series is IP56 weather-resistant, making it suitable for both internal and external doors. It also offers site-reversible fail-safe (power to lock) and fail-secure (power to open) operation, providing ultimate flexibility during installation. Backed by a 6-year manufacturer's guarantee, it is a highly reliable choice for demanding commercial and residential access control systems.

Technical Specifications

• Input Voltage: 12V / 24V DC (selectable)
• Current Consumption: 0.22A @ 12V DC / 0.11A @ 24V DC
• Holding Force: 1,380kg (3,000lbs)
• IP Rating: IP56 (weather resistant)

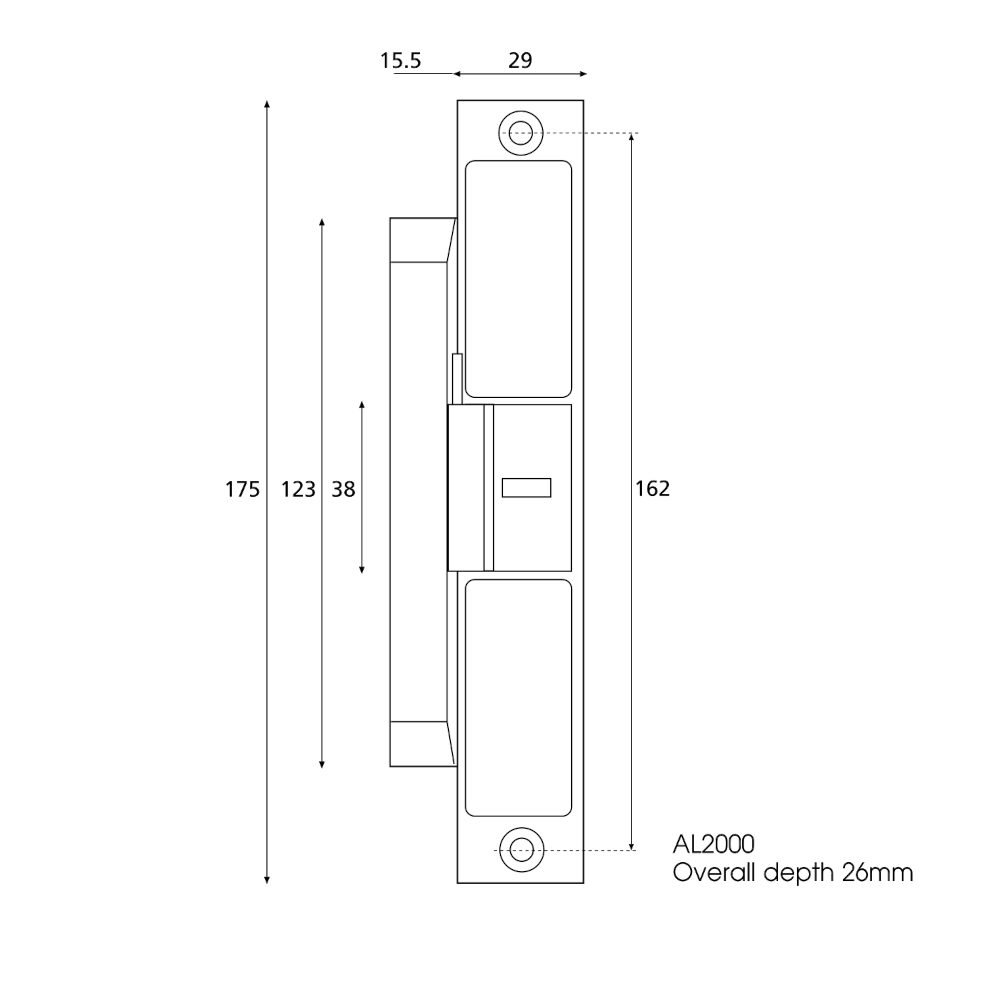

• Body Height: 141mm
• Faceplate Dimensions: 175mm (H) x 29mm (W)
• Jaw Dimensions: 40mm (H) x 16mm (W) x 14mm (D)
• Operation: Fail Locked (Fail Secure) / Fail Unlocked (Fail Safe) - site reversible
• Monitoring: Latch, door, and anti-tamper monitoring
• Finish: Stainless Steel
• Weight: 450g

Key Features

• High Security: Robust one-part stainless steel body and striker providing up to 1,380kg of holding force.
• Weather Resistant: IP56 rated, making it suitable for both internal and external timber or metal door applications.
• Compact Design: Shallow body with a 26mm overall depth for easy installation in narrow profiles.
• Site Reversible: Easily convertible between fail-safe and fail-secure operation on-site.
• Comprehensive Monitoring: Built-in sensors for latch, door, and anti-tamper status feedback.
• 6-Year Guarantee: Backed by a comprehensive 6-year manufacturer's guarantee for peace of mind.
