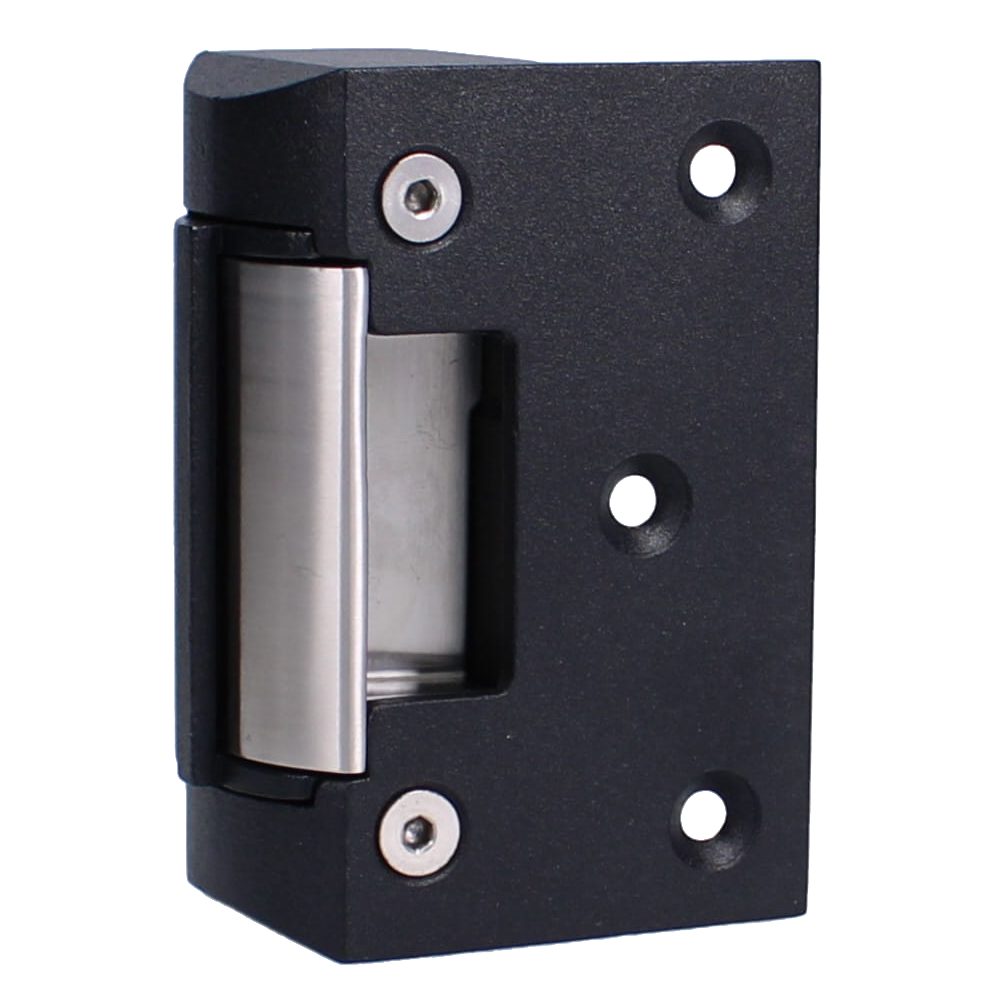

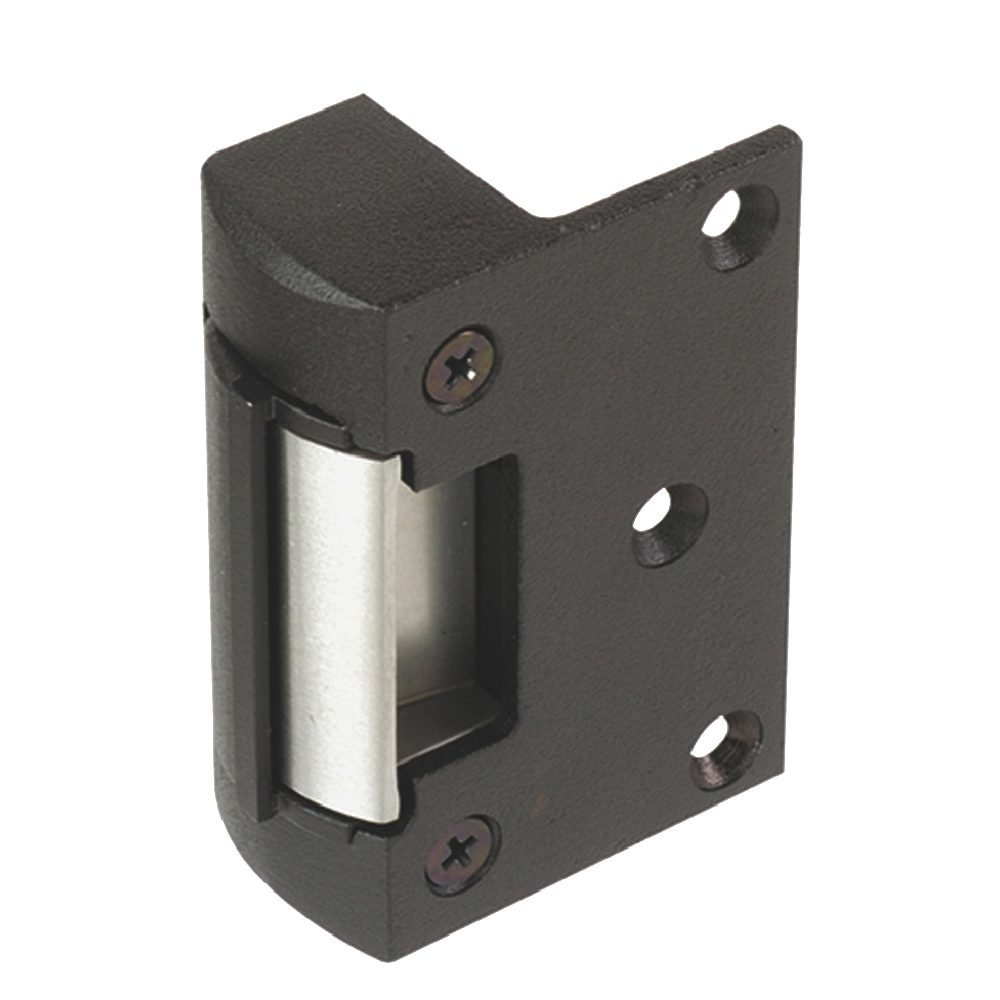

ALPRO AL150 12V/24V DC Series Rim Release

The Alpro AL150 Series Rim Release (Model AL151) is a high-security, weather-resistant electric strike designed for use with the majority of popular rim latches on inward-opening timber doors. This robust rim release is ideal for both interior and exterior access control applications.

Engineered for versatility, the unit is 12V/24V DC selectable and features an easily reversible fail-safe (fail unlocked) or fail-secure (fail locked) operation, allowing you to configure it on-site to suit your security requirements. It is housed in a compact, one-part cast aluminium body with a durable black polyester powder-coated finish and a stainless steel striker, delivering an impressive holding force of up to 750kg.

With an IP56 rating, it offers excellent protection against weather and dust, ensuring reliable long-term performance. Installation is straightforward, making it an excellent choice for new installations or retrofitting existing timber doors.

Technical Specifications

• Manufacturer Reference: AL151

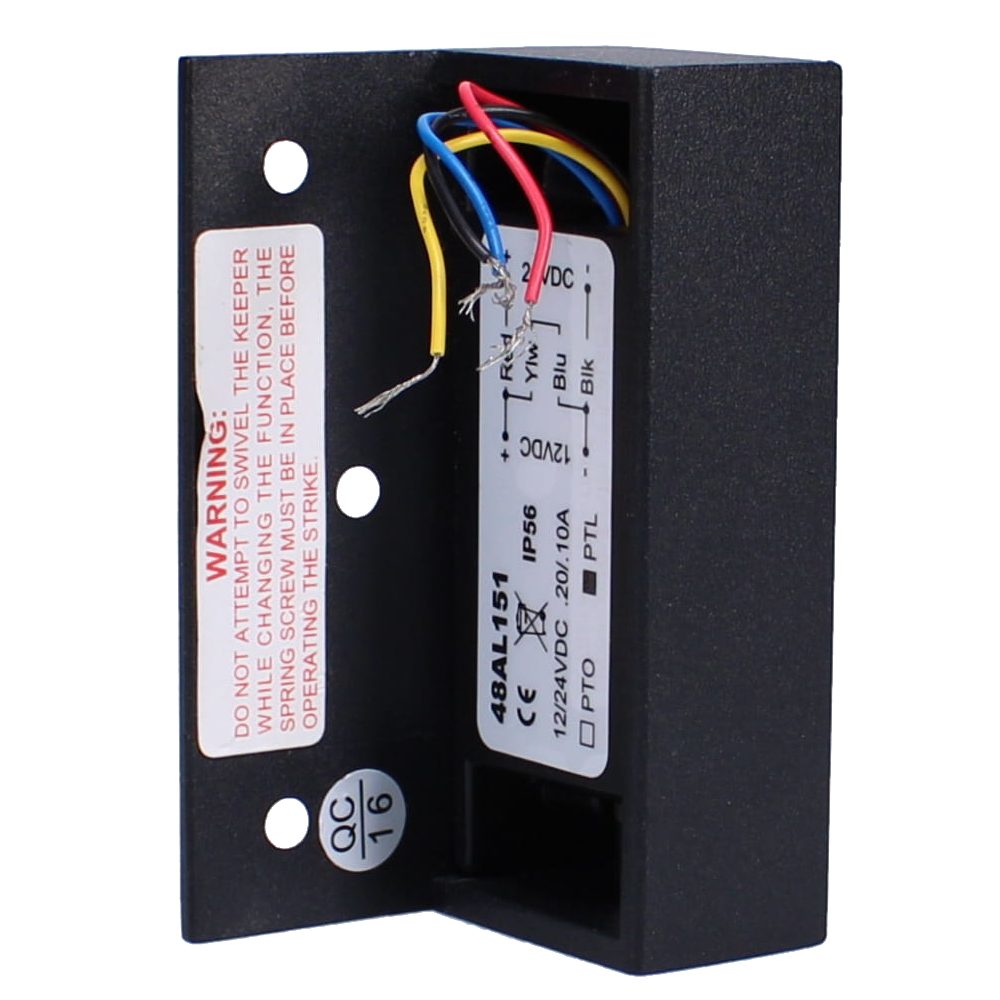

• Input Voltage: 12V / 24V DC (Selectable)
• Current Consumption: 0.2A @ 12V DC / 0.1A @ 24V DC
• Holding Force: 750kg (1,680lbs)
• IP Rating: IP56 (Weather Resistant)
• Operation: Fail Safe (Fail Unlocked) / Fail Secure (Fail Locked) - Site Reversible
• Handing: Inward Opening
• Fitting: Rim

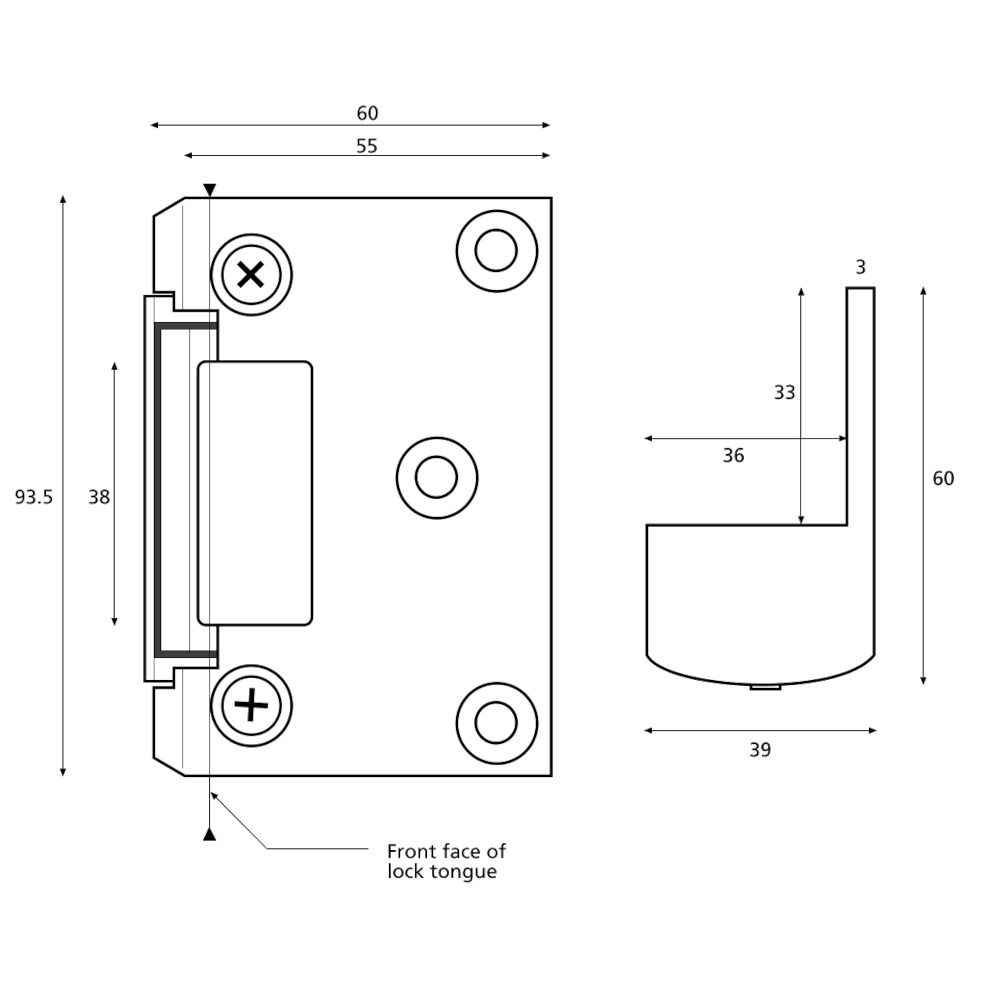

• Body Dimensions: 93mm (H) x 66mm (W)
• Jaw Dimensions: 38mm (H) x 16mm (W) x 15mm (D)
• Finish: Black Polyester Powder Paint

Key Features

• Highly Versatile: Easily reversible between fail-safe and fail-secure operation on-site.
• Weather Resistant: IP56 rated, making it suitable for both internal and external installations.
• Robust Construction: Features a compact cast aluminium body and a durable stainless steel striker.
• High Security: Delivers a strong holding force of up to 750kg.
• Broad Compatibility: Designed to work with the majority of popular rim latches on timber doors.
• 6-Year Guarantee: Backed by a manufacturer's 6-year guarantee for peace of mind.
