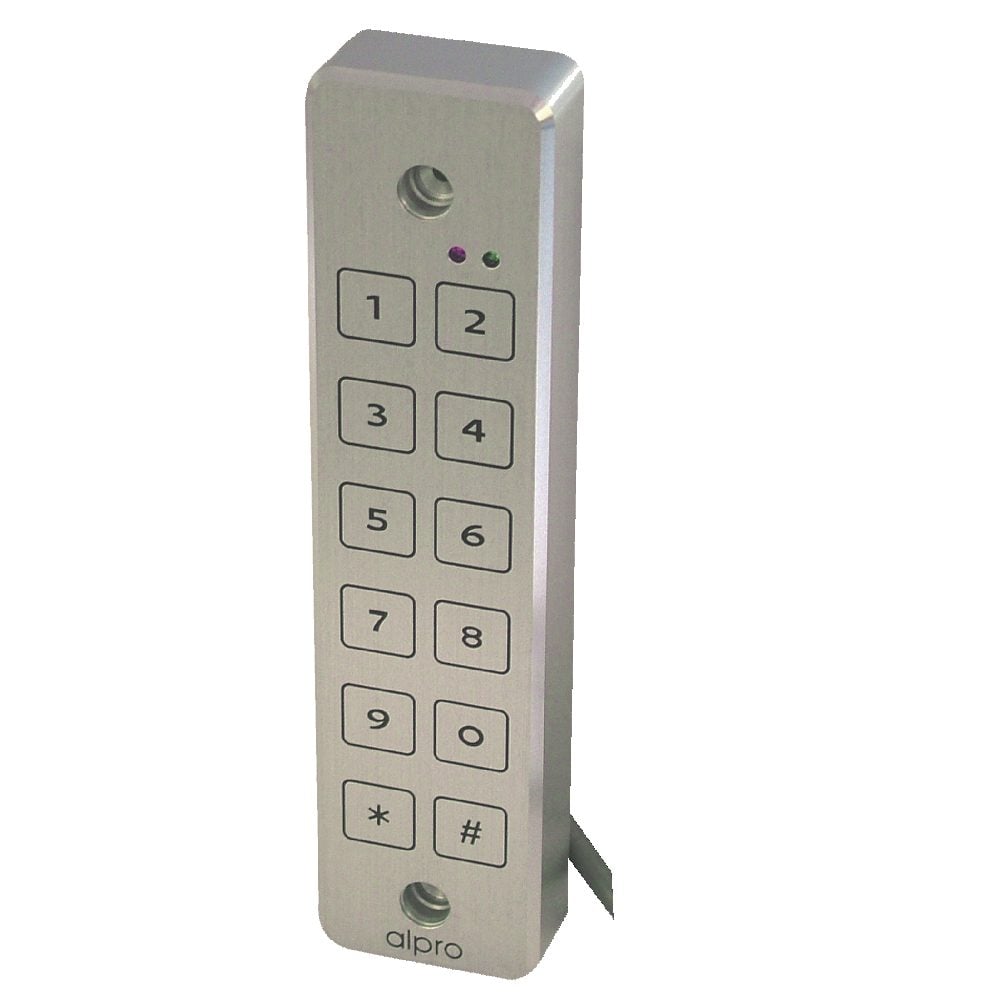

ALPRO 626S-200 Keypad

The Alpro 626S-200 is a highly durable, self-contained access control keypad designed for both internal and external installations. Offering a user-friendly solution for securing single doors, this slimline keypad supports up to 200 users with customisable codes ranging from 4 to 8 digits.

Constructed with a solid metal housing, the 626S-200 is both tamper and vandal-resistant. It utilises advanced solid-state piezo technology, meaning there are no moving parts to wear out over time. This is paired with anodised graphics for exceptional longevity and resistance to heavy use. With an IP68 weatherproof rating, it is fully sealed against dust and water, making it ideal for harsh external environments.

Programming is completed directly via the keypad, and the unit features non-volatile memory to ensure all user codes and settings are safely retained in the event of a power failure. It comes pre-wired with a 3-metre cable for straightforward installation, and operates without the need for an external controller.

Technical Specifications

• Brand: Alpro
• Manufacturer Reference: 626S-200
• Input Voltage: 12V AC / 12/24V DC
• Current Consumption: 0.12A
• IP Rating: IP68 (Weatherproof / External)
• Code Capacity: Up to 200 user codes
• Code Length: 4 to 8 digits
• Door Open Time: Adjustable from 1 to 99 seconds
• Connections: Pre-wired (3-metre cable)
• Finish: Stainless Steel
• Dimensions: 45mm (W) x 21mm (D)
• Weight: 490g
• Controller Required: No

Key Features

• Solid-State Piezo Technology: No moving parts ensures maximum durability and a long operational lifespan.
• IP68 Weatherproof Rating: Fully sealed construction makes it suitable for both indoor and outdoor environments.
• Tamper & Vandal Resistant: Robust solid metal housing protects against unauthorised interference.
• Simple Keypad Programming: Easy to set up and manage user codes directly through the keypad without external software.
• Non-Volatile Memory: Retains all programmed codes and settings even during a total power loss.
• Audible & Visual Feedback: Built-in LED and buzzer provide clear indication of successful code entry and programming status.
