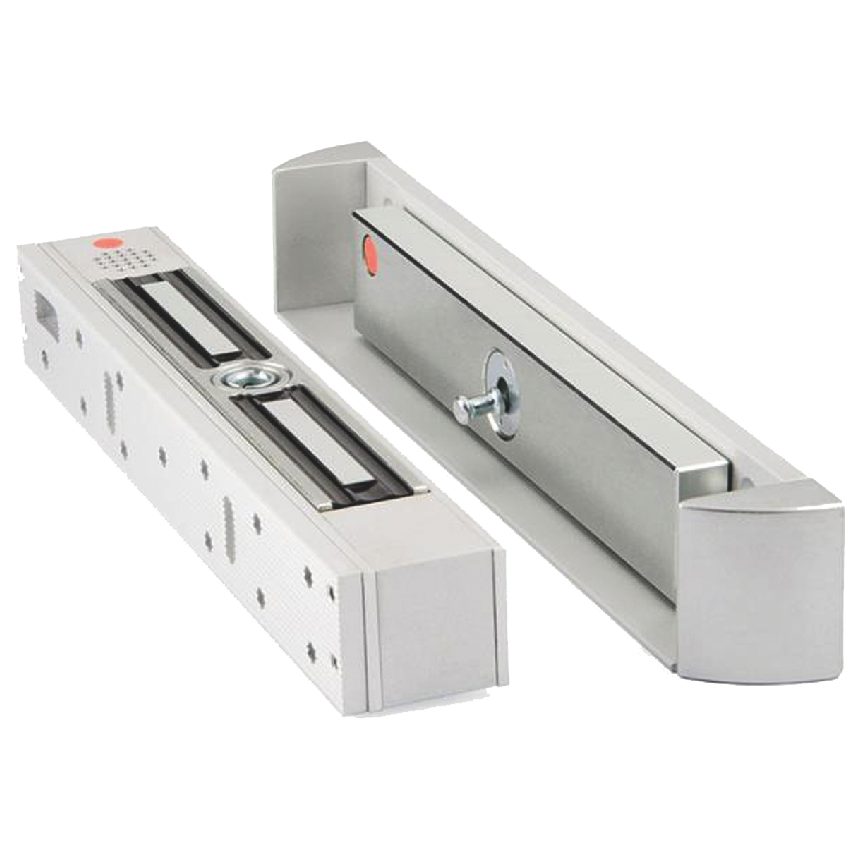

ALPRO 12V / 24V DC Monitored Surface Magnet With LED Indication
Alpro

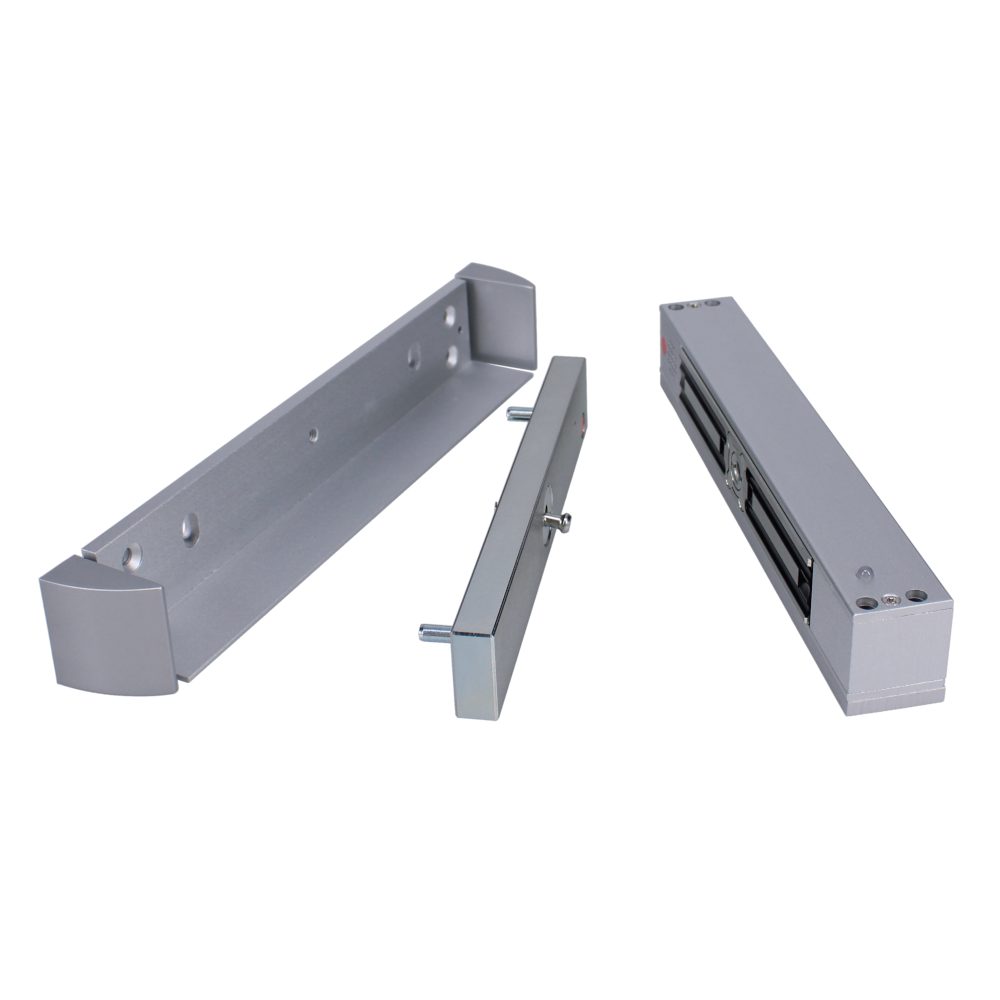

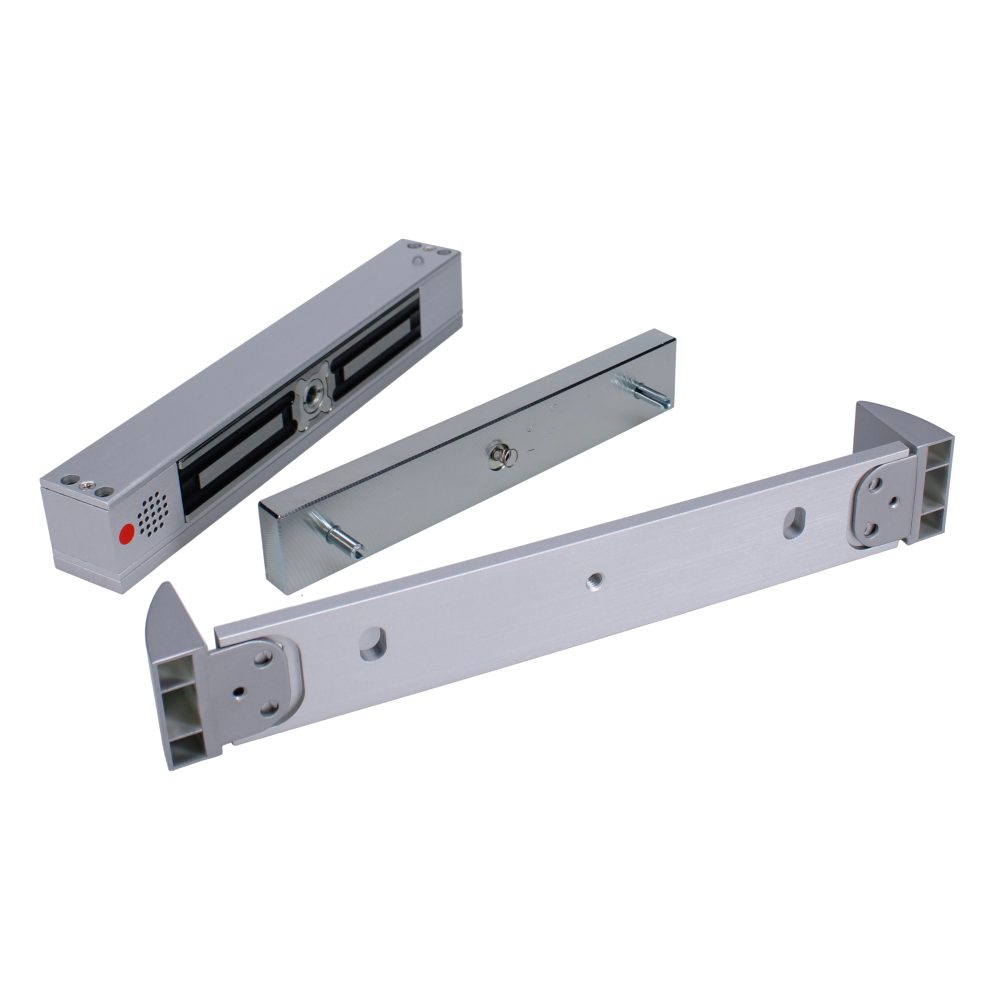

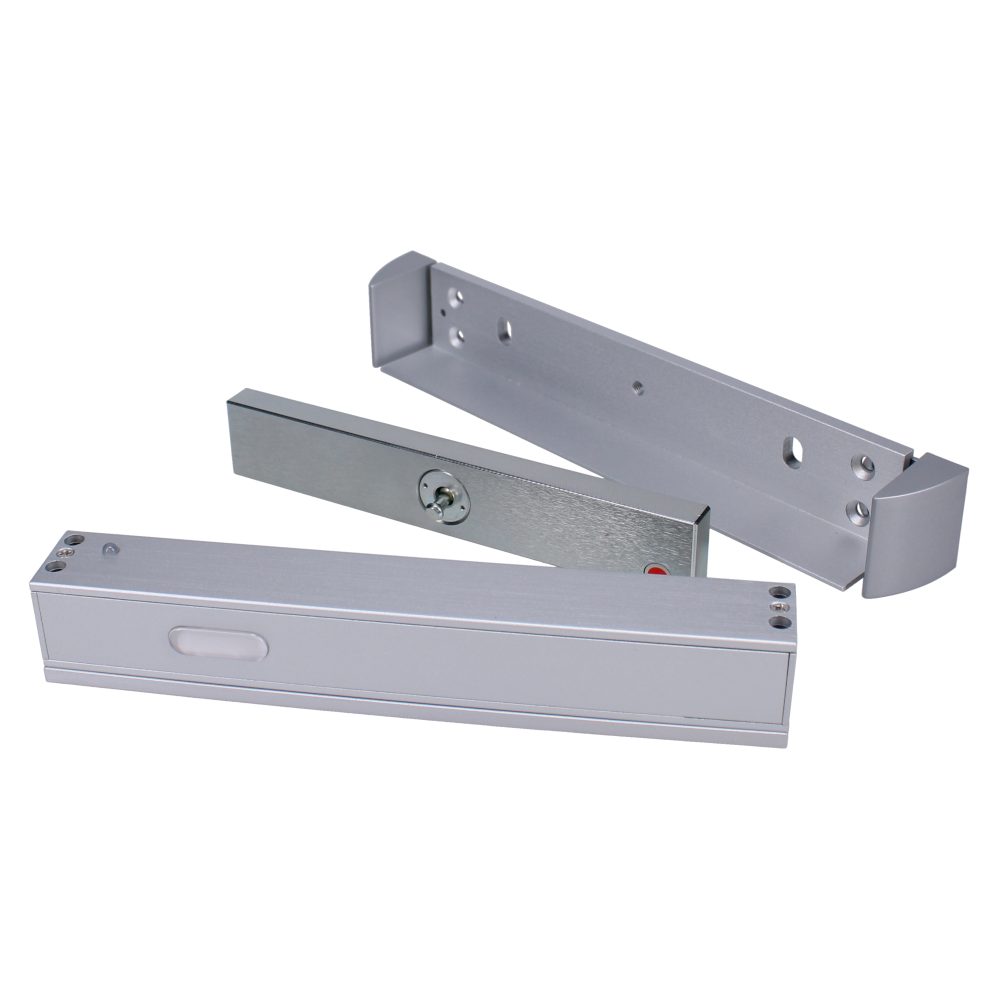

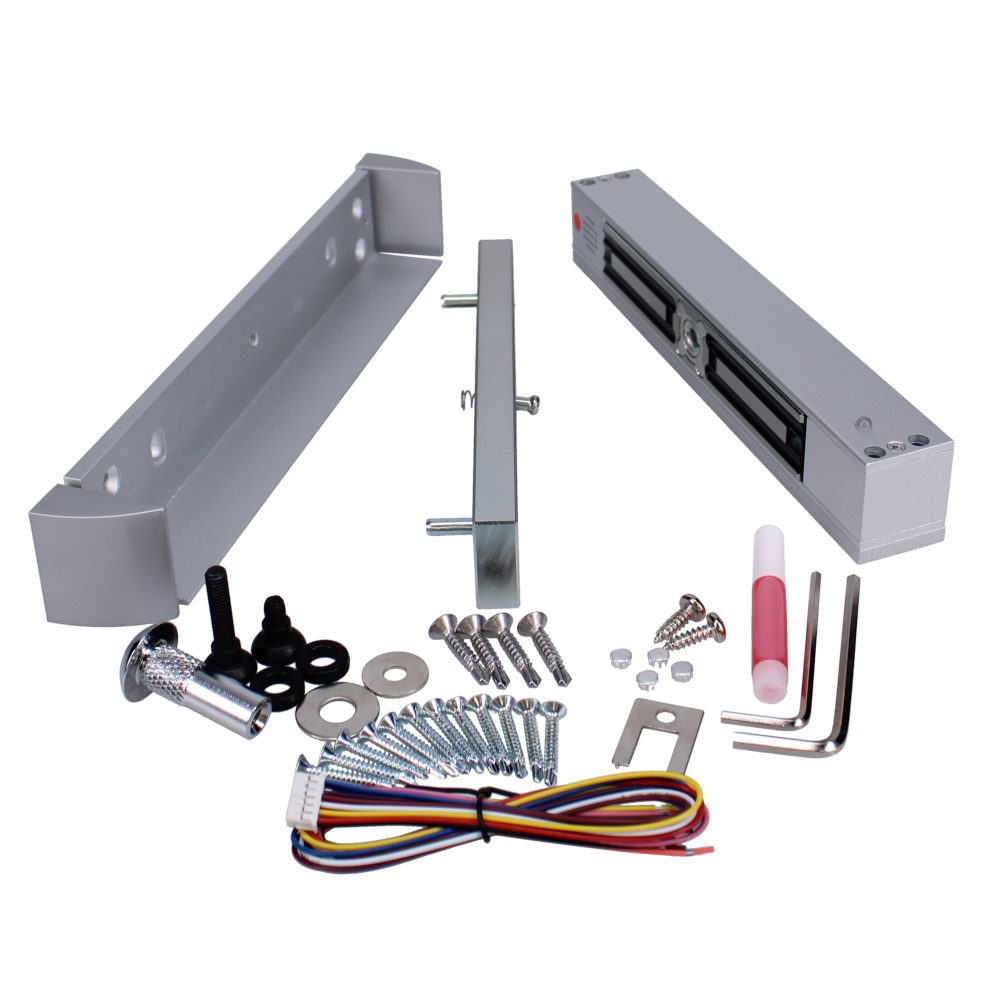

The Alpro Vortex AL2400 is a compact, high-security surface electromagnetic door magnet designed to offer exceptional physical security in a streamlined profile. Unlike conventional face-to-face magnets, the Vortex AL2400 features a patented design combining magnetic and mechanical holding forces. A conical aperture on the magnet receives a high-strength alloy pin from the armature plate, delivering an independently tested holding force of 1500kg while remaining up to 75% smaller than standard magnetic locks.
Engineered with safety and reliability in mind, this fail-unlocked (fail-safe) unit is ideal for emergency egress routes. It is designed to release instantly even under a side load pressure of up to 100kg once power is cut. The unit is highly energy-efficient, consuming up to 50% less power than traditional alternatives, and features built-in LED status indication alongside comprehensive triple monitoring of both lock status and door position.
Technical Specifications
- Manufacturer Reference: AL2400
- Input Voltage: 12V / 24V DC
- Current Consumption: 0.24A at 12V DC & 0.12A at 24V DC
- Holding Force: 1500kg (3300lbs)
- Operation: Fail Unlocked
- Monitoring: Triple monitored (Door position and Hall effect)
- Fitting: Surface mounted
- Handing: Outward opening
- Finish: Satin Anodised Aluminium
- Magnet Dimensions: 218mm (L) x 36mm (H) x 30mm (D)
- Armature Plate Dimensions: 180mm (W) x 30mm (H) x 12mm (D)
- Housing Dimensions: 251mm (W) x 38mm (H) x 30mm (D)
- Weight: 1.5kg
- Guarantee: 5 years
Key Features
- Hybrid Locking Technology: Combines magnetic and mechanical force via a conical pin for exceptional security.
- Side Load Release: Releases under up to 100kg of side load pressure when power is removed, ensuring safe emergency egress.
- Compact Design: Up to 75% smaller than standard face-to-face magnets for a discreet, modern installation.
- Energy Efficient: Low power consumption reduces energy usage by up to 50% compared to traditional magnets.
- LED Status Indication: Built-in LED provides clear, immediate visual confirmation of lock status.
- Comprehensive Monitoring: Triple monitored functionality tracks door position and Hall effect.
