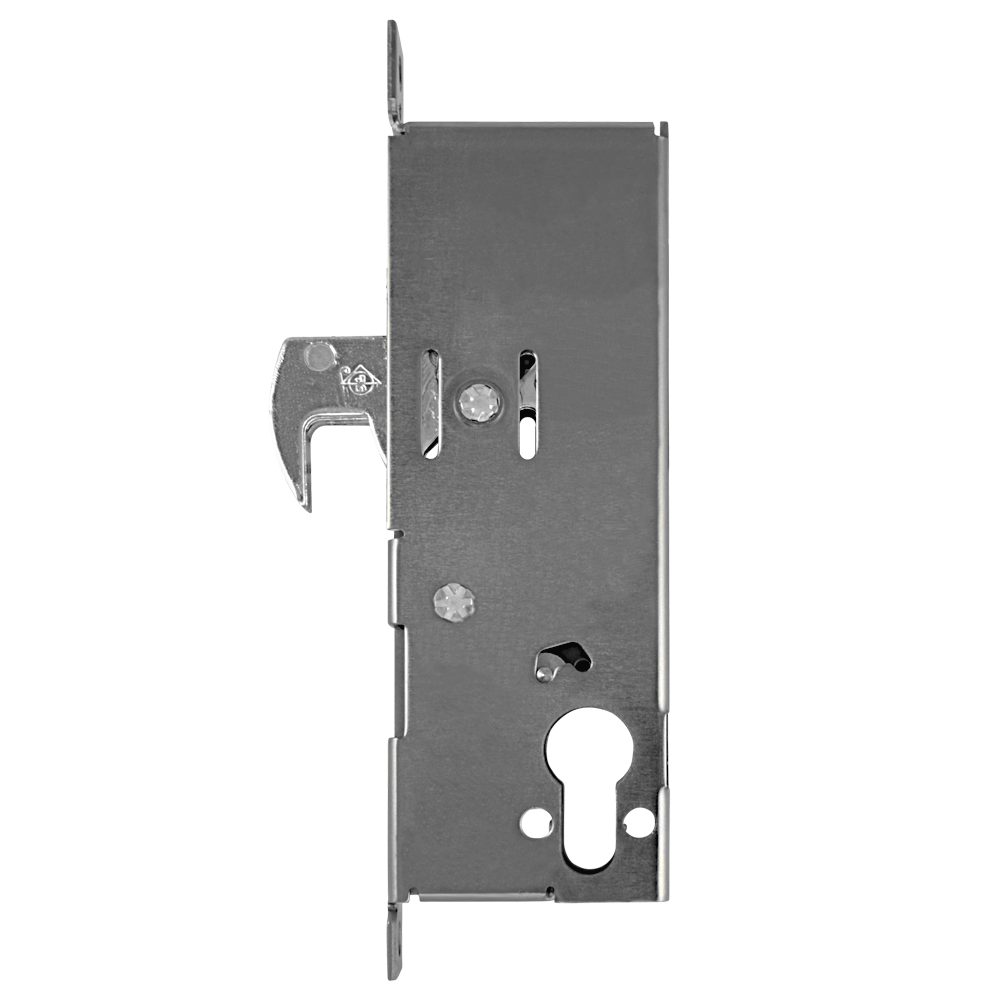

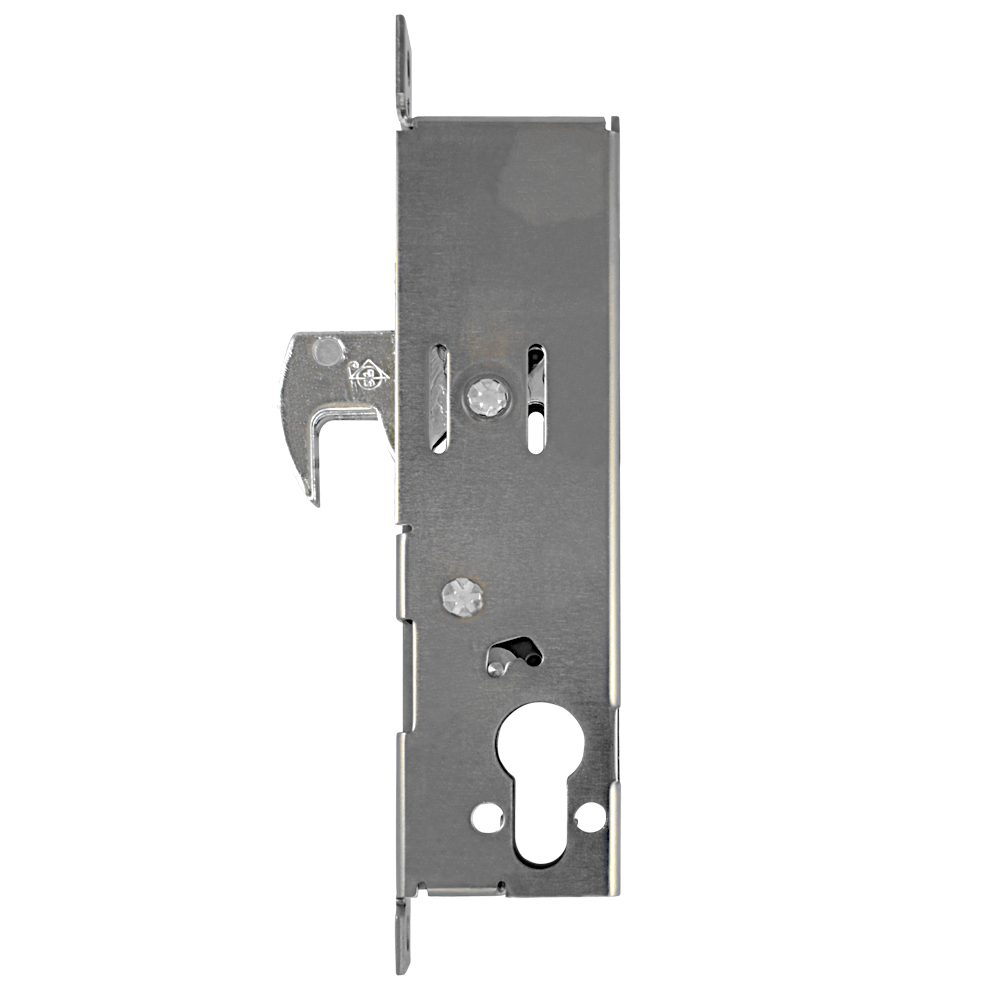

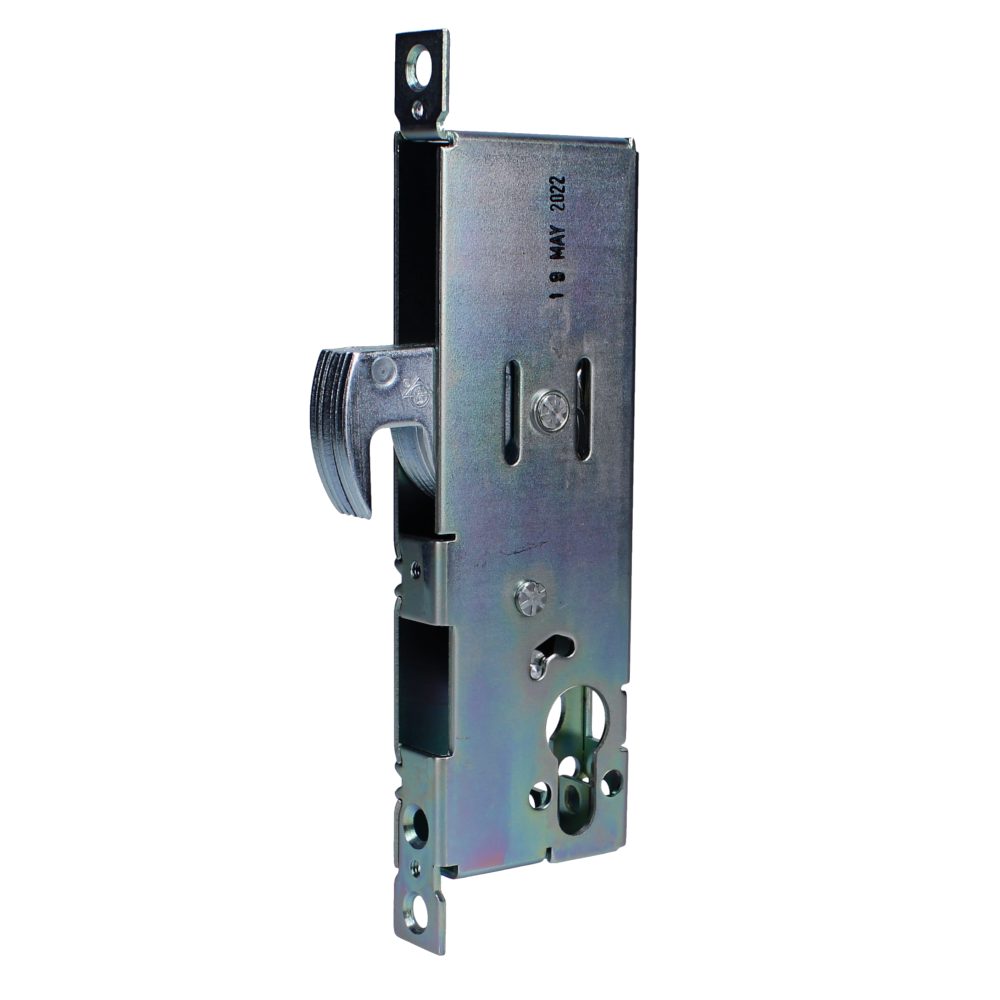

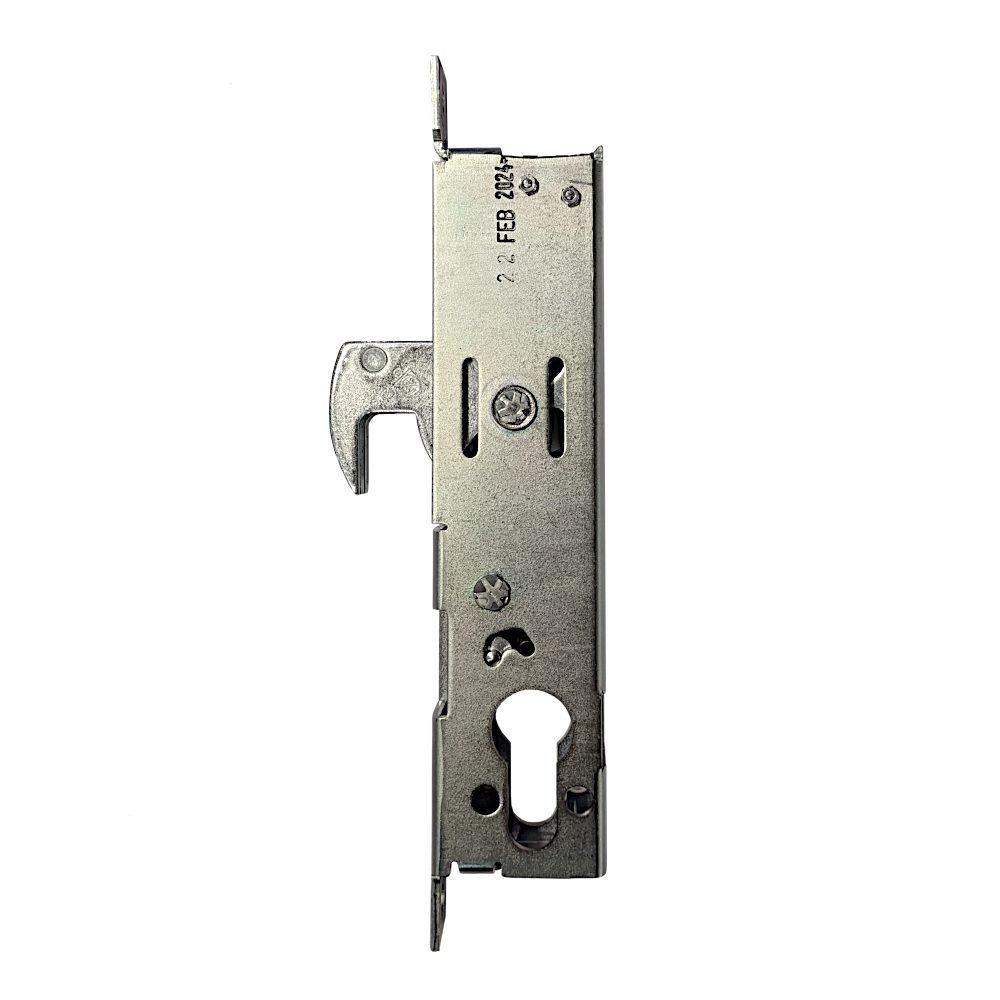

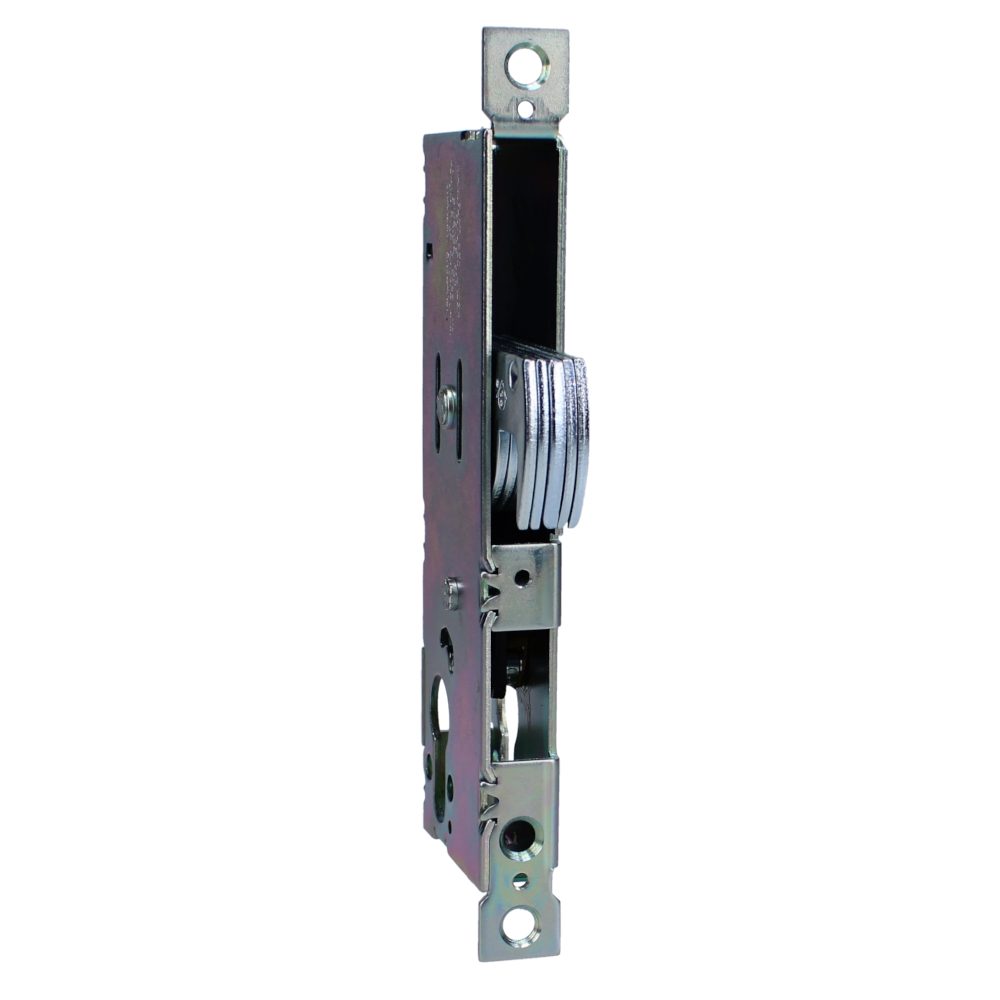

ADAMS RITE MS2200 Mortice Hooklock Case

The Adams Rite MS®2200 Mortice Hooklock Case is designed to provide maximum security locking for both swing and sliding aluminium doors. Operating via a standard euro profile cylinder, this robust deadlock features a 20mm hook bolt throw constructed from 5-ply laminated steel, complete with a patented Alumina-Ceramic anti-saw core to resist physical attacks.

This versatile lock case can easily be converted into a 2-point or 3-point locking system by pairing it with a 4022-18 header and threshold bolt. Please note that all faceplates and strike plates must be ordered separately.

This mortice hooklock case is available in multiple configurations to suit your specific installation requirements. You can select from backsets of 25mm, 30mm, or 40mm, with corresponding case depths of 41mm, 46mm, or 50mm. Additionally, both monitored and non-monitored versions are available, with weights ranging from 390g to 550g. Please choose your required backset, case depth, monitoring option, and manufacturer reference from the options below.

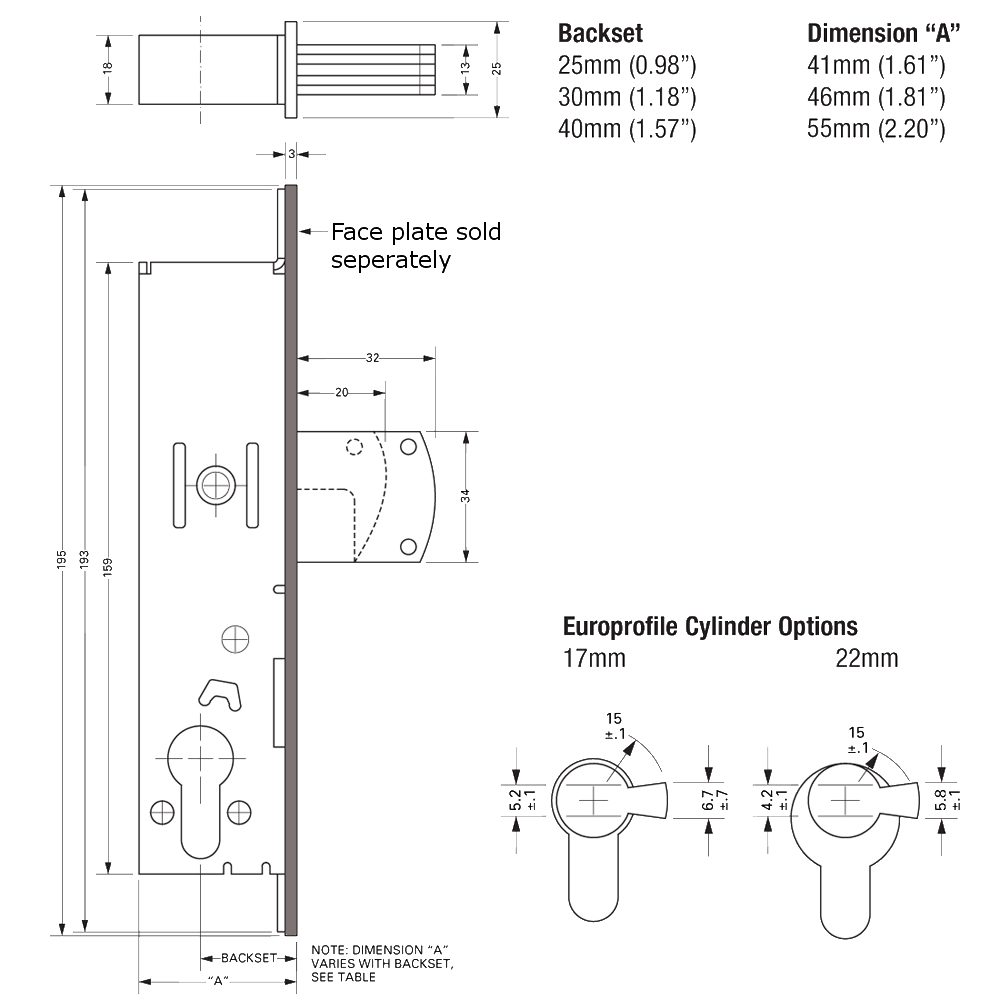

Technical Specifications

• Mechanism: Euro Cylinder
• Backset: 25mm, 30mm, or 40mm (please choose from the options below)
• Case Depth: 41mm, 46mm, or 50mm (please choose from the options below)
• Case Height: 159mm
• Case Finish: Plated Steel
• Forend Finish: Anodised Aluminium
• Forend Length: 195mm
• Forend Width: 26mm
• Bolt Throw: 20mm hook bolt throw
• Monitoring: Available in monitored (Yes) and non-monitored (No) versions (please choose from the options below)
• Weight: 390g, 410g, 420g, or 550g (please choose from the options below)

Key Features

• Maximum Security: Features a 5-ply laminated steel lock bolt with a patented Alumina-Ceramic anti-saw core to resist attack.
• Versatile Application: Suitable for both swing and sliding aluminium doors.
• Multi-Point Conversion: Easily converted to a 2-point or 3-point locking system using a 4022-18 header and threshold bolt.

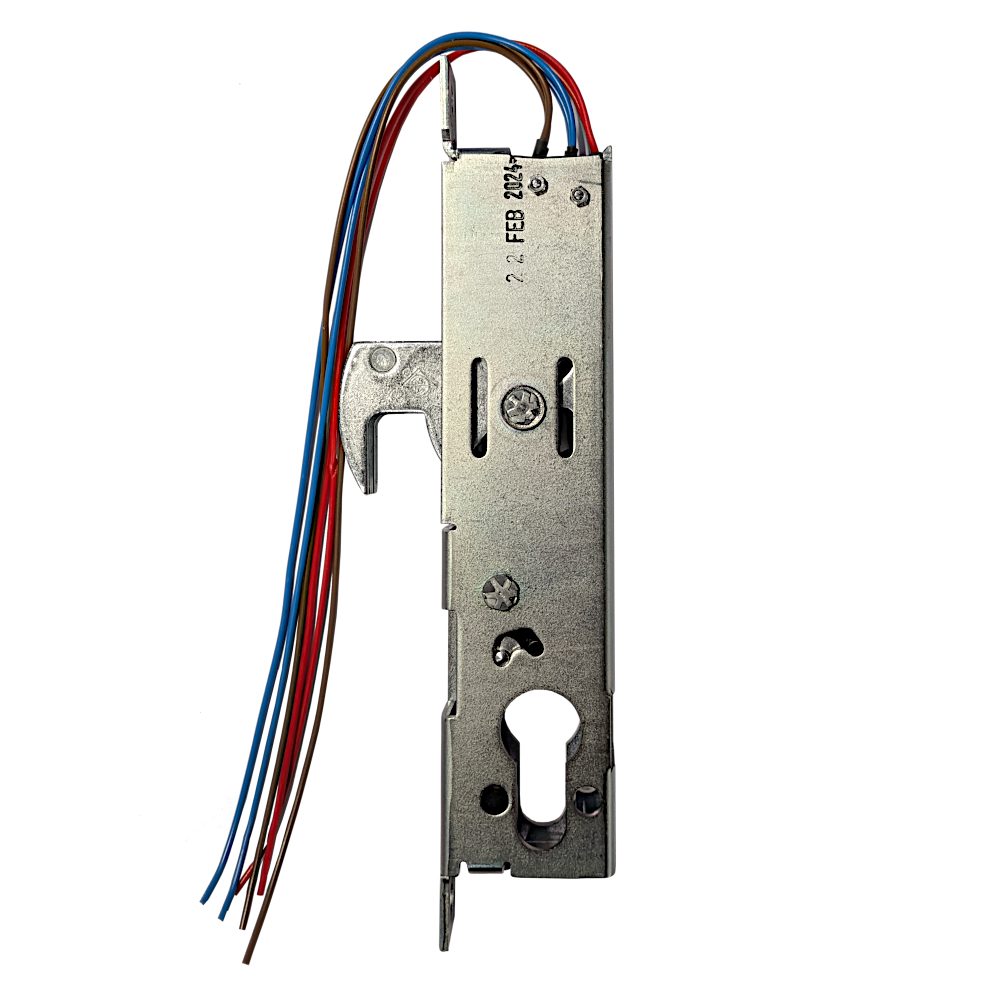

• Monitoring Options: Monitored hookbolt cases are available for integration with alarm or access control systems.
• Euro Cylinder Operation: Designed for use with a standard euro profile cylinder.
