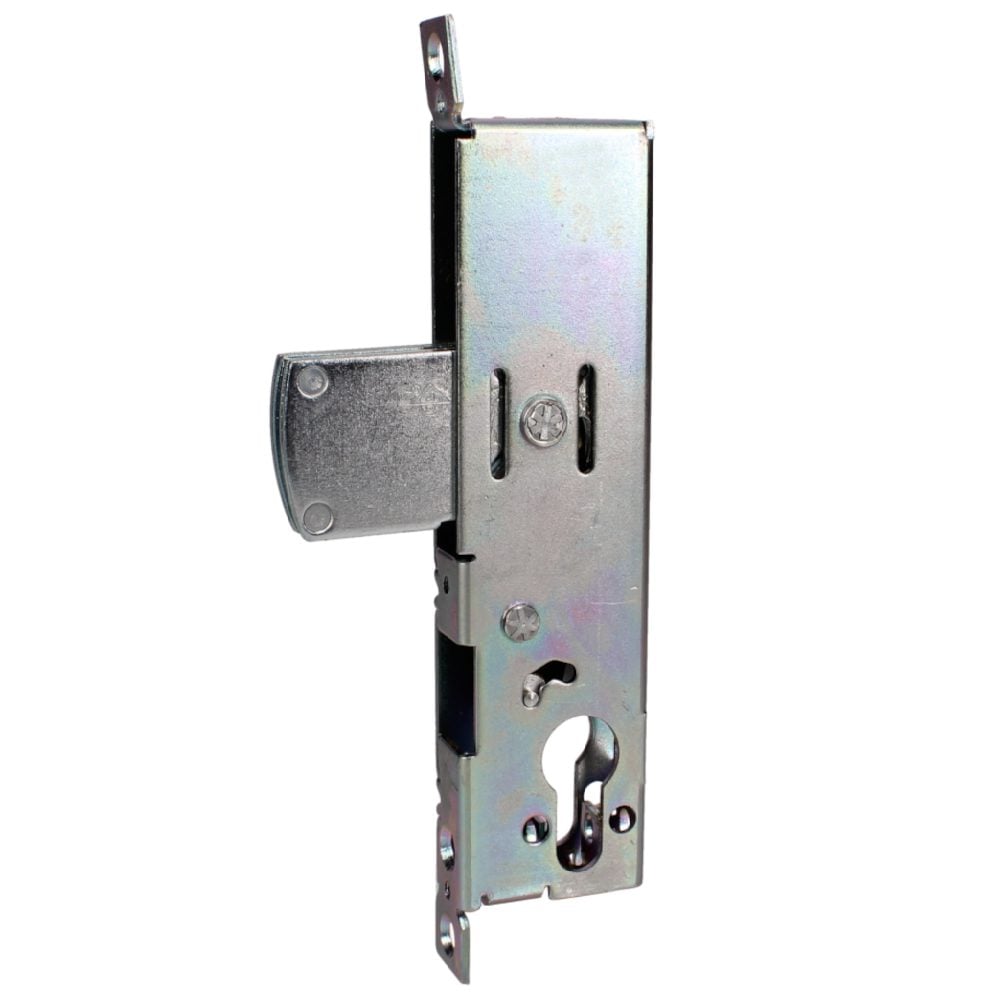

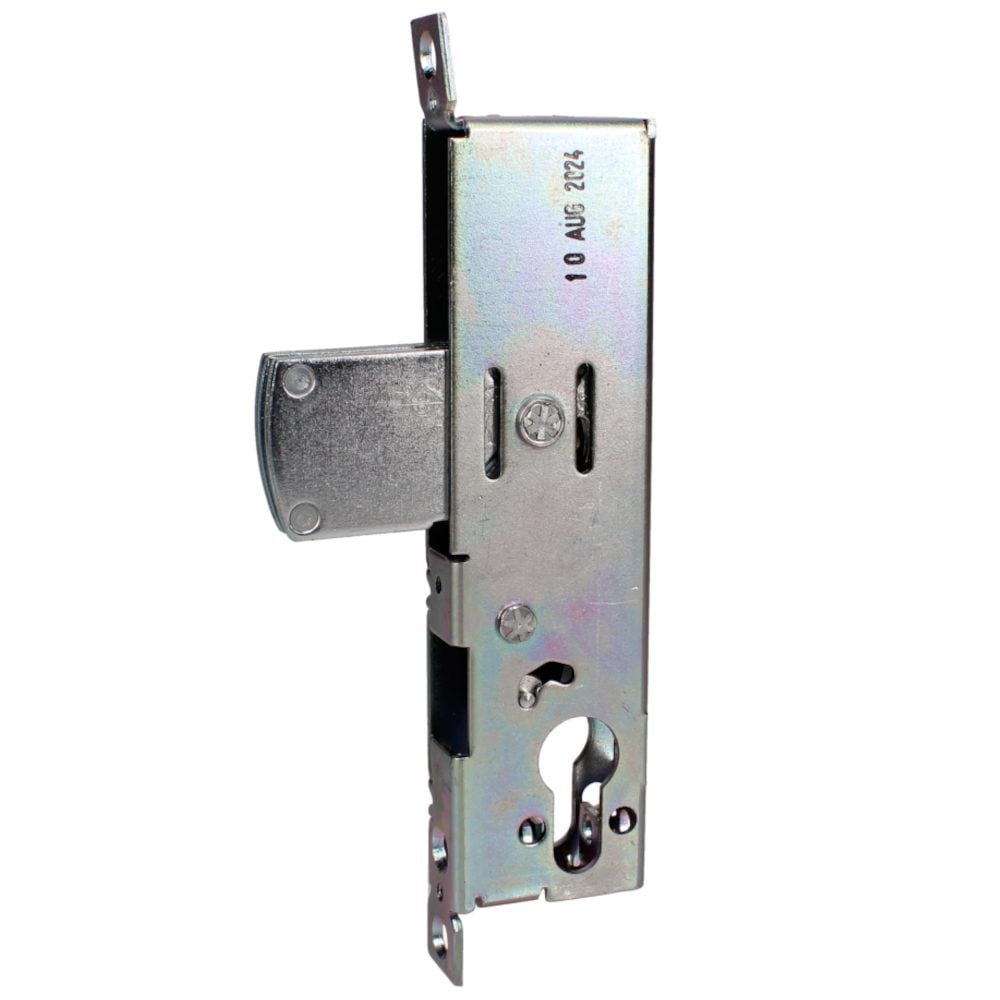

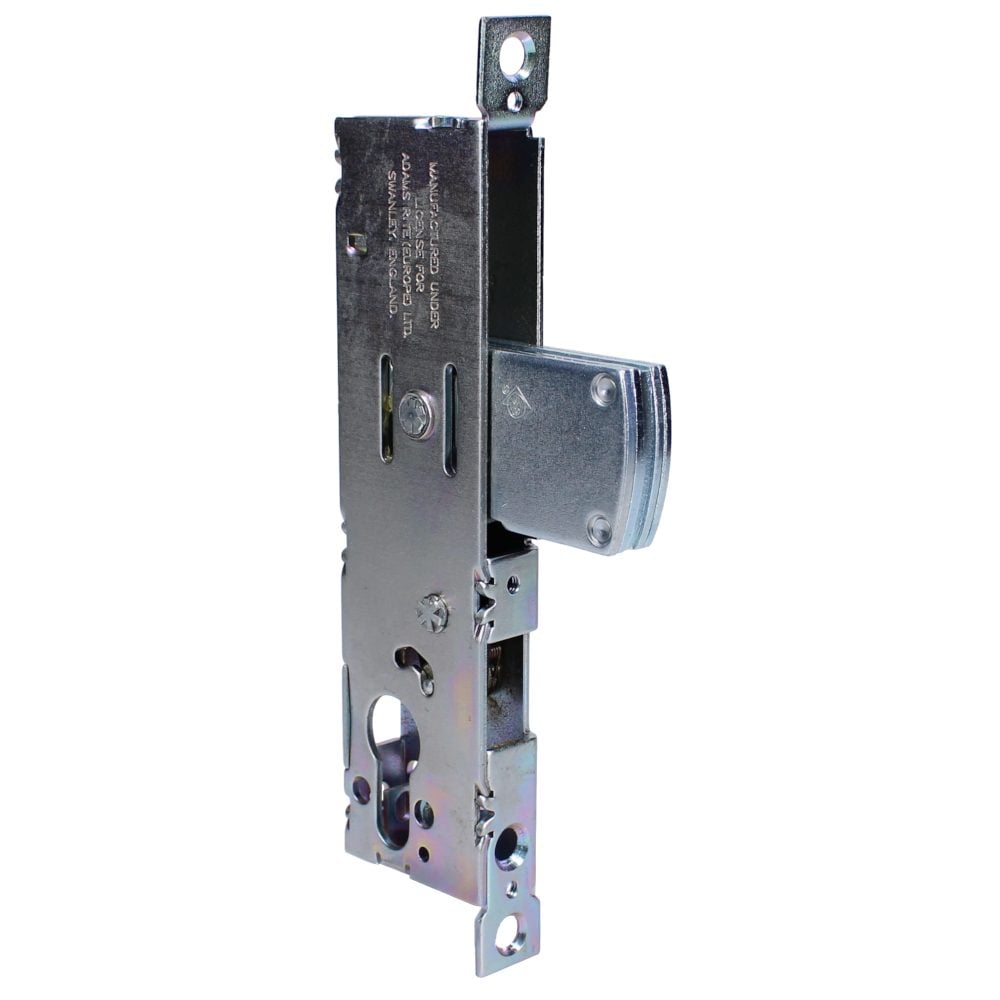

ADAMS RITE MS2200 Mortice Deadlock Case

Adams Rite More Adams Rite Cylinder - Euro & Oval

Price

£59.11

Select size, finish, and quantity from the variant table.

View options

The Adams Rite MS2200 Mortice Deadlock Case is a maximum-security locking solution designed specifically for swing aluminium and steel doors. Equipped with a long, robust laminated steel bolt, this deadlock provides exceptional resistance against physical attacks, making it a trusted choice for commercial and high-traffic environments.

This deadlock case is designed to accept a standard 17mm Euro profile cylinder (sold separately), allowing you to integrate it into your existing master key or keyed-alike systems. Additionally, the lock can be easily converted to a 2 or 3-point locking system by pairing it with the 4022-18 header and threshold bolt (available to order separately).

Please note that all faceplates and strike plates must be ordered separately to suit your specific door profile. This product is available in multiple backset options, case depths, weights, and manufacturer references. Please choose your preferred configuration from the options below.

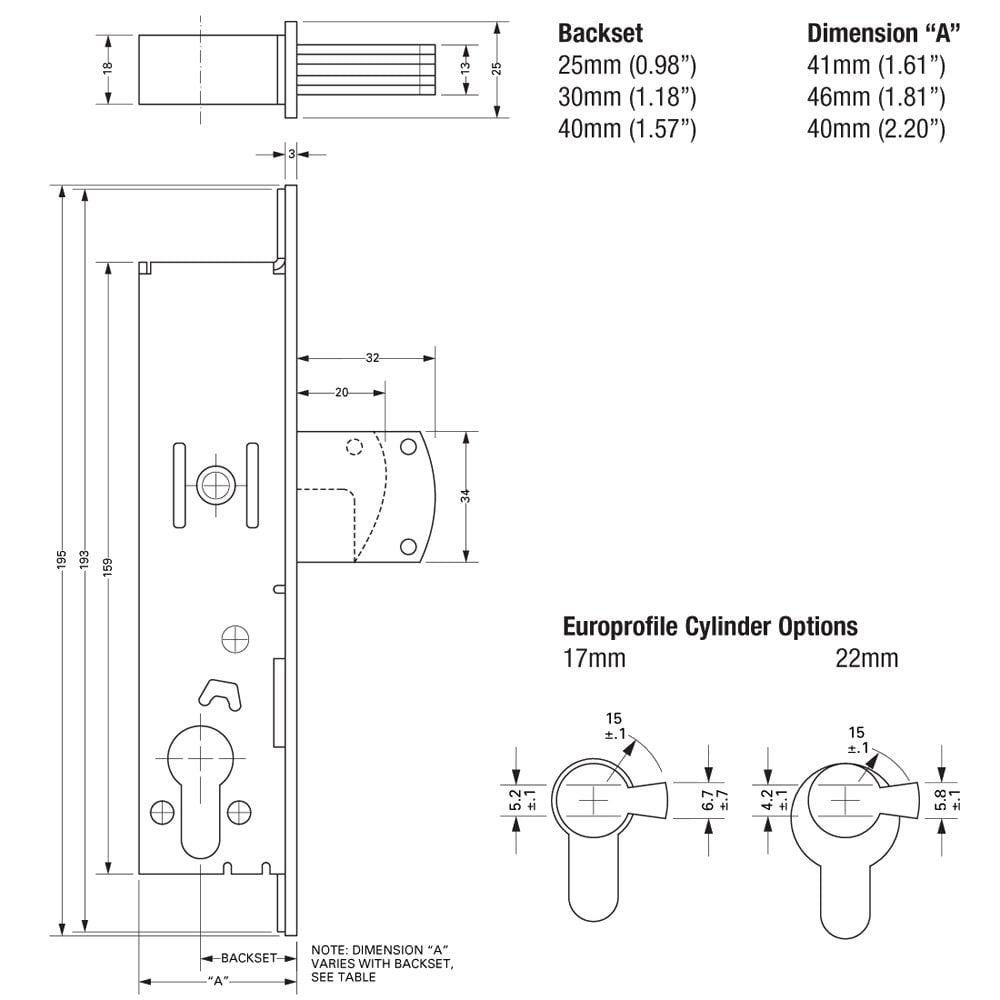

Technical Specifications

Brand: Adams Rite
Mechanism: Euro Cylinder (sold separately)
Backset: 25mm or 30mm (please choose from the options below)
Case Depth: 41mm or 46mm (please choose from the options below)
Case Height: 159mm
Bolt Throw: 32mm
Forend Length: 195mm
Forend Width: 26mm
Forend Finish: Anodised Aluminium
Case Finish: Plated Steel
Manufacturer Reference: MS2200-110 or MS2200-210 (please choose from the options below)
Weight: 470g or 490g (please choose from the options below)
Barcode: 5055120601427 or 5055120601410 (please choose from the options below)

Key Features

Maximum Security: Features a long, robust laminated steel bolt for superior protection on swing aluminium and steel doors.
Euro Profile Compatible: Designed to accept a standard 17mm Euro profile cylinder (sold separately).
Multi-Point Locking Upgrade: Easily converted to a 2 or 3-point locking system using the 4022-18 header and threshold bolt (available to order separately).
Flexible Configuration: Available in multiple backsets and case depths - please select your required option below.
Customisable Finish: Faceplates and strike plates are ordered separately to match your specific door profile.
