ADAMS RITE MS1890 Mortice Hooklatch Case

Adams Rite More Adams Rite Cylinder - Screw In

Price

£295.30

Select size, finish, and quantity from the variant table.

View options

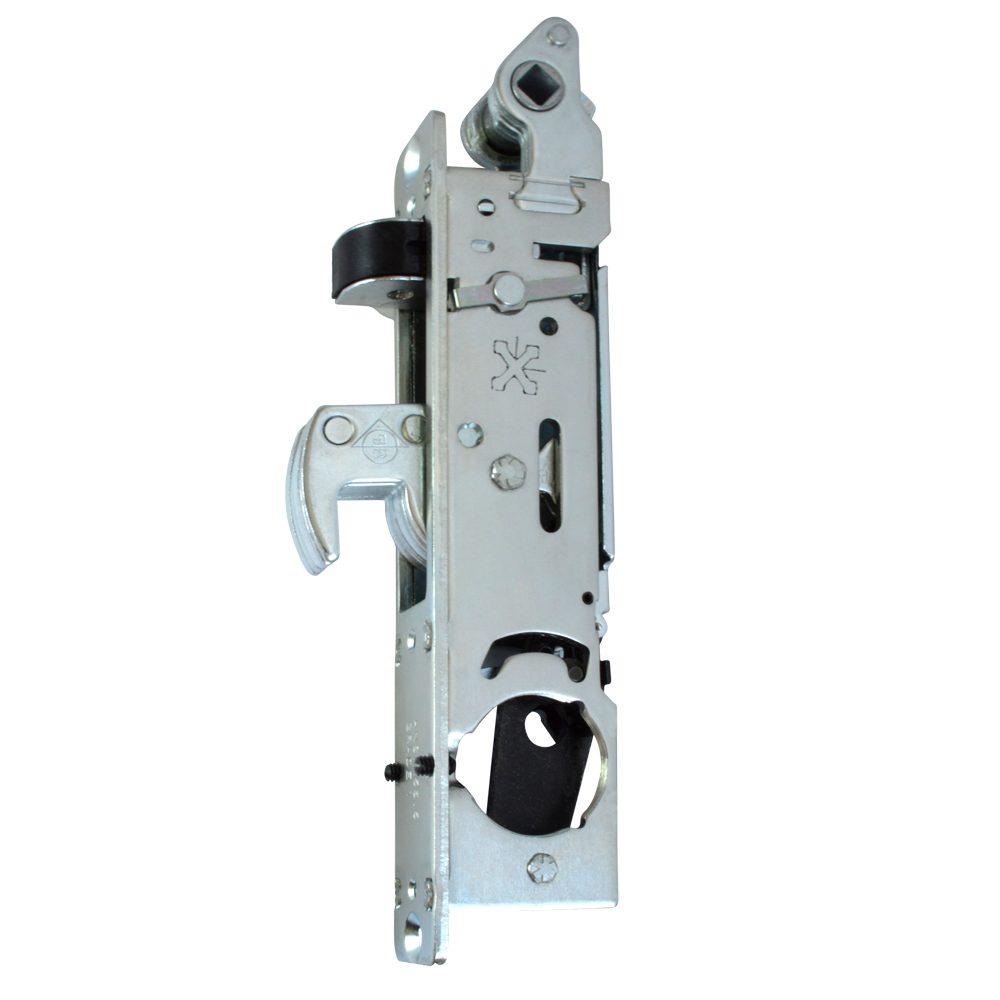

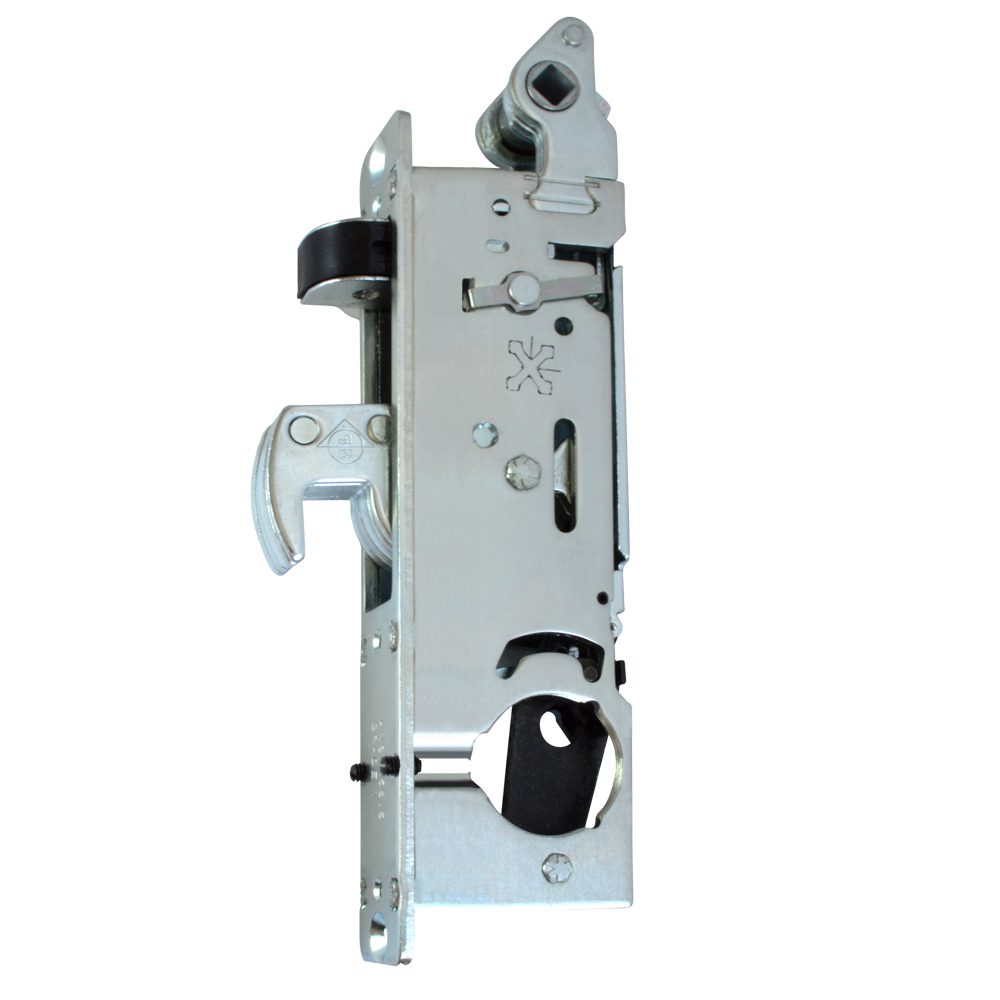

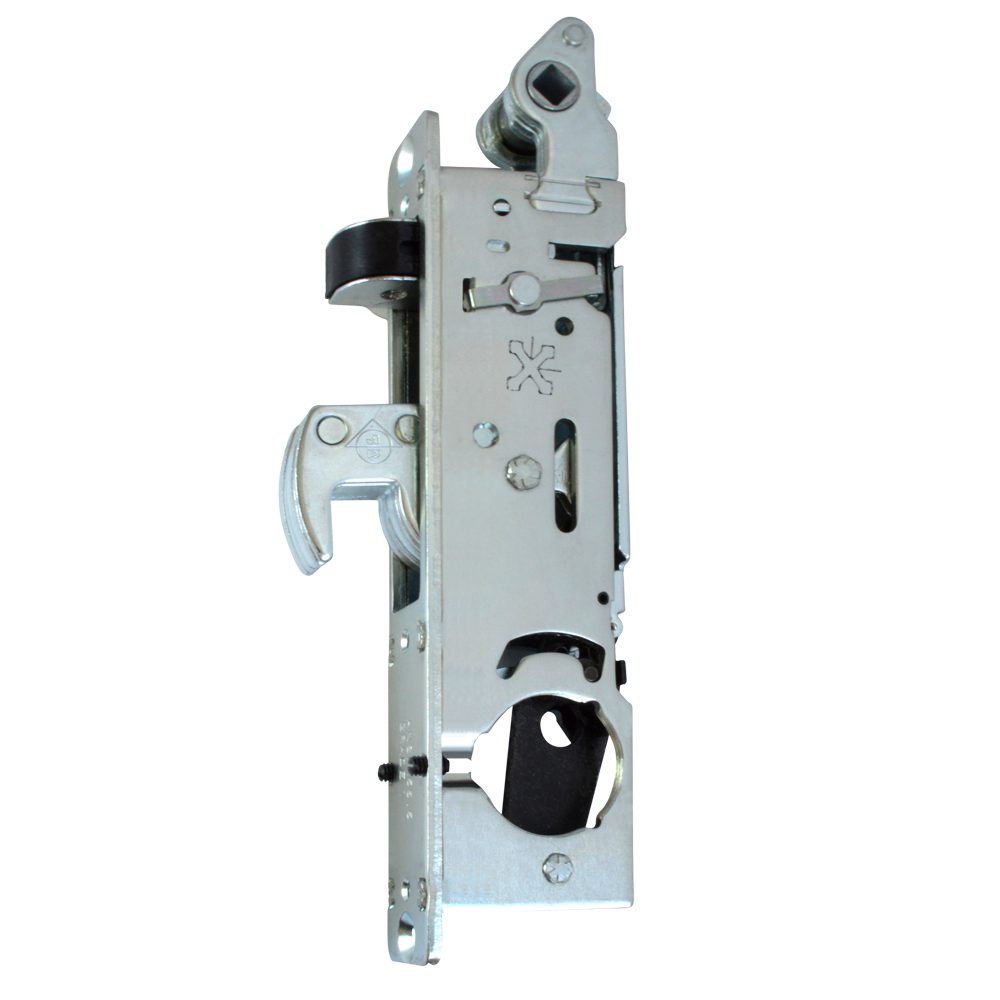

The Adams Rite MS1890 Mortice Hooklatch Case is designed to provide maximum security for commercial premises after hours, combined with convenient traffic control during the business day. This dual-function lock is ideal for narrow stile metal doors, allowing you to manage access seamlessly.

Operating via a screw-in cylinder (available separately), a 360° turn of the key throws or retracts the heavy-duty hookbolt. When the lock is unlocked, a further 120° turn retracts the latchbolt, allowing for easy daytime traffic. Additionally, a latch holdback snib is located inside the bolt cavity, which can only be accessed when the hookbolt is thrown, allowing the door to be set to free-swinging when required.

Please note that all faceplates and strike plates must be purchased separately. This product is available in multiple backsets, case depths, and weights; please select your required options from the options below.

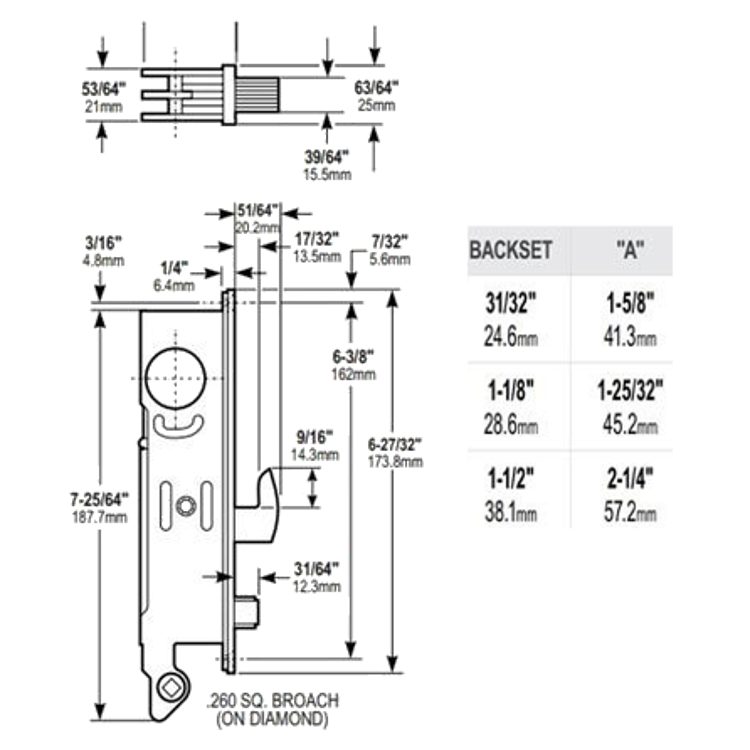

Technical Specifications

Mechanism: Screw-in cylinder (cylinder not included)
Backset: 24mm, 28mm, or 38mm (please choose from the options below)
Case Depth: 40mm, 44mm, or 57mm (please choose from the options below)
Case Height: 196mm
Case Finish: Plated steel
Forend Finish: Anodised aluminium
Forend Length: 175mm
Forend Width: 26mm
Follower: 6.5mm
Weight: 540g, 550g, or 670g (please choose from the options below)
Pack Quantity: 1

Key Features

Dual Functionality: Combines a maximum-security hookbolt for overnight lockup with a deadlatch for daytime traffic control.
Smart Key Operation: A 360° turn of the key throws or retracts the hookbolt, while a further 120° turn retracts the latchbolt.
Latch Holdback Snib: Located inside the bolt cavity and accessible only when the hookbolt is thrown, allowing the door to be set to free-swinging.
Versatile Options: Available in multiple backsets and case depths to suit your specific door installation.
Note on Components: Faceplates and strike plates are sold separately to allow for custom configurations.
