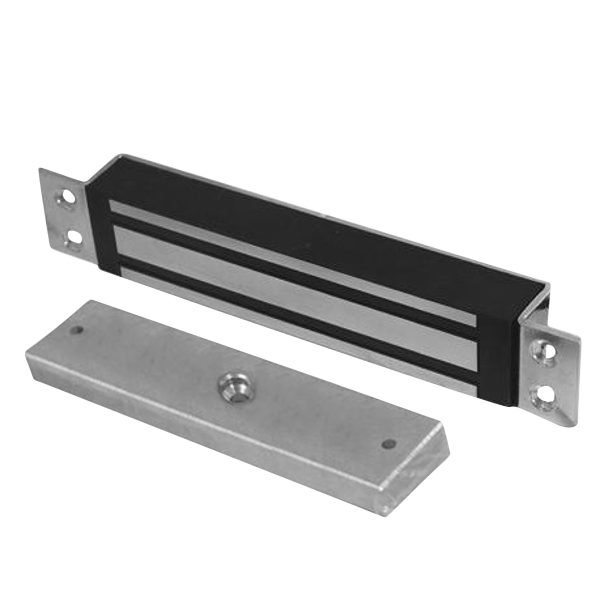

ADAMS RITE Armlock 262 Series Mortice Magnet

The Adams Rite Armlock 262 Series Mortice Magnet is a compact, high-performance electromagnetic lock designed for seamless integration into door frames. Offering a discreet, concealed installation, this direct-pull mini magnet is ideal for use on outward-opening aluminium, timber, and steel doors. It is suitable for both single-swinging and sliding door applications (please note it is not designed to be used as a shear lock).

With a robust holding force of at least 250kg (550lbs), the Armlock 262 provides reliable security for internal doors. It operates on a fail-unlocked (fail-safe) basis, ensuring doors automatically release in the event of a power failure to allow safe egress. The unit features built-in monitoring (with C/NO/NC contacts) to provide real-time door status feedback, alongside a security pin feature that helps prevent unauthorised removal of the magnet from the door frame fixing plate. It also includes an integrated voltage spike suppressor to protect your access control system.

Technical Specifications

• Brand: Adams Rite
• Fitting: Mortice
• Holding Force: 250kg (550lbs)
• Input Voltage: 12V / 24V DC (User-selectable)
• Current Consumption: 0.48A at 12V DC / 0.24A at 24V DC
• Monitoring: Yes (C/NO/NC contacts)
• Operation: Fail Unlocked (Fail Safe)

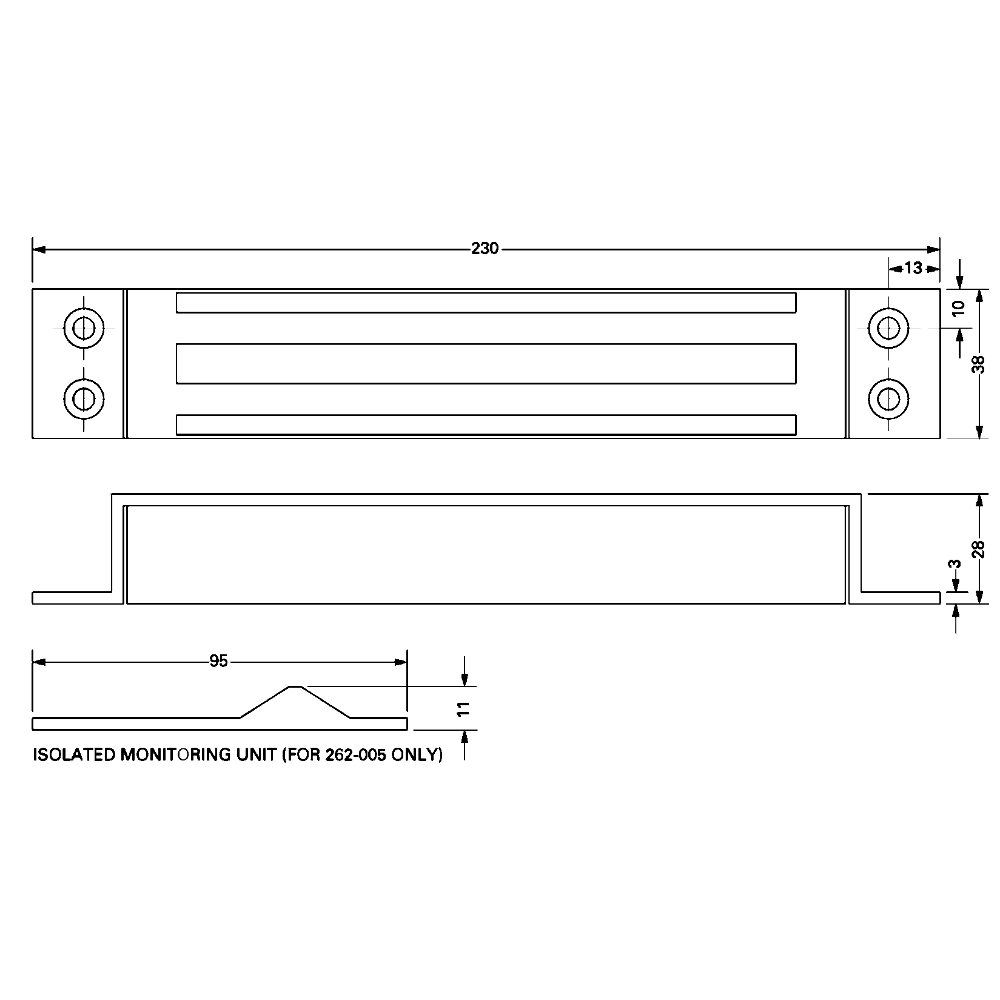

• Magnet Dimensions: 230mm (L) x 38mm (H) x 28mm (D)
• Armature Dimensions: 160mm (L) x 36mm (H) x 11.3mm (D)
• Finish: Satin Anodised Aluminium
• Standards: CE Marked (EMC Directive)
• Guarantee: 3 Year
• Weight: 780g

Key Features

• Discreet Mortice Installation: Designed to be morticed directly into the frame for a clean, concealed aesthetic.
• Versatile Application: Suitable for outward-opening aluminium, timber, and steel doors, including single-swinging and sliding configurations.
• Fail-Safe Operation: Automatically unlocks in the event of power loss to ensure safe emergency egress.
• Integrated Monitoring: Features built-in monitoring with C/NO/NC contacts for reliable door-status feedback.
• Enhanced Security: Includes a security pin feature to prevent unauthorised bracket removal from the door frame fixing plate.
• Electrical Protection: Built-in voltage spike suppressor protects the access control system from electrical damage.
