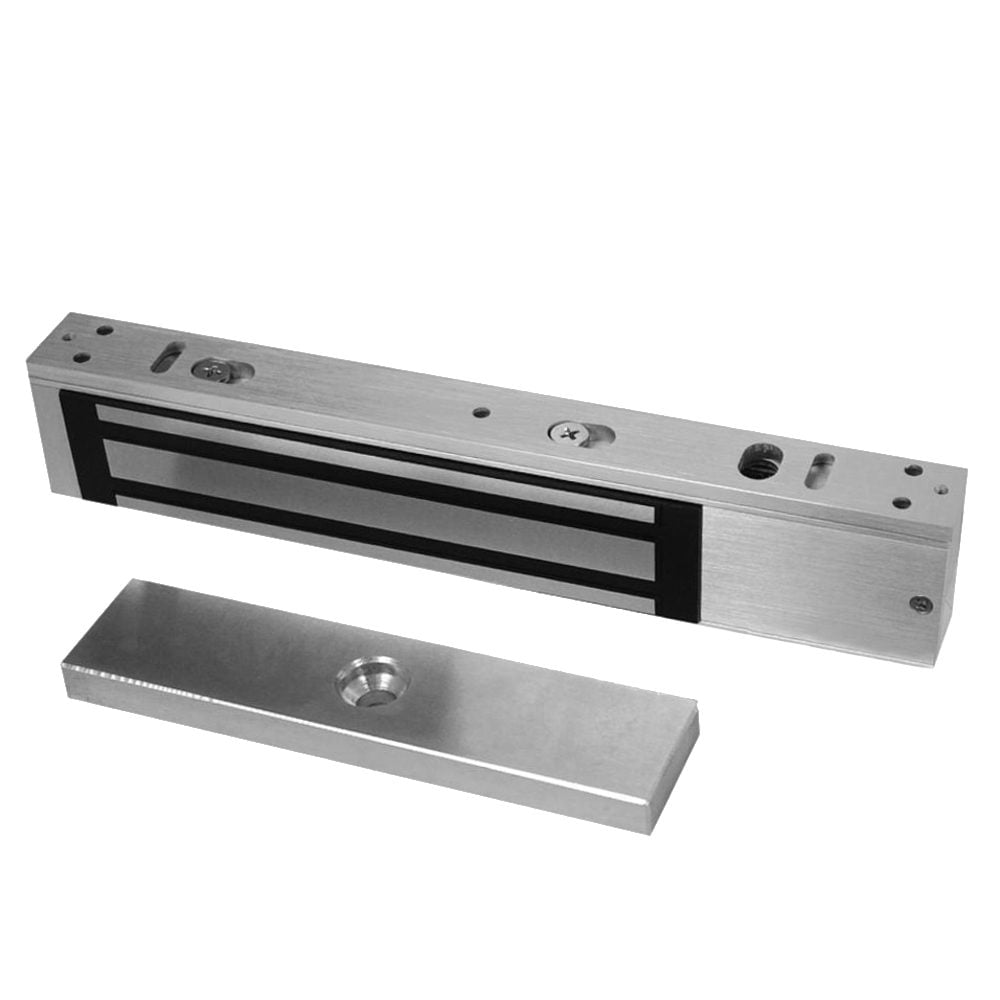

ADAMS RITE Armlock 261 Series Slim Line Single Magnet

Adams Rite More Adams Rite Slim Line

From

£354.59

Select size, finish, and quantity from the variant table.

View options

The Adams Rite Armlock 261 Series Slim Line Single Magnet is a high-quality, surface-mounted electromagnetic lock designed to facilitate secure remote access and exit control. Perfect for outward-opening aluminium, timber, or steel doors, this compact magnet combines clean aesthetics with reliable performance, making it an ideal choice for modern commercial and public buildings.

Operating on a fail-unlocked (fail-safe) basis, the lock ensures that doors automatically release in the event of a power failure to maintain safe emergency egress. It offers a robust magnetic holding force of at least 250kg (550lbs), providing dependable security during normal operation.

This model is available in both monitored and non-monitored versions, with corresponding manufacturer references 261-005 and 261-000. Please choose your preferred monitoring option and manufacturer reference from the options below to suit your specific access control requirements.

Technical Specifications

Brand: Adams Rite
Series: Armlock 261
Holding Force: 250kg (550lbs)
Input Voltage: 12/24V DC
Current Consumption: 0.48A at 12V DC & 0.24A at 24V DC
Operation: Fail Unlocked (Fail-Safe)
Handing: Outward Opening
Fitting: Surface mounted
Material: Aluminium
Finish: Satin Anodised Aluminium
Magnet Dimensions: 250mm (Length) x 42mm (Height) x 25mm (Depth)
Armature Dimensions: 160mm (Length) x 36mm (Height) x 11.3mm (Depth)
Weight: 1.8kg
Monitoring: Monitored (261-005) or Non-Monitored (261-000) options available (please choose below)
Guarantee: 3 Year

Key Features

Reliable Security: Maintains a magnetic holding force of at least 250kg (550lbs) for dependable access control.
Fail-Safe Operation: Fail-unlocked mechanism ensures immediate release during power cuts to allow safe emergency egress.
Versatile Compatibility: Designed to suit outward-opening aluminium, timber, or steel doors.
Aesthetic Slimline Profile: Features a compact case size with clean, modern aesthetics to suit any commercial environment.
CE Marked: Fully compliant with European safety standards.
